Battery HOLDDOWN: Description

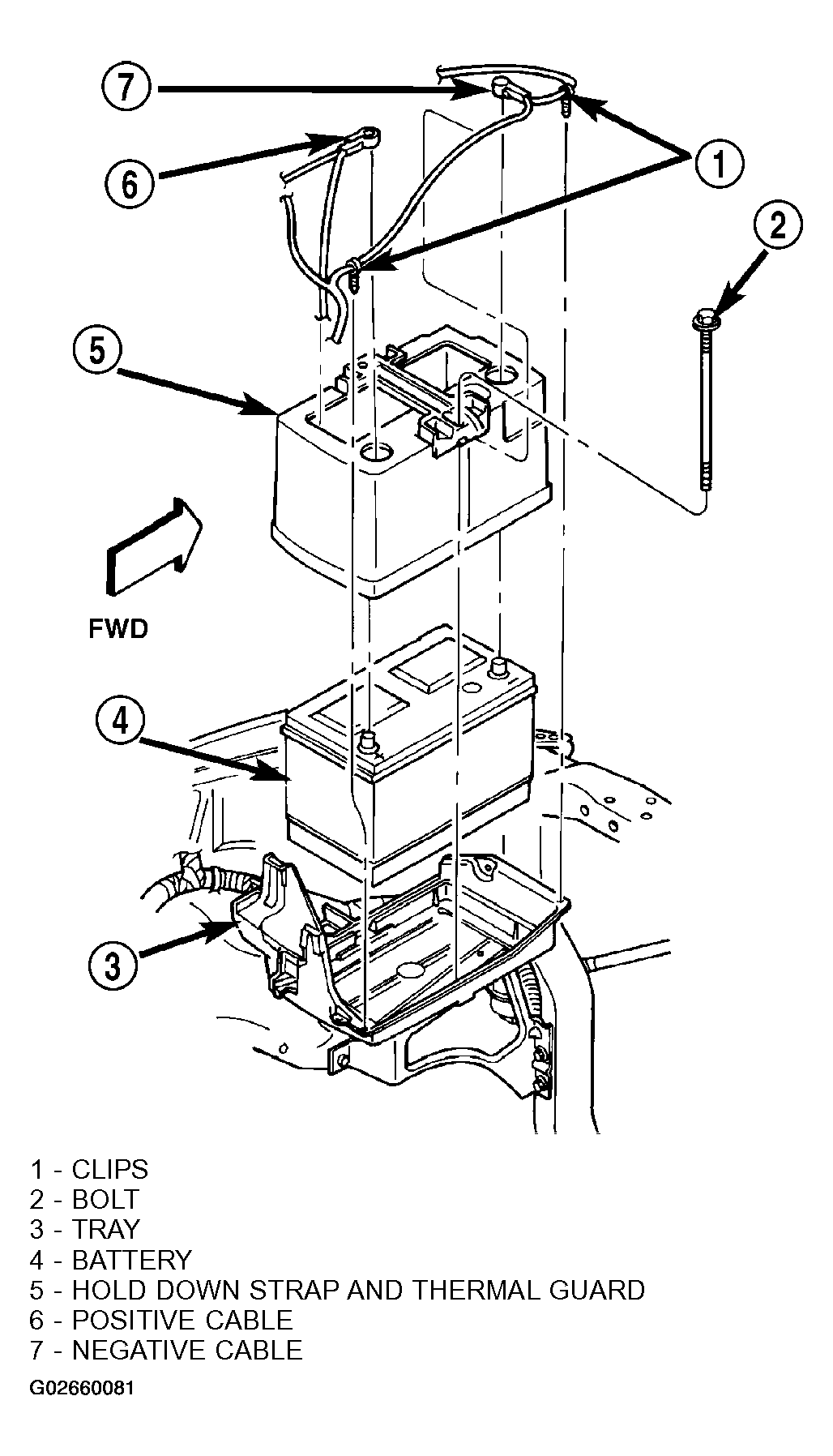

The battery hold down hardware includes two bolts, two U-nuts and a hold down strap/battery thermoguard unit. The molded plastic battery hold down strap is integral to the battery thermoguard unit, which encloses the sides of the battery case.
When installing a battery into the battery tray, be certain that the hold down hardware is properly installed and that the fasteners are tightened to the proper specifications. Improper hold down fastener tightness, whether too loose or too tight, can result in damage to the battery, the vehicle or both. Refer to Battery Hold Downs in this section for the location of the proper battery hold down installation procedures, including the proper hold down fastener tightness specifications.
