Airbag Control Module

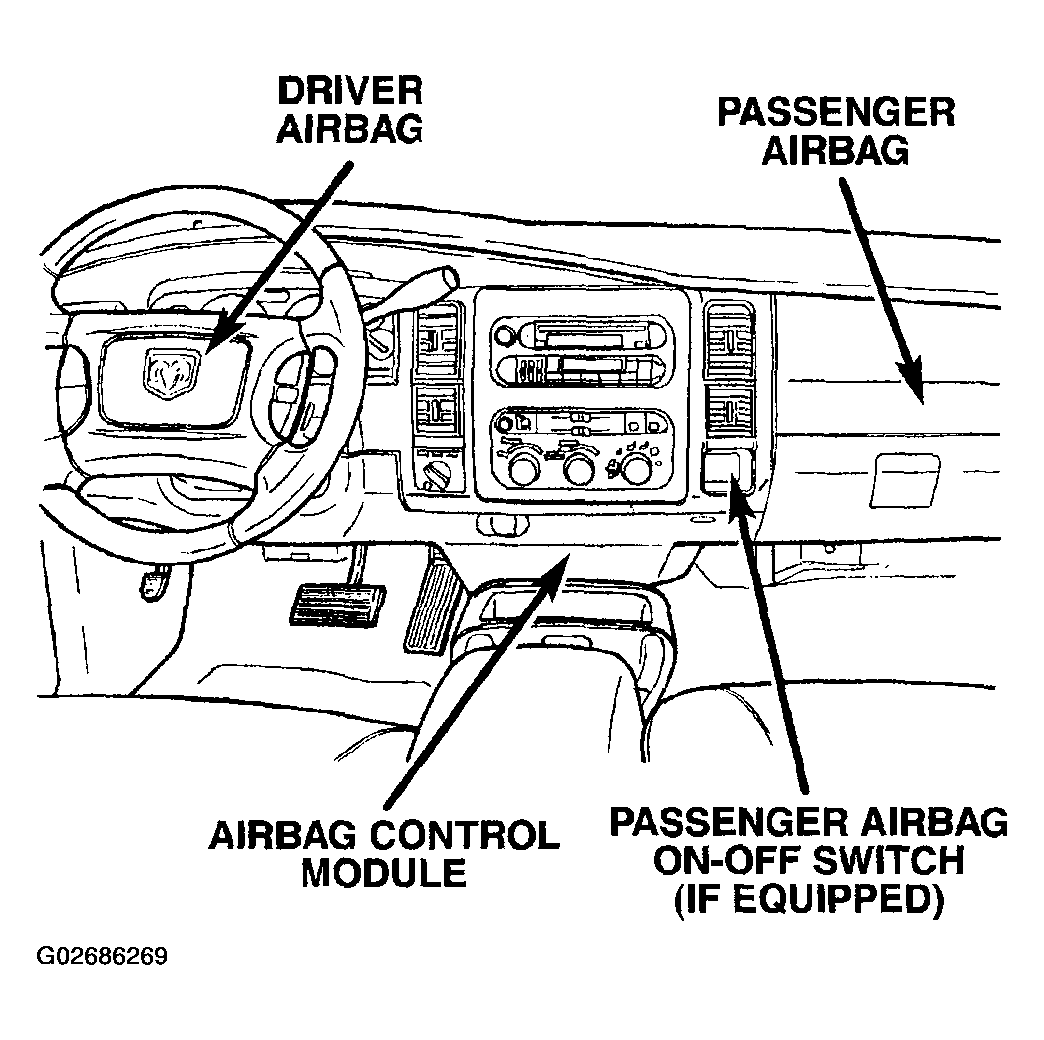

Fig 1: Identifying Airbag Control Module
G02686269Courtesy of DAIMLERCHRYSLER CORP.
