Engine 4.7L: Specifications: Torque

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Bed Plate Bolts ⁽¹⁾

Bolts A-L

40 (54)

Bolts 1-10

25 inch (3)

Bolts 1-10

Additional 90 Degrees

Bolts A1-A6

20 (27)

Camshaft Sprocket Bolt

Bearing Cap Bolts ⁽²⁾

100 INCH (11)

Non-Oiled Sprocket Bolt

90 (122)

Connecting Rod Cap Bolts

Step 1

20 (27)

Step 2

Tighten 90 Degrees

Crankshaft Damper Bolt

130 (175)

Cylinder Head Bolts ⁽³⁾

Refer To Procedure

Engine Mount Bracket to Block Bolts

45 (61)

Exhaust Manifold Bolts

18 (25)

Flexplate Bolts ⁽⁴⁾

45 (60)

Generator Mounting Bolts

M8 Bolts

250 INCH (28)

M10 Bolts

40 (54)

Hydraulic Tensioner Bolts

21 (28)

Oil Dipstick Tube to Engine Block Bolt

11 (15)

Oil Pan Bolts ⁽⁵⁾

11 (15)

Oil Pan Drain Plug

25 (34)

Oil Pickup Tube Bolt & Nut

21 (28)

Oil Pump Bolts

21 (28)

Rear Mount to Transmission Bolts

34 (46)

Timing Chain Cover Bolts

43 (58)

Timing Chain Guide Bolts

21 (28)

Timing Chain Primary Tensioner Bolts ⁽⁶⁾

21 (28)

Timing Chain Tensioner Arm - Special Pin Bolt

13 (17)

Timing Drive Idler Sprocket Bolt

25 (34)

Water Pump Bolts

43 (58)

INCH Lbs. (N.m)

Cylinder Head Cover Bolts

105 (12)

Exhaust Manifold Heat Shield Nuts

Step 1

72 (8)

Step 2

Loosen 45 Degrees

Intake Mainfold ⁽⁷⁾

105 (12)

Oil Fill Tube Bolts

105 (12)

Oil Pump Cover Bolts

105 (12)

Thermostat Housing Bolts

115 (13)

⁽¹⁾	Tighten according to specification. See Fig 1

⁽²⁾	Tighten according to specification. See Fig 2

⁽³⁾	Tighten according to specification. See Fig 3

⁽⁴⁾	Tighten according to specification. See Fig 4

⁽⁵⁾	Tighten according to specification. See Fig 5

⁽⁶⁾	Tighten according to specification. See Fig 6

⁽⁷⁾	Tighten according to specification. See Fig 7

Fig 1: Camshaft Bearing Cap Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.

Fig 2: Crankshaft Bedplate Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.

Fig 3: Cylinder Head Bolt Tightening Sequence & Sealant Application

Courtesy of CHRYSLER CORP.

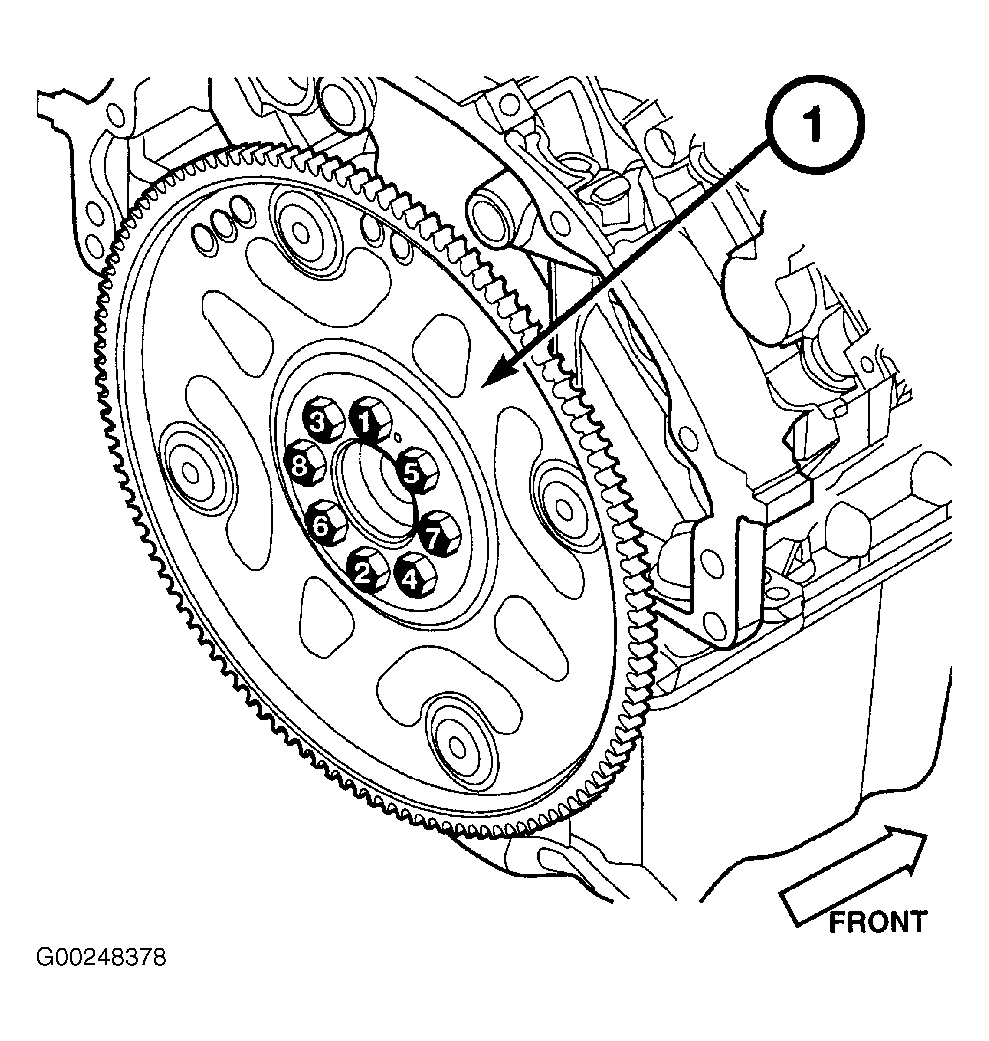

Fig 4: Flexplate Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.

Fig 5: Oil Pan Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.

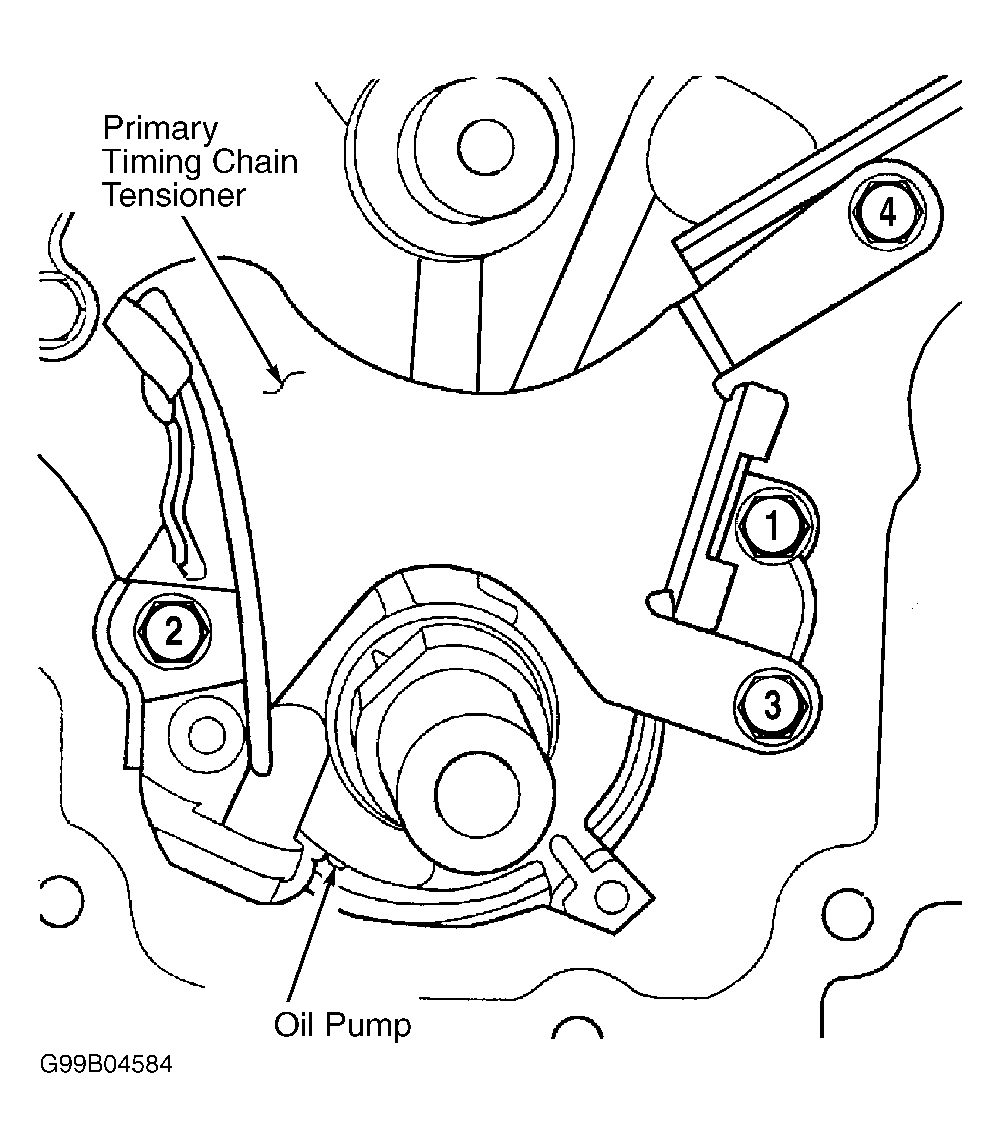

Fig 6: Timing Chain Primary Tensioner Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.

Fig 7: Intake Manifold Bolts/Studs Tightening Sequence

Courtesy of CHRYSLER CORP.
