Heat Shields: Description

There are two types of heat shields used. One is stamped steel the other is molded foil sheets. The shields attach to the vehicle around the exhaust system (Fig 1 ).

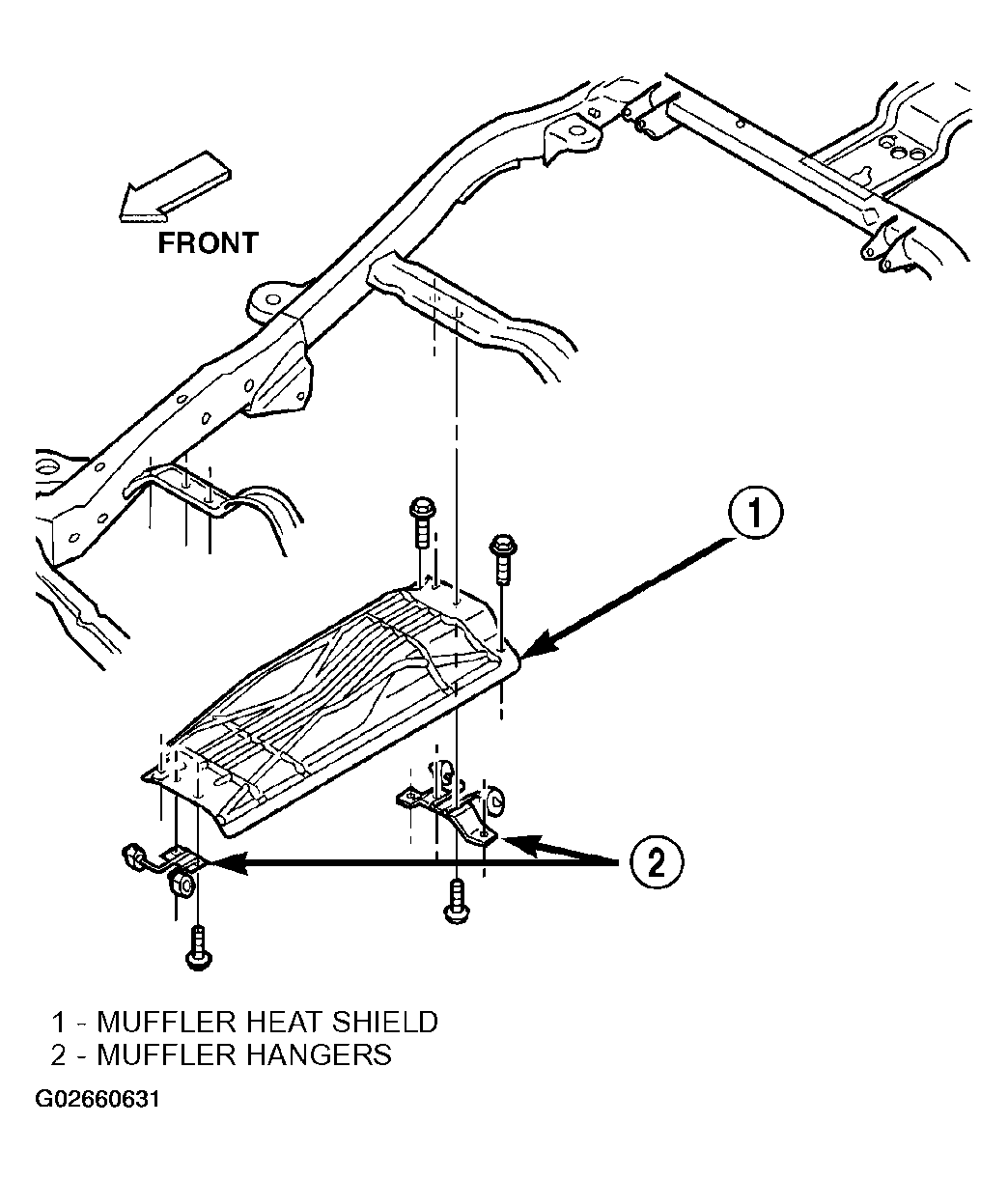

Fig 1: Identifying Heat Shield - Typical

Courtesy of DAIMLERCHRYSLER CORP.
