Exhaust System: Muffler: Removal

  1. Disconnect battery negative cable.
  2. Raise vehicle on hoist.
  3. Remove muffler to exhaust pipe/catalytic converter and tailpipe clamps (Fig 1 ).

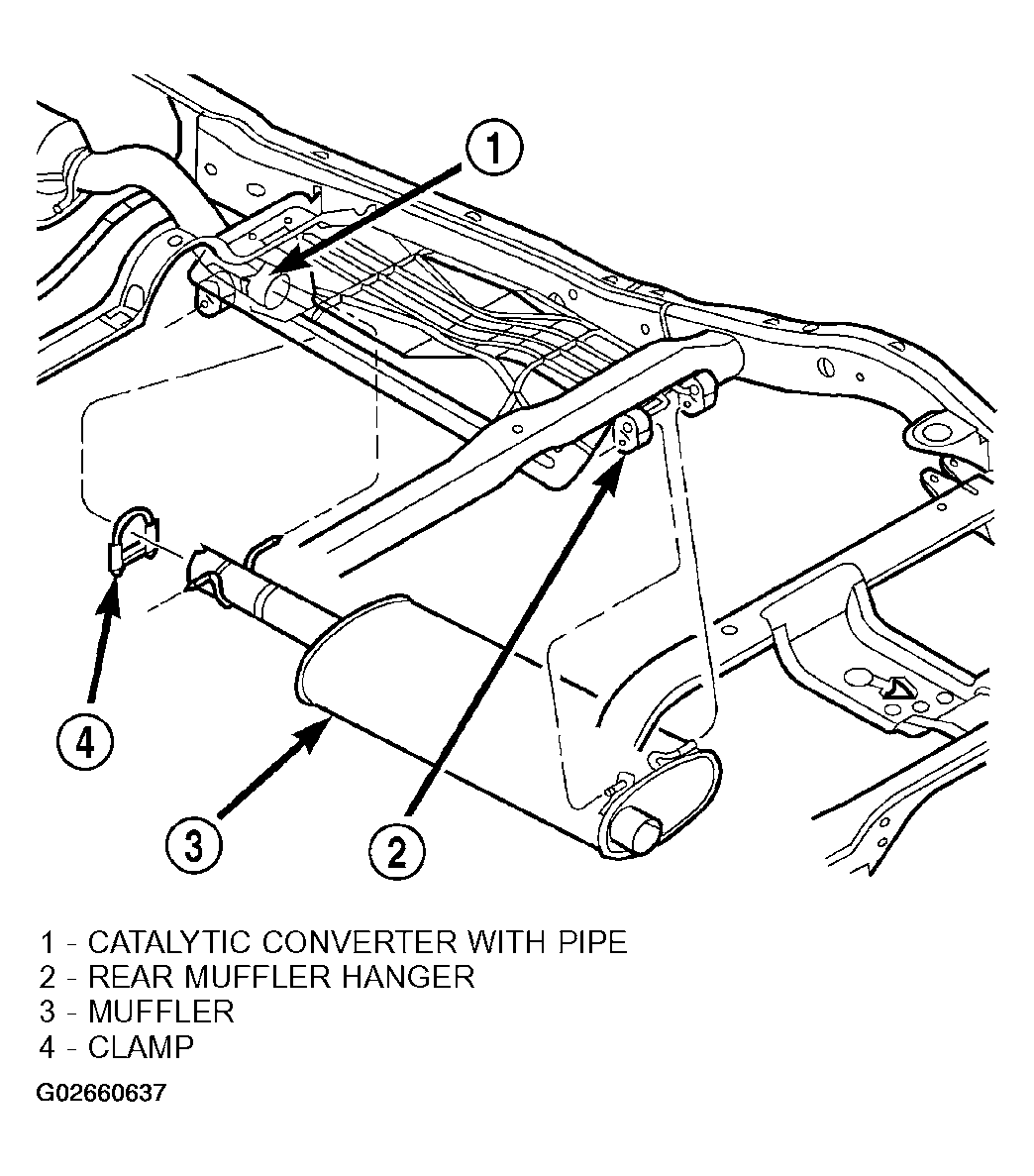

    Fig 1: Removing Muffler
    G02660637Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove tailpipe from hanger isolator. Heat muffler to tailpipe with an oxygen/acetylene torch and twist tailpipe out of muffler.
  5. Disconnect muffler from hanger isolators (Fig 1 ).
  6. Heat muffler to exhaust pipe/catalytic converter connection and twist muffler off of converter pipe.
