Front Wiper/Washers

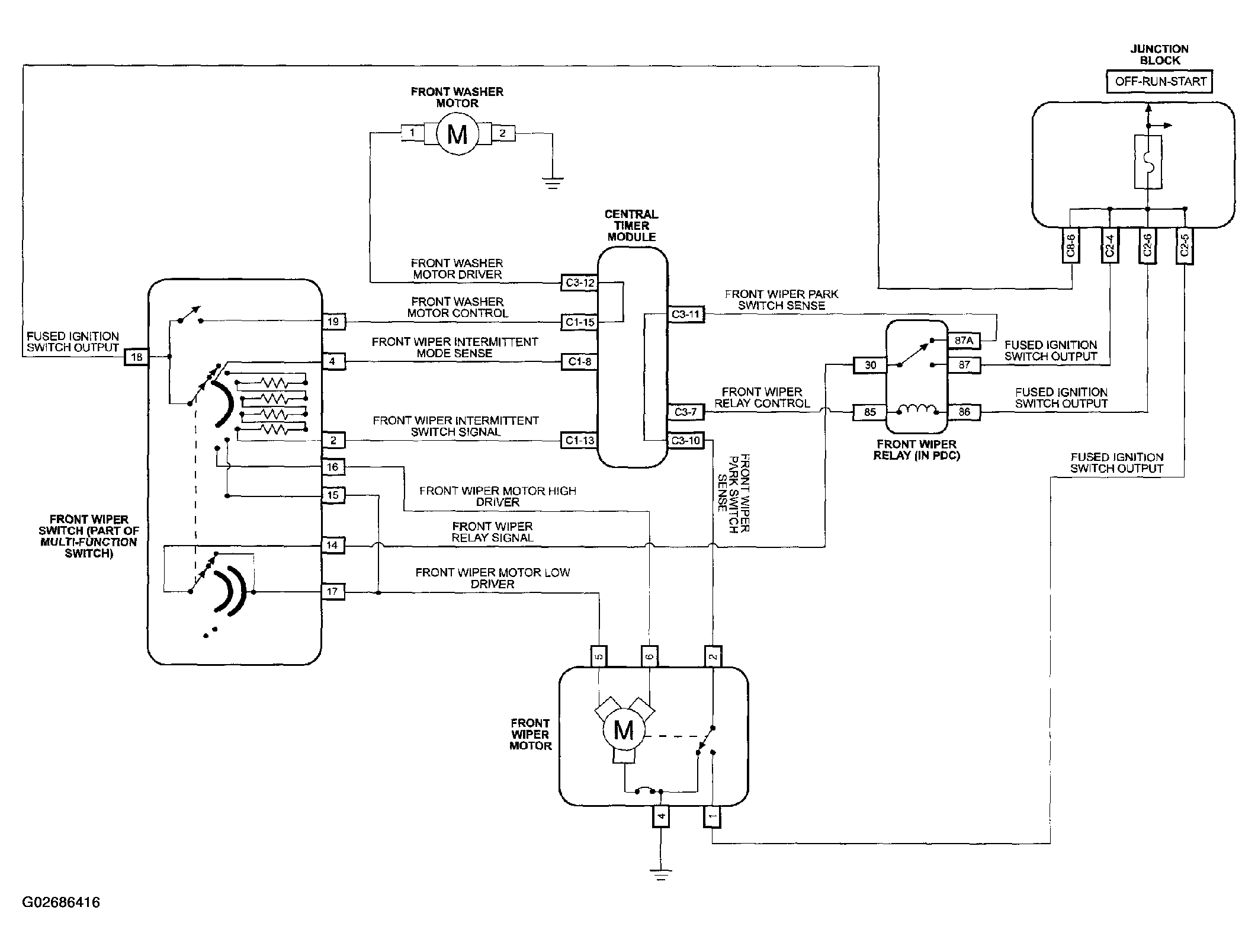

Fig 1: Front Wiper/Washers Schematic Diagram
G02686416Courtesy of DAIMLERCHRYSLER CORP.
