Vehicle Communication: Communication

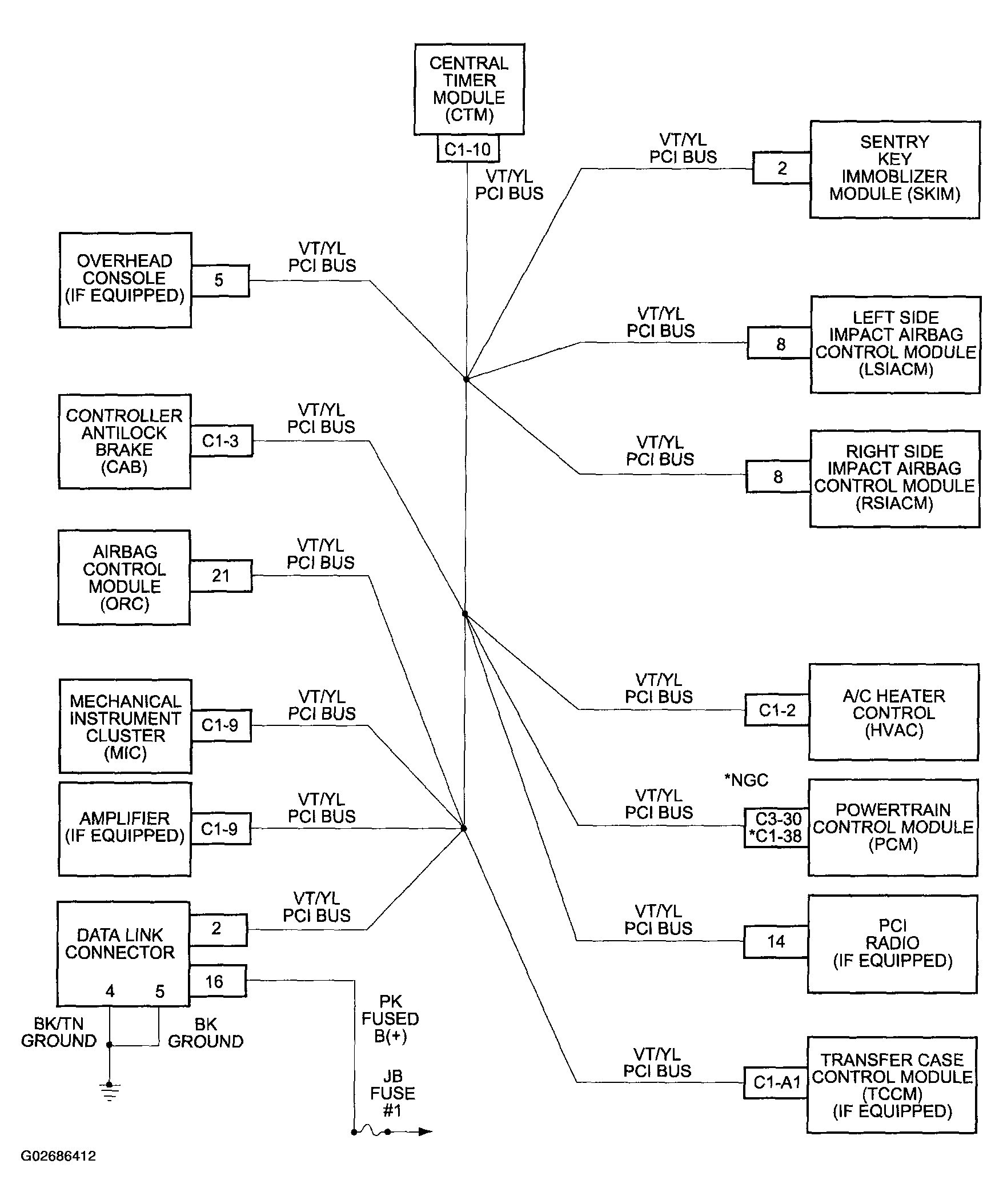

Fig 1: Communication Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
