Overhead Console
Overhead Console

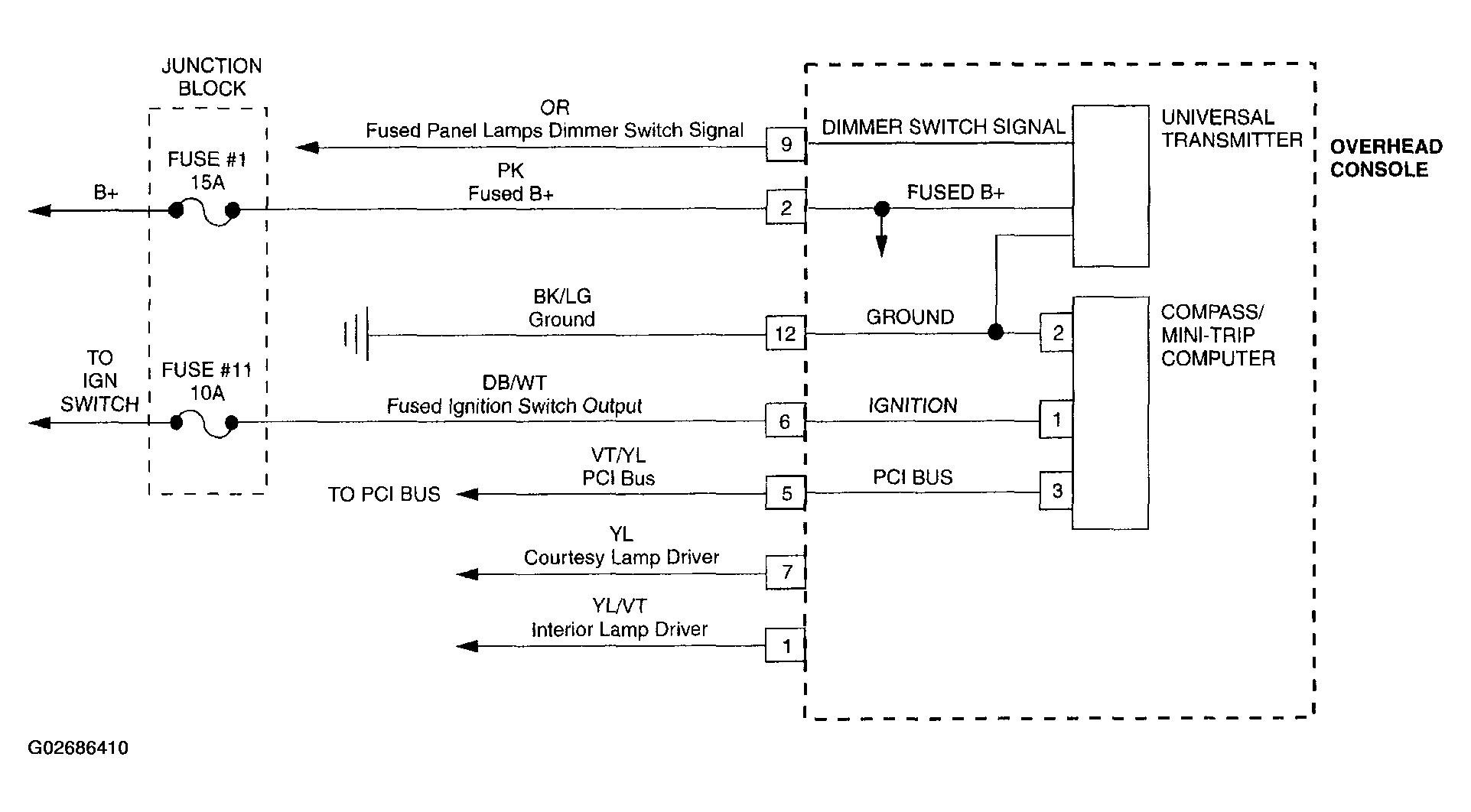

Fig 1: Overhead Console Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
