Intake Air Temperature Sensor: Removal

  1. Disconnect electrical connector from intake air temperature sensor (Fig 1 ).

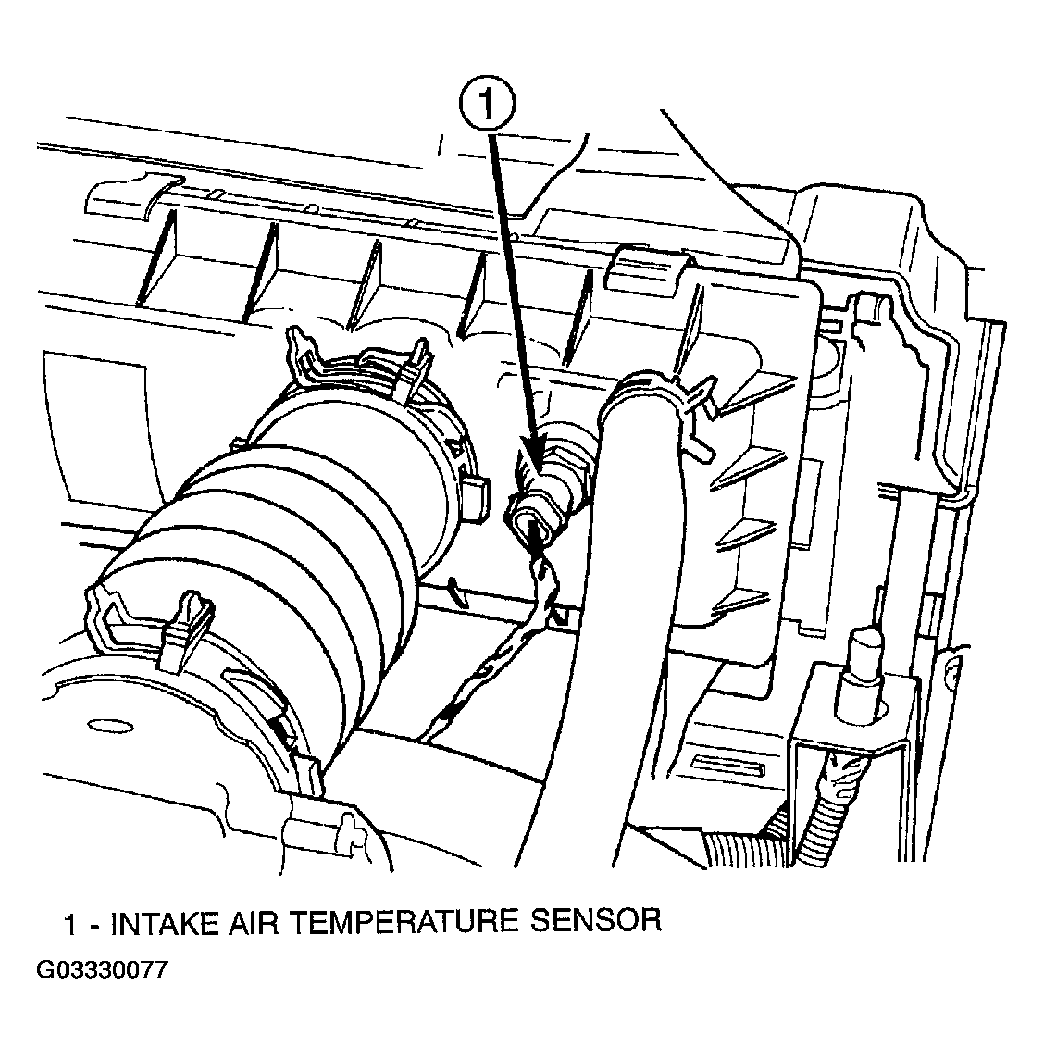

    Fig 1: Removing Intake Air Temperature Sensor
    G03330077Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove sensor.
