Fuel Pressure Regulator: Removal

The fuel pressure regulator is part of the fuel pump module (Fig 1 ). Remove the fuel pump module from the fuel tank to access the fuel pressure regulator. Refer to the FUEL PUMP MODULE REMOVAL  in this section.

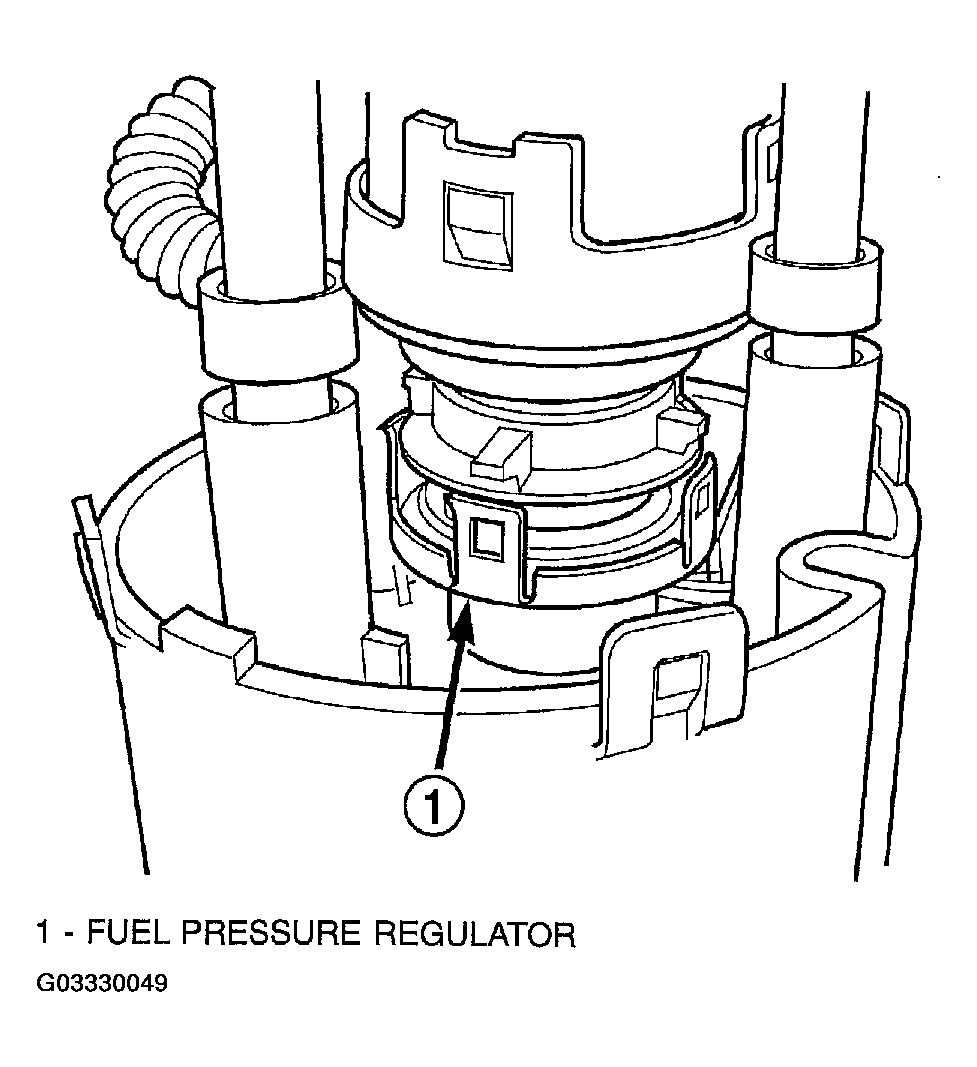

Fig 1: Locating Fuel Pressure Regulator Retainer (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

1. Spread tangs on pressure regulator retainer (Fig 1 ).
2. Pry fuel pressure regulator out of housing.
3. Ensure that the O-ring was removed with regulator (Fig 2 ).
   Fig 2: Locating Fuel Pressure Regulator Retainer (2 Of 2)

   Courtesy of DAIMLERCHRYSLER CORP.
