ICU (Integrated Control Unit): Assembly

  1. Install the CAB on the HCU lining up the solenoids with the valves.

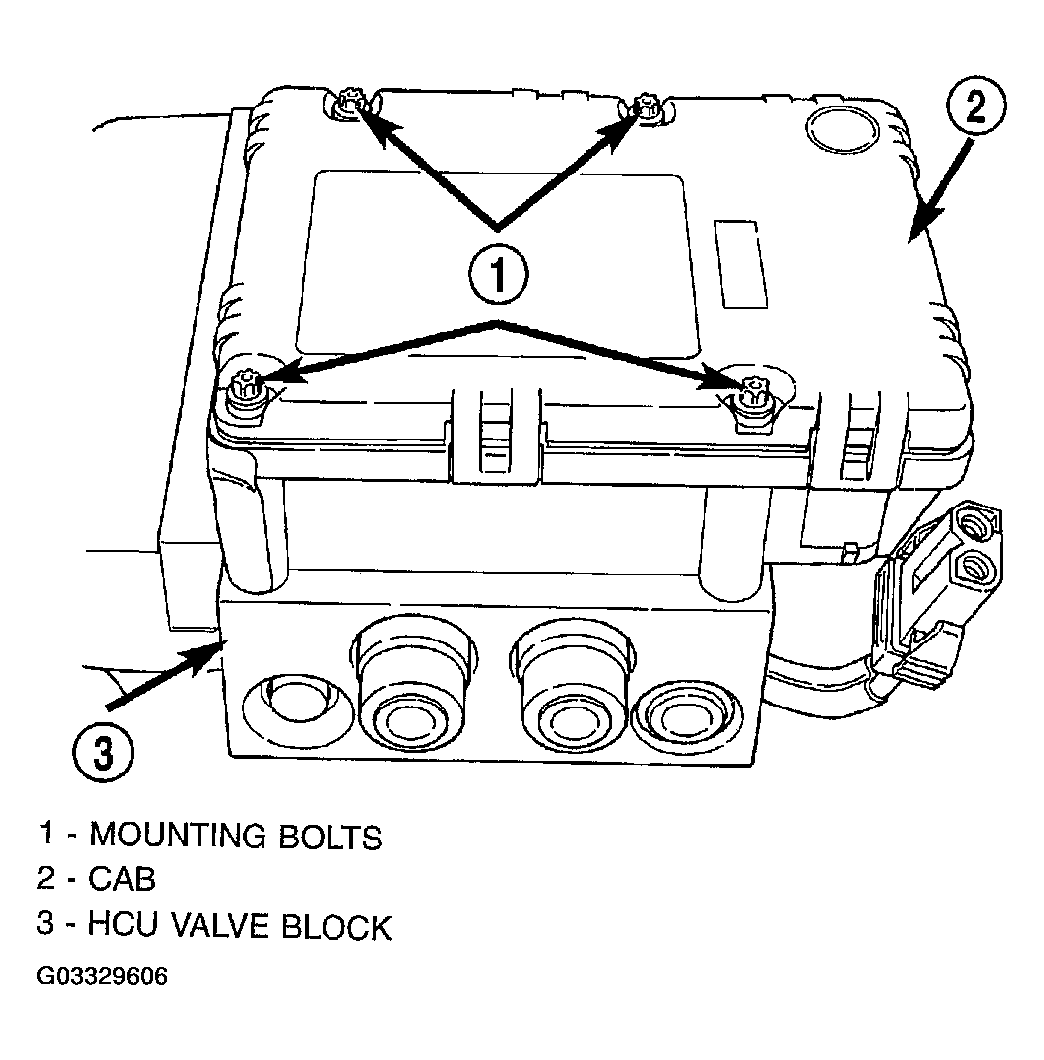

  2. Install the 4 bolts mounting the CAB to the HCU (Figure ). Tighten the CAB mounting bolts to a torque of 2 N.m (17 in. lbs.).

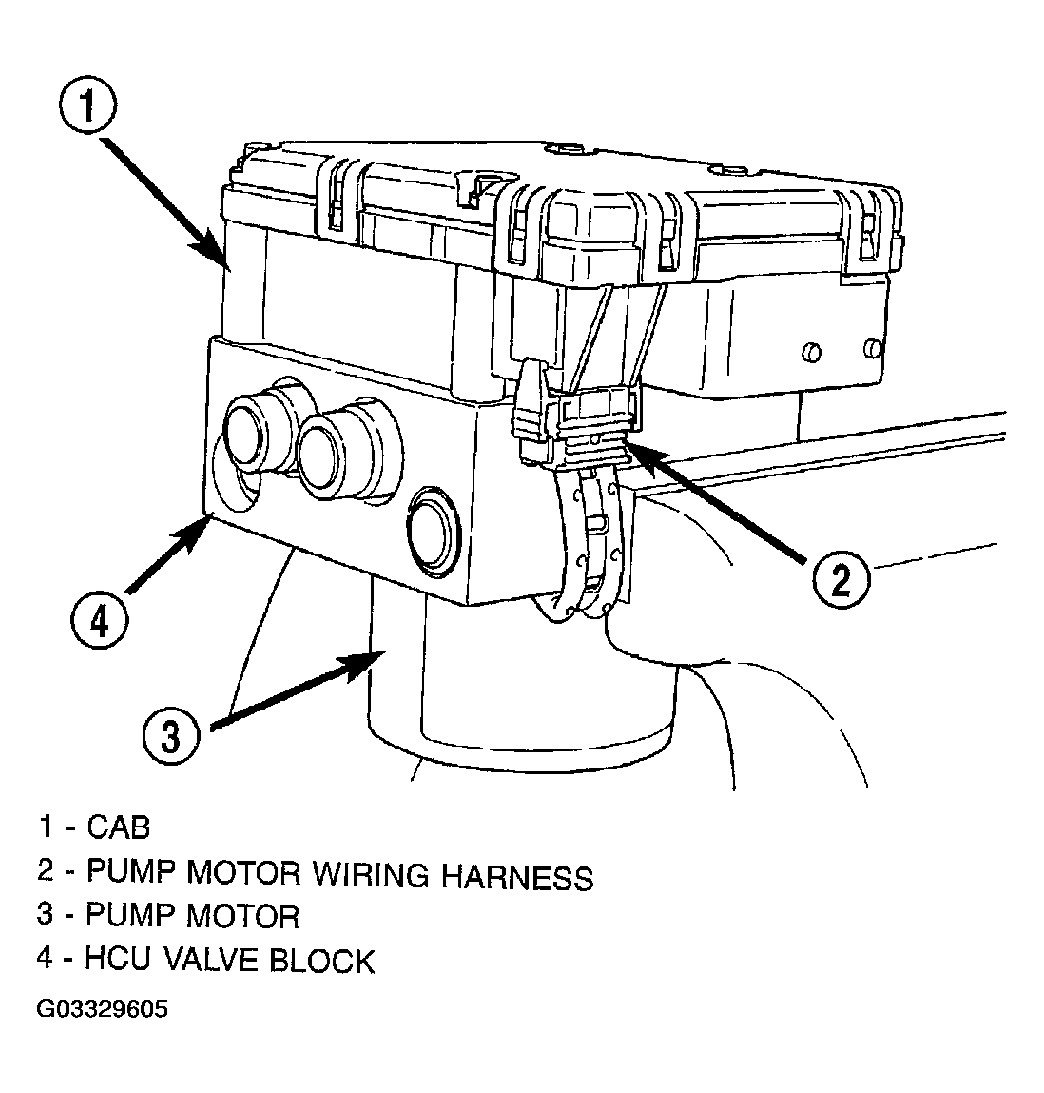

  3. Plug the pump/motor wiring harness into the CAB (Figure ).
  4. Install the ICU in the vehicle. (Refer to INSTALLATION  ).
