Entry Module: Installation

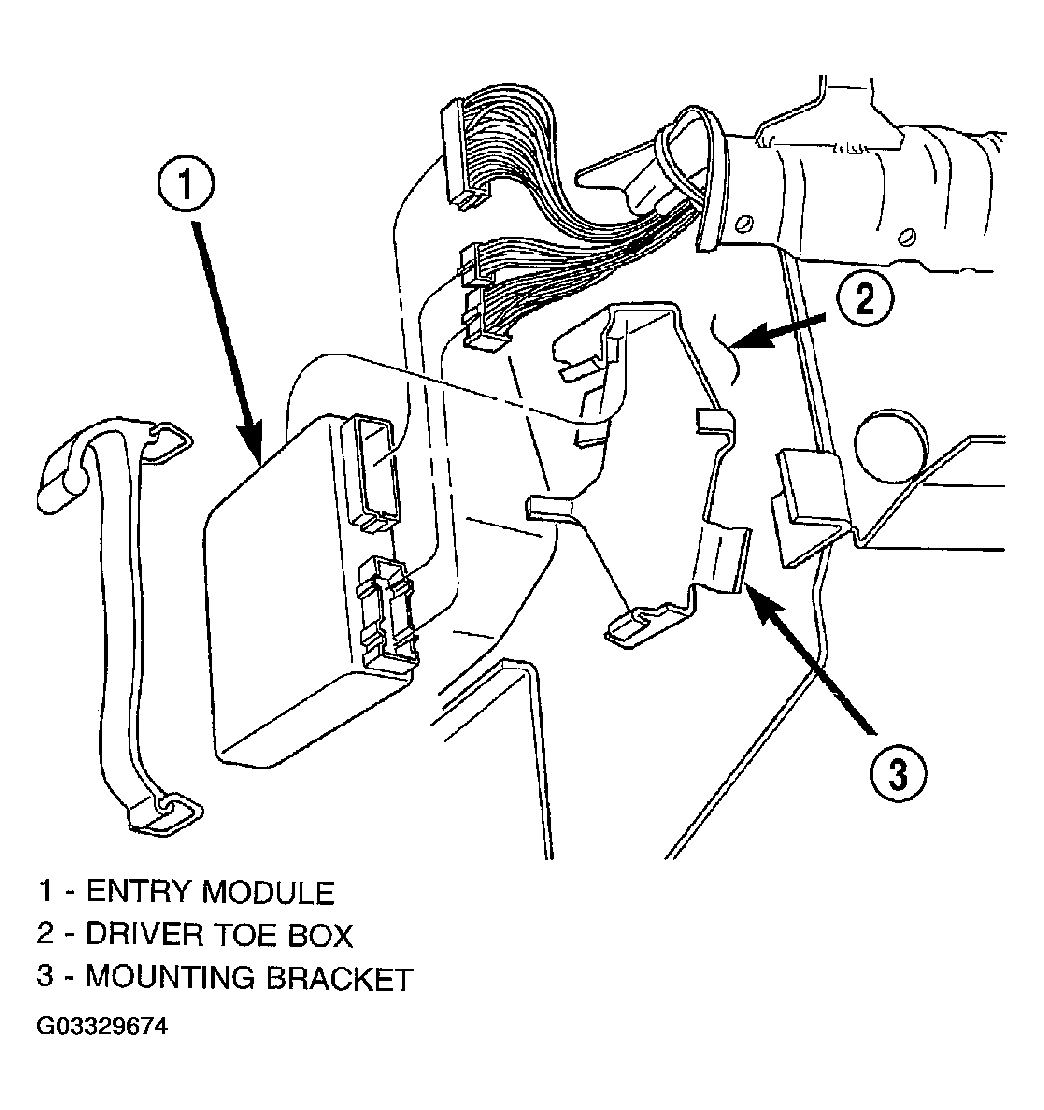

  1. Place the module into the mounting bracket (Figure ).
  2. Connect the three wire connectors.
  3. Install the rubber retaining strap.
  4. Install the knee blocker.
  5. Install the left lower instrument panel cover.
  6. Connect the battery jump start attachment.
