Connector PINOUTS

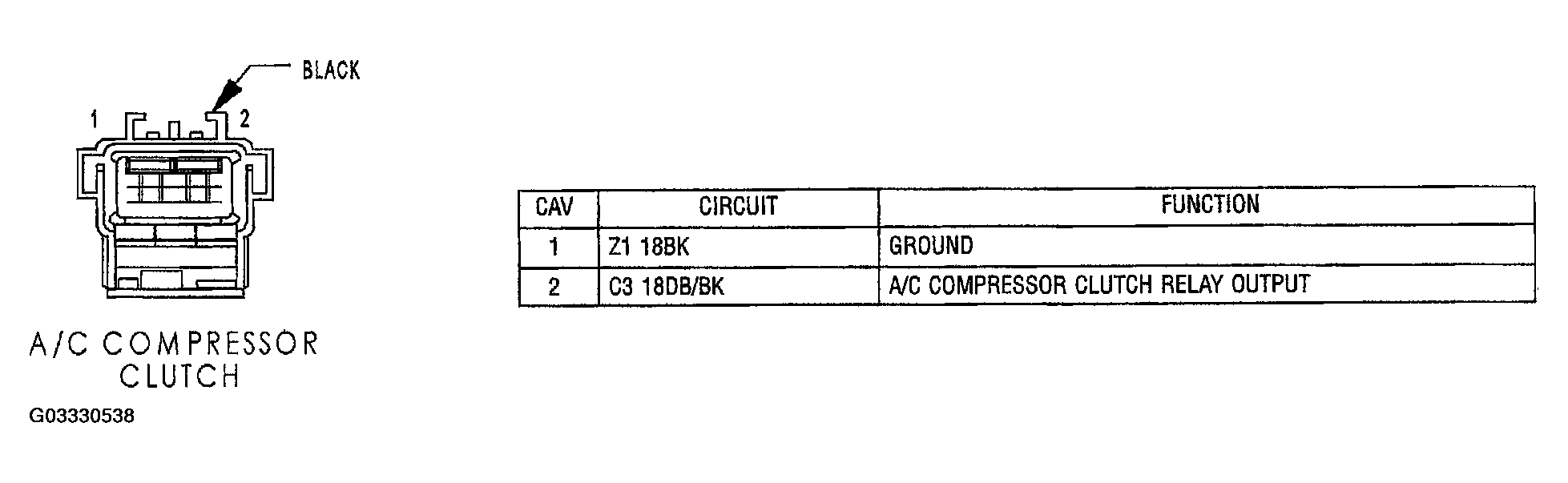

Fig 1: A/C Compressor Clutch - Black 2 Way Connector Pinouts

G03330538

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: A/C Low Pressure Cutout Switch - White 2 Way Connector Pinouts

G03330539

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: A/C-Heater Control C1 - Black 2 Way Connector Pinouts

G03330540

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Battery Temperature Sensor - Black 2 Way Connector Pinouts

G03330541

Courtesy of DAIMLERCHRYSLER CORP.

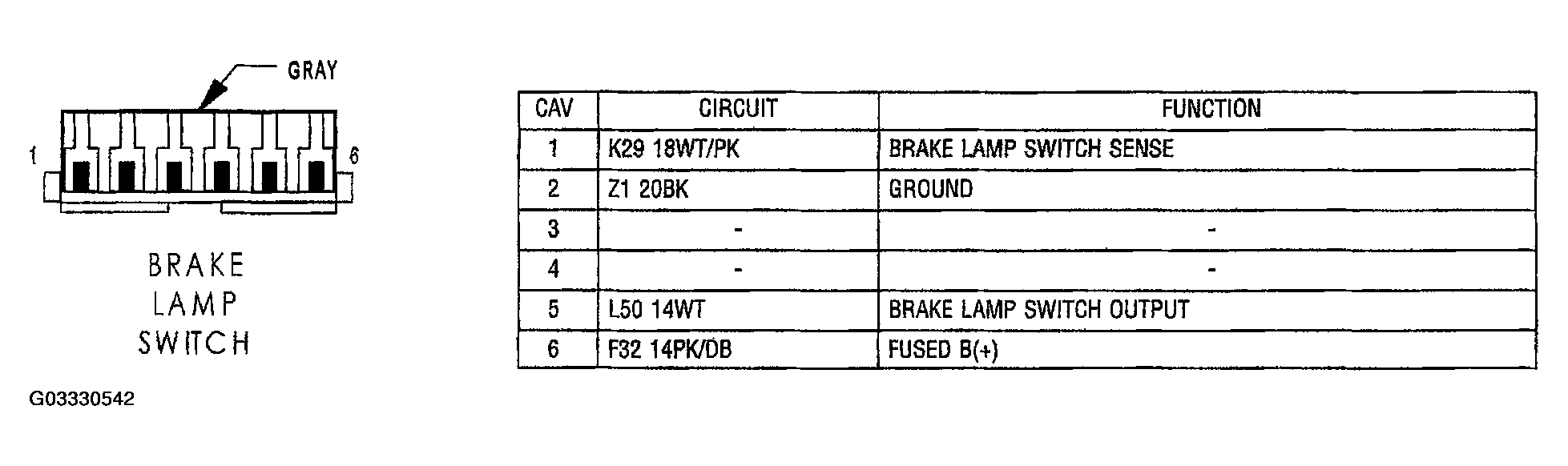

Fig 5: Brake Lamp Switch - Gray 6 Way Connector Pinouts

G03330542

Courtesy of DAIMLERCHRYSLER CORP.

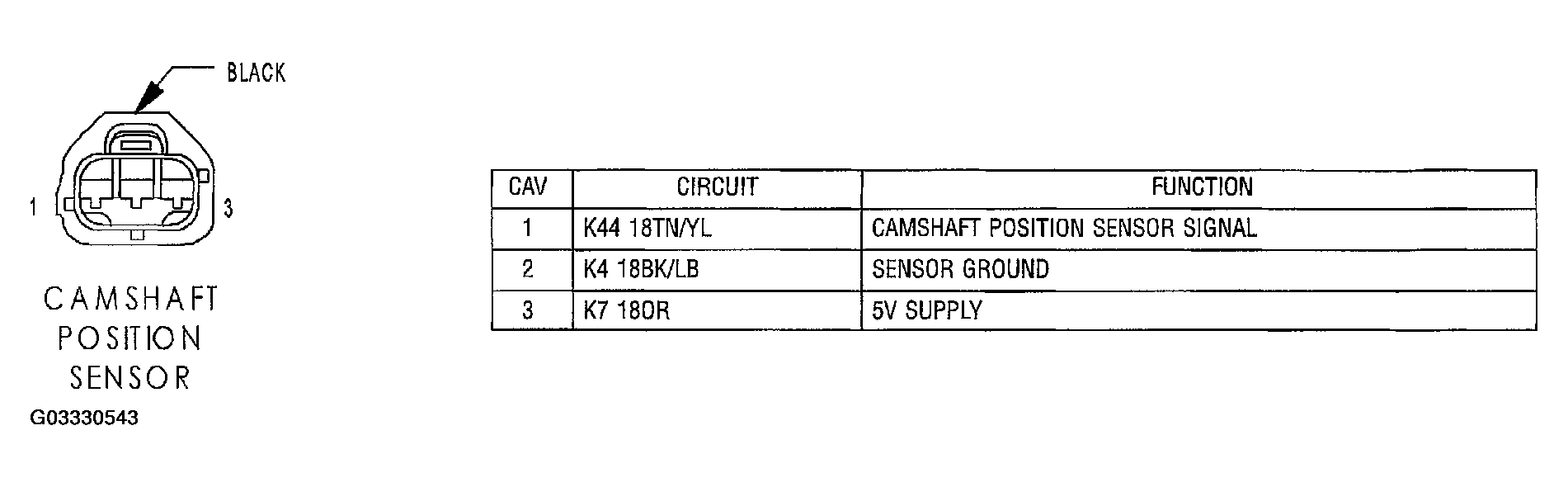

Fig 6: Camshaft Position Sensor - Black 3 Way Connector Pinouts

G03330543

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Clockspring C1 - Natural 5 Way Connector Pinouts

G03330544

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Clockspring C2 - Yellow 2 Way Connector Pinouts

G03330545

Courtesy of DAIMLERCHRYSLER CORP.

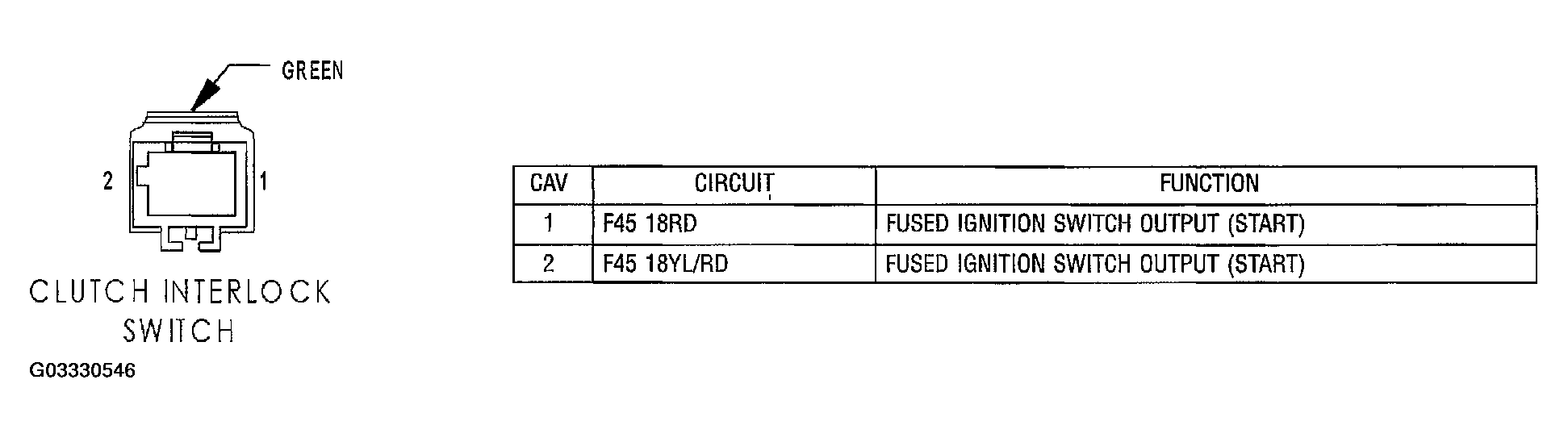

Fig 9: Clutch Interlock Switch - Green 2 Way Connector Pinouts

G03330546

Courtesy of DAIMLERCHRYSLER CORP.

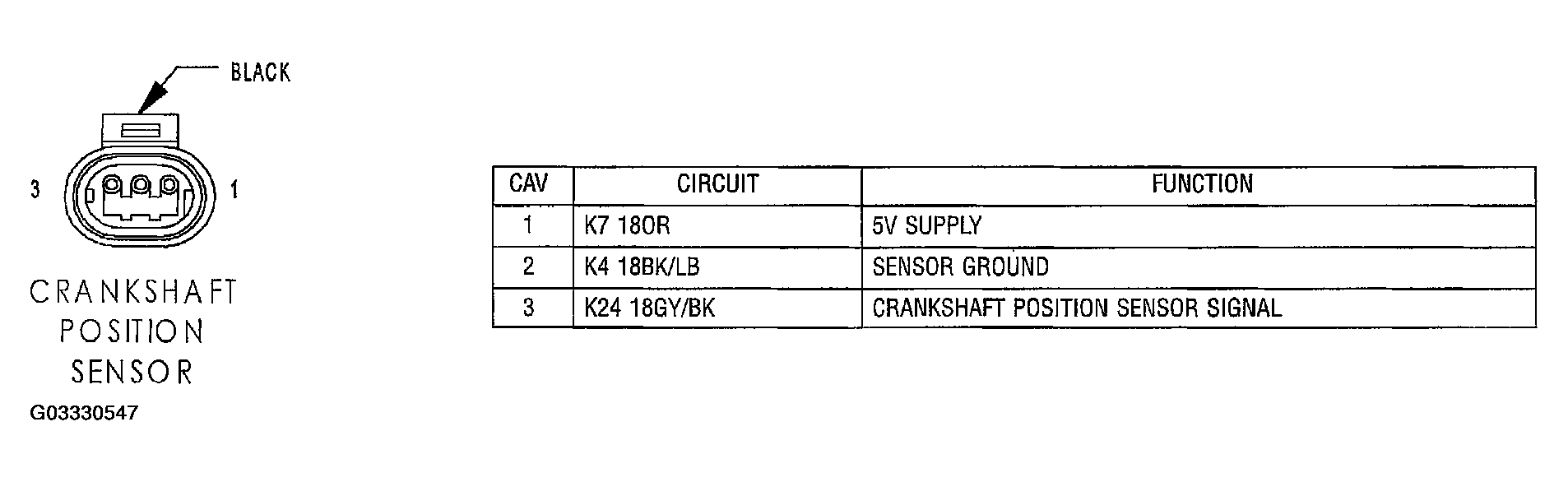

Fig 10: Crankshaft Position Sensor - Black 3 Way Connector Pinouts

G03330547

Courtesy of DAIMLERCHRYSLER CORP.

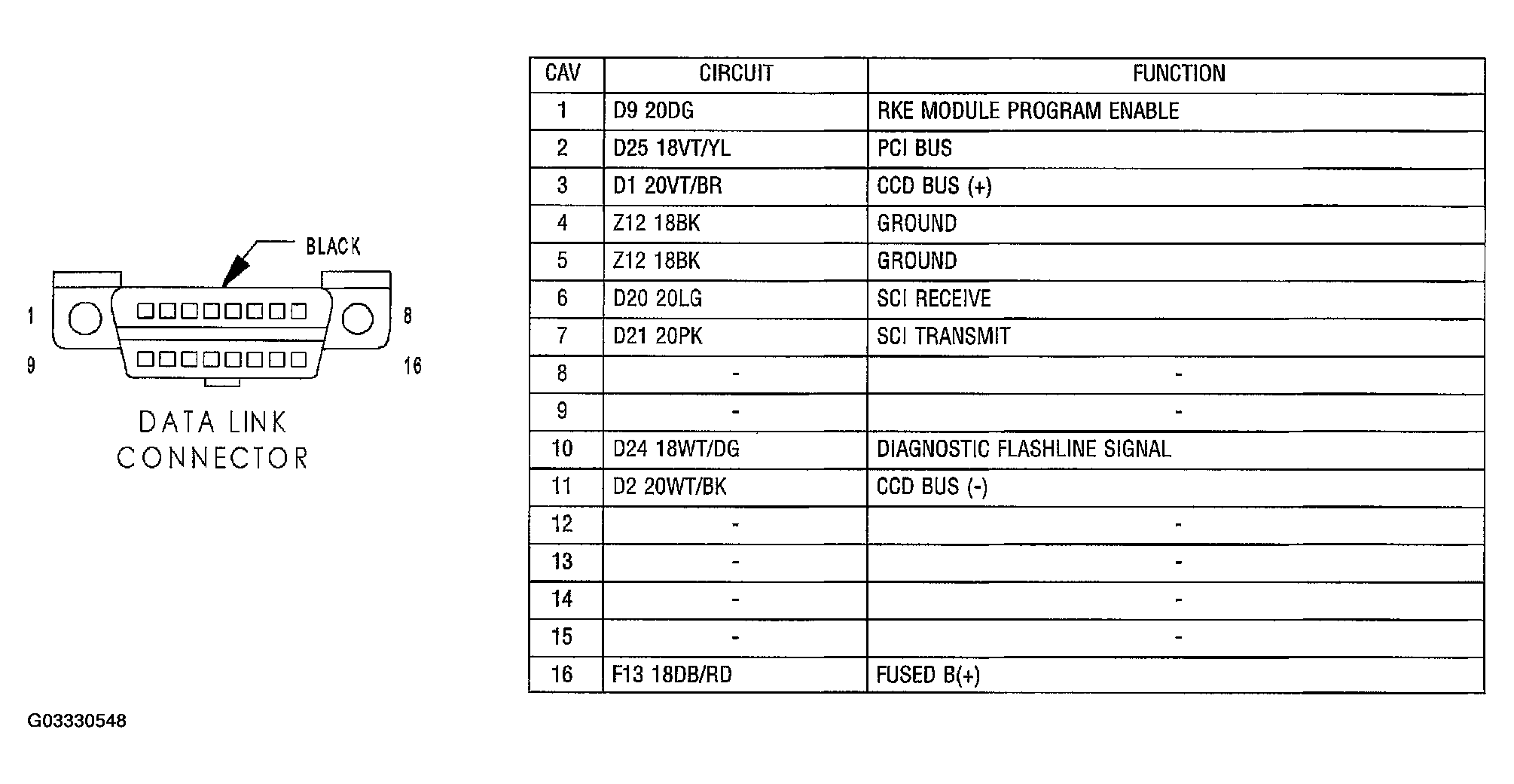

Fig 11: Data Link Connector - Black 16 Way Connector Pinouts

G03330548

Courtesy of DAIMLERCHRYSLER CORP.

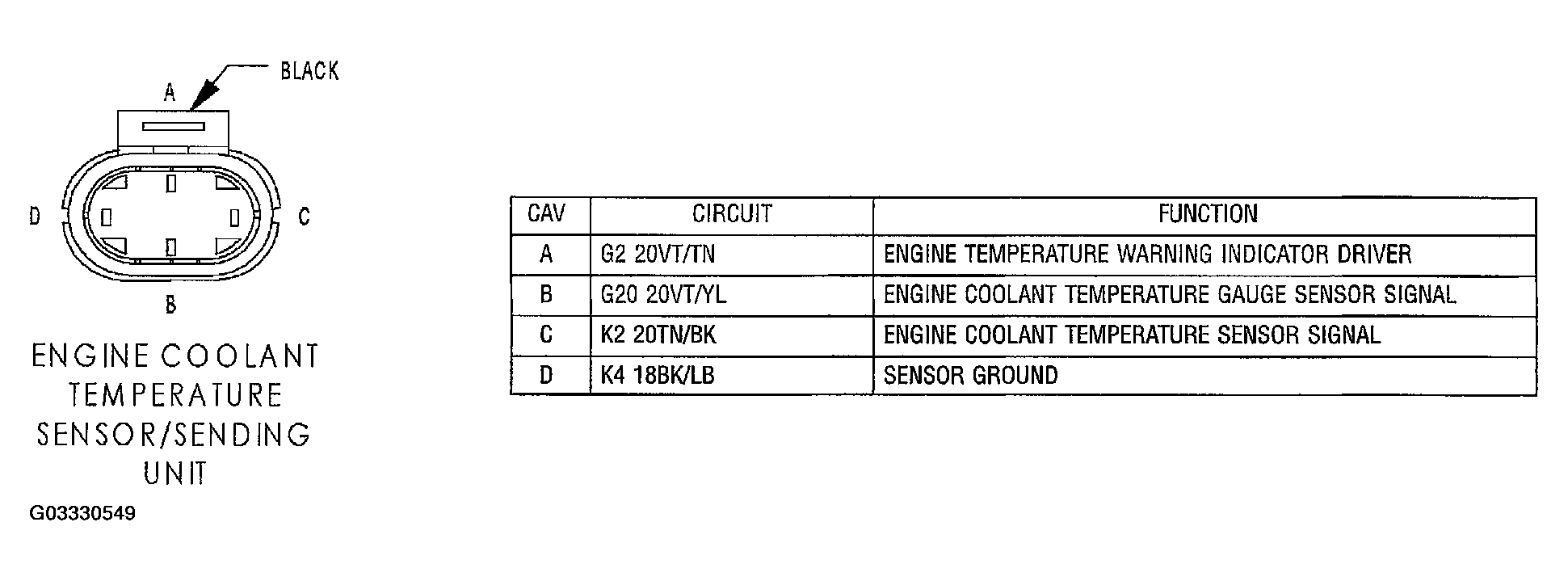

Fig 12: Engine Coolant Temperature Sensor/Sending Unit - Black 4 Way Connector Pinouts

G03330549

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Engine Oil Pressure Sending Unit - Black 2 Way Connector Pinouts

G03330550

Courtesy of DAIMLERCHRYSLER CORP.

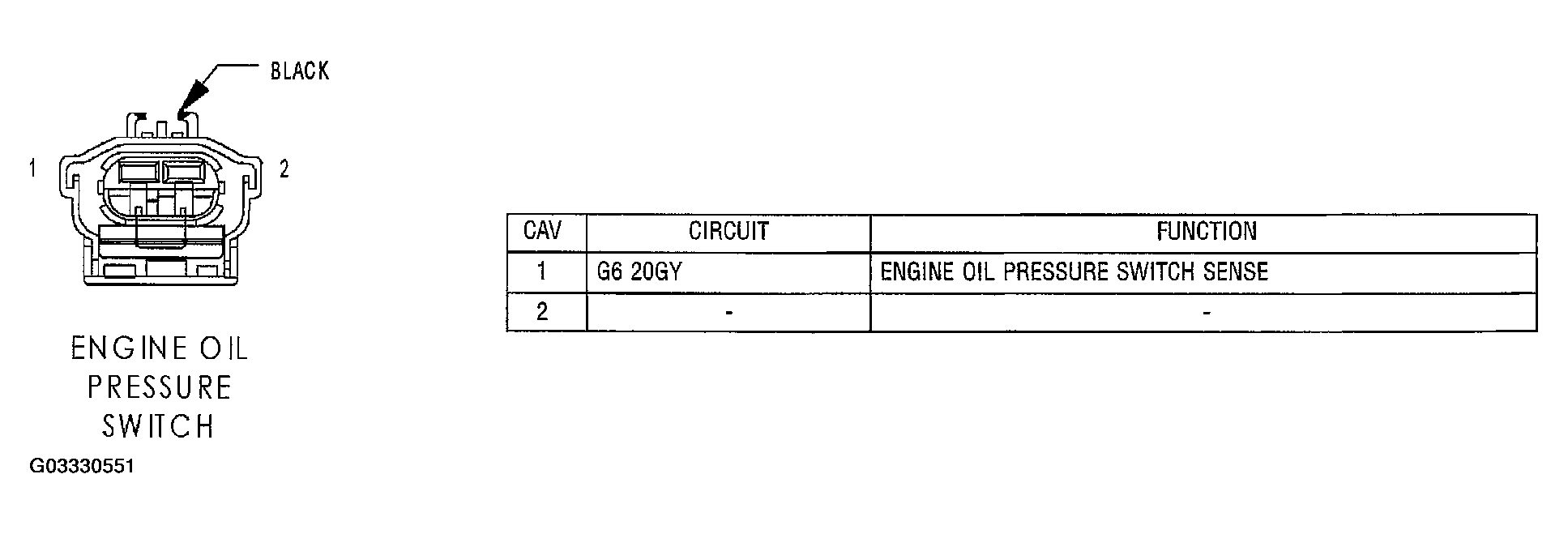

Fig 14: Engine Oil Pressure Switch - Black 2 Way Connector Pinouts

G03330551

Courtesy of DAIMLERCHRYSLER CORP.

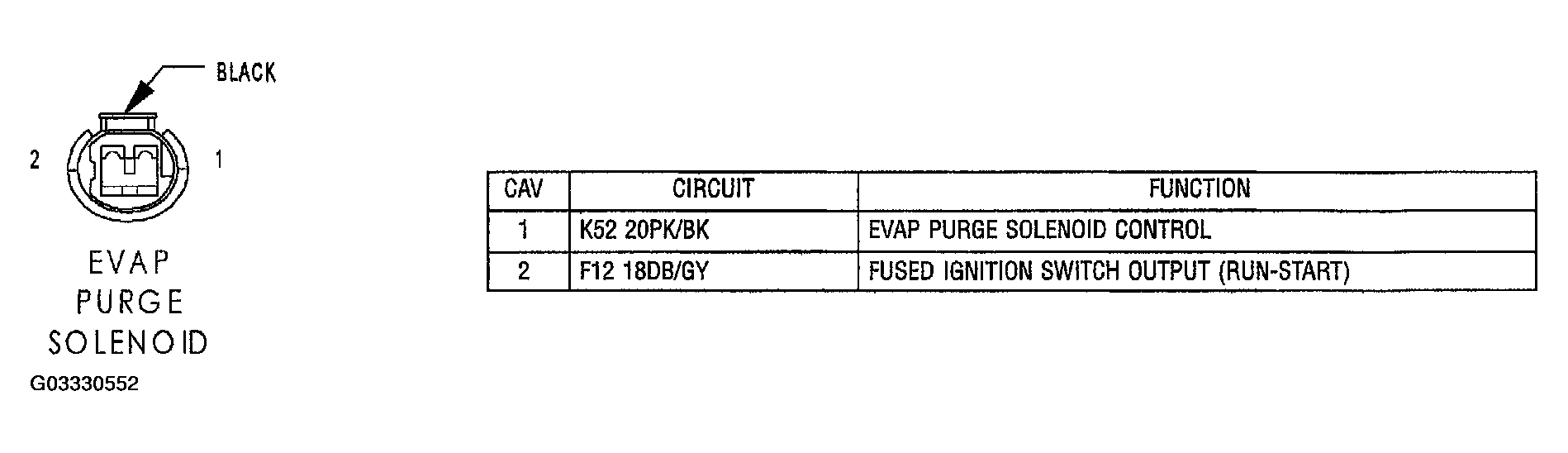

Fig 15: EVAP Purge Solenoid - Black 2 Way Connector Pinouts

G03330552

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Fuel Injector No. 1 - Black 2 Way Connector Pinouts

G03330553

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Fuel Injector No. 2 - Black 2 Way Connector Pinouts

G03330554

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Fuel Injector No. 3 - Black 2 Way Connector Pinouts

G03330555

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Fuel Injector No. 4 - Black 2 Way Connector Pinouts

G03330556

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Fuel Injector No. 5 - Black 2 Way Connector Pinouts

G03330557

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Fuel Injector No. 6 - Black 2 Way Connector Pinouts

G03330558

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Fuel Injector No. 7 - Black 2 Way Connector Pinouts

G03330559

Courtesy of DAIMLERCHRYSLER CORP.

Fig 23: Fuel Injector No. 9 - Black 2 Way Connector Pinouts

G03330560

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Fuel Injector No. 10 - Black 2 Way Connector Pinouts

G03330561

Courtesy of DAIMLERCHRYSLER CORP.

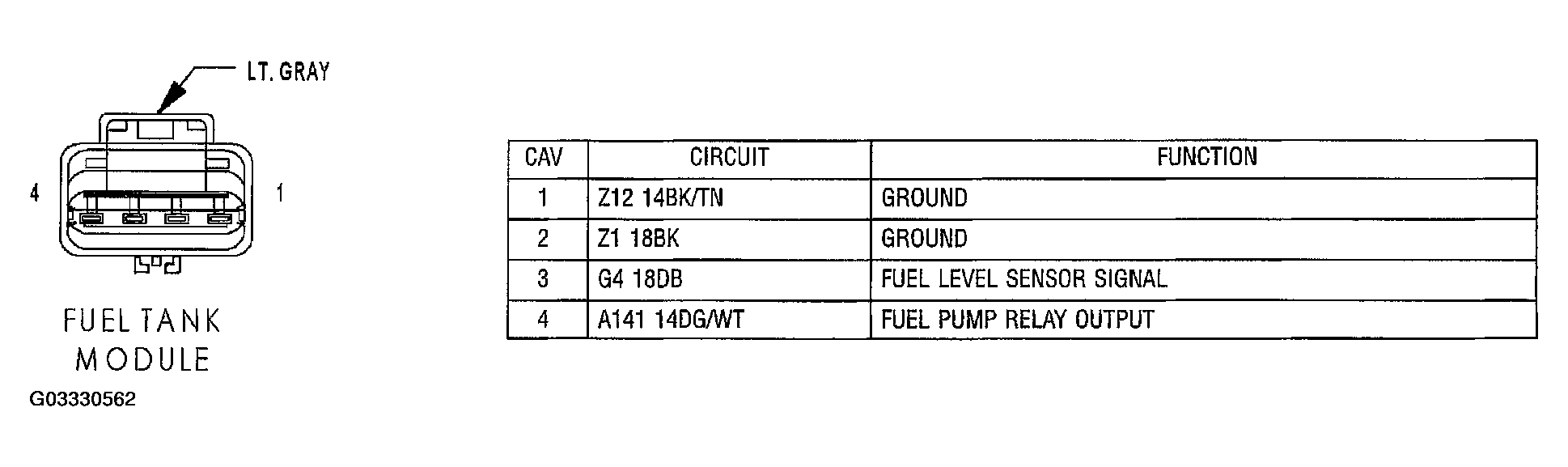

Fig 25: Fuel Tank Module - Lt. Gray 4 Way Connector Pinouts

G03330562

Courtesy of DAIMLERCHRYSLER CORP.

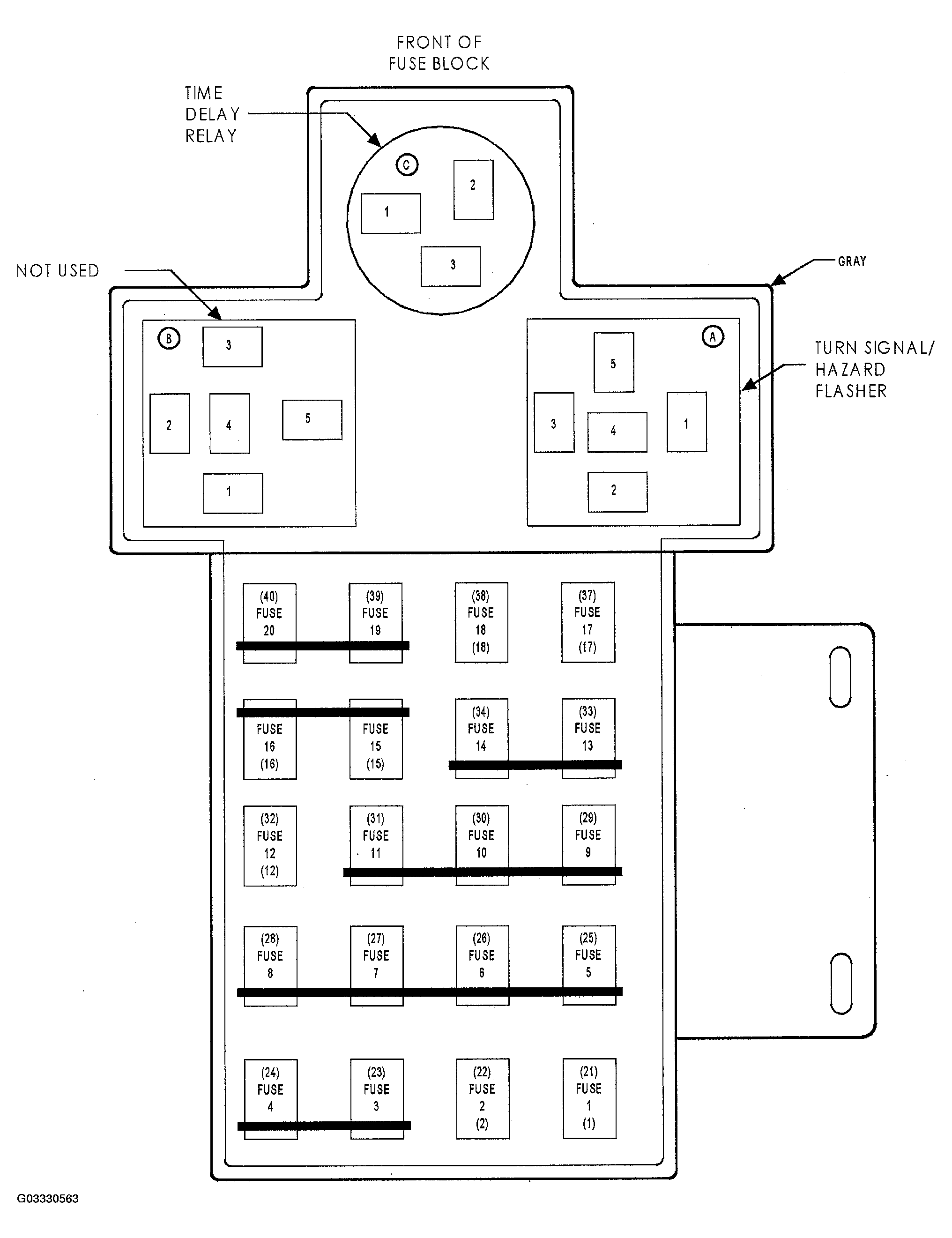

Fig 26: Fuses (Fuse Block) Connector Pinouts (1 Of 2)

G03330563

Courtesy of DAIMLERCHRYSLER CORP.

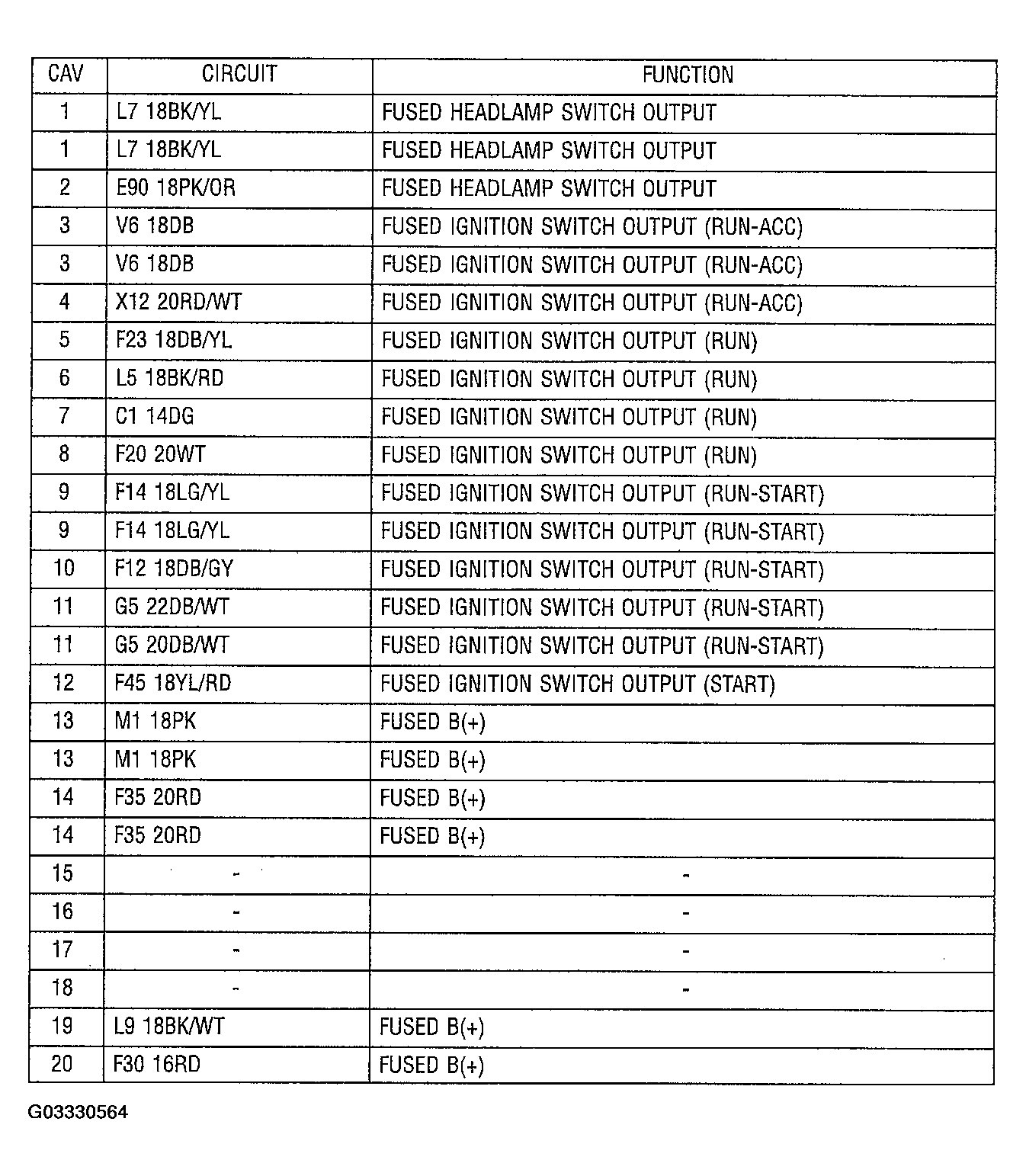

Fig 27: Fuses (Fuse Block) Connector Pinouts (2 Of 2)

G03330564

Courtesy of DAIMLERCHRYSLER CORP.

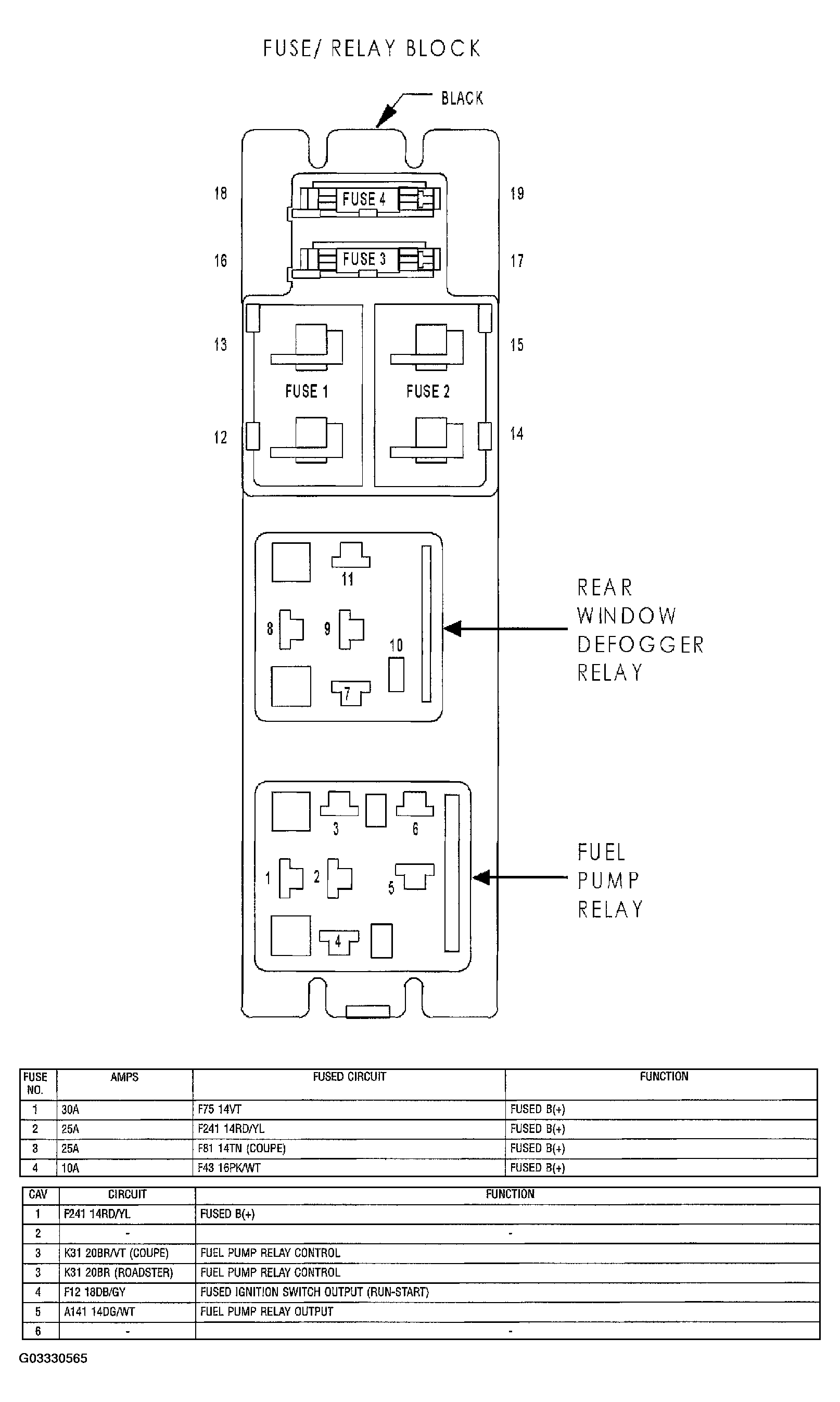

Fig 28: Fuses (Fuse/Relay Block) Fuel Pump Relay Connector Pinouts

G03330565

Courtesy of DAIMLERCHRYSLER CORP.

Fig 29: Generator - Black 2 Way Connector Pinouts

G03330566

Courtesy of DAIMLERCHRYSLER CORP.

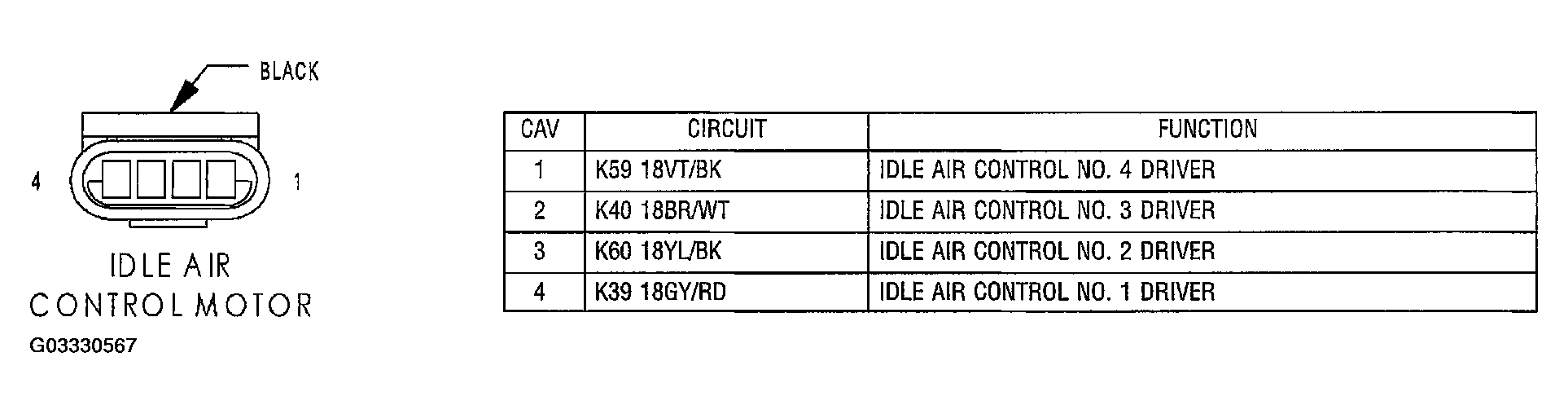

Fig 30: Idle Air Control Motor - Black 4 Way Connector Pinouts

G03330567

Courtesy of DAIMLERCHRYSLER CORP.

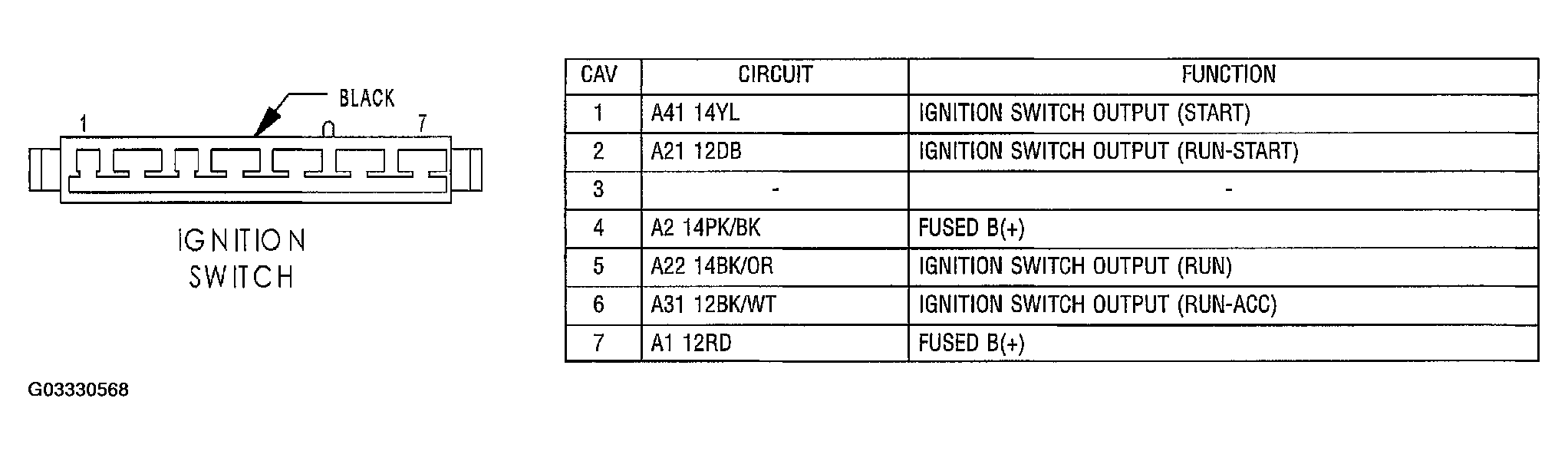

Fig 31: Ignition Switch - Black 7 Way Connector Pinouts

G03330568

Courtesy of DAIMLERCHRYSLER CORP.

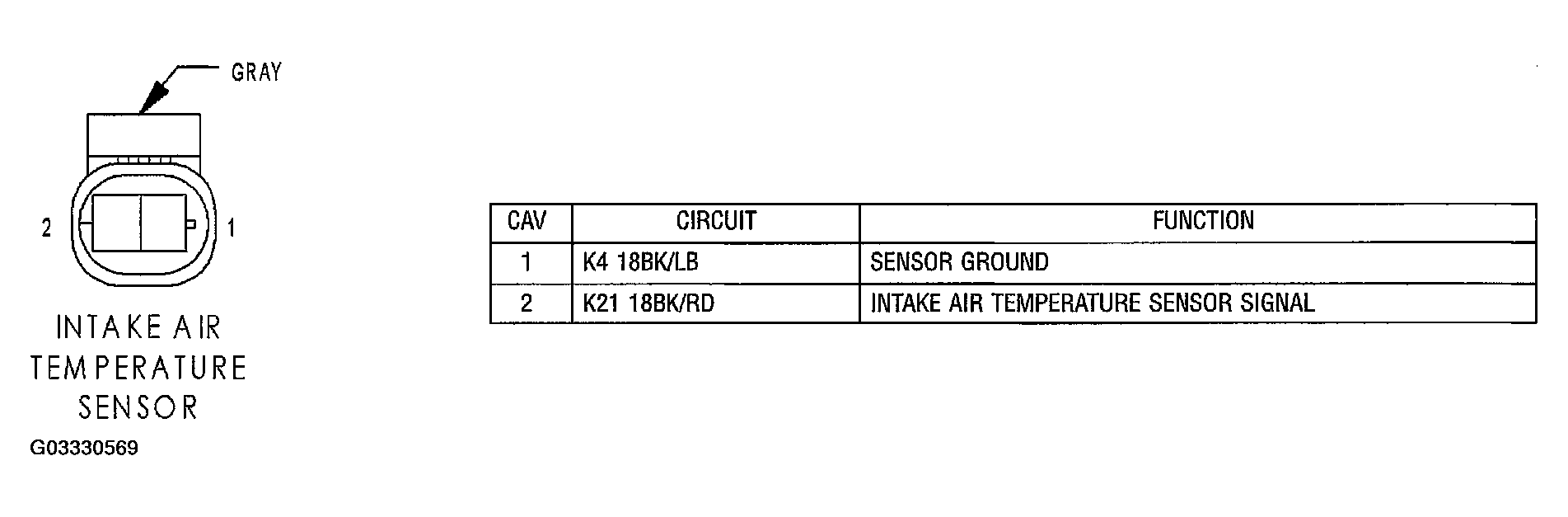

Fig 32: Intake Air Temperature Sensor - Gray 2 Way Connector Pinouts

G03330569

Courtesy of DAIMLERCHRYSLER CORP.

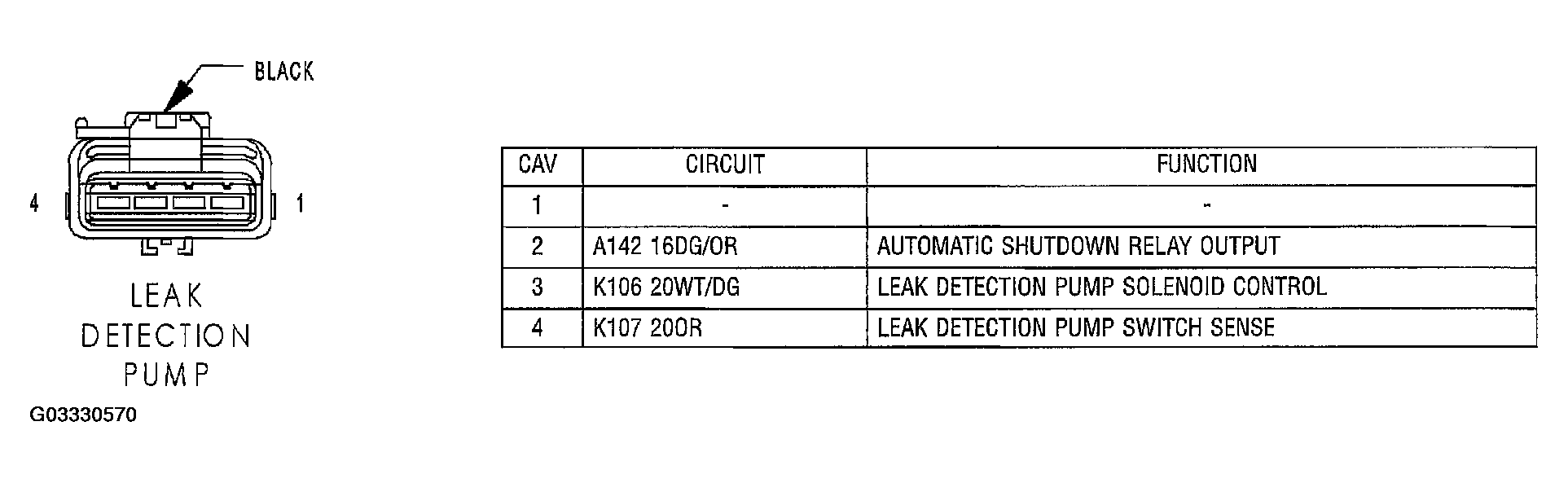

Fig 33: Leak Detection Pump - Black 4 Way Connector Pinouts

G03330570

Courtesy of DAIMLERCHRYSLER CORP.

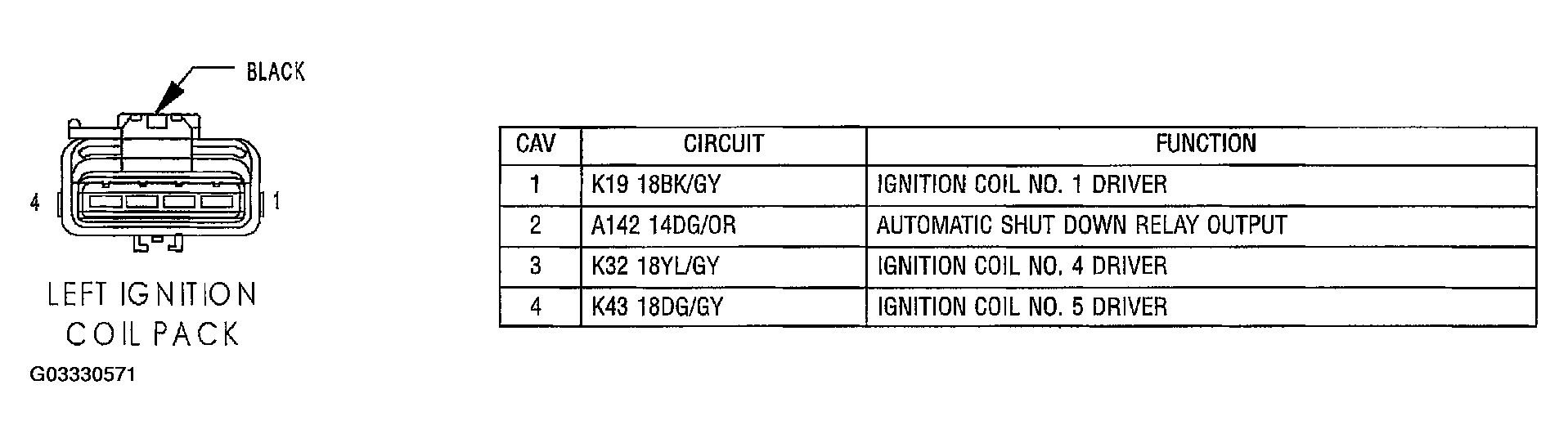

Fig 34: Left Ignition Coil Pack - Black 4 Way Connector Pinouts

G03330571

Courtesy of DAIMLERCHRYSLER CORP.

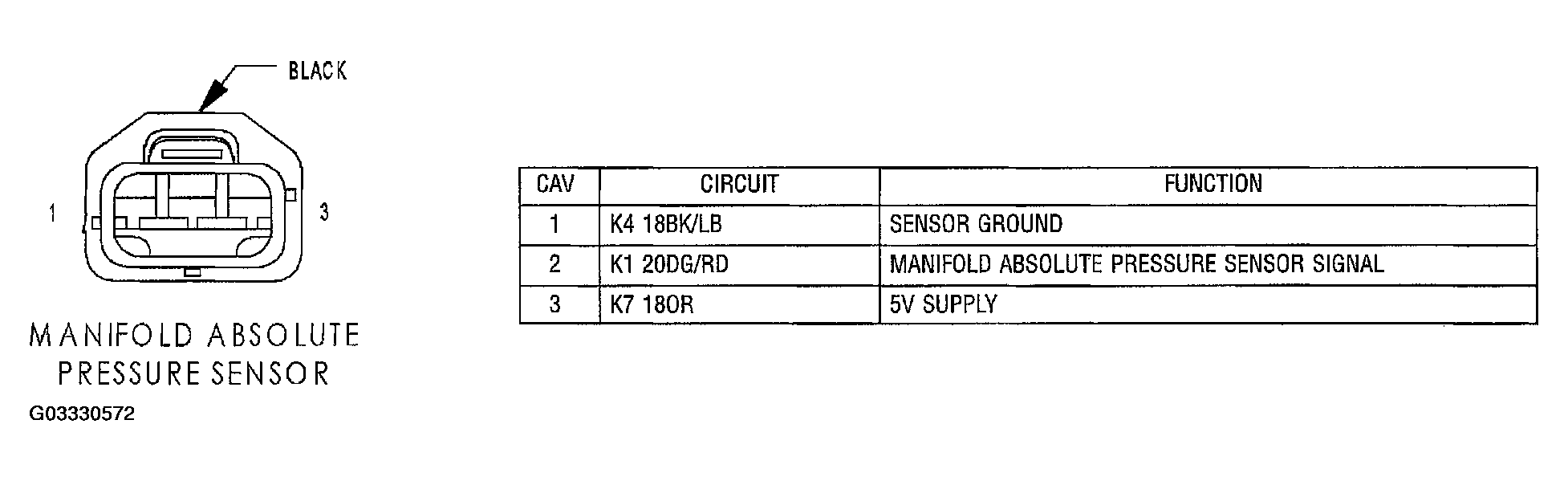

Fig 35: Manifold Absolute Pressure Sensor - Black 3 Way Connector Pinouts

G03330572

Courtesy of DAIMLERCHRYSLER CORP.

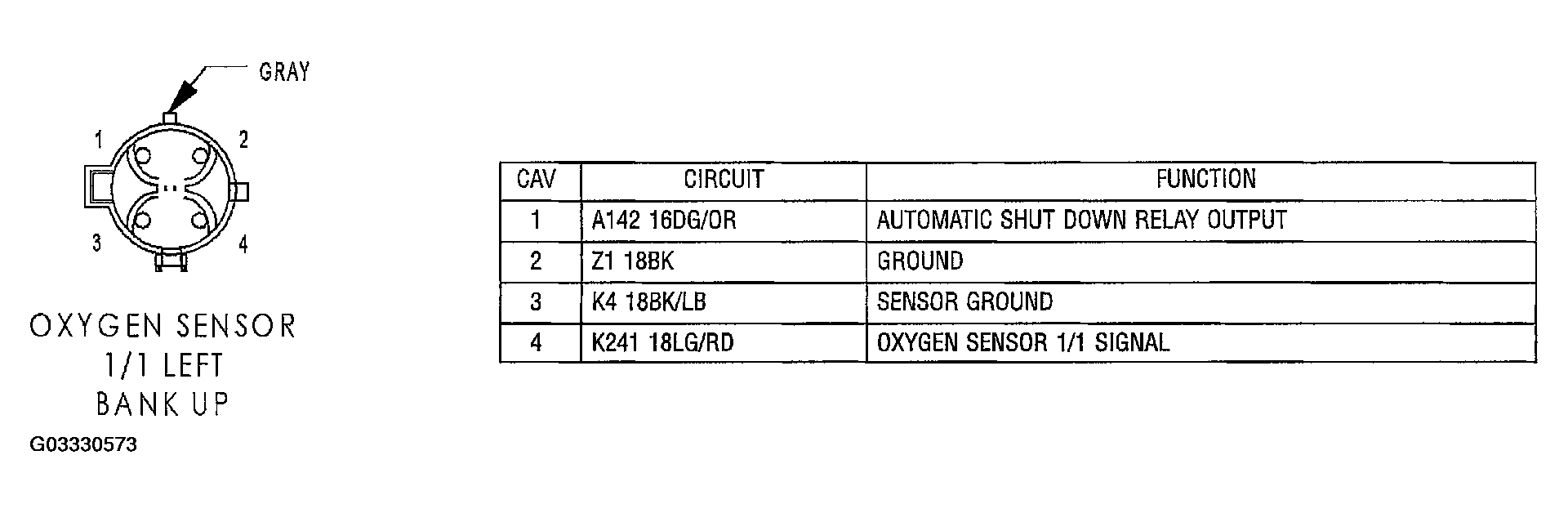

Fig 36: Oxygen Sensor 1/1 Left Bank Up - Gray 4 Way Connector Pinouts

G03330573

Courtesy of DAIMLERCHRYSLER CORP.

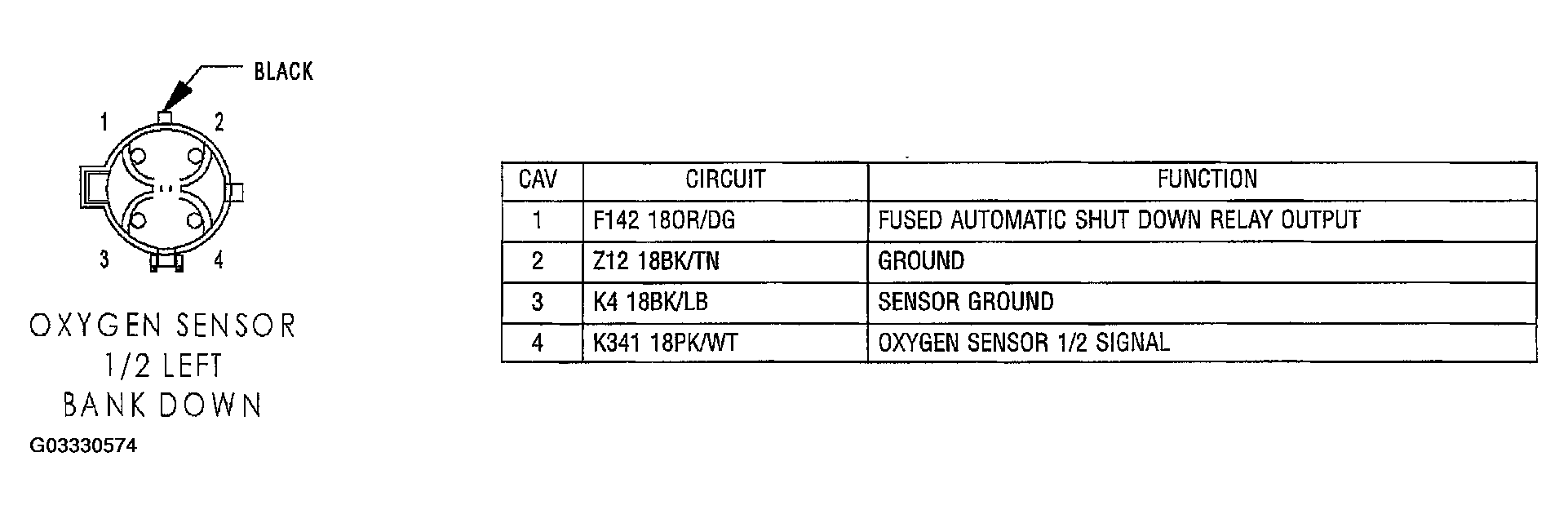

Fig 37: Oxygen Sensor 1/2 Left Bank Down - Black 4 Way Connector Pinouts

G03330574

Courtesy of DAIMLERCHRYSLER CORP.

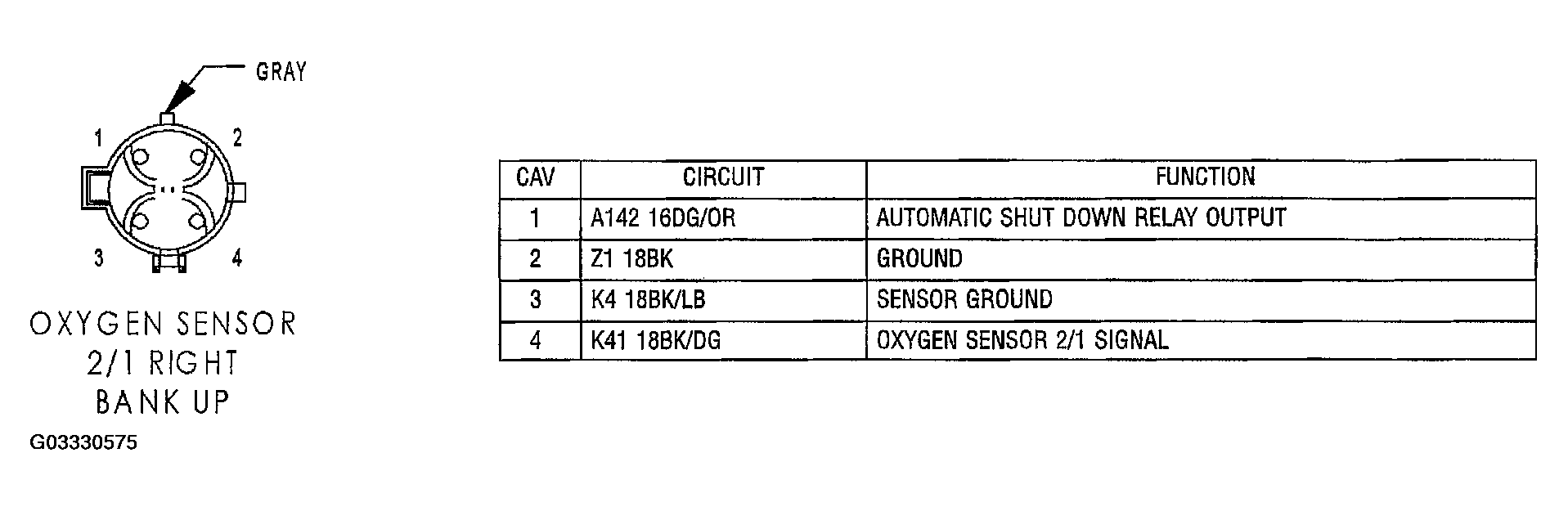

Fig 38: Oxygen Sensor 2/1 Right Bank Up - Gray 4 Way Connector Pinouts

G03330575

Courtesy of DAIMLERCHRYSLER CORP.

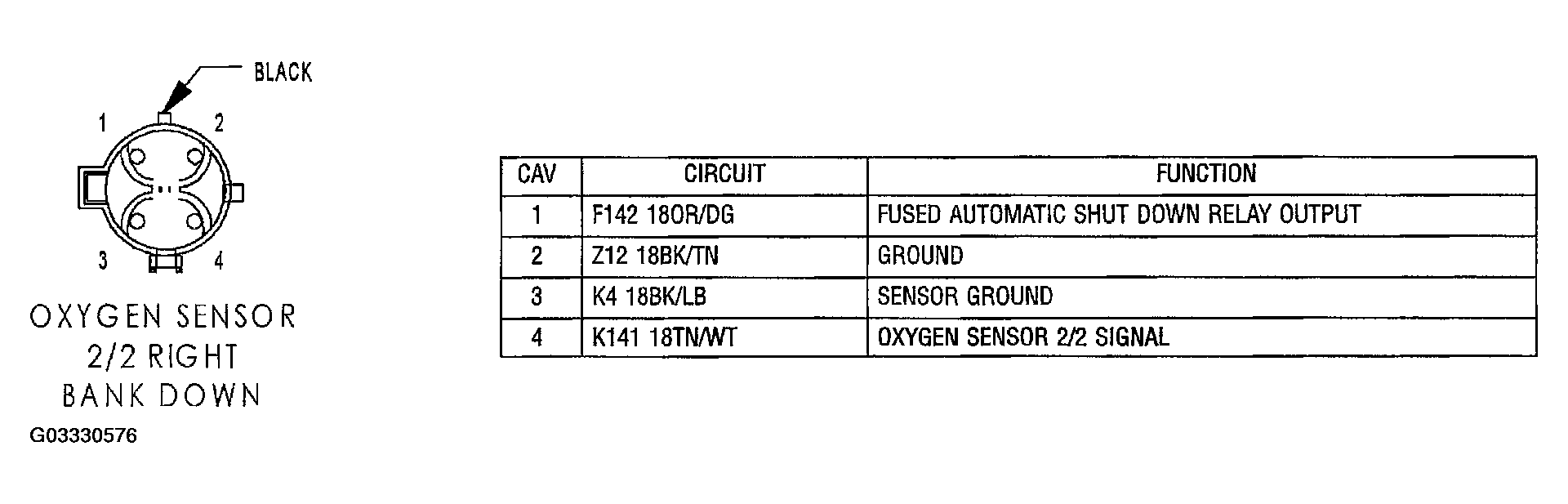

Fig 39: Oxygen Sensor 2/2 Right Bank Down - Black 4 Way Connector Pinouts

G03330576

Courtesy of DAIMLERCHRYSLER CORP.

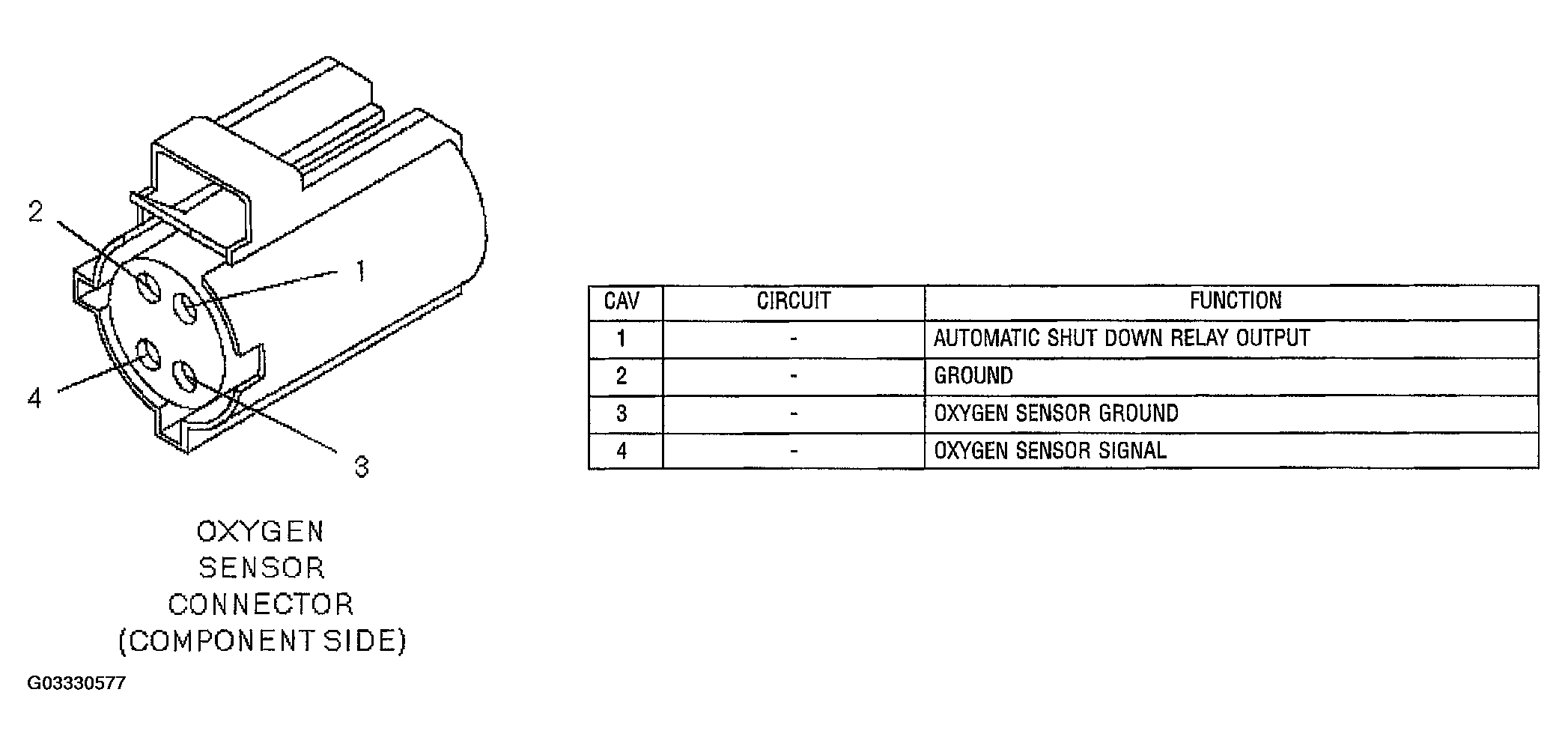

Fig 40: Oxygen Sensor Connector (Component Side) - 4 Way Connector Pinouts

G03330577

Courtesy of DAIMLERCHRYSLER CORP.

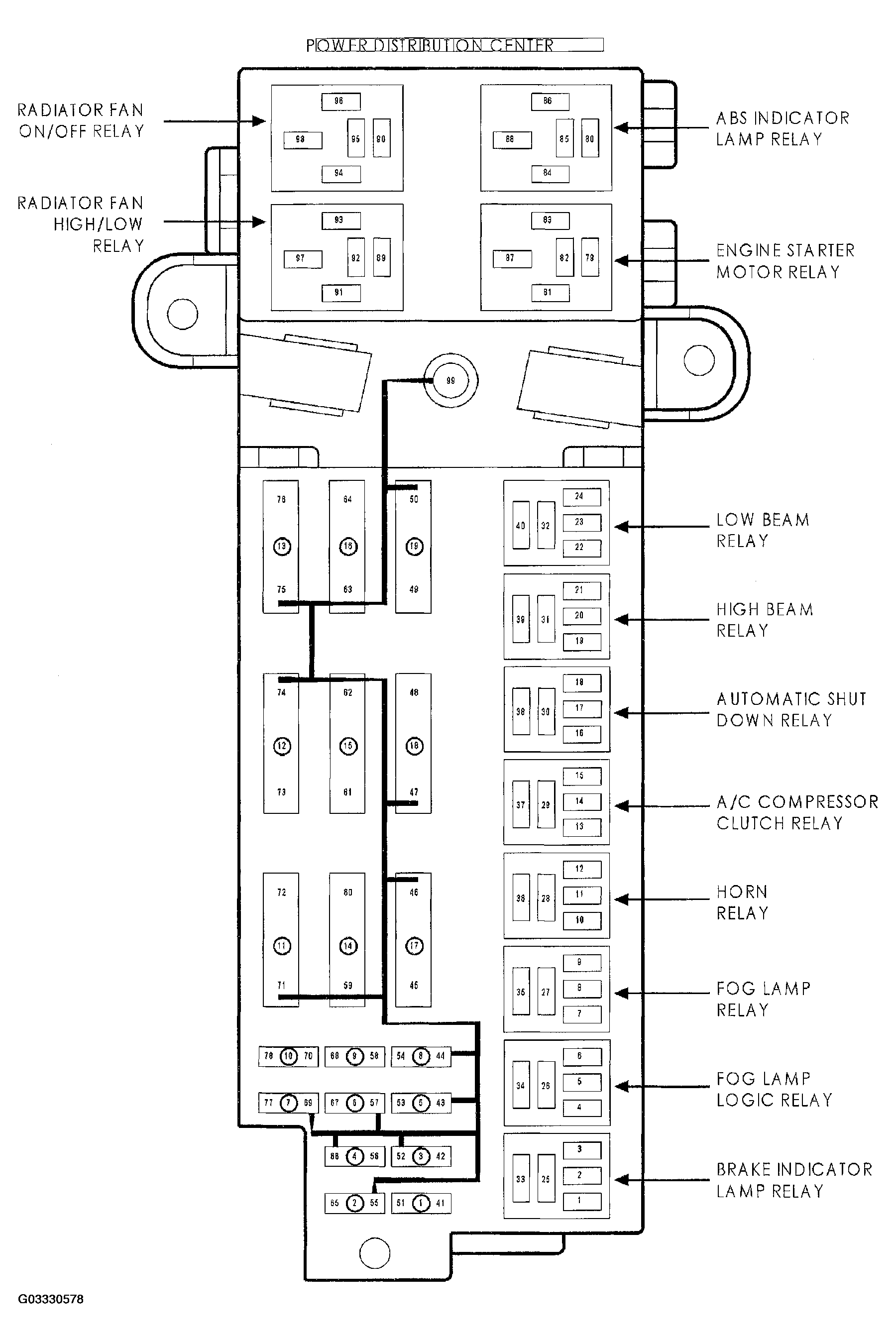

Fig 41: Fuses (PDC) Connector Pinouts (1 Of 2)

G03330578

Courtesy of DAIMLERCHRYSLER CORP.

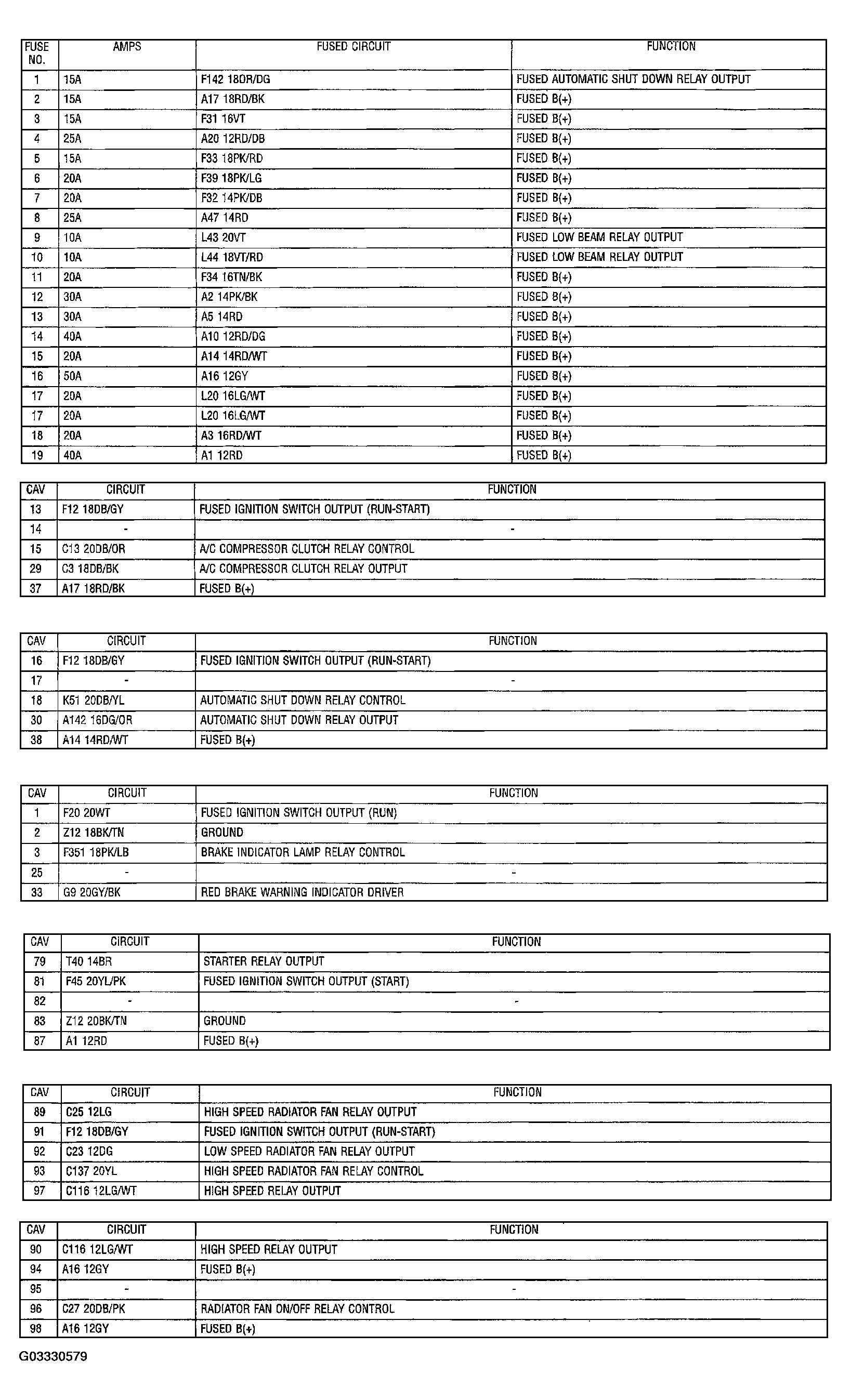

Fig 42: Fuses (PDC) & A/C Compressor, ASD, Brake Indicator Lamp, Starter Motor, Radiator Fan High/Low & Radiator Fan On/Off Relay Connector Pinouts (2 Of 2)

G03330579

Courtesy of DAIMLERCHRYSLER CORP.

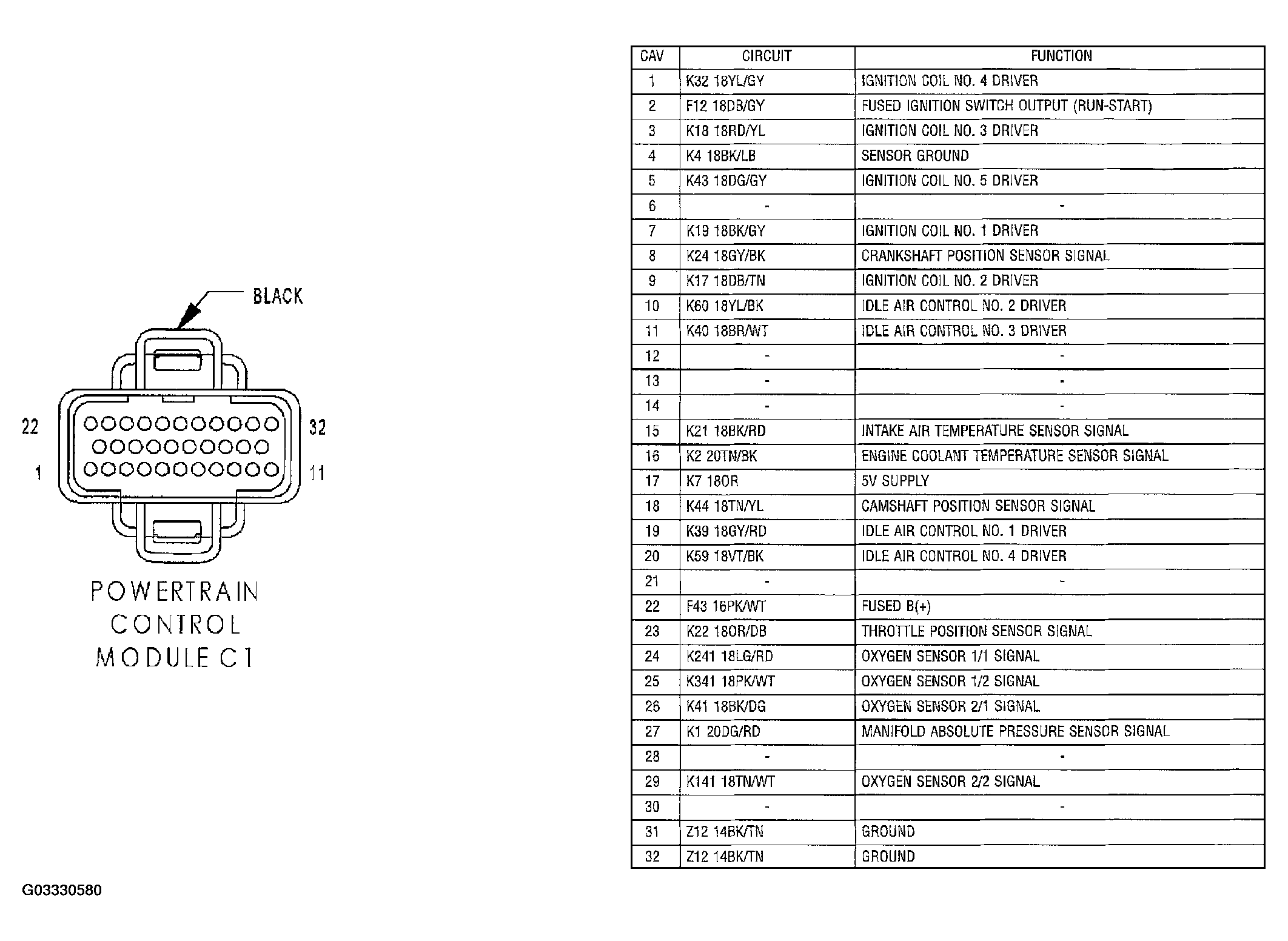

Fig 43: Powertrain Control Module C1 - Black 32 Way Connector Pinouts

G03330580

Courtesy of DAIMLERCHRYSLER CORP.

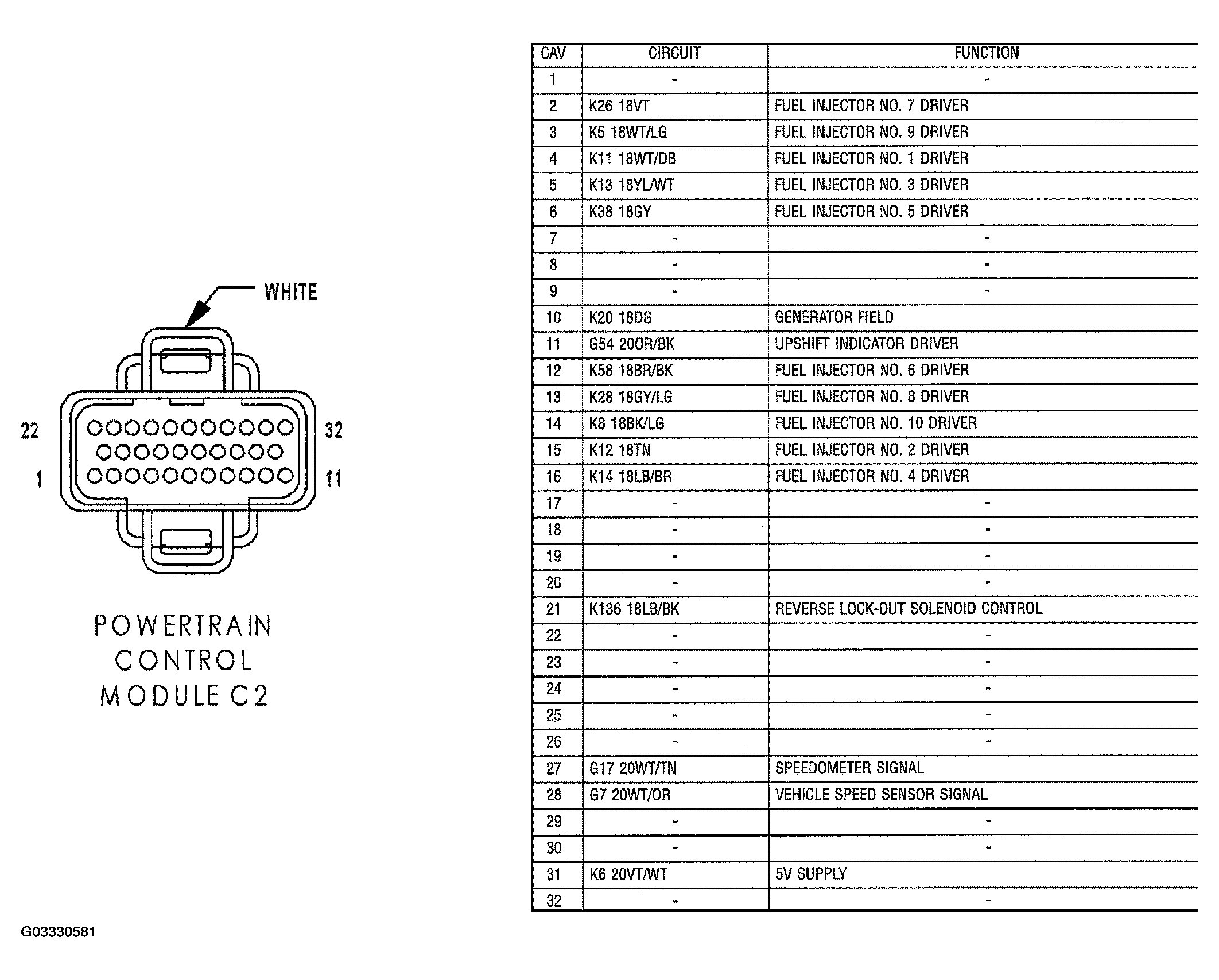

Fig 44: Powertrain Control Module C2 - White 32 Way Connector Pinouts

G03330581

Courtesy of DAIMLERCHRYSLER CORP.

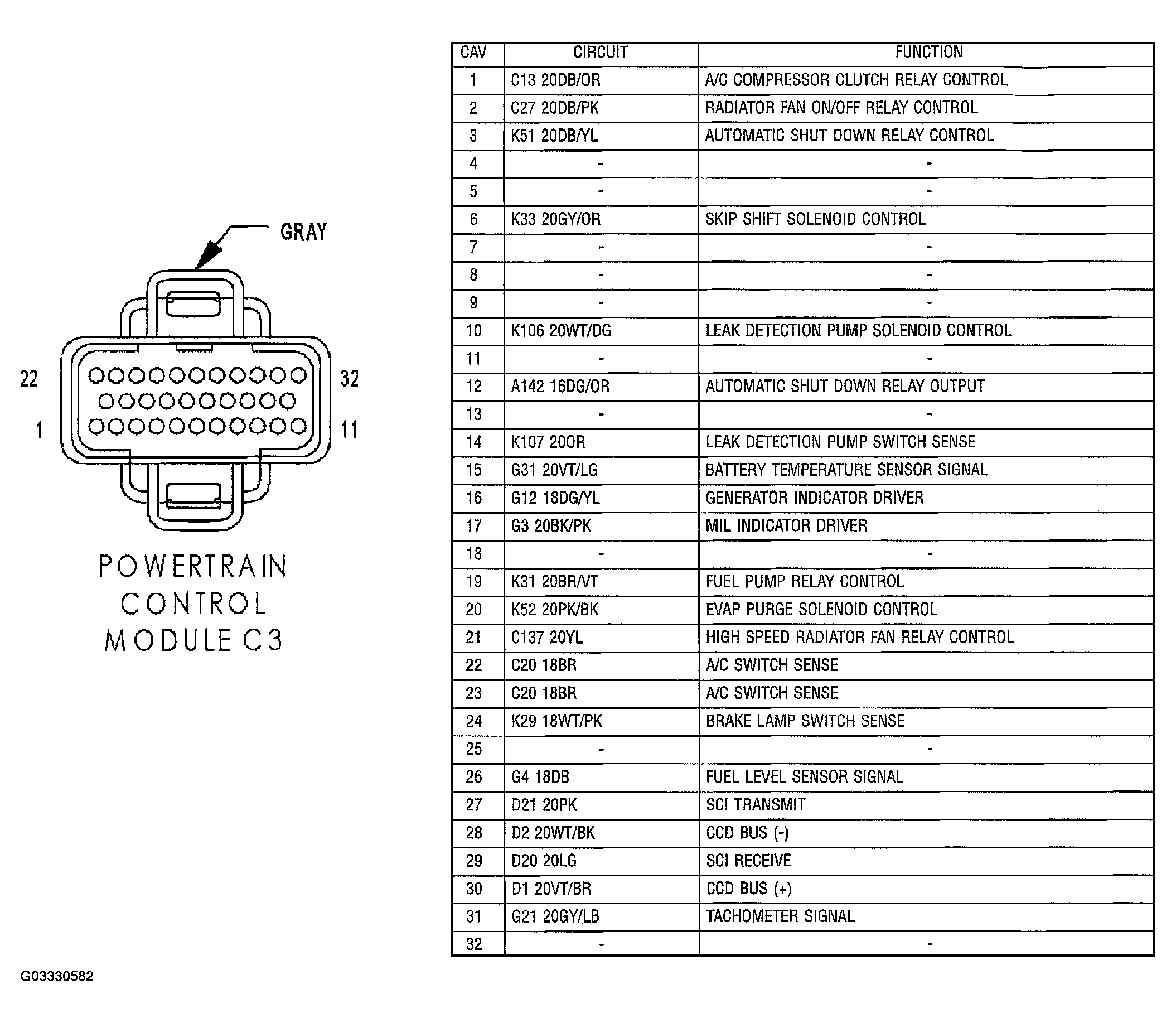

Fig 45: Powertrain Control Module C3 - Gray 32 Way Connector Pinouts

G03330582

Courtesy of DAIMLERCHRYSLER CORP.

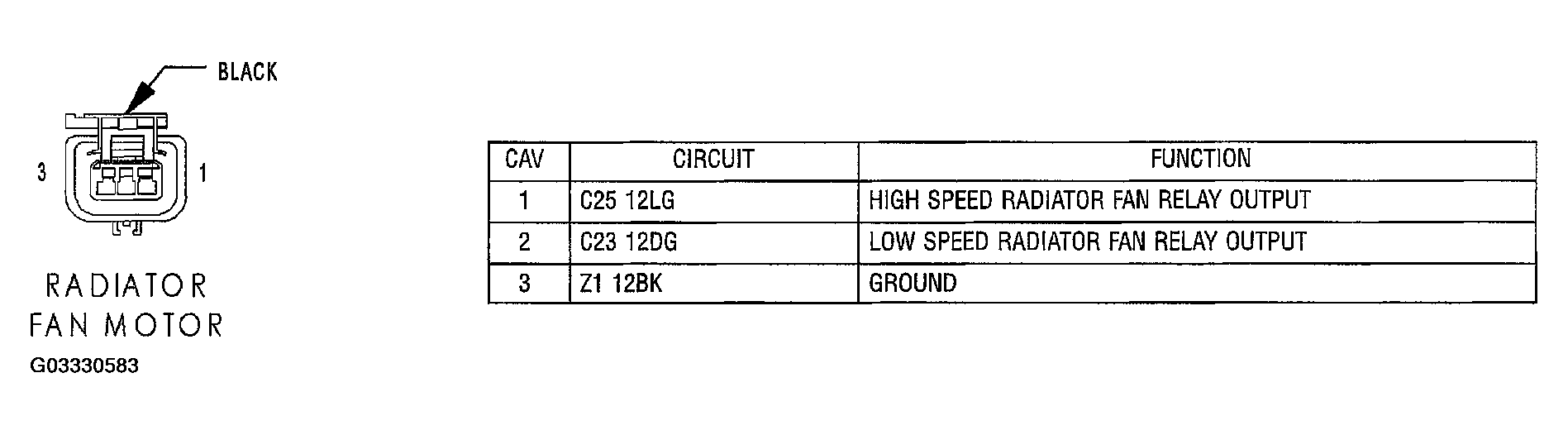

Fig 46: Radiator Fan Motor - Black 3 Way Connector Pinouts

G03330583

Courtesy of DAIMLERCHRYSLER CORP.

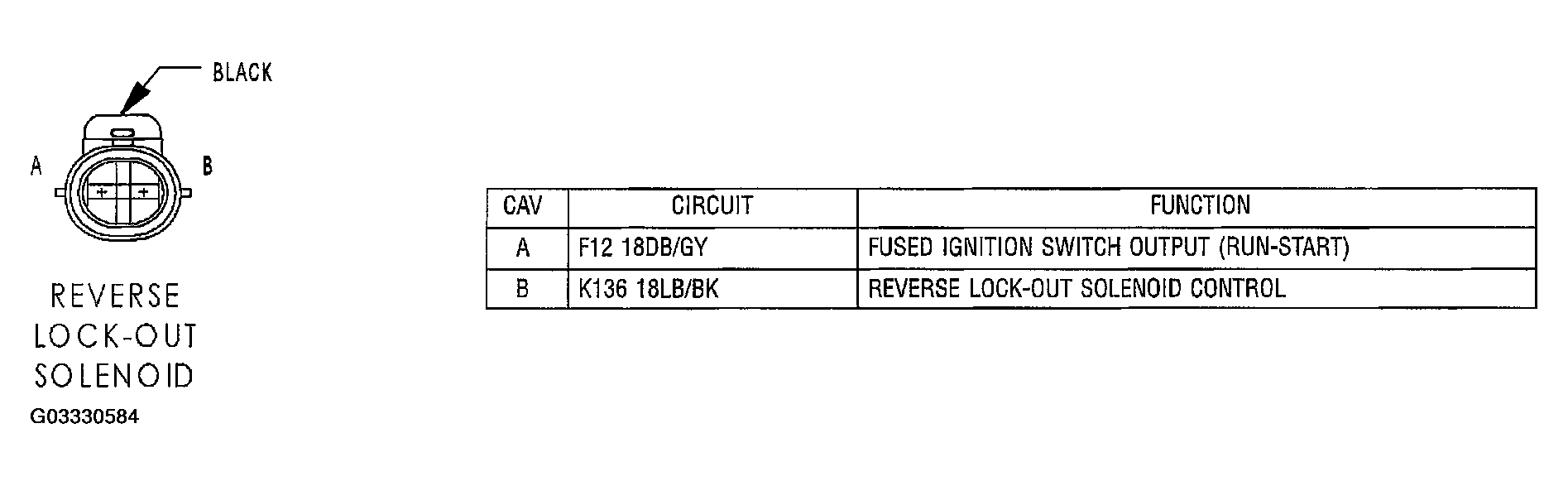

Fig 47: Reverse Lock-Out Solenoid - Black 2 Way Connector Pinouts

G03330584

Courtesy of DAIMLERCHRYSLER CORP.

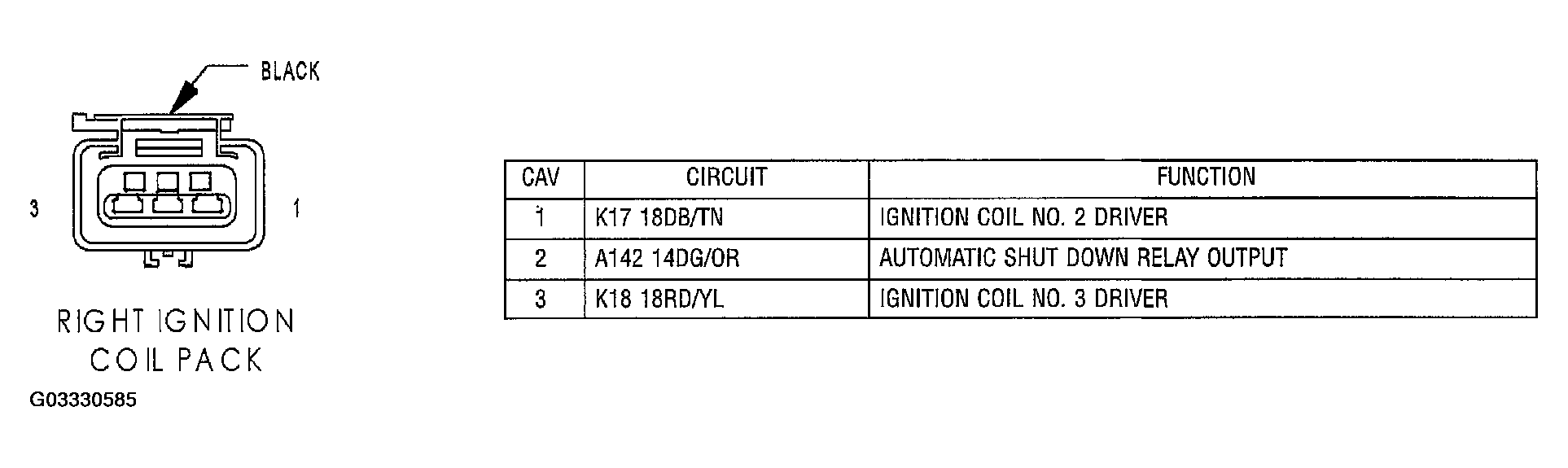

Fig 48: Right Ignition Coil Pack - Black 3 Way Connector Pinouts

G03330585

Courtesy of DAIMLERCHRYSLER CORP.

Fig 49: Skip Shift Solenoid - Black 2 Way Connector Pinouts

G03330586

Courtesy of DAIMLERCHRYSLER CORP.

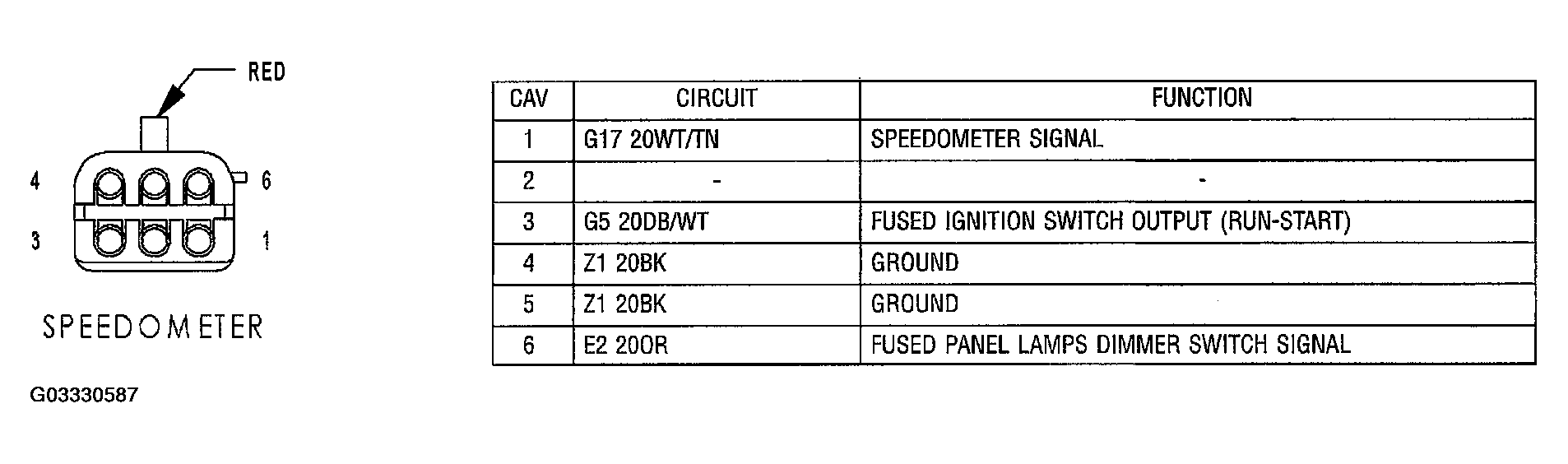

Fig 50: Speedometer - Red 6 Way Connector Pinouts

G03330587

Courtesy of DAIMLERCHRYSLER CORP.

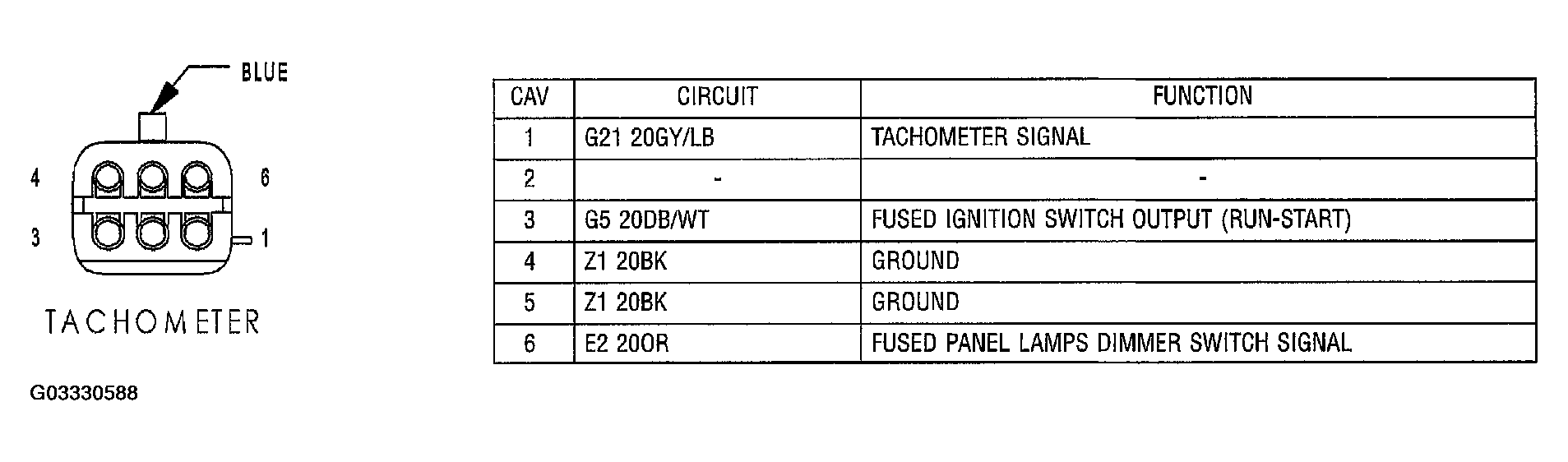

Fig 51: Tachometer - Blue 6 Way Connector Pinouts

G03330588

Courtesy of DAIMLERCHRYSLER CORP.

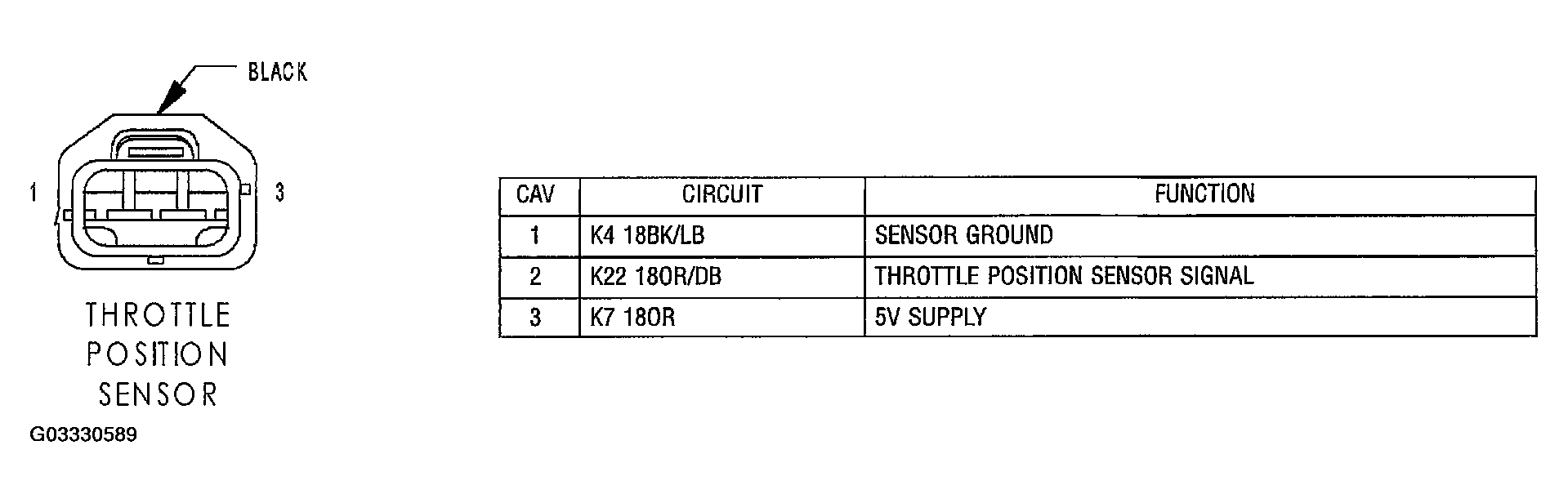

Fig 52: Throttle Position Sensor - Black 3 Way Connector Pinouts

G03330589

Courtesy of DAIMLERCHRYSLER CORP.

Fig 53: Vehicle Speed Sensor - Black 3 Way Connector Pinouts

G03330590

Courtesy of DAIMLERCHRYSLER CORP.
