Component Locations: Sensors

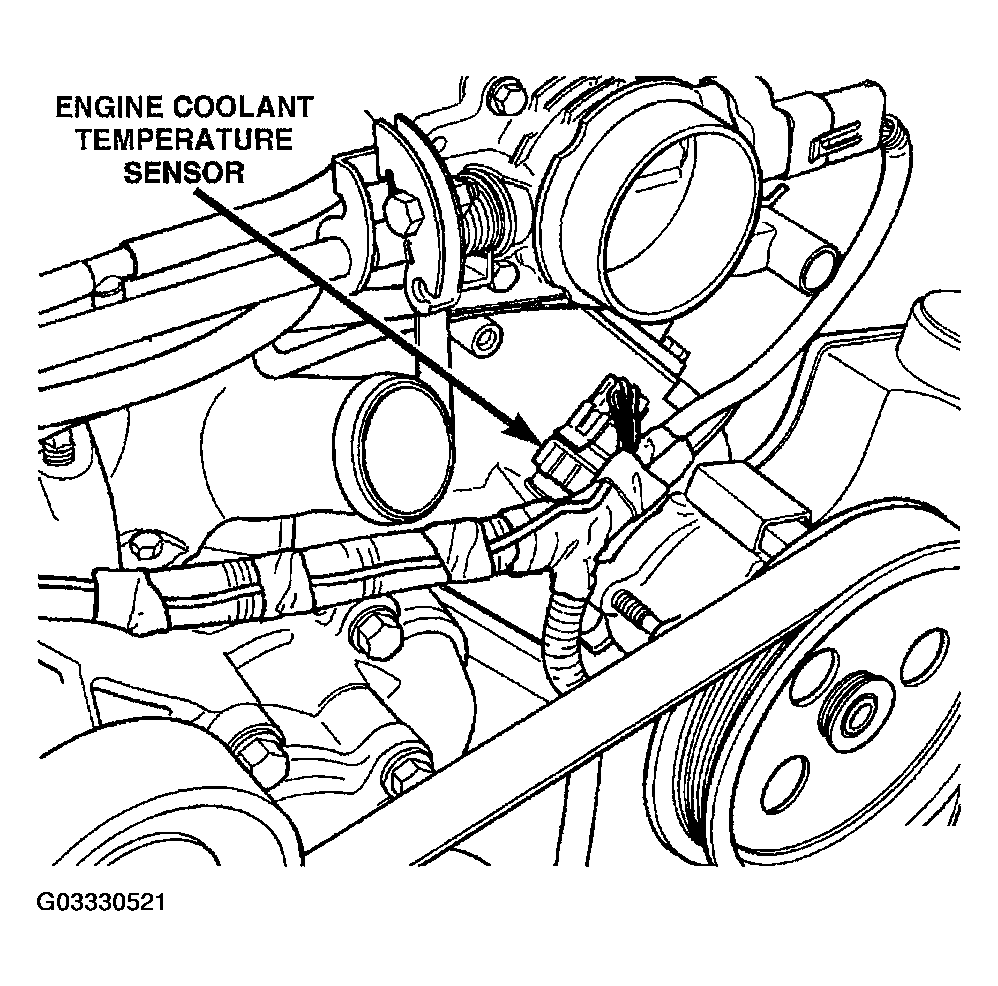

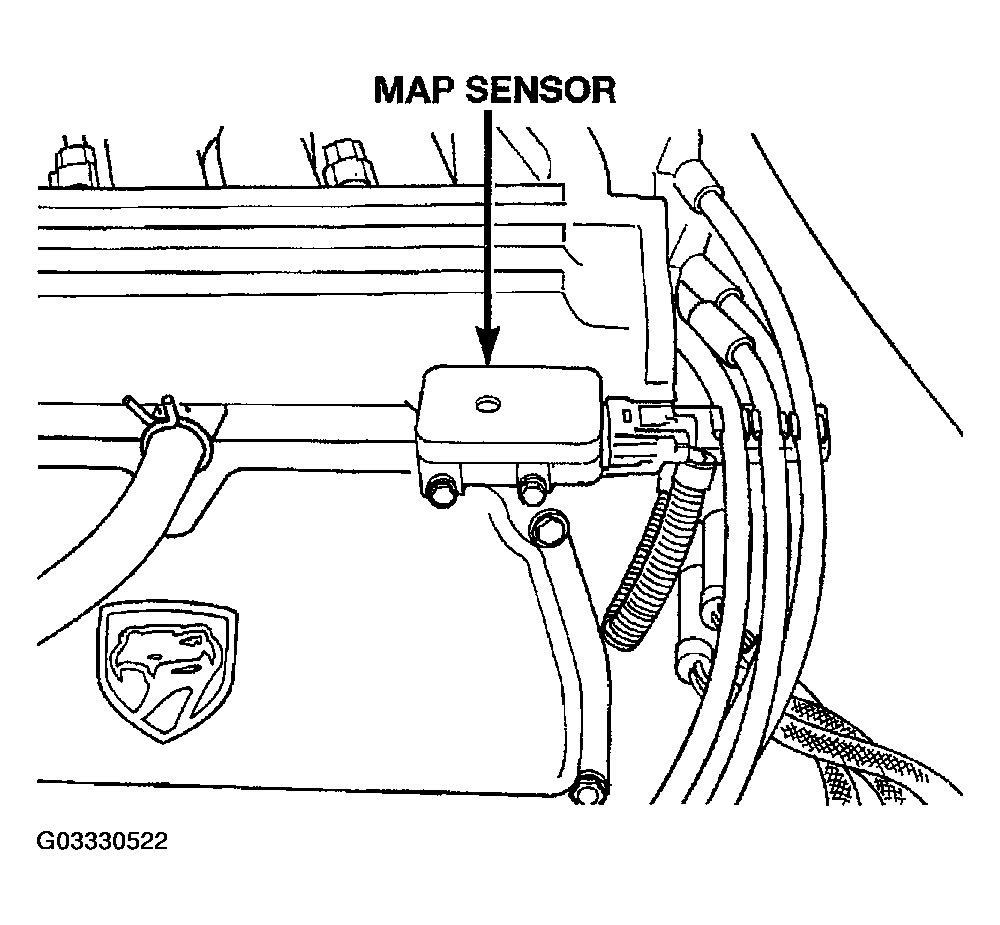

Fig 1: Identifying Components - Sensors (1 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

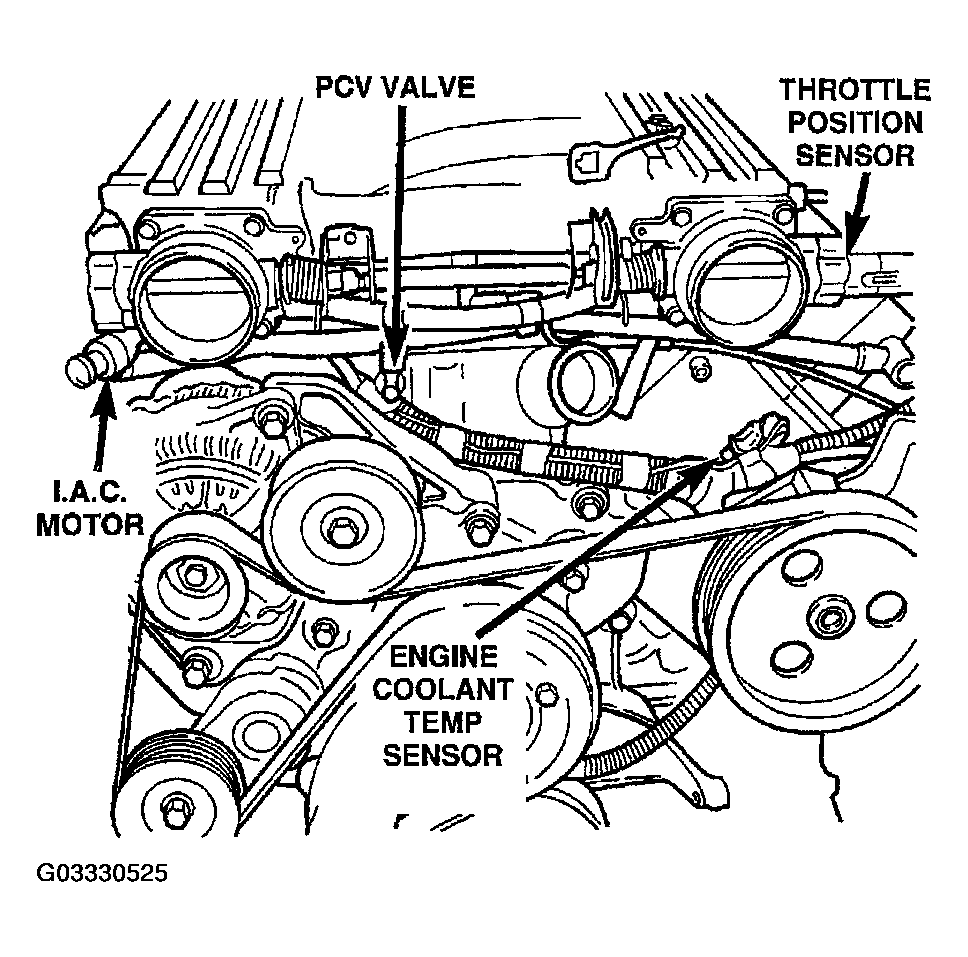

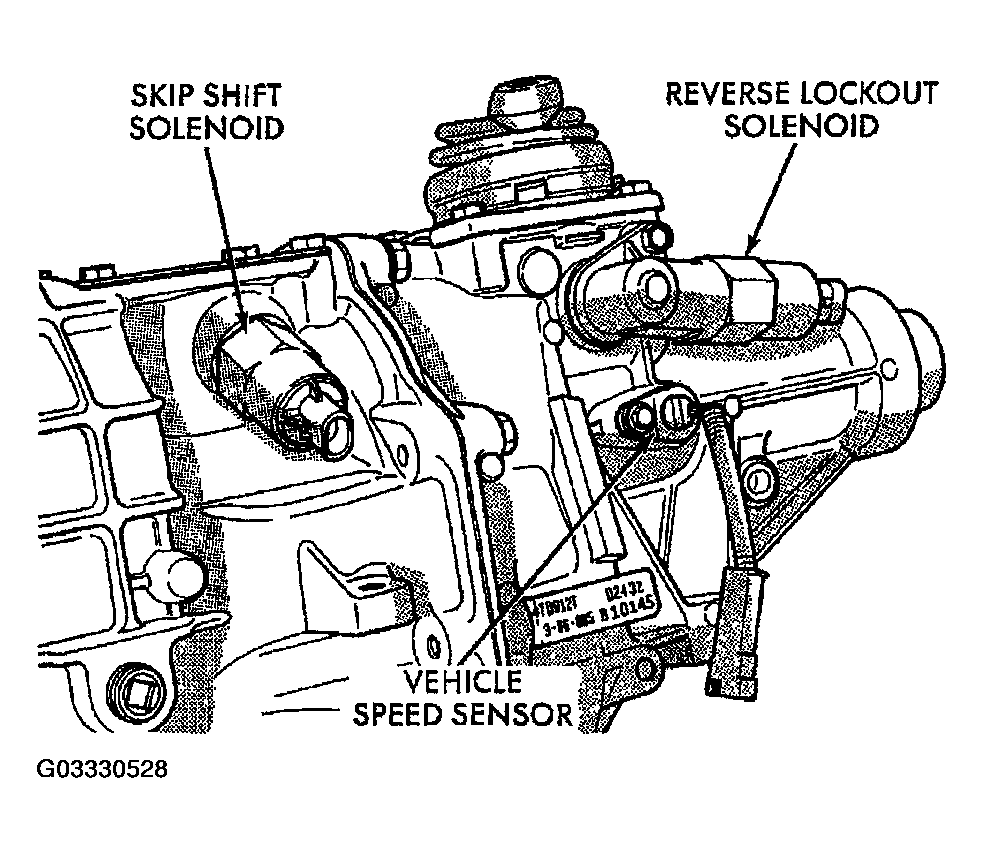

Fig 2: Identifying Components - Sensors (2 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

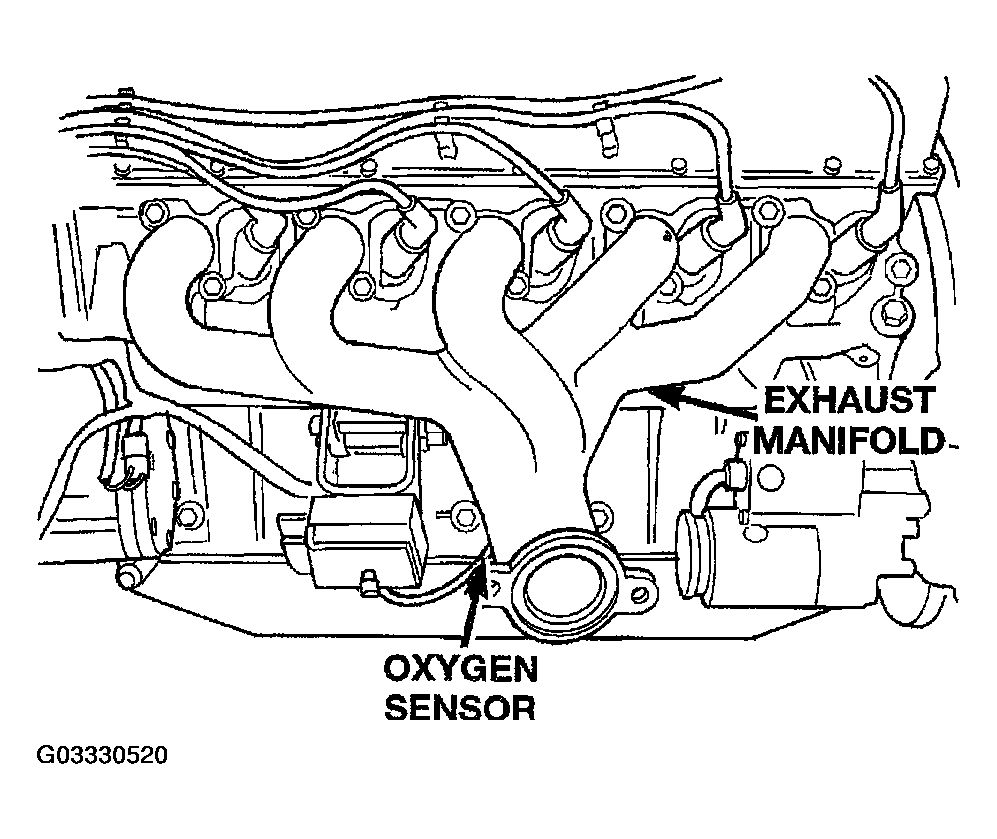

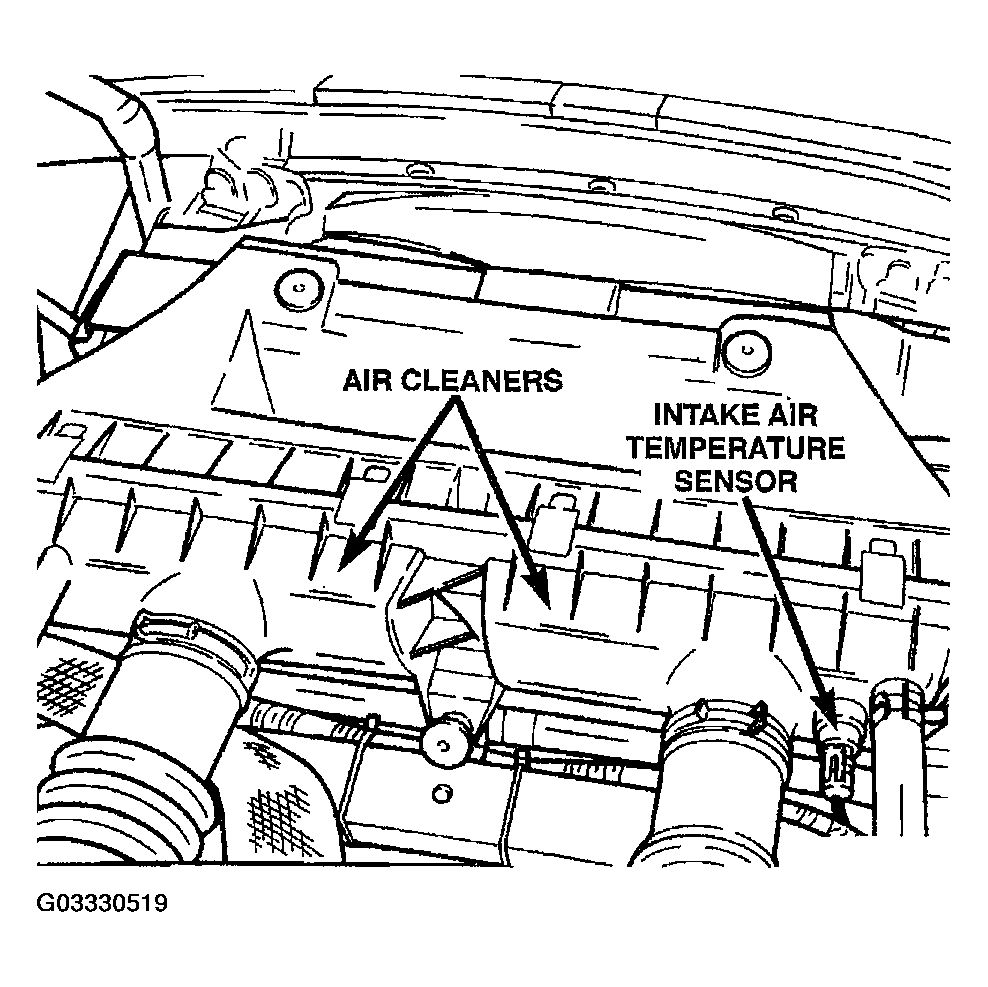

Fig 3: Identifying Components - Sensors (3 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

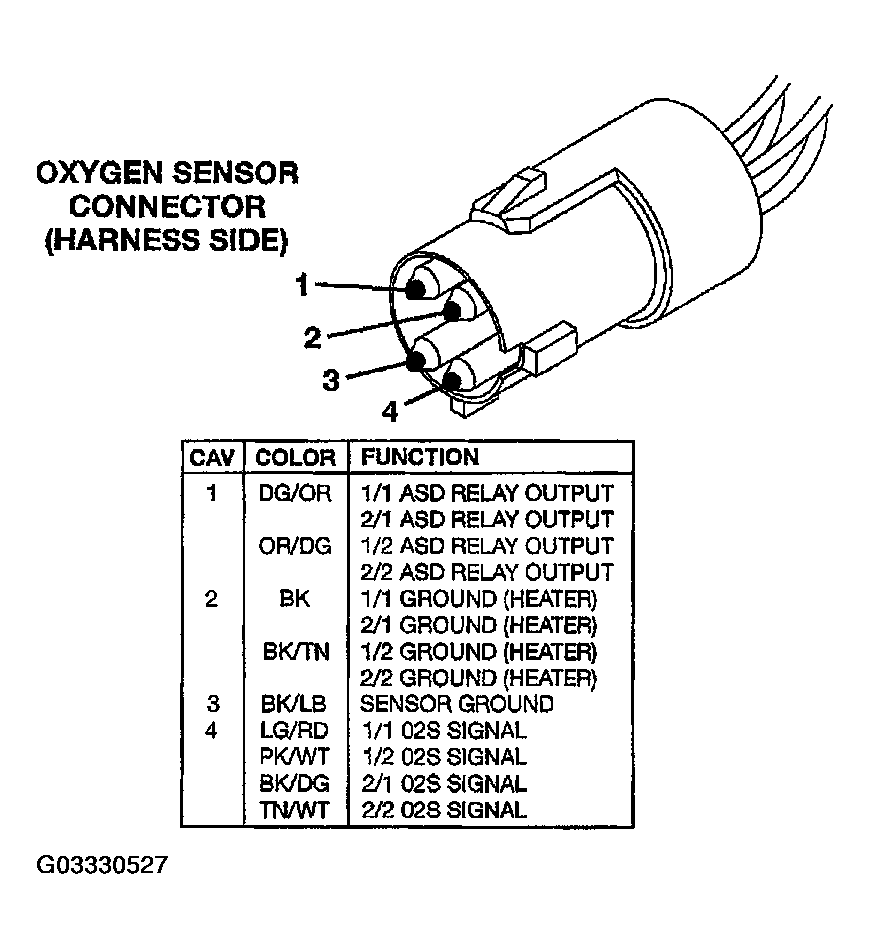

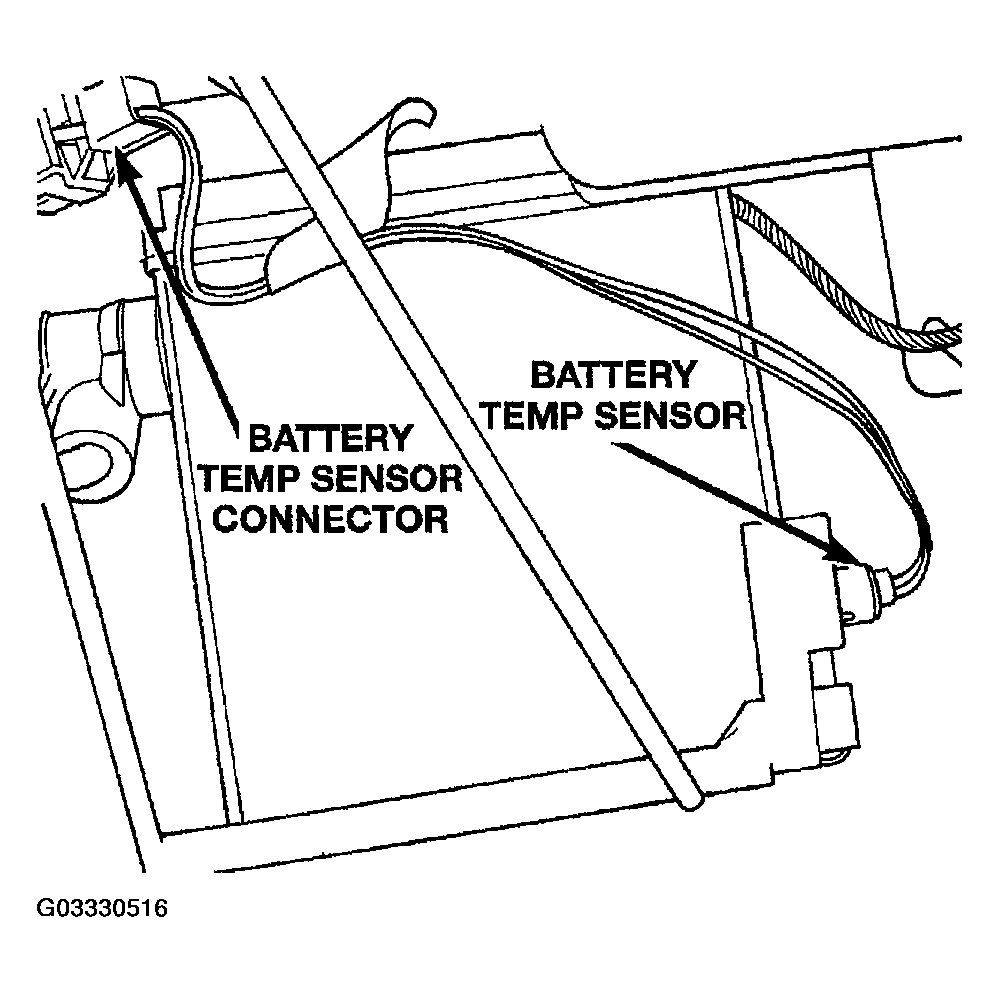

Fig 4: Identifying Components - Sensors (4 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

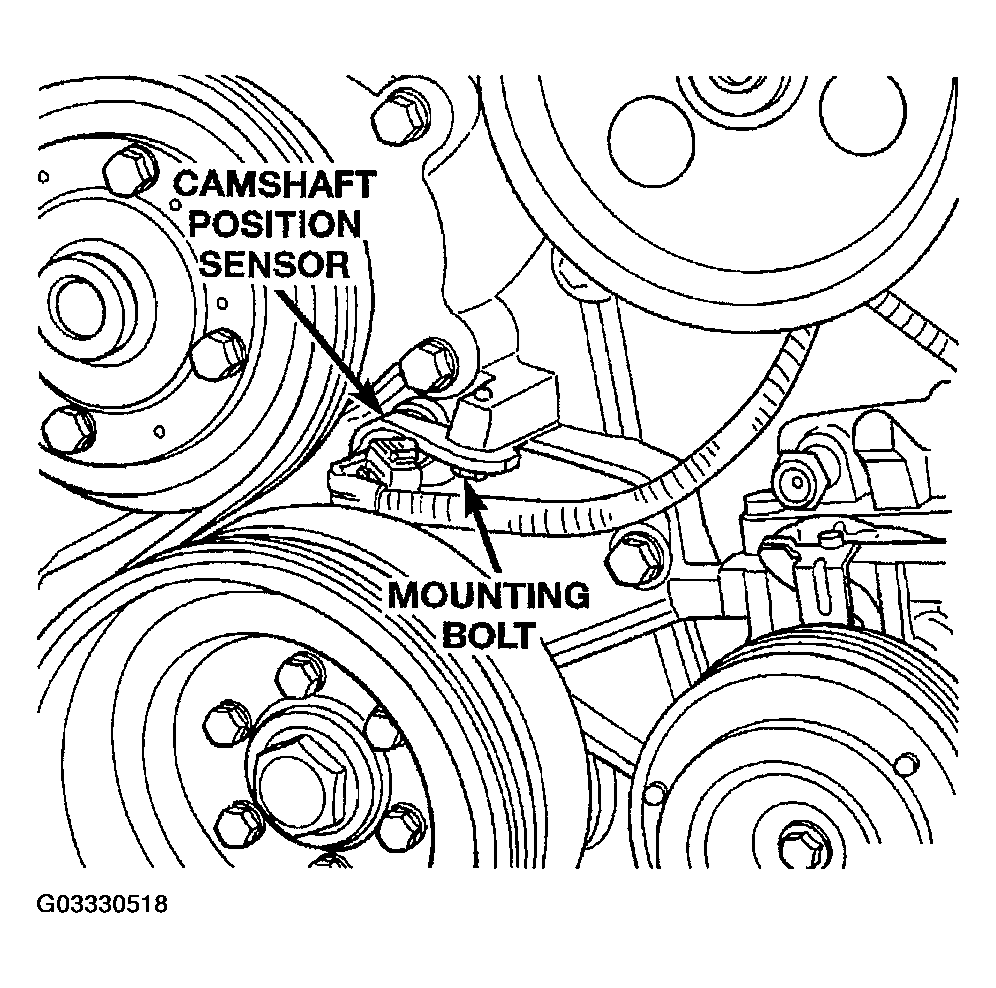

Fig 5: Identifying Components - Sensors (5 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

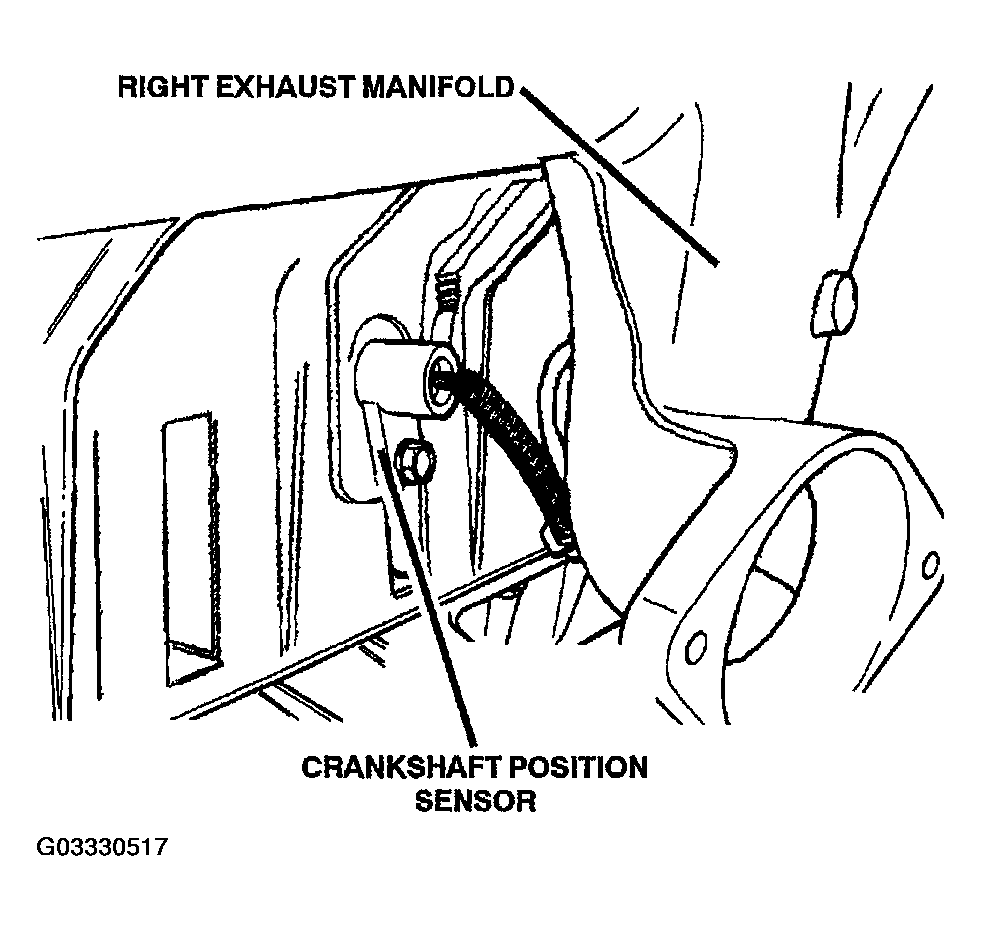

Fig 6: Identifying Components - Sensors (6 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

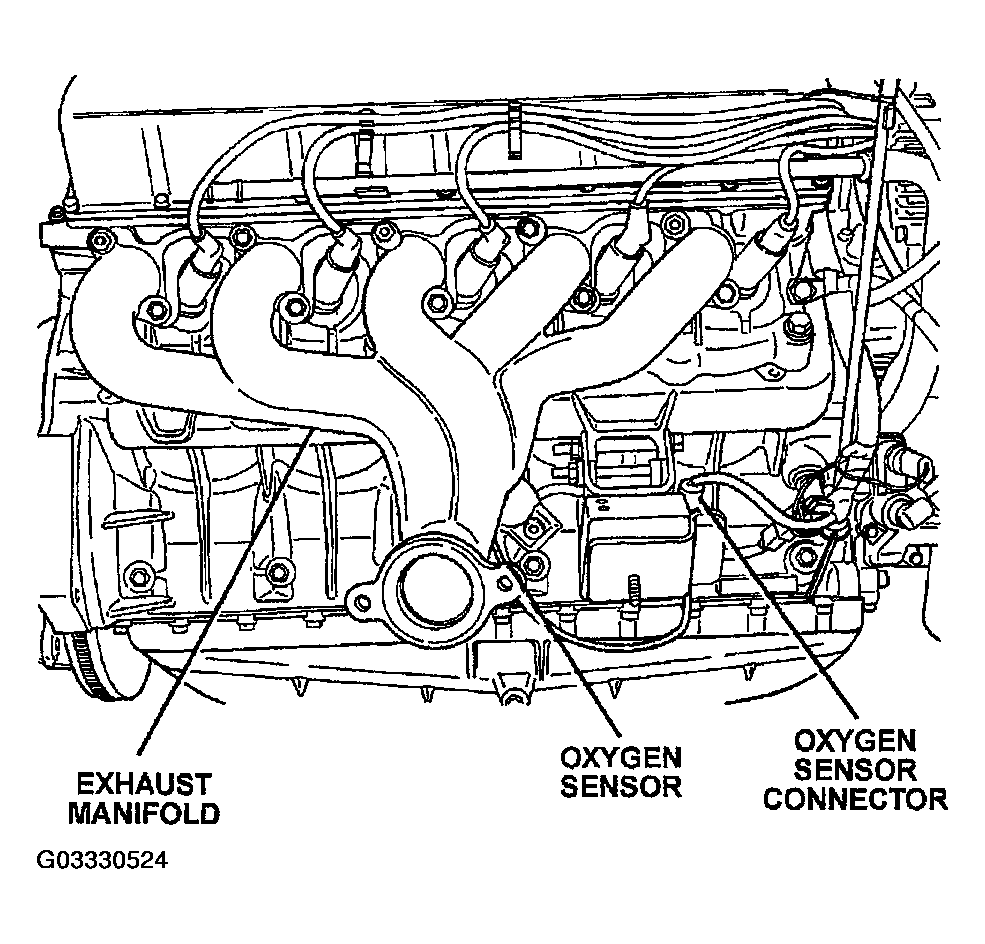

Fig 7: Identifying Components - Sensors (7 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

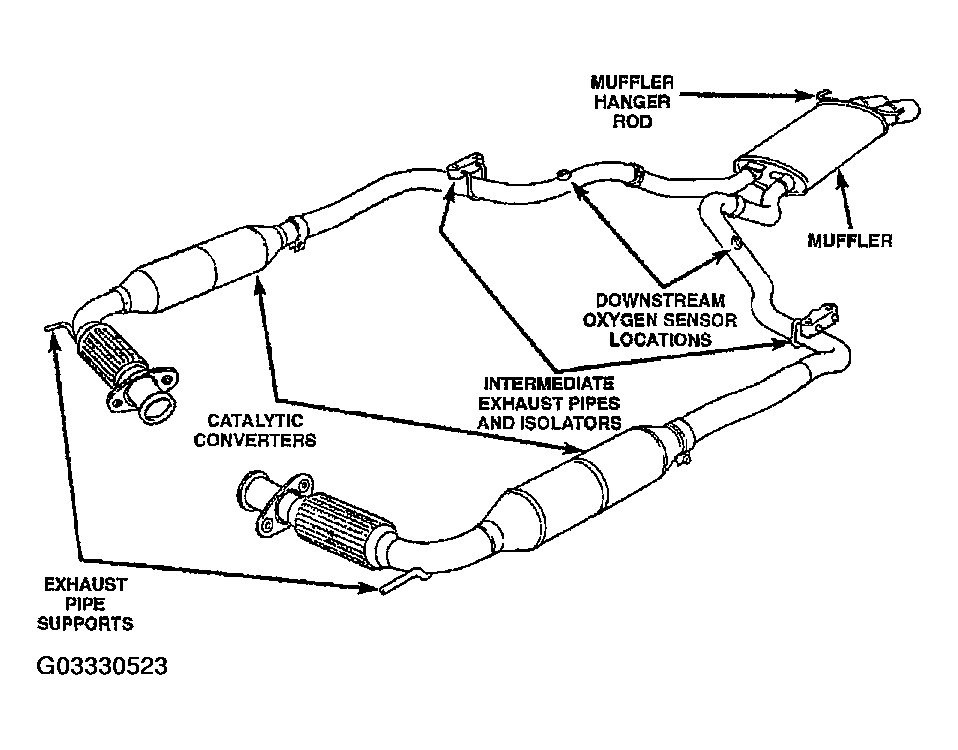

Fig 8: Identifying Components - Sensors (8 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Components - Sensors (9 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Components - Sensors (10 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Components - Fuel System (11 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Components - Fuel System (12 Of 12)

Courtesy of DAIMLERCHRYSLER CORP.
