Map Sensor: Removal

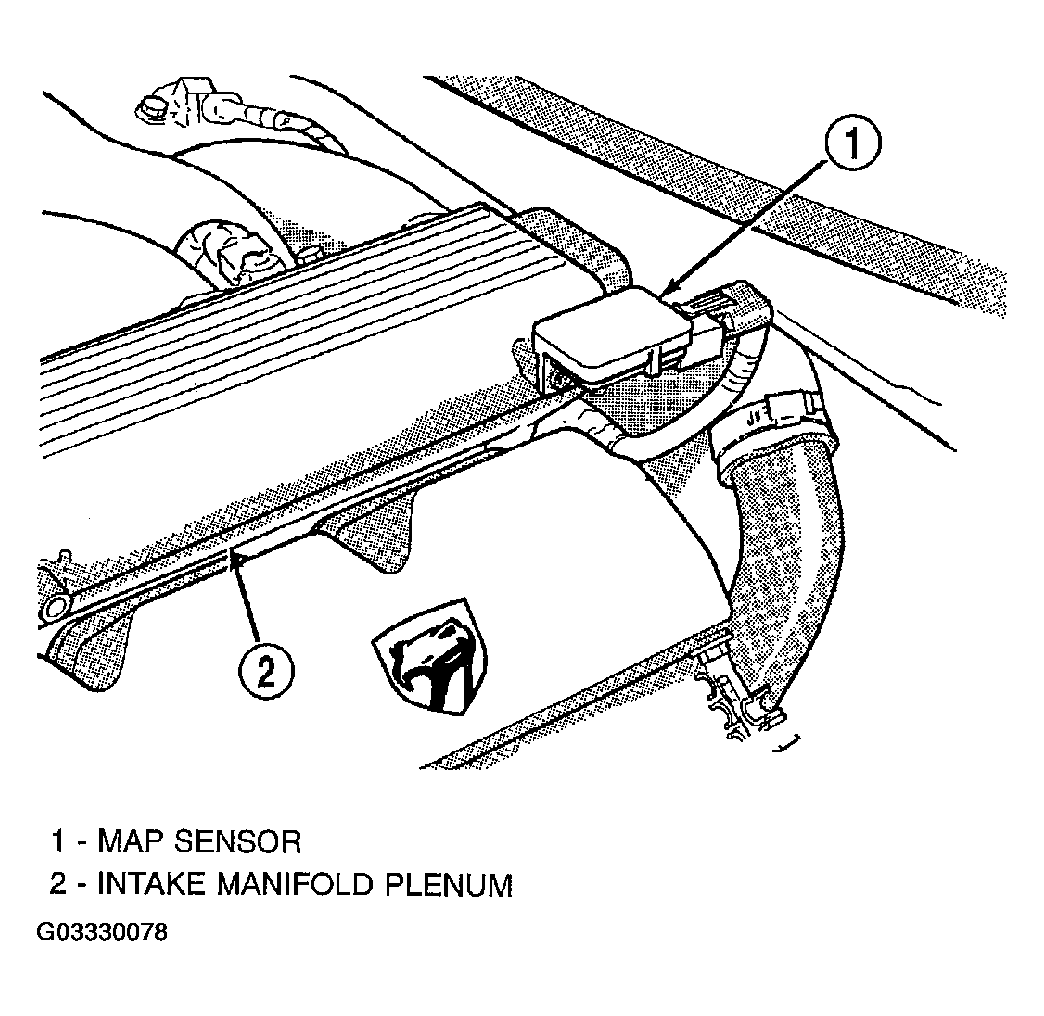

The manifold absolute pressure sensor is mounted on the drivers side of the intake manifold (Figure ).

1. Disconnect the electrical connector from the MAP sensor.
2. Remove MAP sensor mounting screws.
3. A vacuum hose on the bottom of the MAP sensor connects to the sensor to a vacuum fitting on the intake manifold plenum (Fig 1 ). Pull MAP sensor and vacuum hose off of intake manifold.

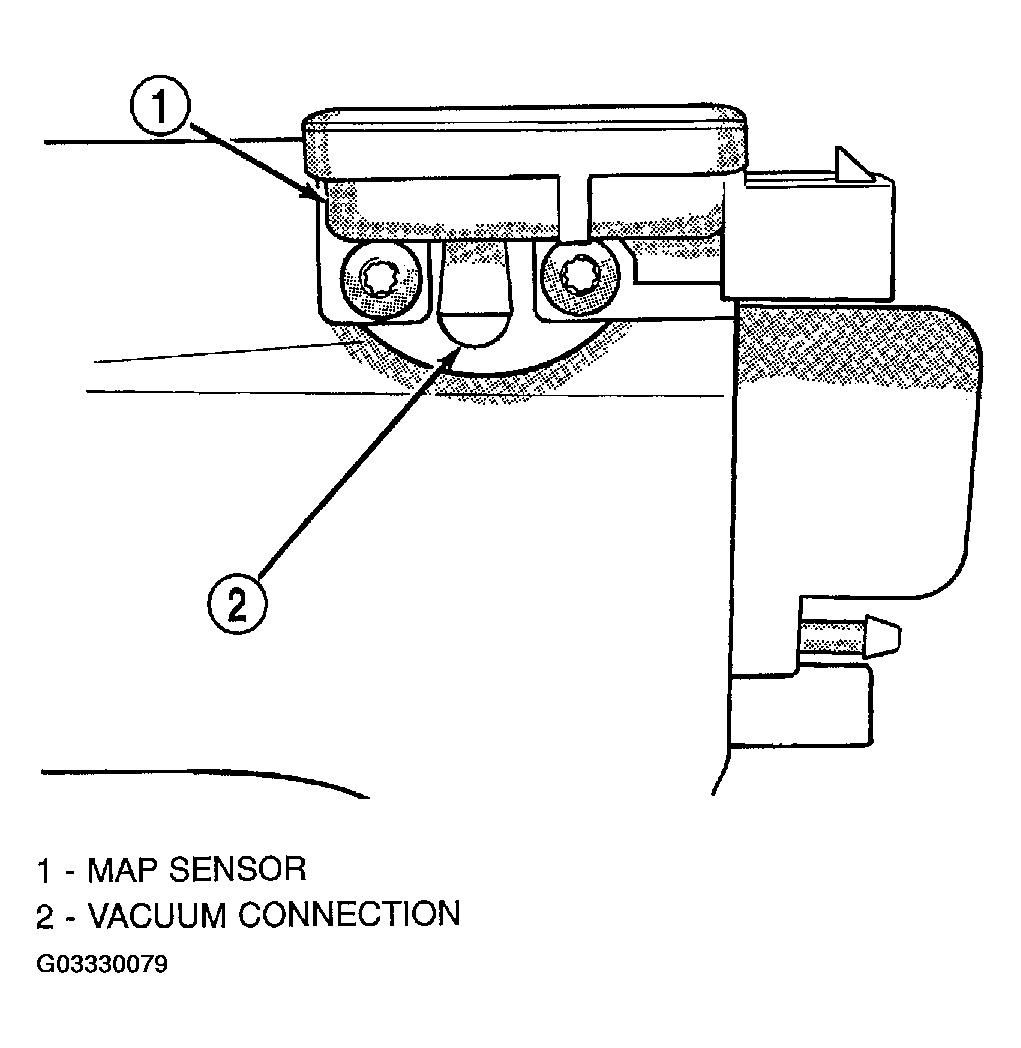

   Fig 1: Identifying Map Sensor Intake Manifold Connection

   Courtesy of DAIMLERCHRYSLER CORP.
