Removal-Replacing Old Sensor With Original

The camshaft position sensor is located on the timing chain case/cover on the left-front side of the engine (Figure ).

If the original camshaft position sensor is to be removed and installed, such as when servicing the timing chain, timing gears or timing chain cover, use this procedure.

1. Disconnect the sensor harness connector from the sensor.
2. Scribe the sensor for location depth.
3. Remove the sensor mounting bolt (Figure ).
4. Carefully pry the sensor from the timing chain case/cover in a rocking action with two small screwdrivers.
5. Remove the sensor from vehicle.
6. Check condition of sensor o-ring (Fig 1 ).

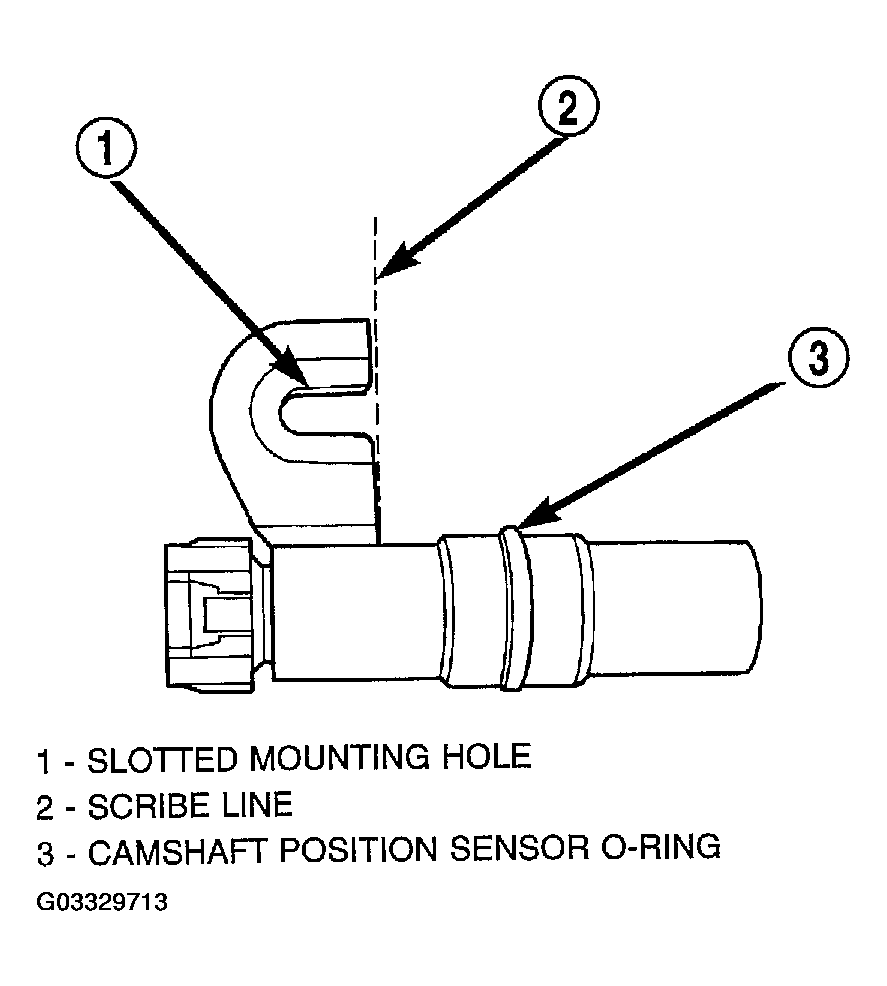

   Fig 1: Identifying Camshaft Sensor O-Ring

   Courtesy of DAIMLERCHRYSLER CORP.
