Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

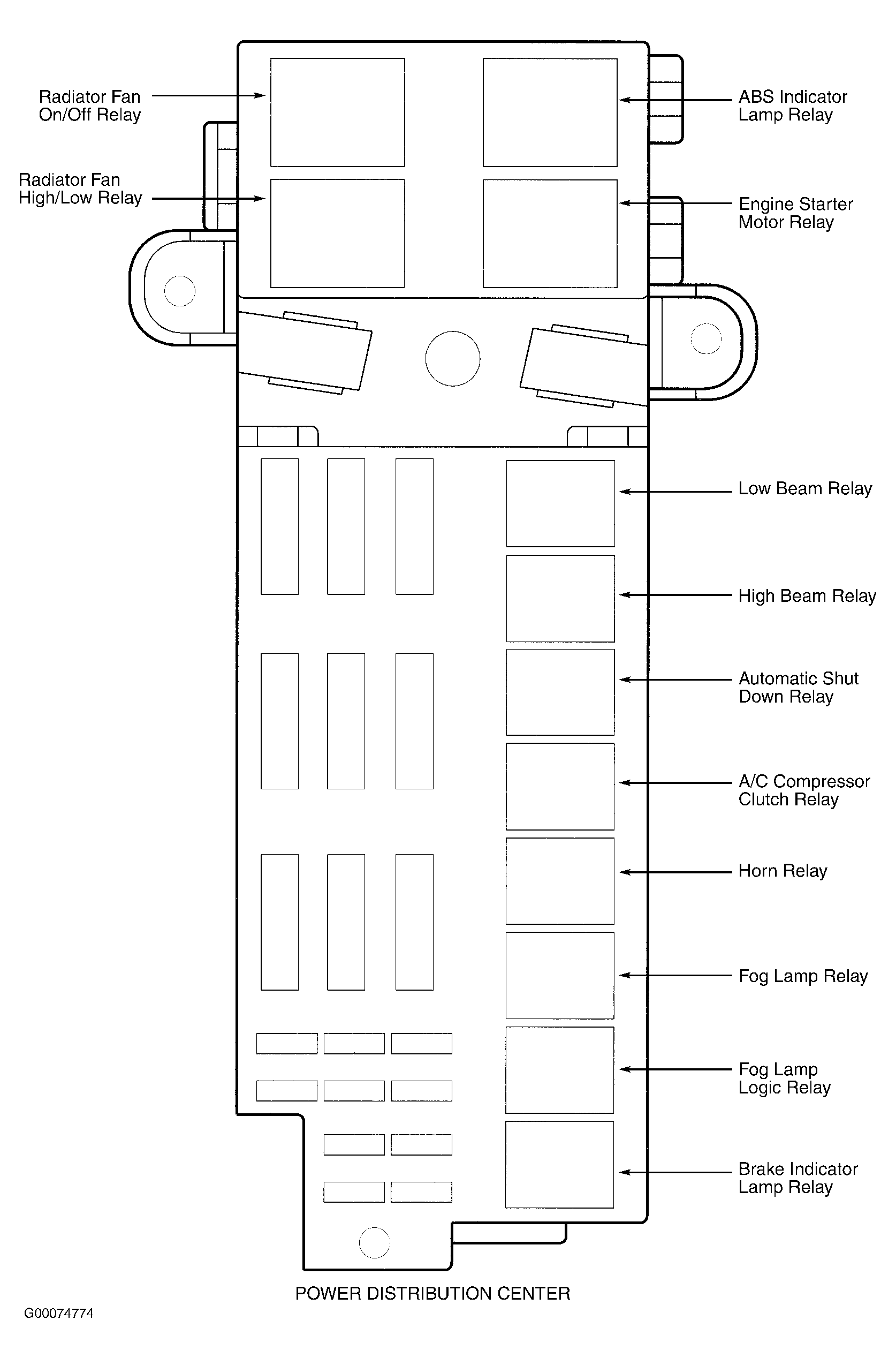

Fig 1: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

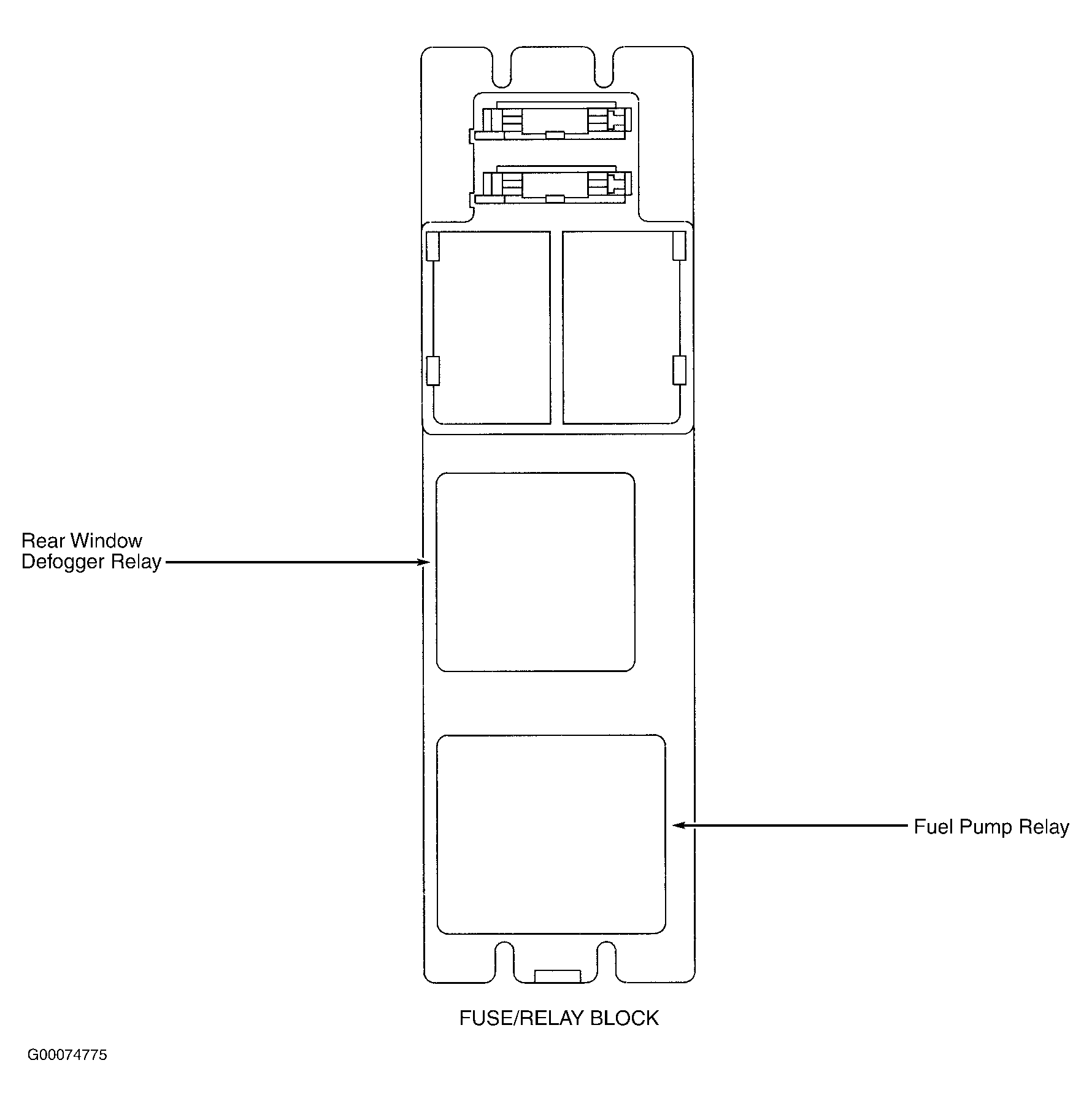

Fig 2: Fuse/Relay Block

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Lower Left Side Of Dash

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Left Side Engine Of Compartment

Courtesy of DAIMLERCHRYSLER CORP.

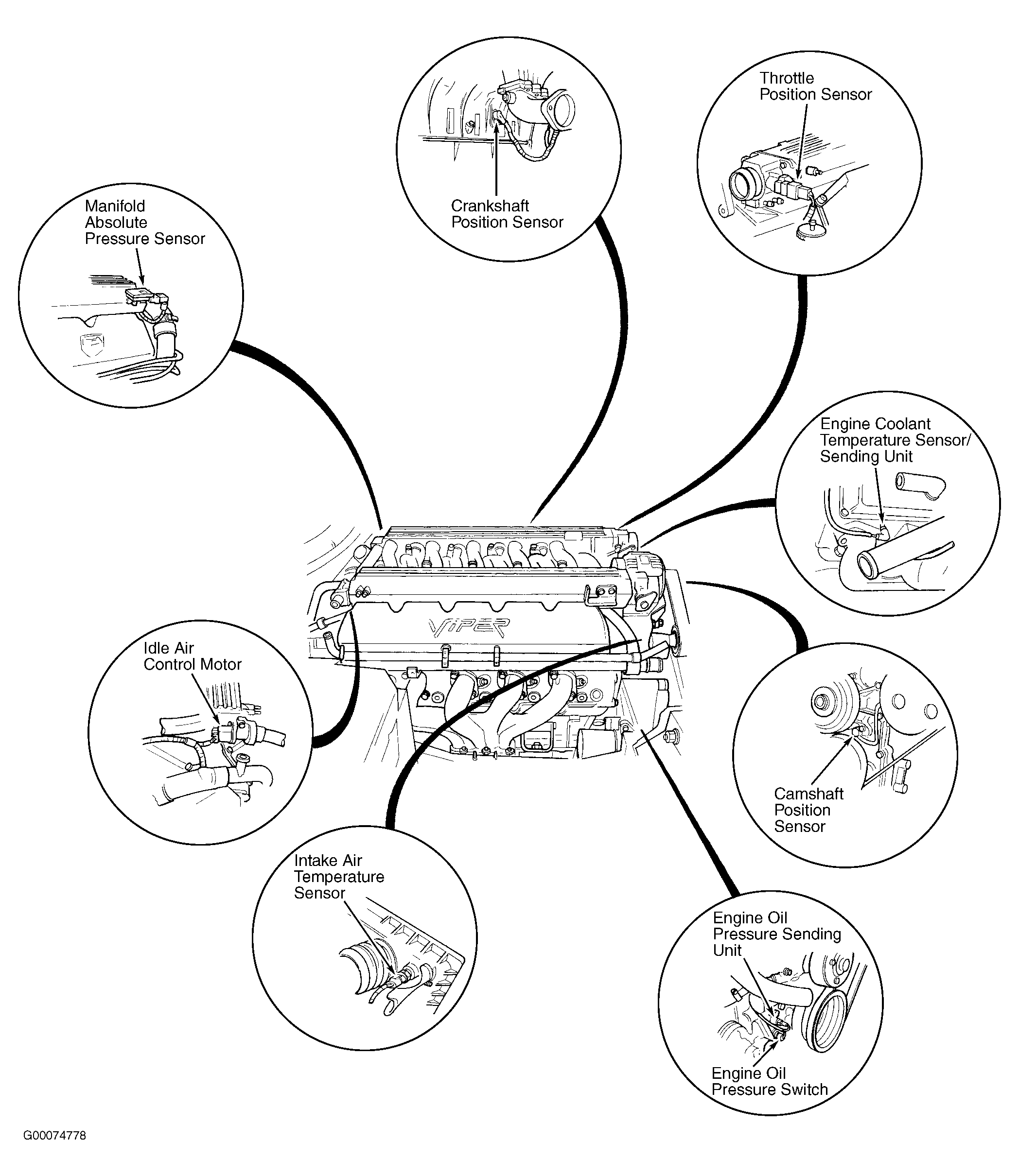

Fig 5: Top Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

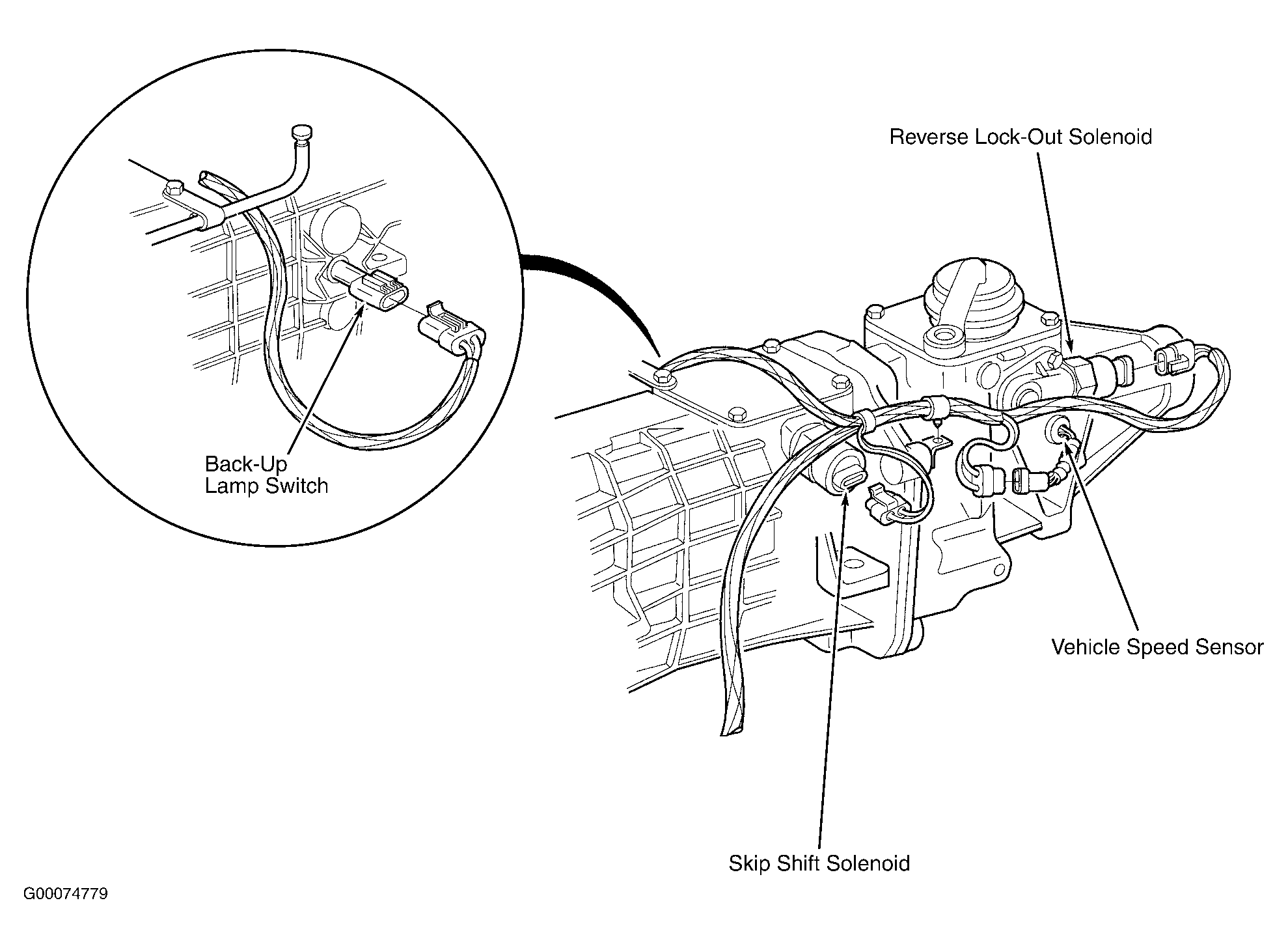

Fig 6: Left Side Of Transmission

Courtesy of DAIMLERCHRYSLER CORP.

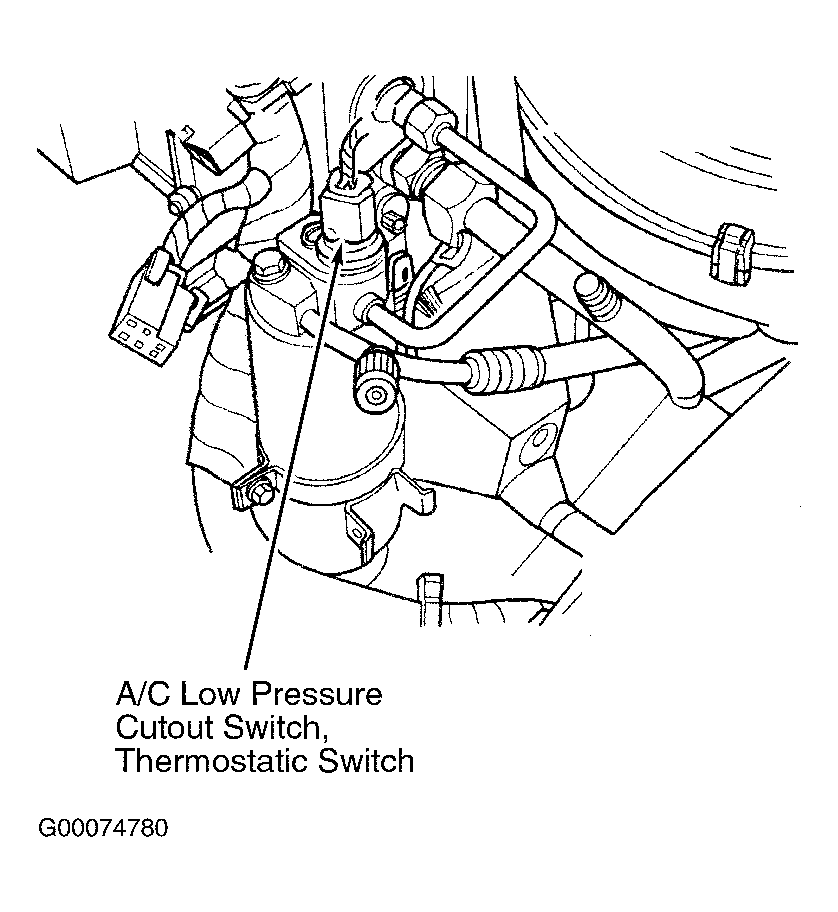

Fig 7: Filter-Drier Assembly

Courtesy of DAIMLERCHRYSLER CORP.
