Charging System: Generator: Removal

  1. Disconnect positive battery cable at bullet connector near power steering pump (Fig 1 ).

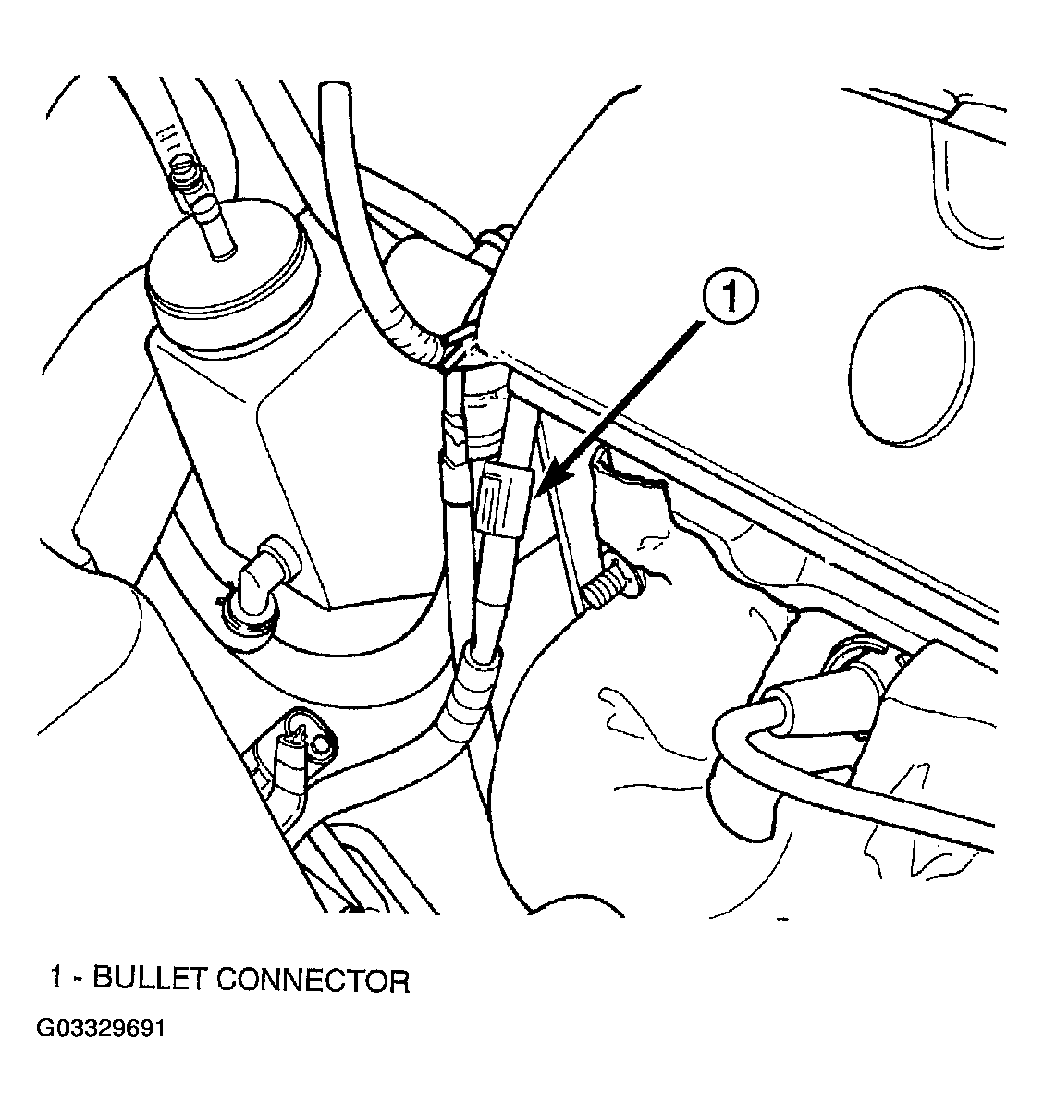

    Fig 1: Identifying Bullet Connector
    G03329691Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove air cleaner.
  3. Remove generator drive belt. Refer to the COOLING SYSTEM for procedure.
  4. Remove 2 bolts from generator bracket (Fig 2 ).

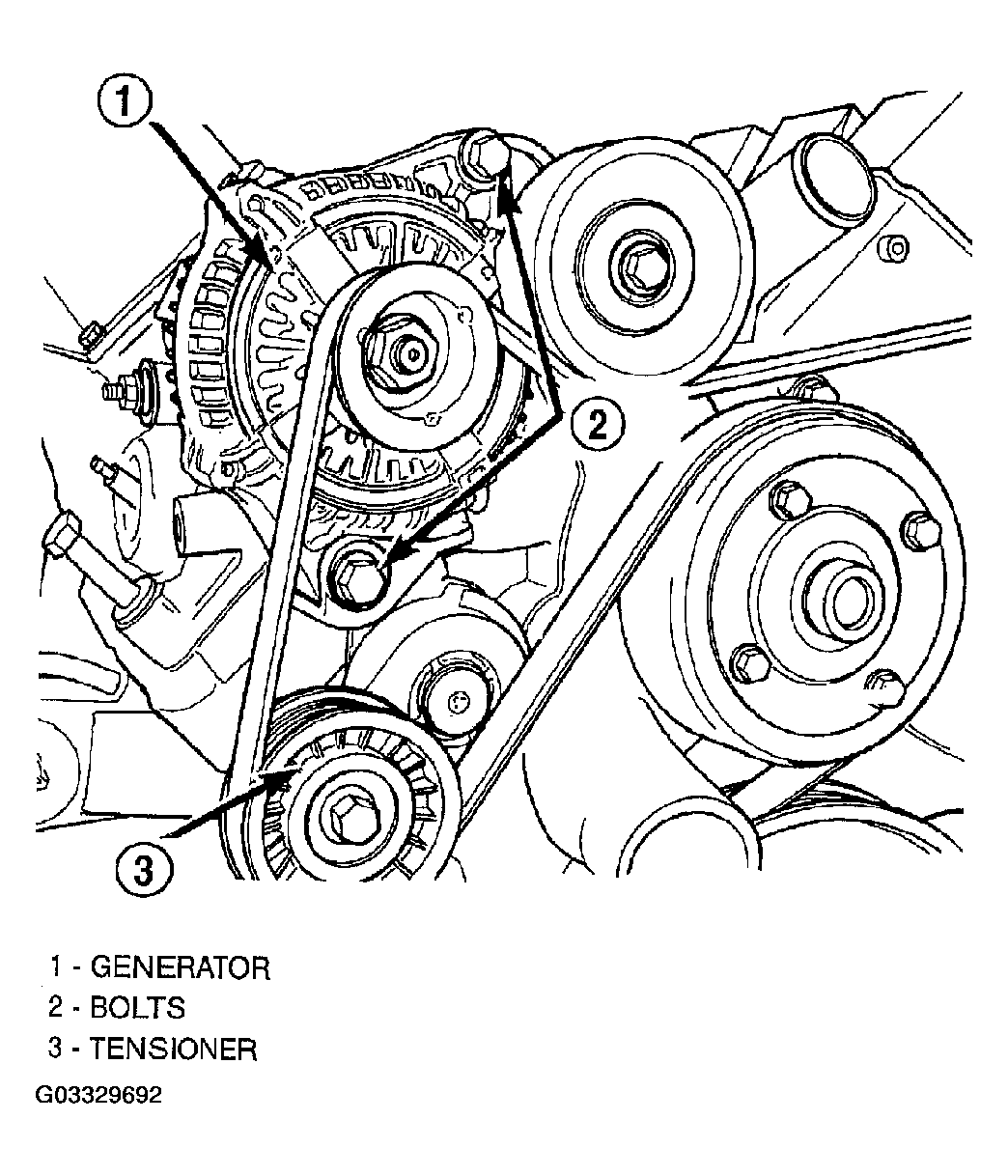

    Fig 2: Removing Generator
    G03329692Courtesy of DAIMLERCHRYSLER CORP.
  5. Slide generator forward.
  6. Unplug field connector from rear of generator.
  7. Remove battery positive from side of generator.
  8. Remove generator from vehicle.
