Battery Temperature Sensor: Removal

  1. Make sure ignition switch is in the OFF position and all accessories are OFF.
  2. Refer to the BATTERY for removal of battery to access the battery temperature sensor. (Fig 1 )

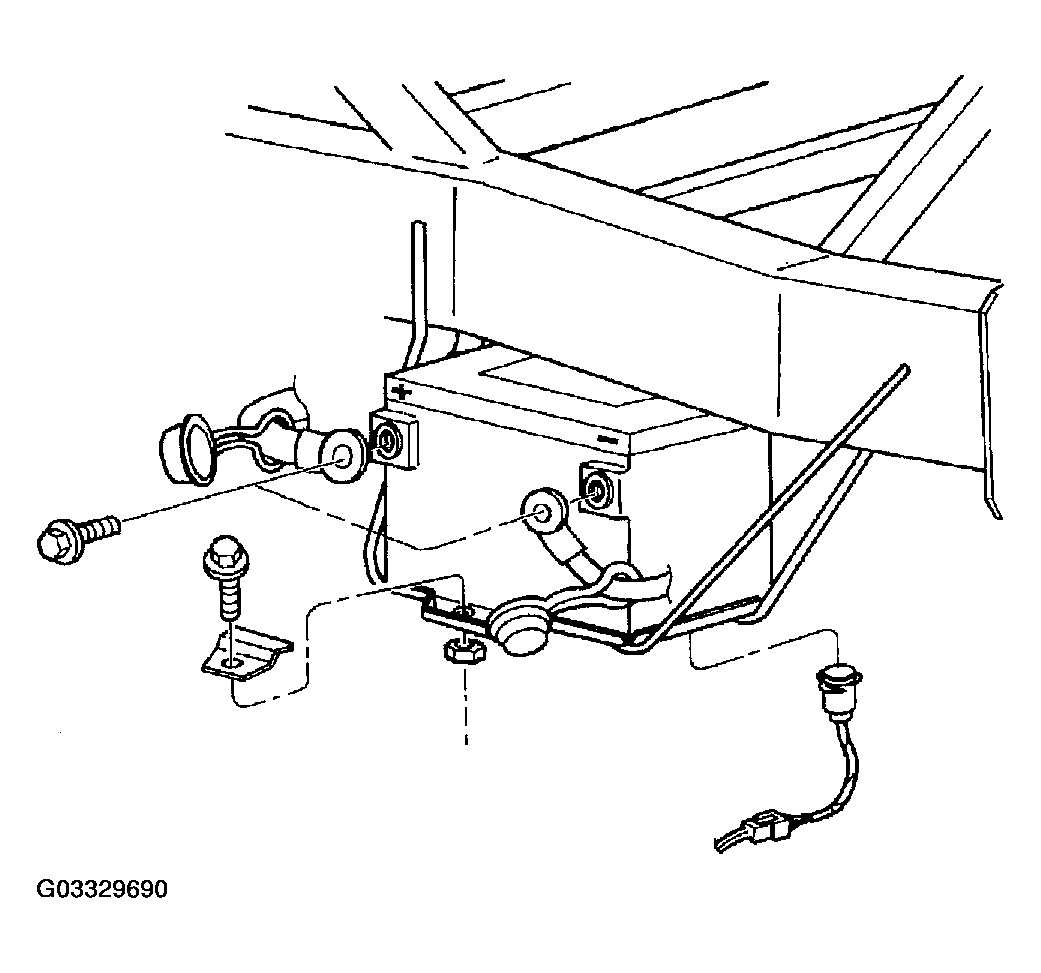

    Fig 1: Identifying Battery Hold-Down/Tray
    G03329690Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect electrical connector.
  4. Remove Battery Temperature Sensor from battery tray.
