Battery System: Battery: Description

From the factory, this model is equipped with a maintenance-free battery. The battery is located behind the left rear wheel well splash shield (Fig 1 ).

Maintenance-free batteries have non-removable battery vent caps. Water cannot be added to this battery. Under normal service the composition of this battery reduces gassing and water loss at normal charge rates. If the battery electrolyte level becomes low, this battery must be replaced.

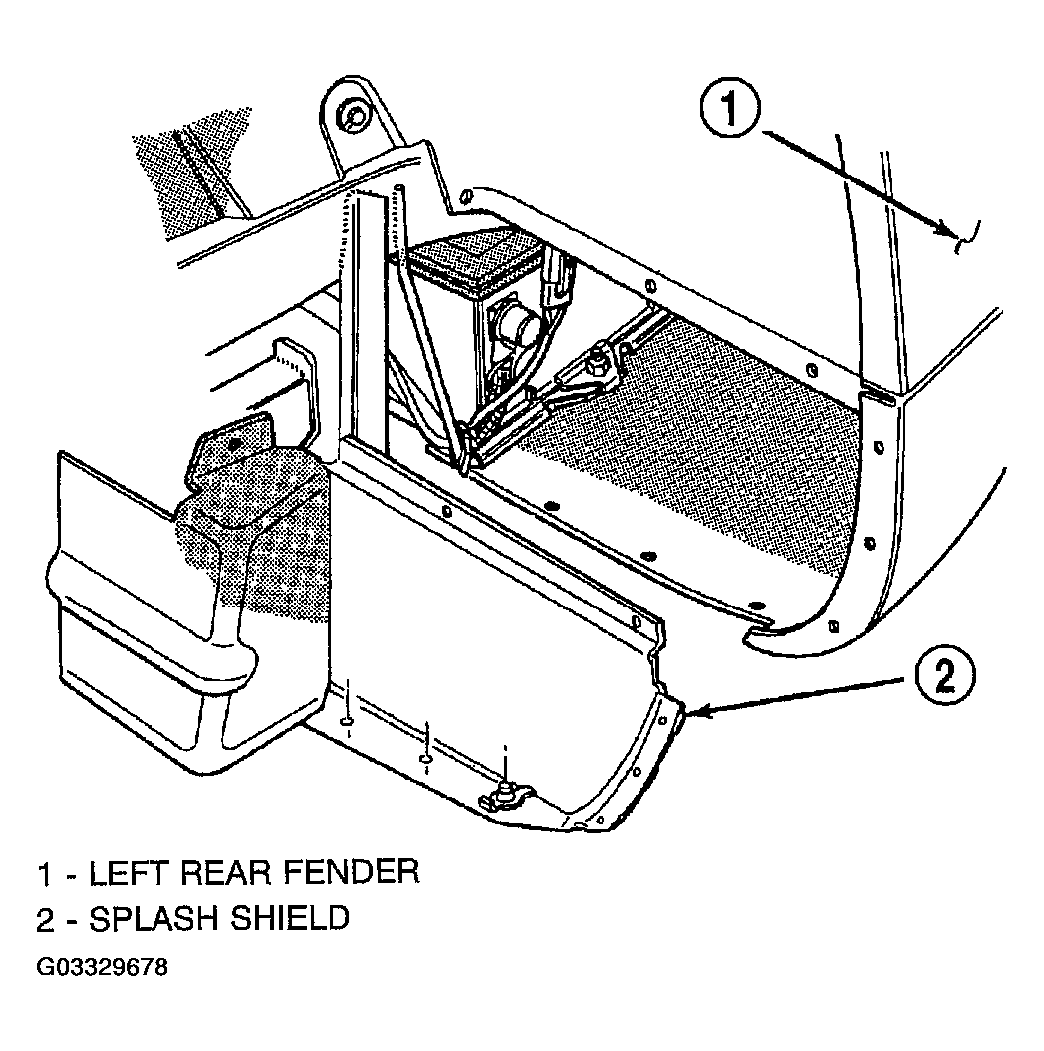

Fig 1: Locating Battery
G03329678Courtesy of DAIMLERCHRYSLER CORP.
