Gear Shift Lever: Removal

  1. Remove the kneeblocker.
  2. Loosen the steering column bolts enough to lower the column without removing.
  3. Remove the upper and lower shrouds.
  4. Disconnect over drive switch wiring.
  5. Disconnect the shift cable from the pin and unsnap the cable adjusting clip.
  6. Remove the screws retaining the gear shift lever. (Fig 1)

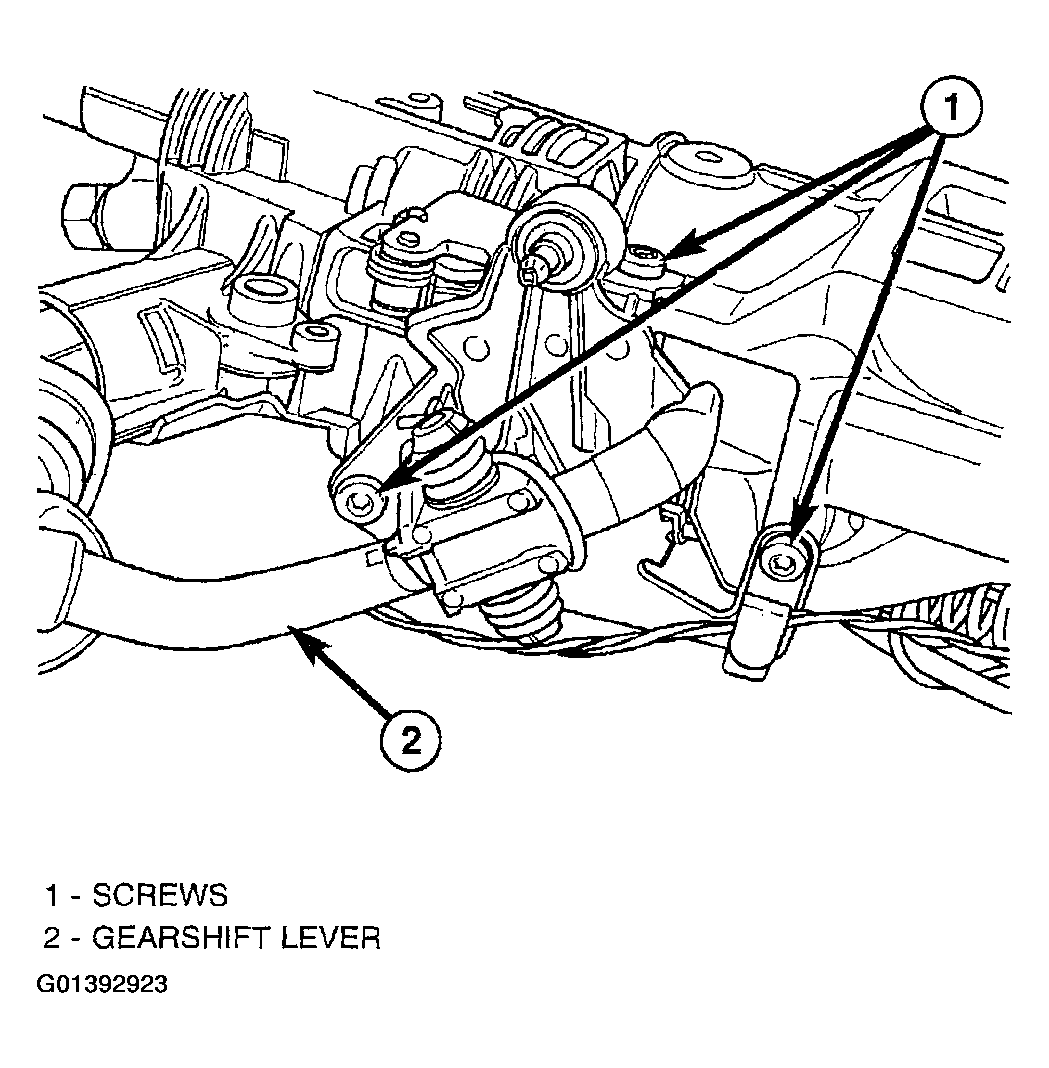

    Fig 1: Removing Gear Shift Lever
    G01392923Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the gear shift lever from the steering column assembly.
