Exhaust Systems: Tailpipe: Removal

WARNING: If torches are used when working on the exhaust system, wear protective eye covering and do not allow the flame near the fuel lines.
CAUTION: When servicing or replacing exhaust system components, be sure to disconnect all oxygen sensor connectors. Allowing the exhaust system to hang by the harness will damage the wiring and/or sensor.
  1. Disconnect battery negative cable.
  2. Raise vehicle on hoist.
  3. Disconnect tailpipe from rear hanger bracket. (Fig 1).

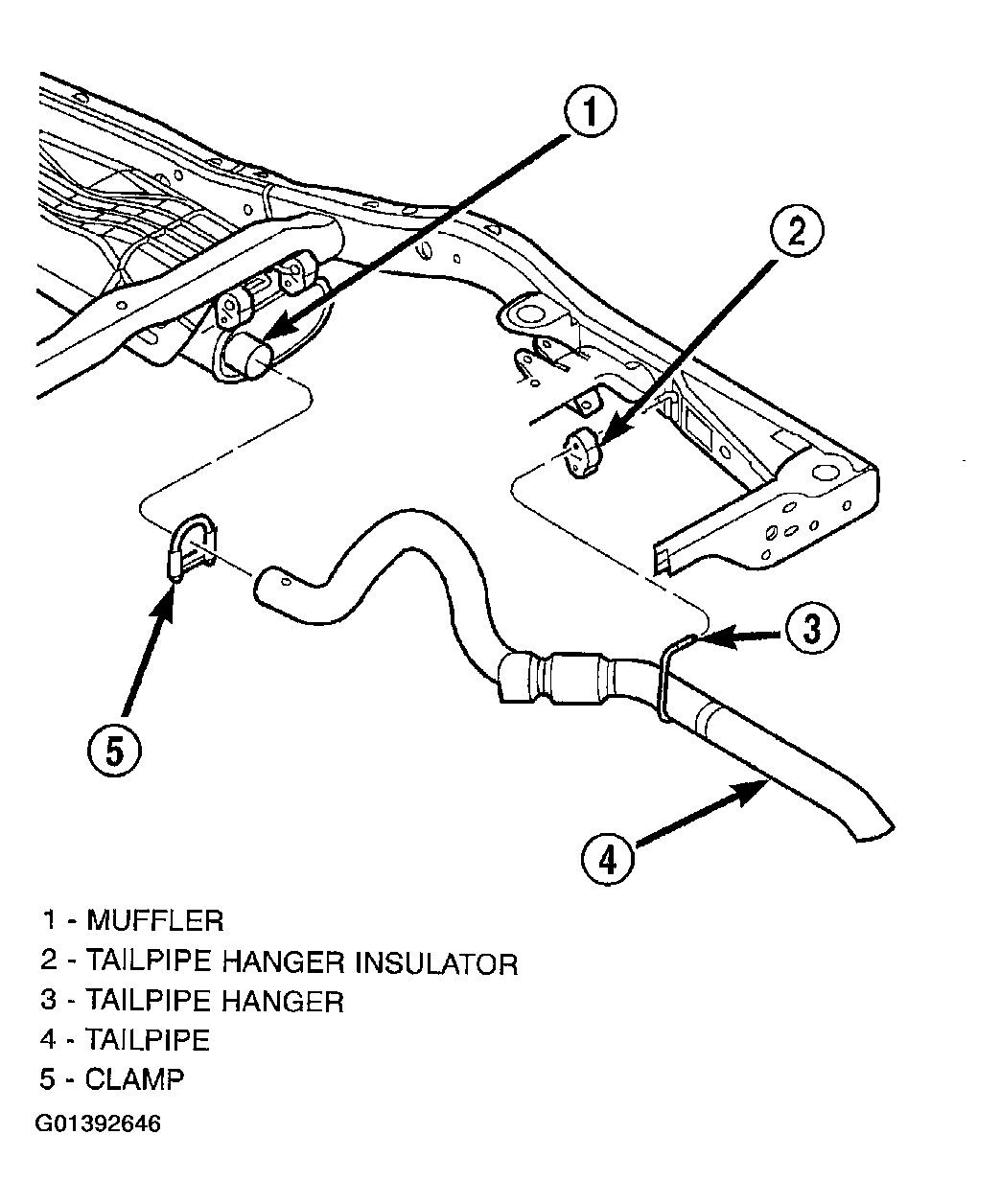

    Fig 1: Removing/Installing Tailpipe
    G01392646Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove muffler to tailpipe exhaust clamp. (Fig 1).
  5. Heat connection with an oxygen/acetylene torch and twist tailpipe out of muffler.
