Heat Shields: Removal

Raise and support the vehicle.
Remove the screws and nuts holding the heat shields to the frame and floor pan. (Fig 1, Fig 2 or Fig 3 ). When- removing muffler heat shield, the muffler front rear support hangers must be removed first. (Fig 4). Be sure to disconnect both oxygen sensor connectors.

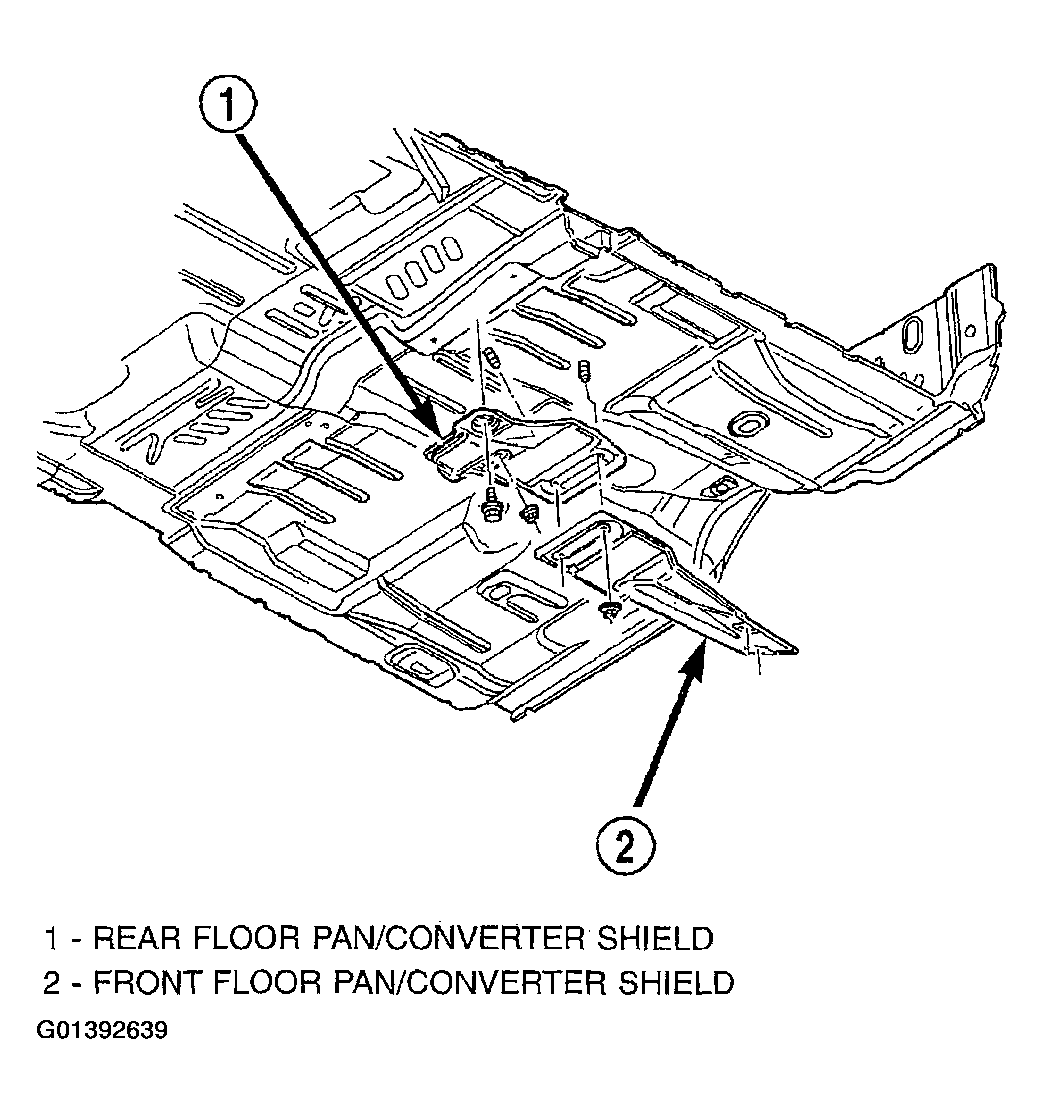

Fig 1: Identifying Front & Rear Floor Pan/Converter Shields
Courtesy of DAIMLERCHRYSLER CORP.

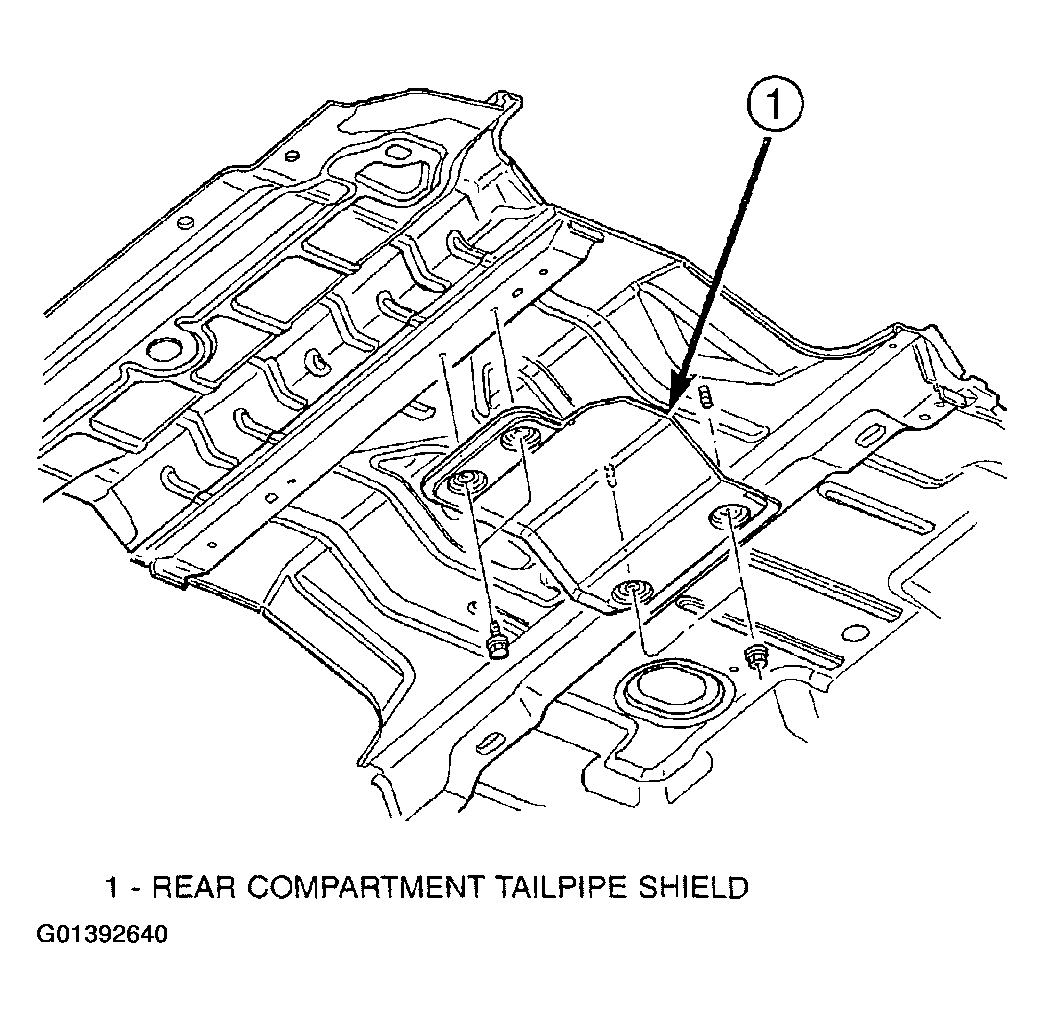

Fig 2: Identifying Rear Compartment/Tailpipe Heat Shield
Courtesy of DAIMLERCHRYSLER CORP.

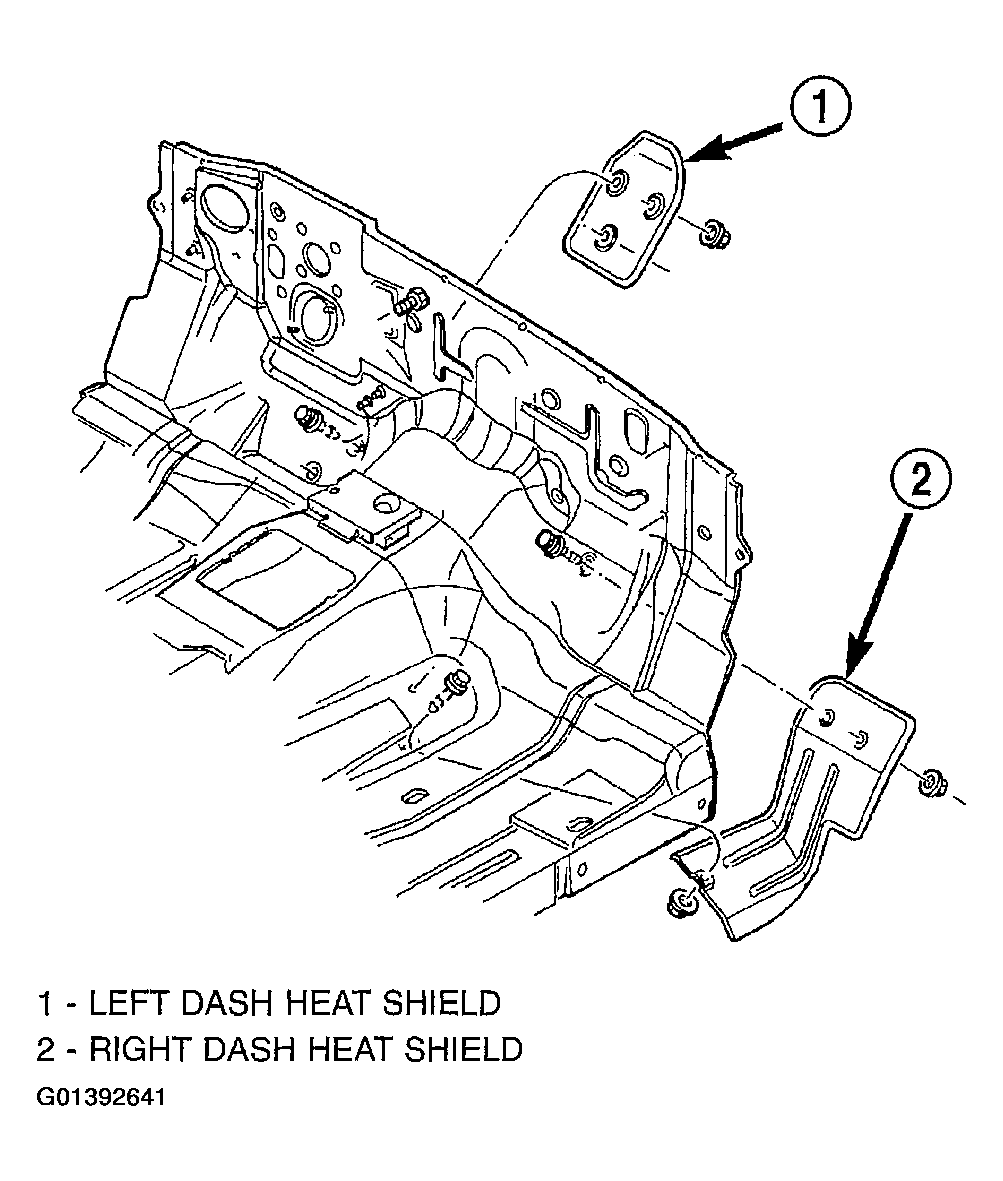

Fig 3: Identifying Left & Right Dash Heat Shield
Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Muffler Heat Shield
Courtesy of DAIMLERCHRYSLER CORP.
Slide the shield out around the exhaust system.
