With Air Conditioning

  1. Position bypass hose clamps to center of hose.
  2. Install bypass hose to engine.

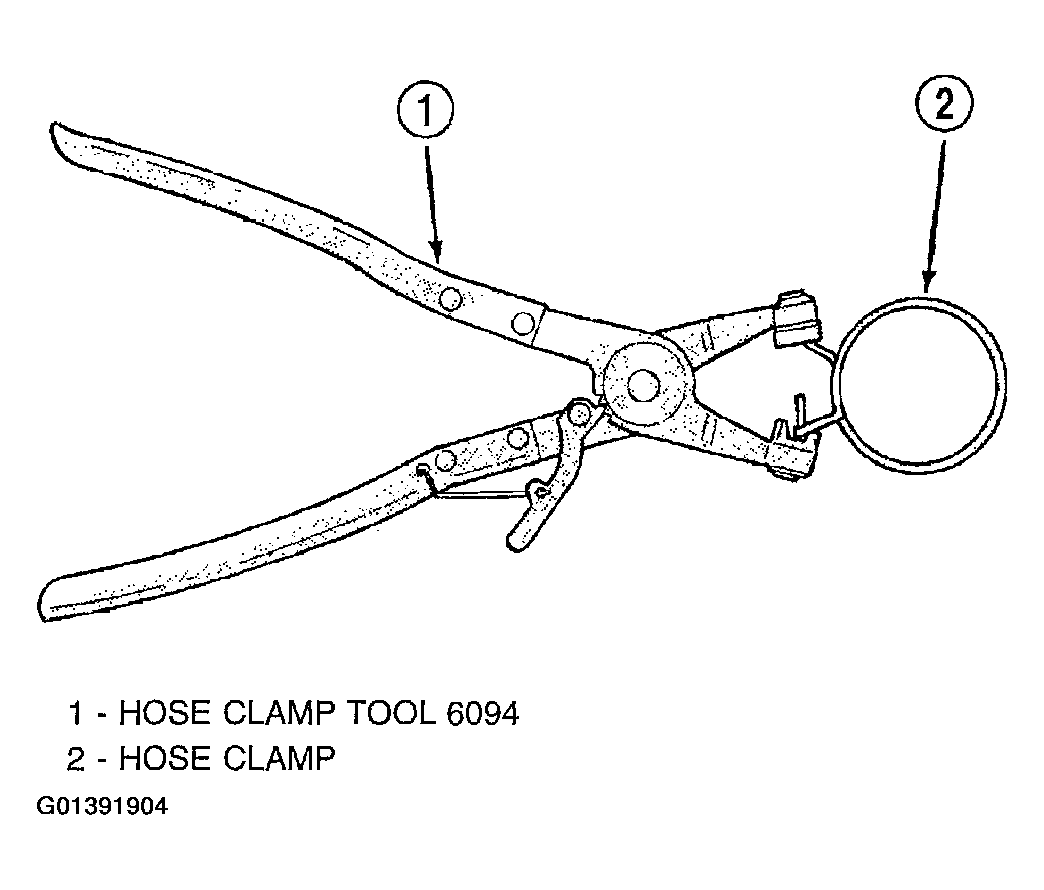

  3. Secure both hose clamps. (Figure).

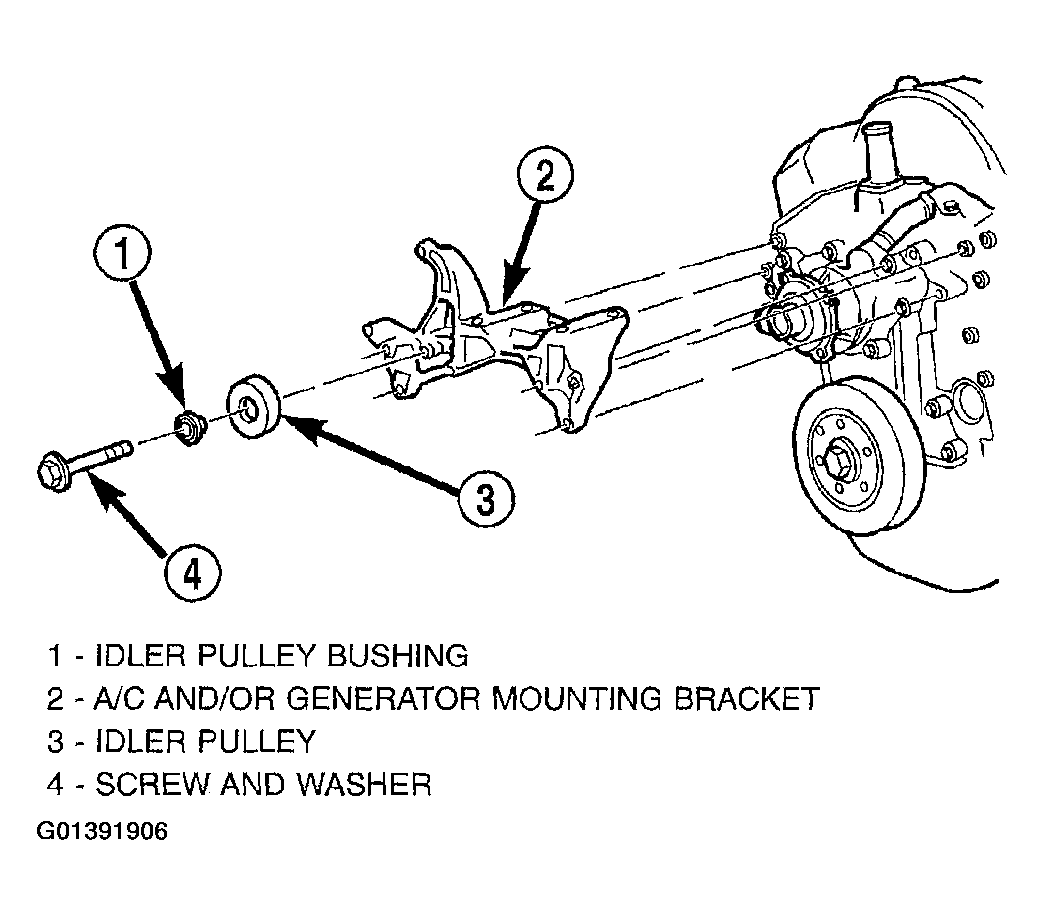

  4. Install generator-A/C mounting bracket assembly to engine. Tighten bolts (number 1 and 2- (Figure) to 54 N.m (40 ft. lbs.) torque. Tighten bolts (number 3- (Figure) to 40 N.m (30 ft. lbs.) torque.

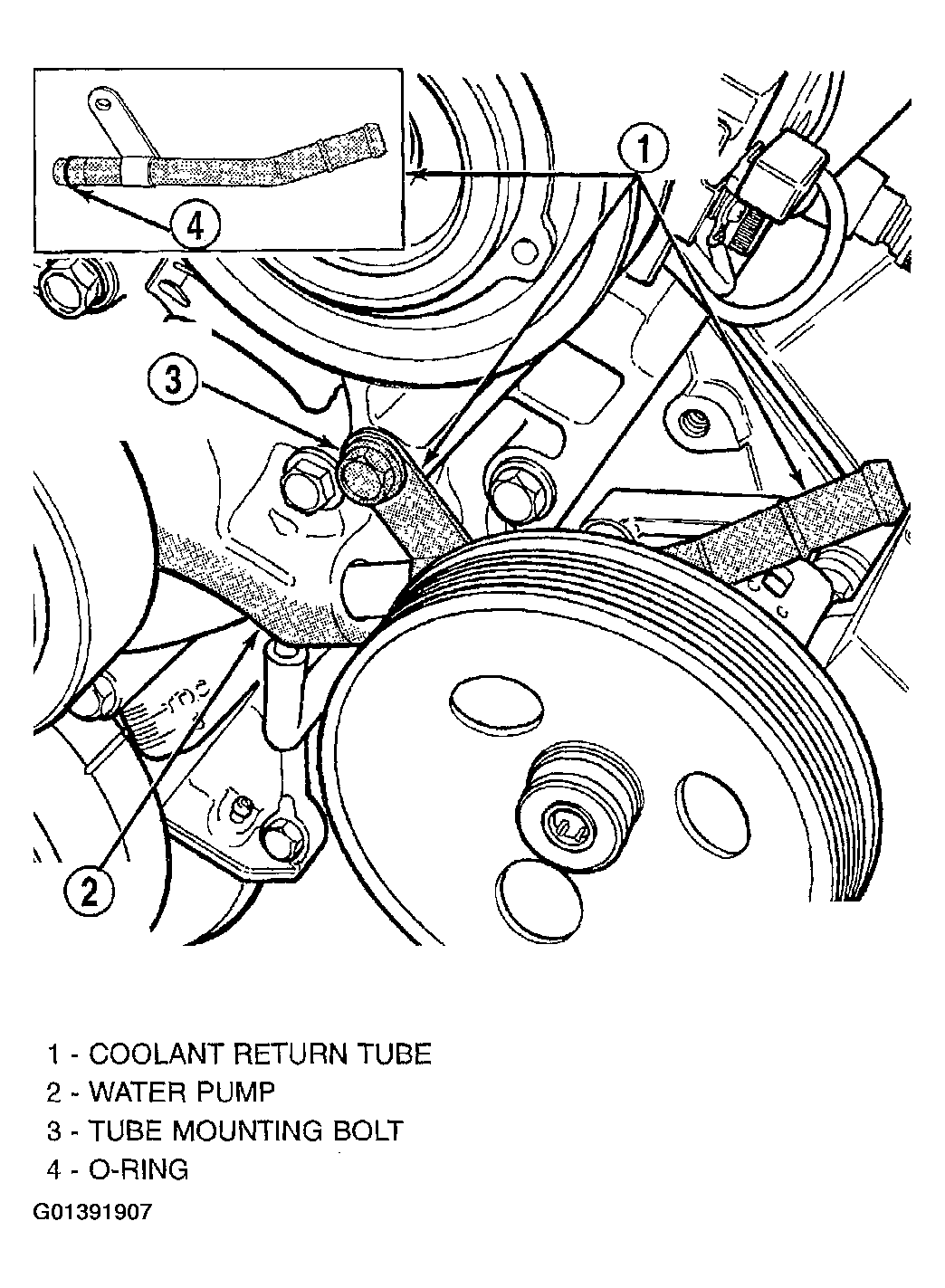

  5. Install a new O-ring to the heater hose coolant return tube. (Figure). Coat the new O-ring with antifreeze before installation.
  6. Install coolant return tube and its mounting bolt to engine. (Figure).
  7. Connect throttle body control cables.
  8. Install oil dipstick mounting bolt.
  9. Install idler pulley. Tighten bolt to 54 N.m (40 ft. lbs.) torque.
  10. Install drive belt. (Refer to DRIVE BELTS - 5.9L  or DRIVE BELTS - 4.7L ).
  11. Install air cleaner assembly.
  12. Install upper radiator hose to radiator.
  13. Connect wiring harness to A/C compressor.
  14. Connect battery negative cable.
  15. Fill cooling system.
  16. Start and warm the engine. Check for leaks.
