Standard Procedure - Draining Cooling System 5.9L Engine

WARNING: DO NOT remove cylinder block drain plugs or loosen radiator drain-cock with system hot and under pressure. serious burns from coolant can occur.

DO NOT WASTE reusable coolant. If solution is clean, drain coolant into a clean container for reuse.

  1. Remove radiator pressure cap.
  2. Loosen radiator petcock.
  3. Remove cylinder block drain plugs. Refer to Fig 1.

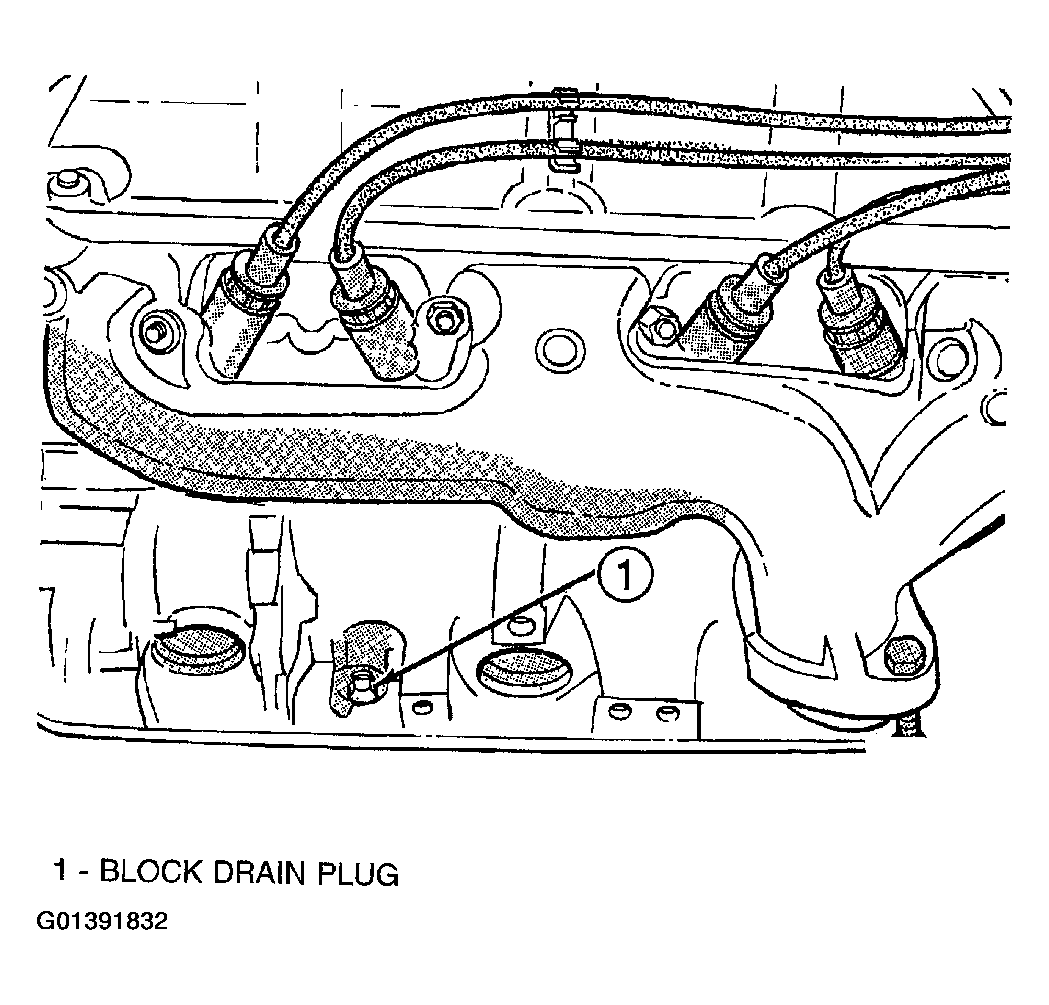

    Fig 1: Locating Cylinder Block Drain Plug - 5.9L Engines
    G01391832Courtesy of DAIMLERCHRYSLER CORP.
