Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Camshaft Sprocket Bolt |
50 (68) |
| Camshaft Thrust Plate Bolt |
18 (24) |
| Connecting Rod Bolt |
45 (61) |
| Crankshaft Pulley Bolt |
18 (24) |

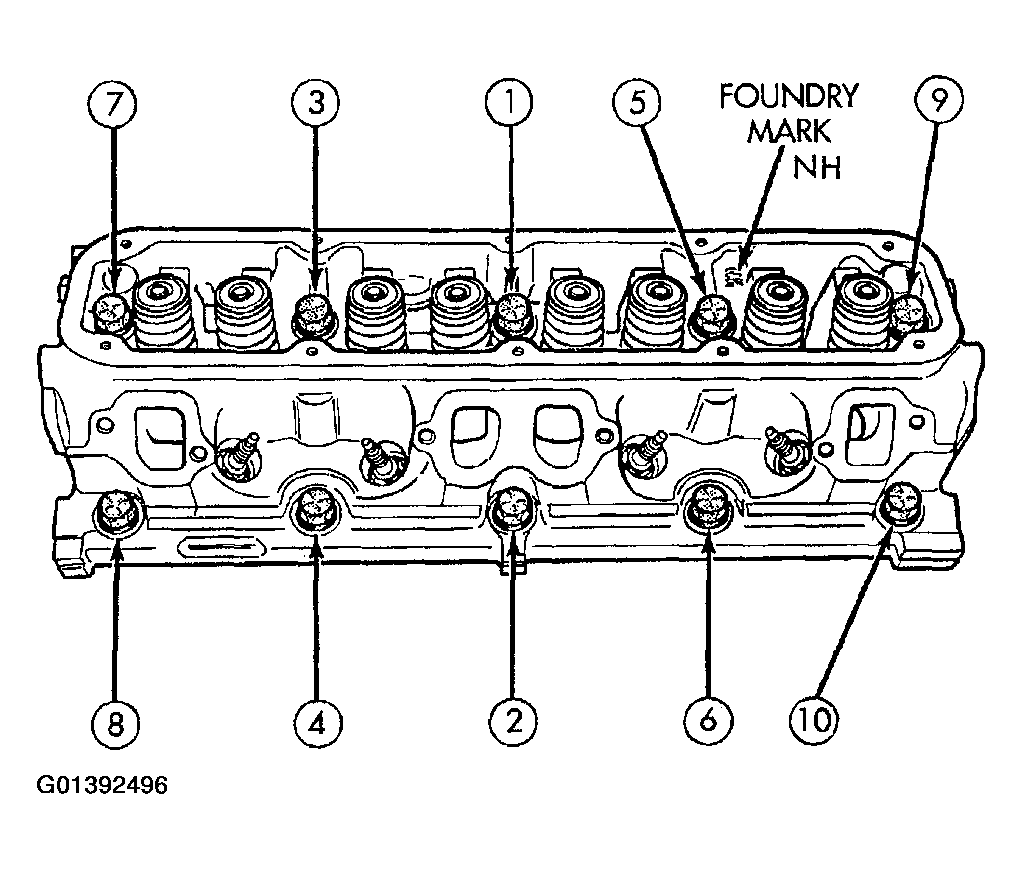

| Cylinder Head Bolt |
| Step 1 |
50 (68) |
| Step 2 |
105 (142) |
| Step 3 |
105 (142) |
| Engine Mount Bracket-To-Frame Rail Bolt (2WD) |
30 (41) |
| Engine Mount Through-Bolt |
| 2WD |
50 (68) |
| 4WD |
75 (102) |
| Engine Mount-To-Cylinder Block Bolt |
70 (95) |
| Engine Mount-To-Frame Bracket Bolt/Nut |
75 (102) |
| Exhaust Manifold Bolt & Nut |
25 (34) |
| Flywheel/Flexplate-To-Crankshaft Bolt |
55 (75) |
| Front Cover Bolt |
30 (41) |
| Heat Shield Bolts |
N/A |
| Main Bearing Cap Bolt |
85 (115) |
| Oil Drain Plug |
25 (34) |
| Oil Pan Bolt |
18 (24) |
| Oil Pump Bolt |
30 (41) |
| Rocker Arm Bolt |
21 (28) |
| Shift Motor Bolt |
12-18 (16-24) |
| Spark Plug |
30 (41) |
| Starter Bolts |
50 (68) |
| Throttle Body Bolt |
17 (23) |
| Transfer Case Yoke Bolt (4WD) |
N/A |
| Vibration Damper Bolt |
180 (244) |
| Water Pump Bolt |
30 (41) |
| INCH Lbs. (N.m) |

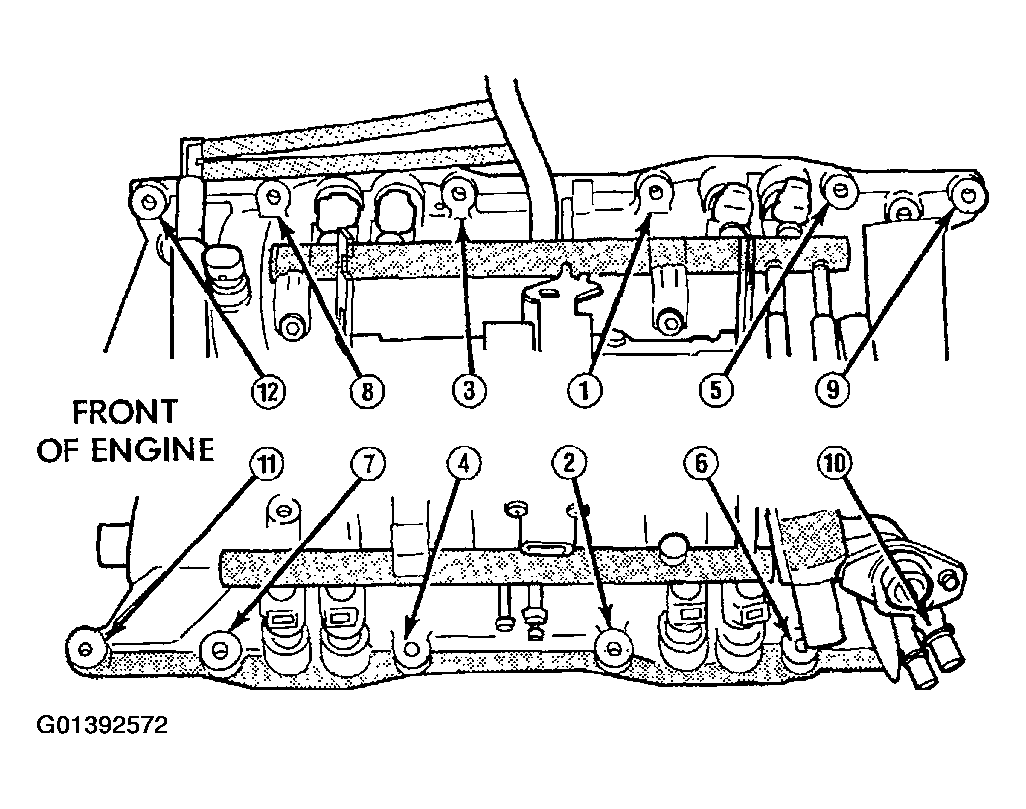

| Intake Manifold Bolt |
| Step 1 (Bolts No. 1-4) |
72 (8) |
| Step 2 (Bolts No. 5-12) |
72 (8) |
| Step 3 (All Bolts) |
72 (8) |
| Step 4 (All Bolts) |
144 (16) |
| Step 5 (All Bolts) |
144 (16) |

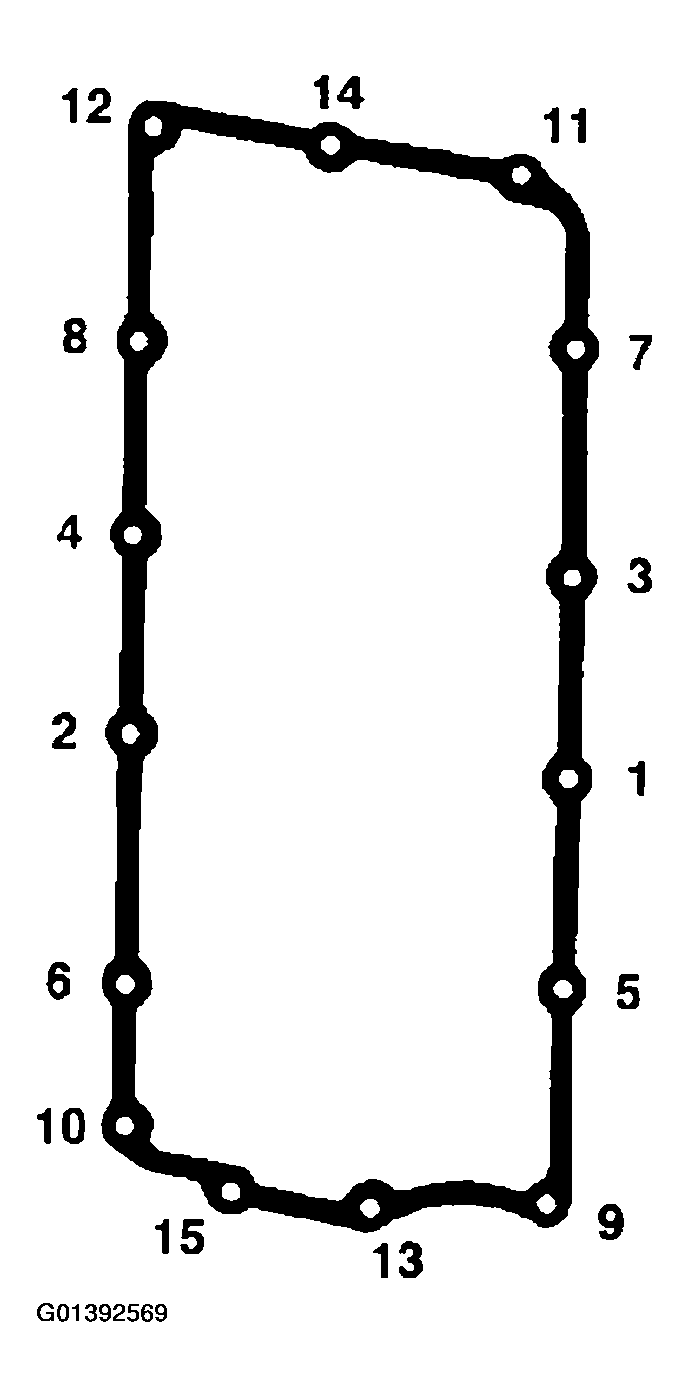

| Intake Manifold Plenum Pan Bolt |
| Step 1 |
48 (5.4) |
| Step 2 |
84 (9.5) |
| Step 3 |
84 (9.5) |
| Oil Pump Cover Bolt |
97 (11) |
| Valve Cover Bolts |
97 (11) |
