Battery Temperature Sensor: Installation

WARNING: This page is about a different car, the 2002 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

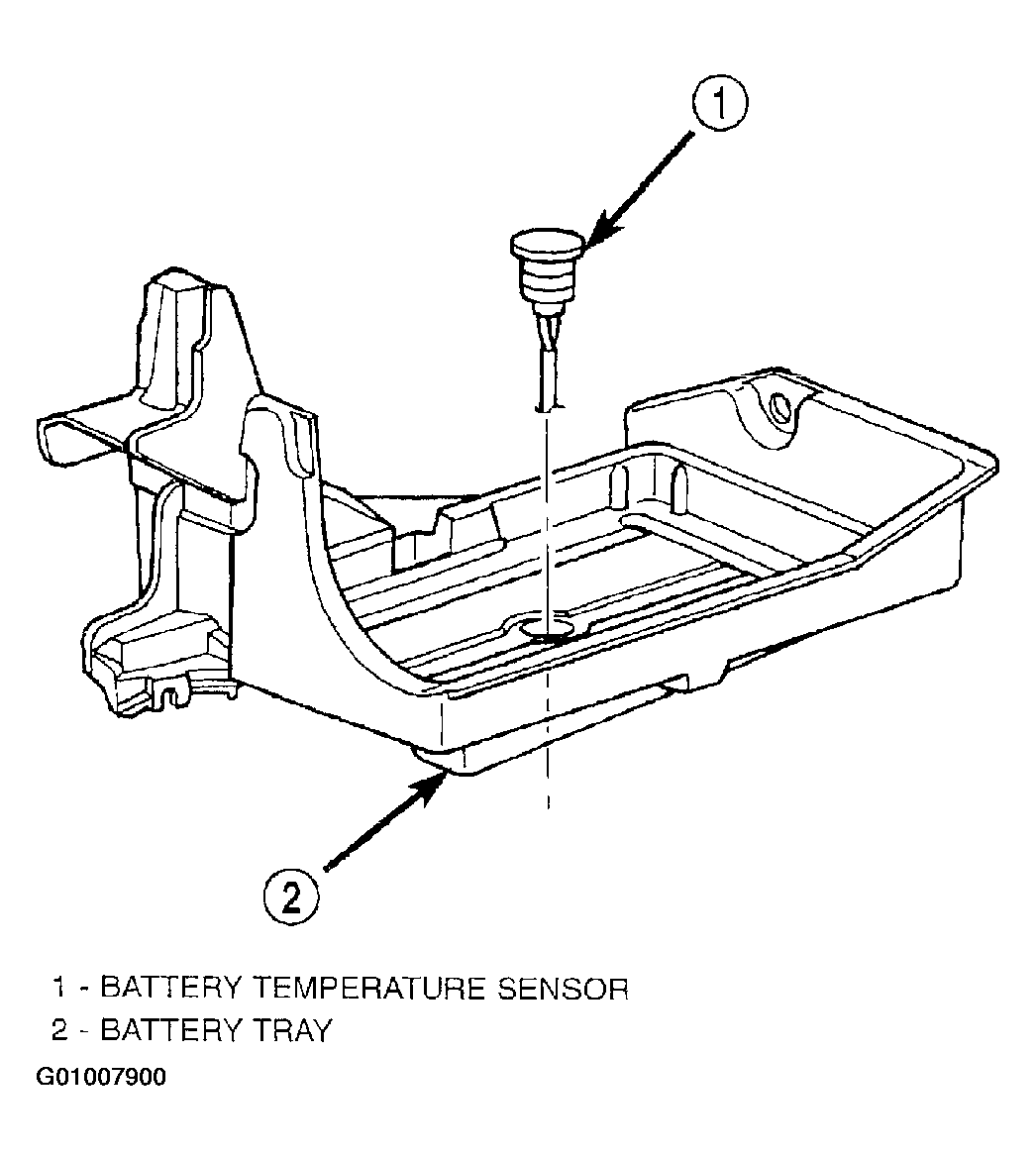

The battery temperature sensor is located under vehicle battery and is attached to a mounting hole on battery tray. (Figure).

  1. Feed pigtail harness through hole in top of battery tray and press sensor into top of battery tray.
  2. Connect pigtail harness.
  3. Install battery.
