Heat Shields: Installation

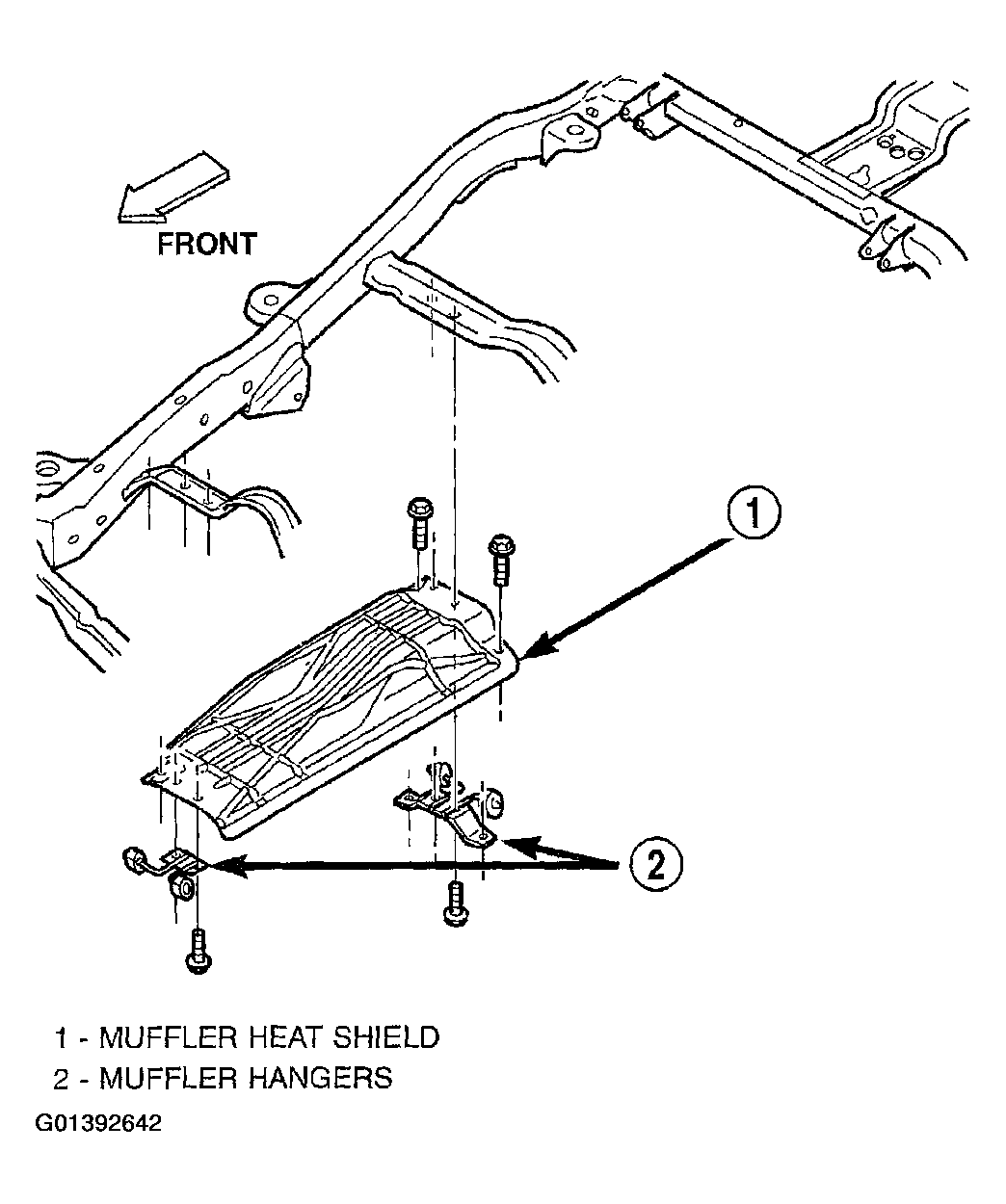

  1. Position the heat shields to the floor pan or the frame and install the screws and nuts. (Figure).
  2. Tighten the screws/nuts to 7 N.m (60 in. lbs.) torque. Tighten the muffler hangers to 23 N.m (200 in. lbs.)
  3. Lower the vehicle.
