Heat Shields: Description

There are two types of heat shields used. One is stamped steel the other is molded foil sheets. The shields attach to the vehicle around the exhaust system. (Fig 1).

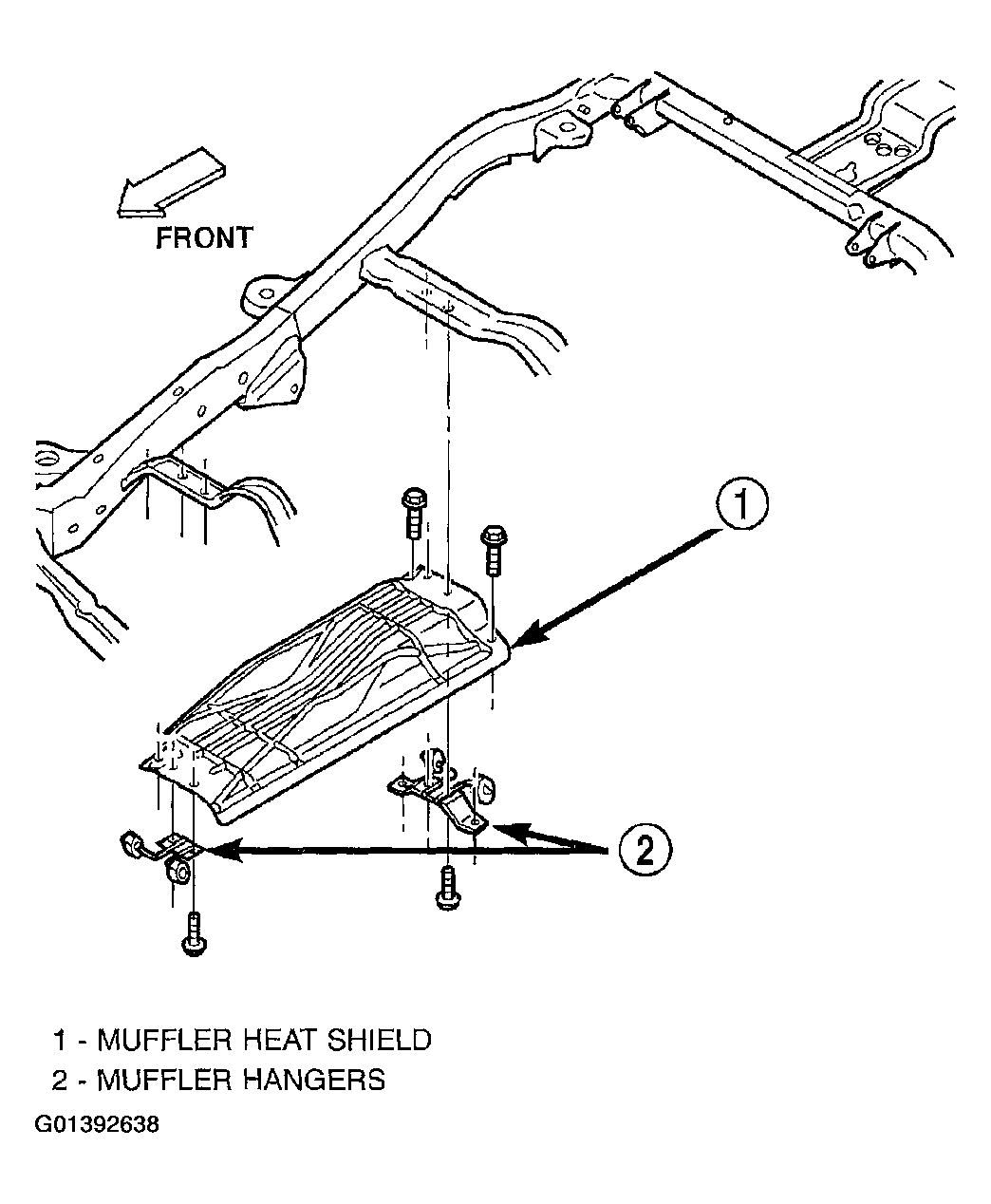

Fig 1: Identifying Heat Shield (Typical)

Courtesy of DAIMLERCHRYSLER CORP.
