Rear Wheel Speed Sensor: Removal

  1. Raise vehicle on hoist.
  2. Remove brake line mounting nut and remove the brake line from the sensor stud.
  3. Remove mounting stud from the sensor and shield. (Fig 1).

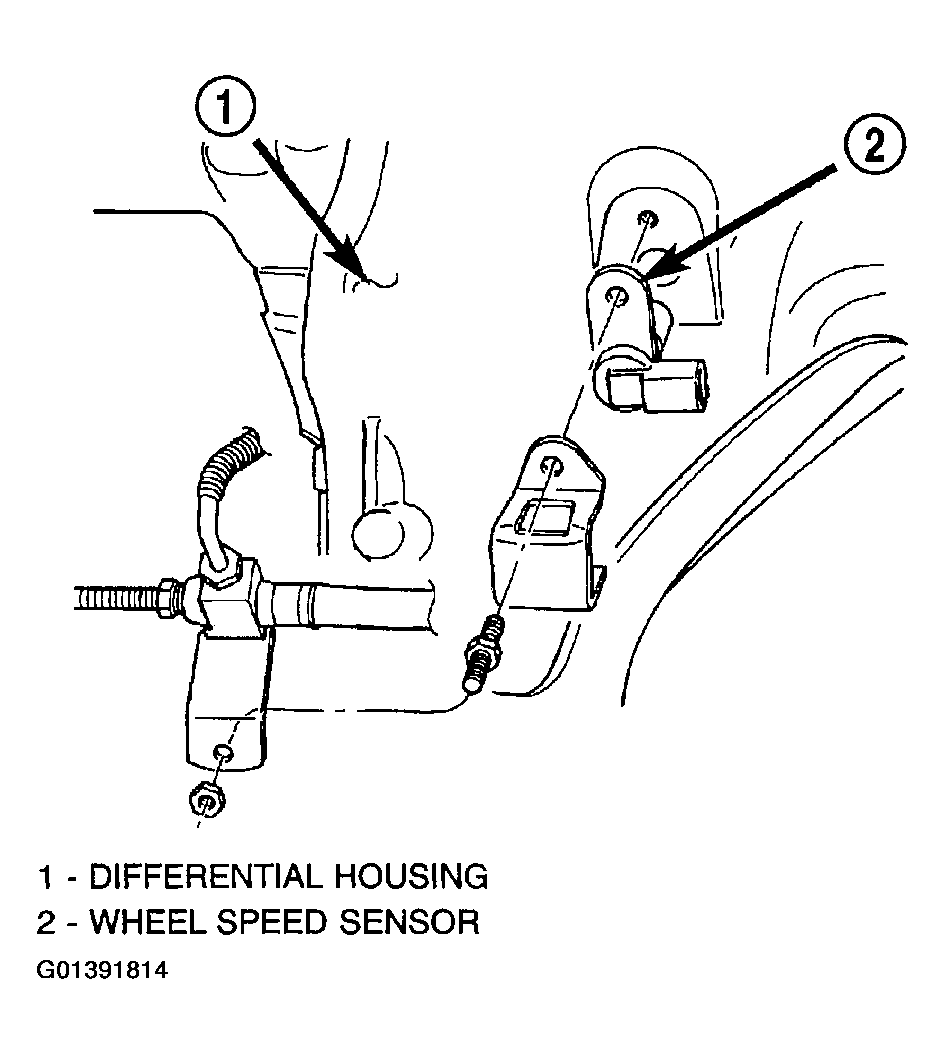

    Fig 1: Fig. 7 Rear Speed Sensor Mounting
    G01391814Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove sensor and shield from differential housing.
  5. Disconnect sensor wire harness and remove sensor.
