Connector Identification

NOTE: For component locations, see COMPONENT LOCATIONS .

Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals

G00096076

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying A/C Low Pressure Switch Harness Connector Terminals (4.7L)

G00117211

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying A/C Low Pressure Switch Harness Connector Terminals (5.9L)

G00117212

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying A/C Pressure Sensor Harness Connector Terminals

G00117213

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Ambient Temperature Sensor Harness Connector Terminals

G00117214

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Identifying Battery Temperature Sensor Harness Connector Terminals

G00096078

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Identifying Brakelight/Lamp Harness Connector Terminals

G00096080

Courtesy of DAIMLERCHRYSLER CORP.

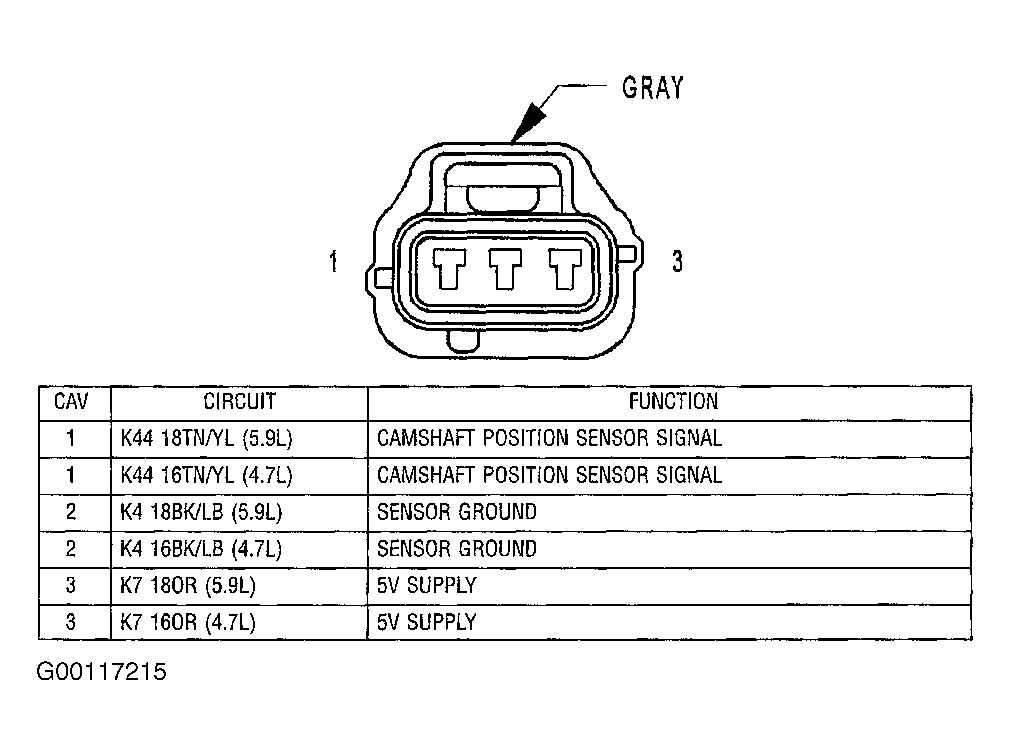

Fig 8: Identifying Camshaft Position Sensor Harness Connector Terminals

G00117215

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Capacitor Harness Connector Terminals

G00096082

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Clockspring Harness Connector C1 Terminals

G00096083

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Clockspring Harness Connector C3 Terminals

G00096084

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Coil On Plug No. 1 Harness Connector Terminals (4.7L)

G00117216

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying Coil On Plug No. 2 Harness Connector Terminals (4.7L)

G00117217

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying Coil On Plug No. 3 Harness Connector Terminals (4.7L)

G00117218

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying Coil On Plug No. 4 Harness Connector Terminals (4.7L)

G00117219

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying Coil On Plug No. 5 Harness Connector Terminals (4.7L)

G00117220

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Identifying Coil On Plug No. 6 Harness Connector Terminals (4.7L)

G00117221

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Identifying Coil On Plug No. 7 Harness Connector Terminals (4.7L)

G00117222

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Identifying Coil On Plug No. 8 Harness Connector Terminals (4.7L)

G00117223

Courtesy of DAIMLERCHRYSLER CORP.

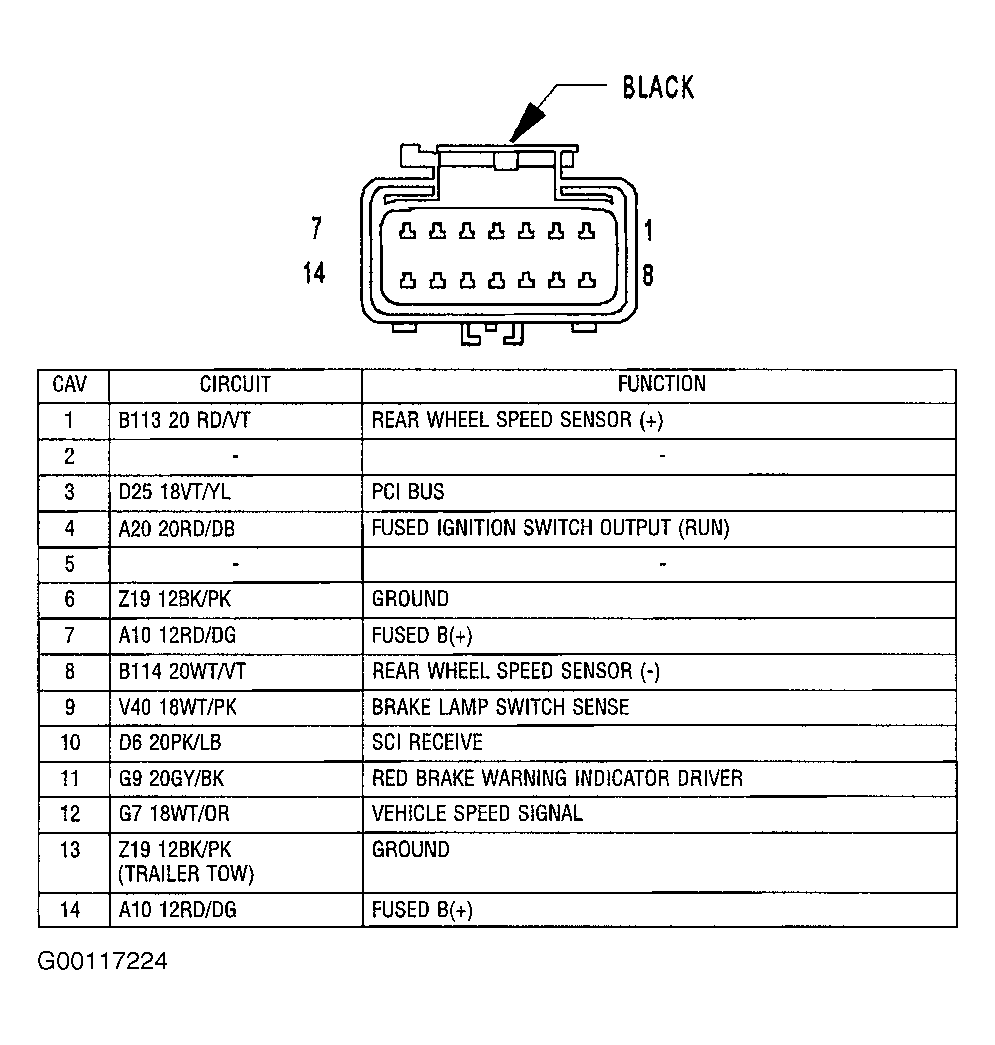

Fig 20: Identifying Controller Anti-Lock Brake C1 Harness Connector Terminals

G00117224

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Identifying Controller Anti-Lock Brake Harness Connector C2 Terminals

G00096094

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00117225

Courtesy of DAIMLERCHRYSLER CORP.

Fig 23: Identifying Data Link Connector Terminals

G00096096

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals (4.7L)

G00117226

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals (5.9L)

G00117227

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Identifying Engine Oil Pressure Sensor Harness Connector Terminals

G00117228

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00096099

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00096100

Courtesy of DAIMLERCHRYSLER CORP.

Fig 29: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00096101

Courtesy of DAIMLERCHRYSLER CORP.

Fig 30: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00096102

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Identifying Fuel Injector No. 5 Harness Connector Terminals

G00096103

Courtesy of DAIMLERCHRYSLER CORP.

Fig 32: Identifying Fuel Injector No. 6 Harness Connector Terminals

G00096104

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Identifying Fuel Injector No. 7 Harness Connector Terminals

G00096105

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Fuel Injector No. 8 Harness Connector Terminals

G00096106

Courtesy of DAIMLERCHRYSLER CORP.

Fig 35: Identifying Fuel Pump Module Harness Connector Terminals

G00117229

Courtesy of DAIMLERCHRYSLER CORP.

Fig 36: Identifying Generator Field Harness Connector Terminals

G00117230

Courtesy of DAIMLERCHRYSLER CORP.

Fig 37: Identifying Idle Air Control Motor Harness Connector Terminals (4.7L)

G00117231

Courtesy of DAIMLERCHRYSLER CORP.

Fig 38: Identifying Idle Air Control Motor Harness Connector Terminals (5.9L)

G00117232

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Identifying Ignition Coil Harness Connector Terminals (5.9L)

G00117233

Courtesy of DAIMLERCHRYSLER CORP.

Fig 40: Identifying Intake Air Temperature Sensor Harness Connector Terminals

G00117234

Courtesy of DAIMLERCHRYSLER CORP.

Fig 41: Identifying Junction Block Components & Circuits (Front View)

G00117181

Courtesy of DAIMLERCHRYSLER CORP.

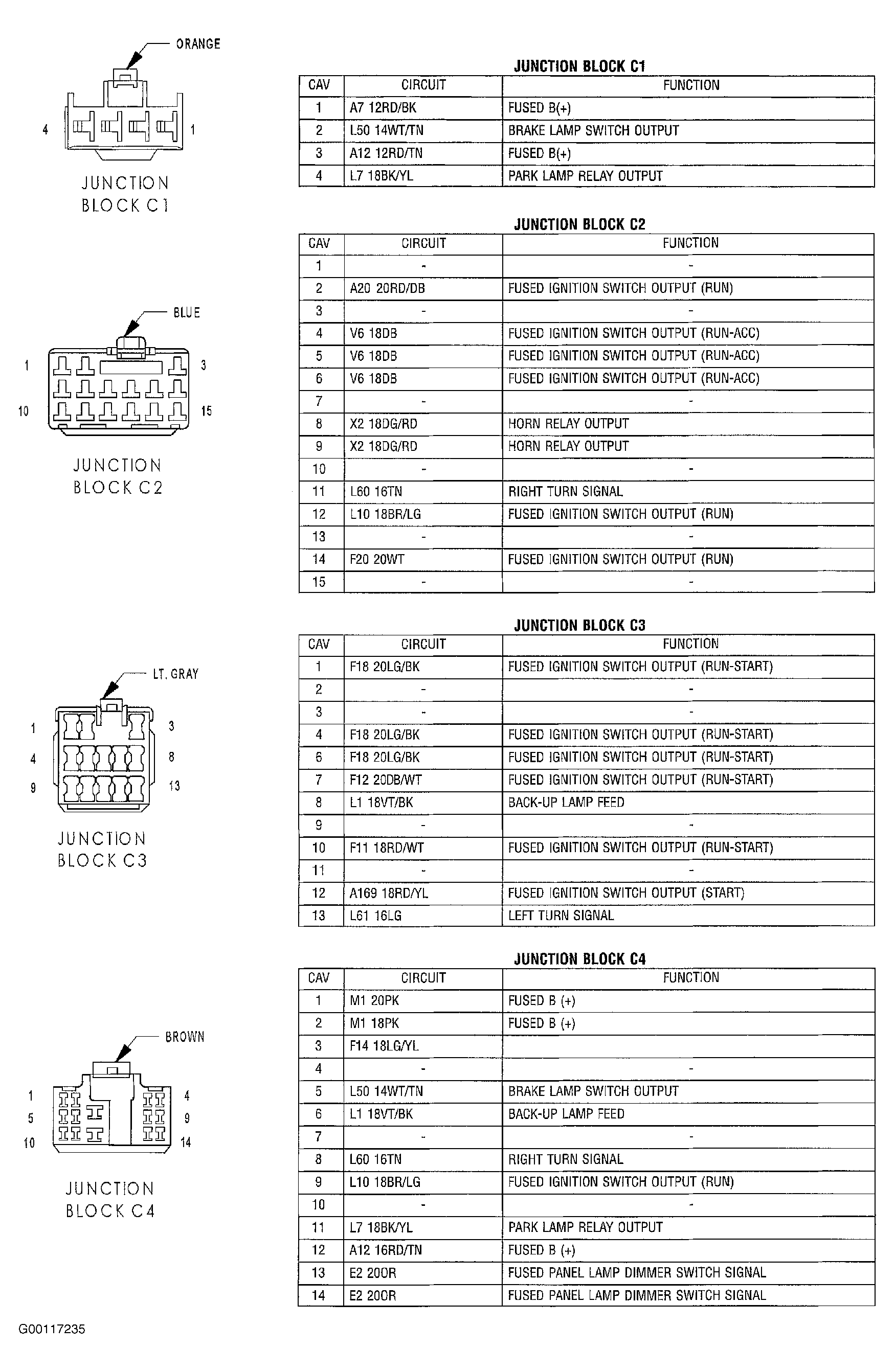

Fig 42: Identifying Junction Block Harness Connector Terminals (Rear View - 1 Of 4)

G00117235

Courtesy of DAIMLERCHRYSLER CORP.

Fig 43: Identifying Junction Block Harness Connector Terminals (Rear View - 2 Of 4)

G00117183

Courtesy of DAIMLERCHRYSLER CORP.

Fig 44: Identifying Junction Block Harness Connector Terminals (Rear View - 3 Of 4)

G00117184

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: Identifying Junction Block Harness Connector Terminals (Rear View - 4 Of 4)

G00117186

Courtesy of DAIMLERCHRYSLER CORP.

Fig 46: Identifying Leak Detection Pump Harness Connector Terminals

G00117236

Courtesy of DAIMLERCHRYSLER CORP.

Fig 47: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals (4.7L)

G00117237

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals (5.9L)

G00117238

Courtesy of DAIMLERCHRYSLER CORP.

Fig 49: Identifying Power Distribution Center Components

G00117189

Courtesy of DAIMLERCHRYSLER CORP.

Fig 50: Identifying Power Distribution Center Fused Circuits

G00117190

Courtesy of DAIMLERCHRYSLER CORP.

Fig 51: Identifying Power Distribution Center Relay Circuits

G00117239

Courtesy of DAIMLERCHRYSLER CORP.

Fig 52: Identifying Power Steering Pressure Switch Harness Connector Terminals (4.7L)

G00117240

Courtesy of DAIMLERCHRYSLER CORP.

Fig 53: Identifying Powertrain Control Module Harness Connector C1 Terminals (4.7L)

G00117241

Courtesy of DAIMLERCHRYSLER CORP.

Fig 54: Identifying Powertrain Control Module Harness Connector C1 Terminals (5.9L)

G00117242

Courtesy of DAIMLERCHRYSLER CORP.

Fig 55: Identifying Powertrain Control Module Harness Connector C2 Terminals (4.7L)

G00117243

Courtesy of DAIMLERCHRYSLER CORP.

Fig 56: Identifying Powertrain Control Module Harness Connector C2 Terminals (5.9L)

G00117244

Courtesy of DAIMLERCHRYSLER CORP.

Fig 57: Identifying Powertrain Control Module Harness Connector C3 Terminals (4.7L & 5.9L)

G00117245

Courtesy of DAIMLERCHRYSLER CORP.

Fig 58: Identifying Proportional Purge Solenoid Harness Connector Terminals

G00117246

Courtesy of DAIMLERCHRYSLER CORP.

Fig 59: Identifying Radiator Fan Motor Harness Connector Terminals

G00117198

Courtesy of DAIMLERCHRYSLER CORP.

Fig 60: Identifying Sentry Key Immobilizer Module Harness Connector Terminals

G00117202

Courtesy of DAIMLERCHRYSLER CORP.

Fig 61: Identifying Speed Control Left Switch Harness Connector Terminals

G00117187

Courtesy of DAIMLERCHRYSLER CORP.

Fig 62: Identifying Speed Control Right Switch Harness Connector Terminals

G00117199

Courtesy of DAIMLERCHRYSLER CORP.

Fig 63: Identifying Speed Control Servo Harness Connector Terminals

G00117247

Courtesy of DAIMLERCHRYSLER CORP.

Fig 64: Identifying Throttle Position Sensor Harness Connector Terminals (4.7L)

G00117201

Courtesy of DAIMLERCHRYSLER CORP.

Fig 65: Identifying Throttle Position Sensor Harness Connector Terminals (5.9L)

G00096057

Courtesy of DAIMLERCHRYSLER CORP.

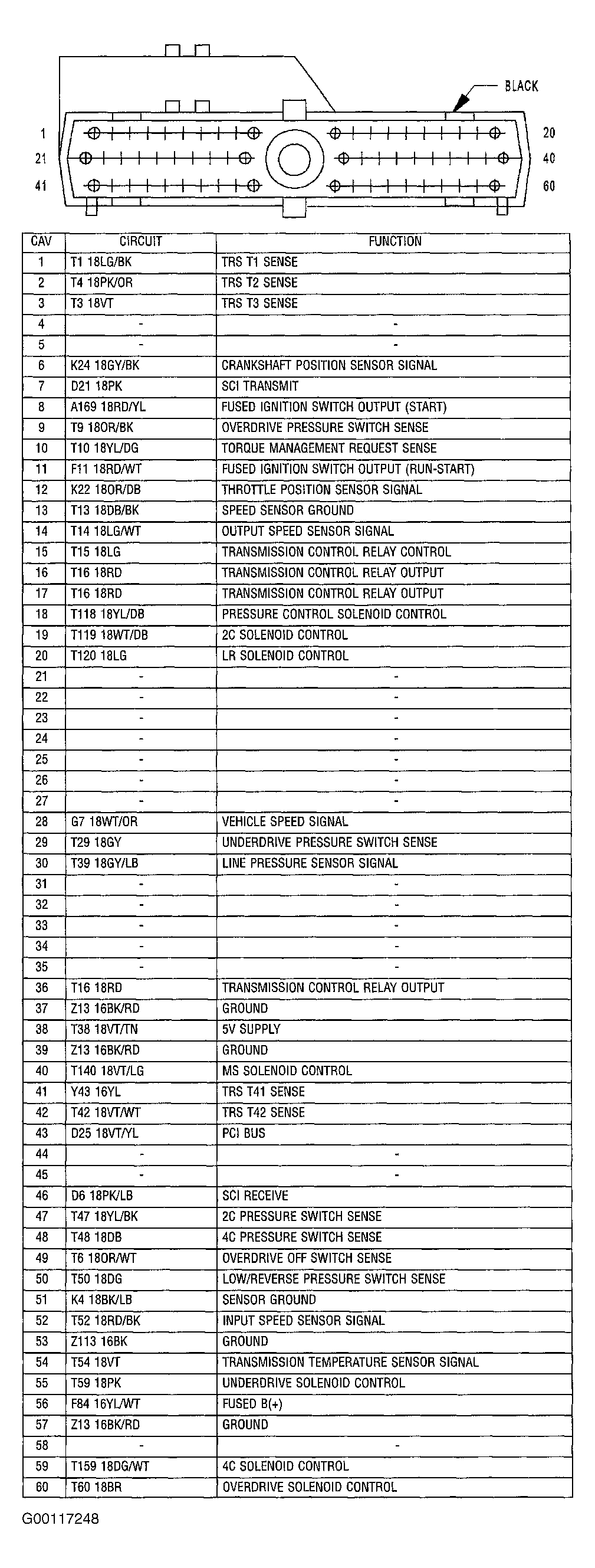

Fig 66: Identifying Transmission Control Module Harness Connector Terminals (4.7L)

G00117248

Courtesy of DAIMLERCHRYSLER CORP.

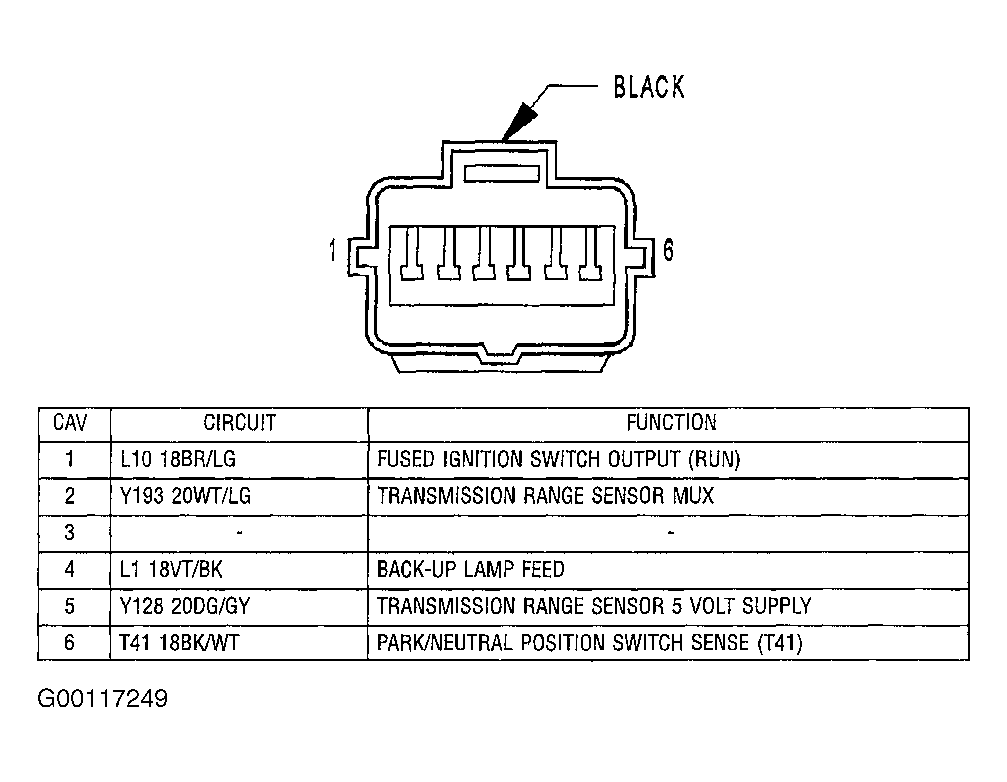

Fig 67: Identifying Transmission Range Sensor Harness Connector Terminals (5.9L)

G00117249

Courtesy of DAIMLERCHRYSLER CORP.

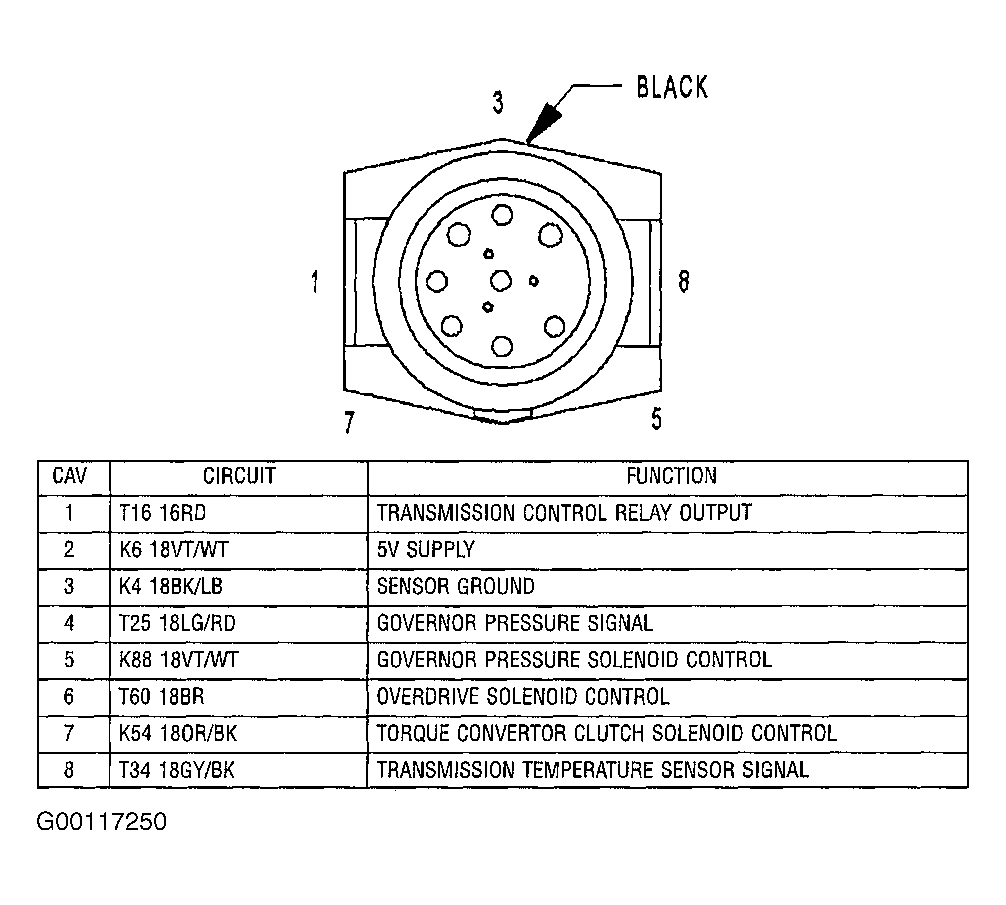

Fig 68: Identifying Transmission Solenoid Harness Connector Terminals (5.9L)

G00117250

Courtesy of DAIMLERCHRYSLER CORP.

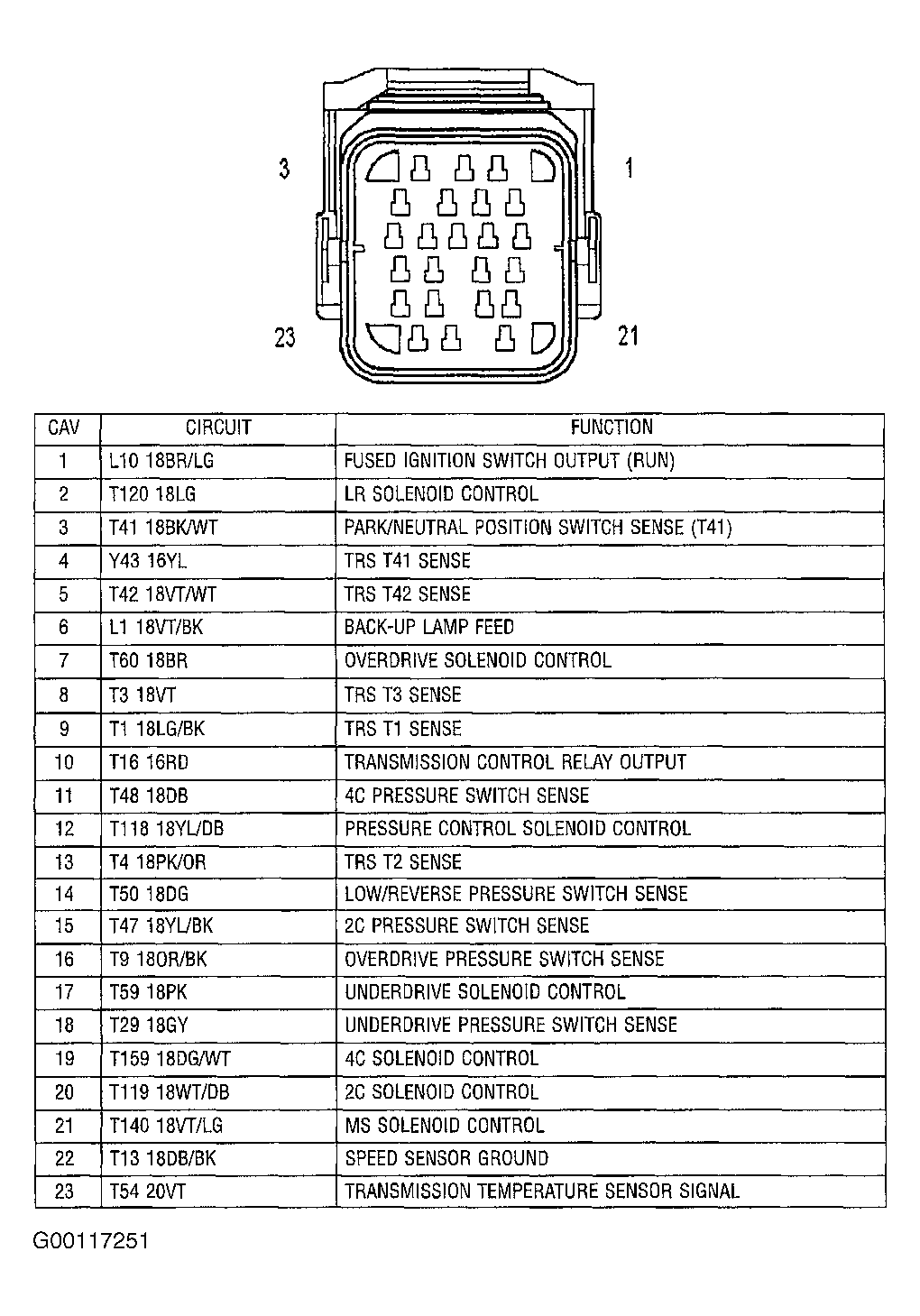

Fig 69: Identifying Transmission Range Sensor/Solenoid Harness Connector Terminals (4.7L)

G00117251

Courtesy of DAIMLERCHRYSLER CORP.

Fig 70: Identifying 1/1 (Upstream - California) Oxygen Sensor Harness Connector Terminals (4.7L)

G00117252

Courtesy of DAIMLERCHRYSLER CORP.

Fig 71: Identifying 1/1 (Upstream - California) Oxygen Sensor Harness Connector Terminals (5.9L)

G00117253

Courtesy of DAIMLERCHRYSLER CORP.

Fig 72: Identifying 1/1 (Upstream - Federal) Oxygen Sensor Harness Connector Terminals

G00117254

Courtesy of DAIMLERCHRYSLER CORP.

Fig 73: Identifying 1/2 (Downstream - California) Oxygen Sensor Harness Connector Terminals (4.7L)

G00117255

Courtesy of DAIMLERCHRYSLER CORP.

Fig 74: Identifying 1/2 (Downstream - California) Oxygen Sensor Harness Connector Terminals (5.9L)

G00117256

Courtesy of DAIMLERCHRYSLER CORP.

Fig 75: Identifying 1/2 (Downstream - Federal) Oxygen Sensor Harness Connector Terminals

G00117257

Courtesy of DAIMLERCHRYSLER CORP.

Fig 76: Identifying 2/1 (Upstream - California) Oxygen Sensor Harness Connector Terminals

G00129158

Courtesy of DAIMLERCHRYSLER CORP.

Fig 77: Identifying 2/1 (Upstream - California) Oxygen Sensor Harness Connector Terminals

G00129159

Courtesy of DAIMLERCHRYSLER CORP.

Fig 78: Identifying 2/2 (Downstream - California) Oxygen Sensor Harness Connector Terminals

G00129160

Courtesy of DAIMLERCHRYSLER CORP.

Fig 79: Identifying 2/2 (Downstream - California) Oxygen Sensor Harness Connector Terminals

G00129161

Courtesy of DAIMLERCHRYSLER CORP.
