Component Locations

NOTE: For location of components not listed in COMPONENT LOCATIONS table, see Fig 1-Fig 28 .

COMPONENT LOCATIONS

Component	Location
A/C Pressure Sensor	In Fitting On Liquid Line, Between Condenser And High-Side Refrigerant Service Port
Ambient Temperature Sensor	Mounted To Bracket On Right Side Of Radiator Yoke, Behind Right Side Of Radiator Grille
Intake Air Temperature Sensor	In Intake Manifold Plenum, Near Left Side Of Throttle Body
Sentry Key Immobilizer Module	Under Steering Column Shrouds, SKIM Antenna Ring Surrounds Ignition Lock Cylinder Housing
1/1 (Upstream - California) Oxygen Sensor (5.9L)	On Front Of Left Catalytic Converter
1/2 (Downstream - California) Oxygen Sensor (5.9L)	In Exhaust Pipe Behind Left Catalytic Converter
2/1 (Upstream - California) Oxygen Sensor (5.9L)	On Front Of Right Catalytic Converter
2/2 (Downstream - California) Oxygen Sensor (5.9L)	In Exhaust Pipe Behind Right Catalytic Converter

Fig 1: Locating Air Bag Control Module, Central Timer Module, Compass/Mini-Trip Module, Controller Anti-Lock Brake, Junction Block, Powertrain Control Module & Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Locating Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

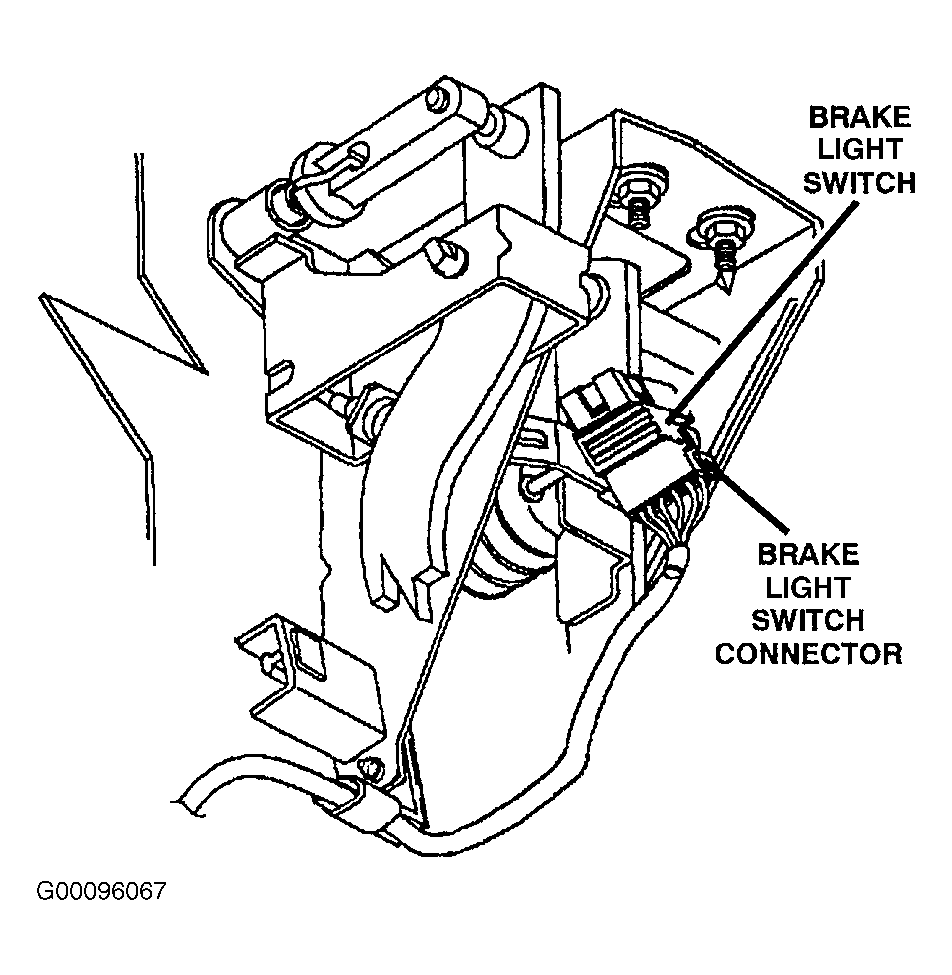

Fig 3: Locating Brakelight/Lamp Switch

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Locating Camshaft Position Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Locating Camshaft Position Sensor Harness Connector (5.9L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Locating Camshaft Position Sensor & Pulse Ring (5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

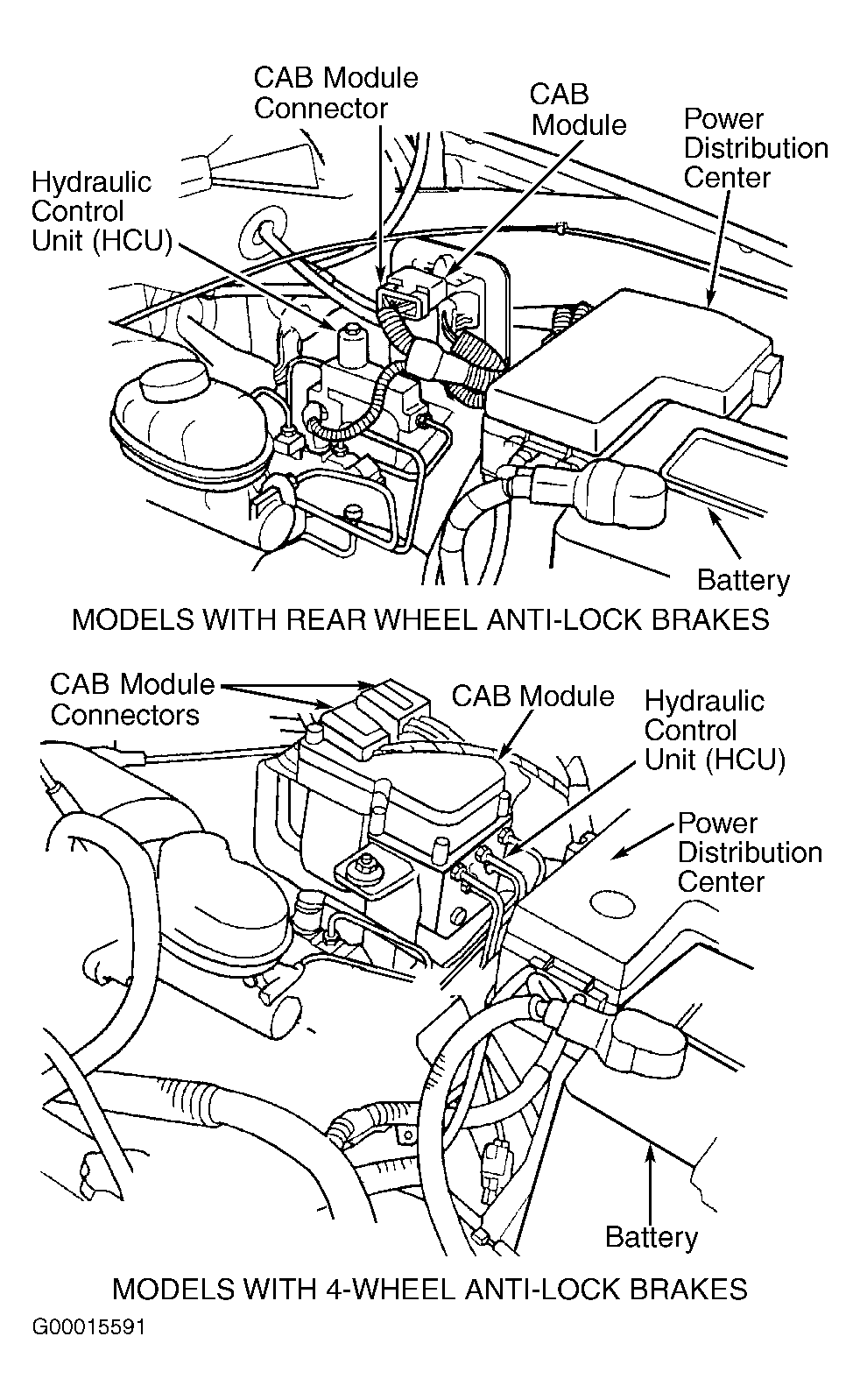

Fig 7: Locating Controller Anti-Lock Brake Module, Hydraulic Control Unit & Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: Locating Crankshaft Position Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 9: Locating Crankshaft Position Sensor (5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 10: Locating Data Link Connector

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Locating Engine Coolant Temperature Sensor & Manifold Absolute Pressure Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 12: Locating Engine Coolant Temperature Sensor, Ignition Coil & Intake Air Temperature Sensor (5.9L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Locating EVAP Canister

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Locating EVAP Purge Solenoid

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 15: Locating Fuel Injectors (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

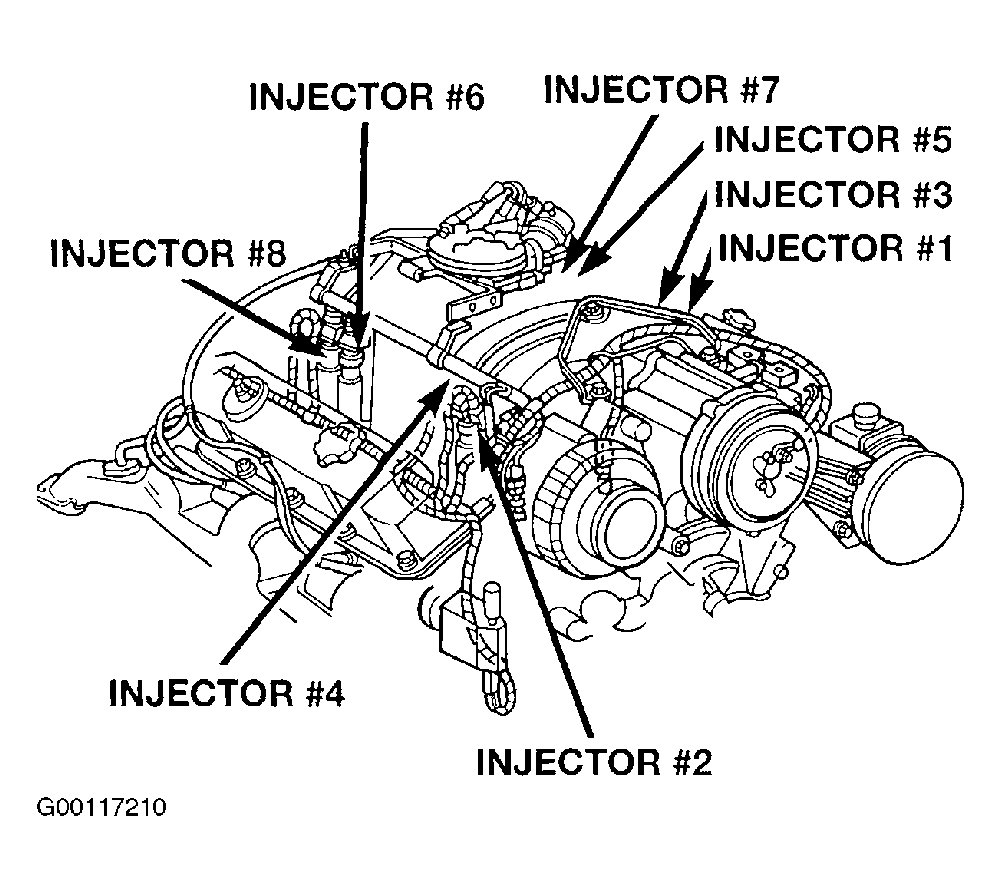

Fig 16: Locating Fuel Injectors (5.9L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Locating Fuel Pump Module Components

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Locating Fuel Tank Components

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Locating Idle Air Control Motor, Intake Air Temperature Sensor & Throttle Position Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 20: Locating Idle Air Control Motor, Manifold Absolute Pressure Sensor & Throttle Position Sensor (5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 21: Locating Ignition Coil On Plug (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Locating Leak Detection Pump

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 23: Locating Powertrain Control Module & Harness Connectors

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Locating Power Steering Pressure Switch (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

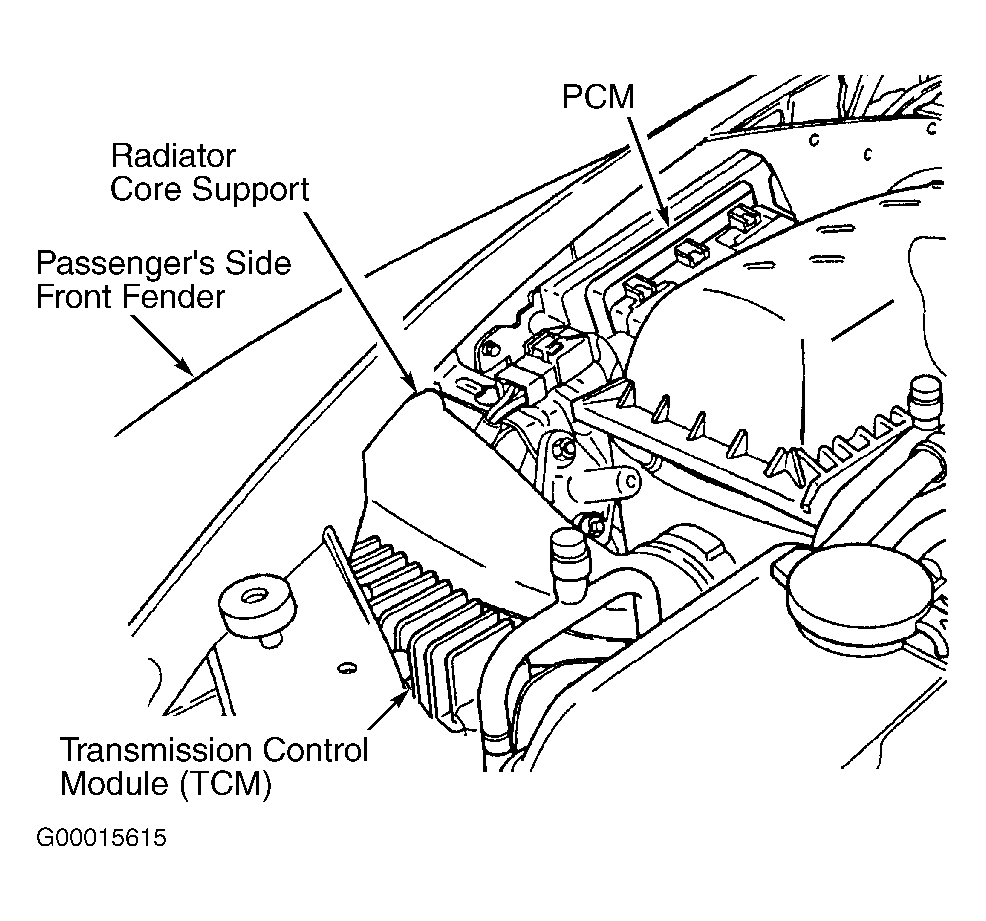

Fig 25: Locating Transmission Control Module (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 26: Locating 1/1 & 2/1 (Upstream), & 1/2 & 2/2 (Downstream) Oxygen Sensors (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Locating 1/1 (Upstream - Federal) Oxygen Sensor (5.9L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Locating 1/2 (Downstream - Federal) Oxygen Sensor (5.9L)

Courtesy of DAIMLERCHRYSLER CORP.
