Diagnosis And Testing - Starting System: Notes

The battery, starting, and charging systems operate in conjunction with one another, and must be tested as a complete system. For correct starting/charging system operation, all of the components involved in these 3 systems must perform within specifications.

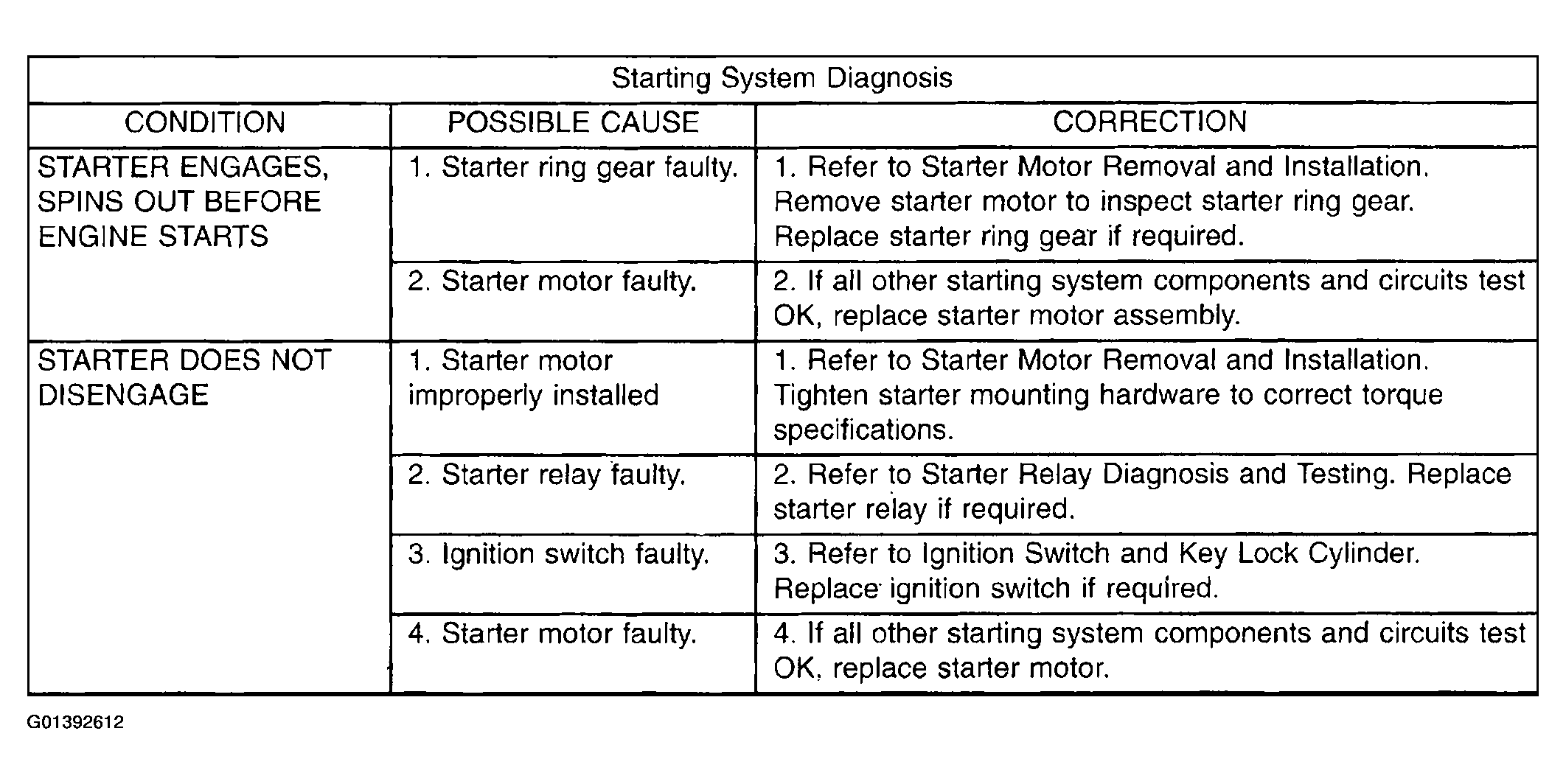

Fig 1: Starting System Diagnosis & Testing (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

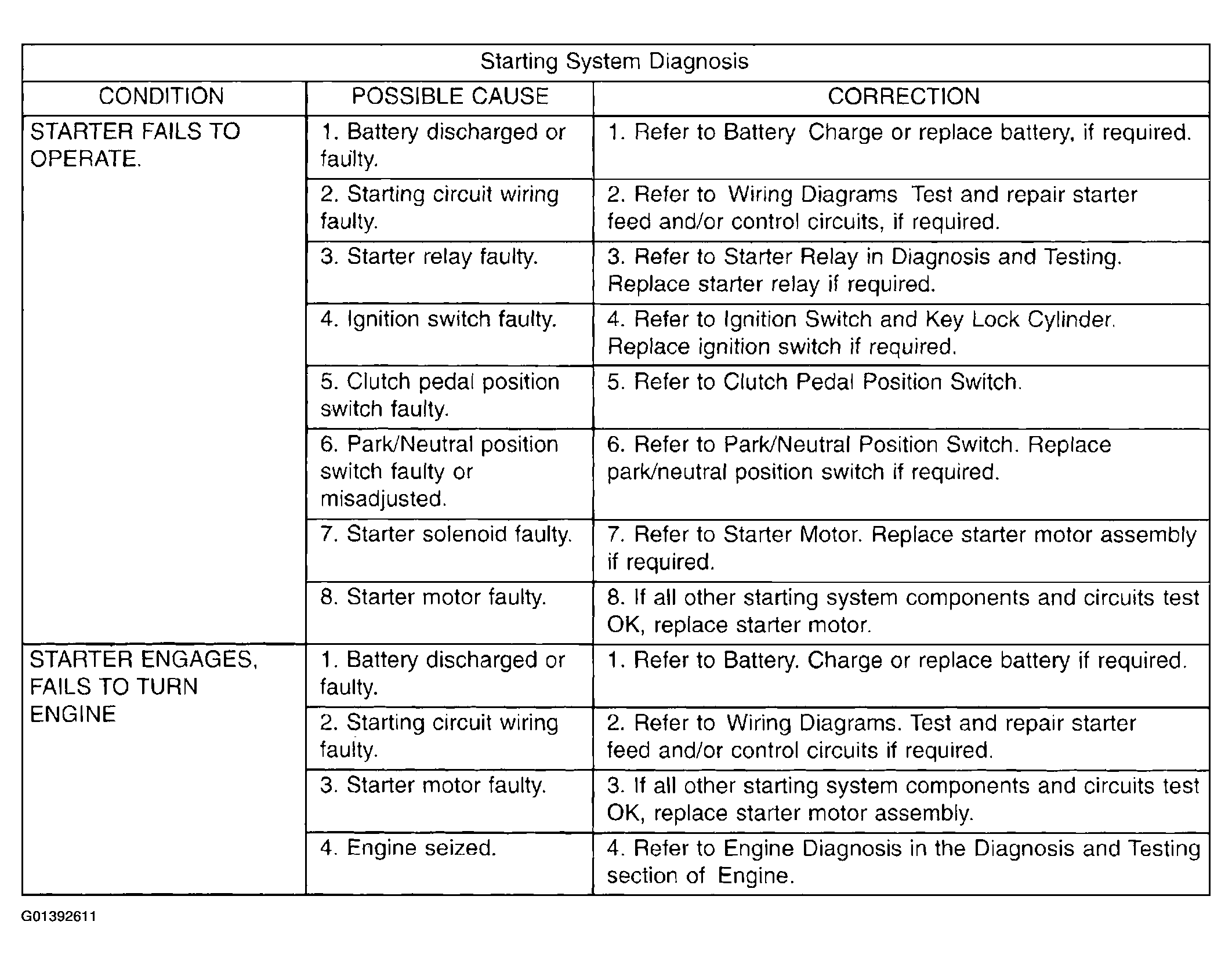

Fig 2: Starting System Diagnosis & Testing (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
