Verification Tests

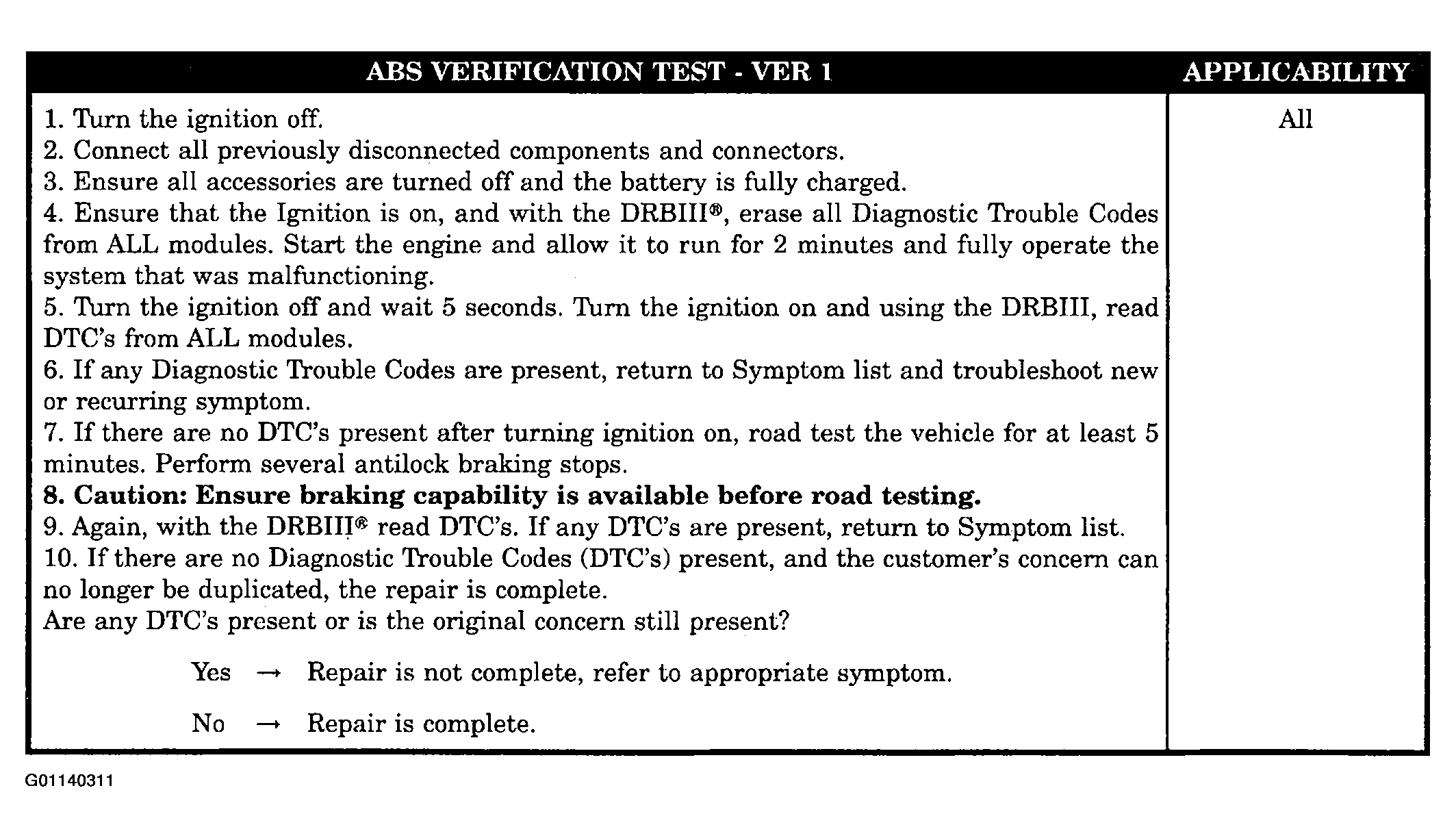

Fig 1: Verification Tests (1 Of 2)

G01140311

Courtesy of DAIMLERCHRYSLER CORP.

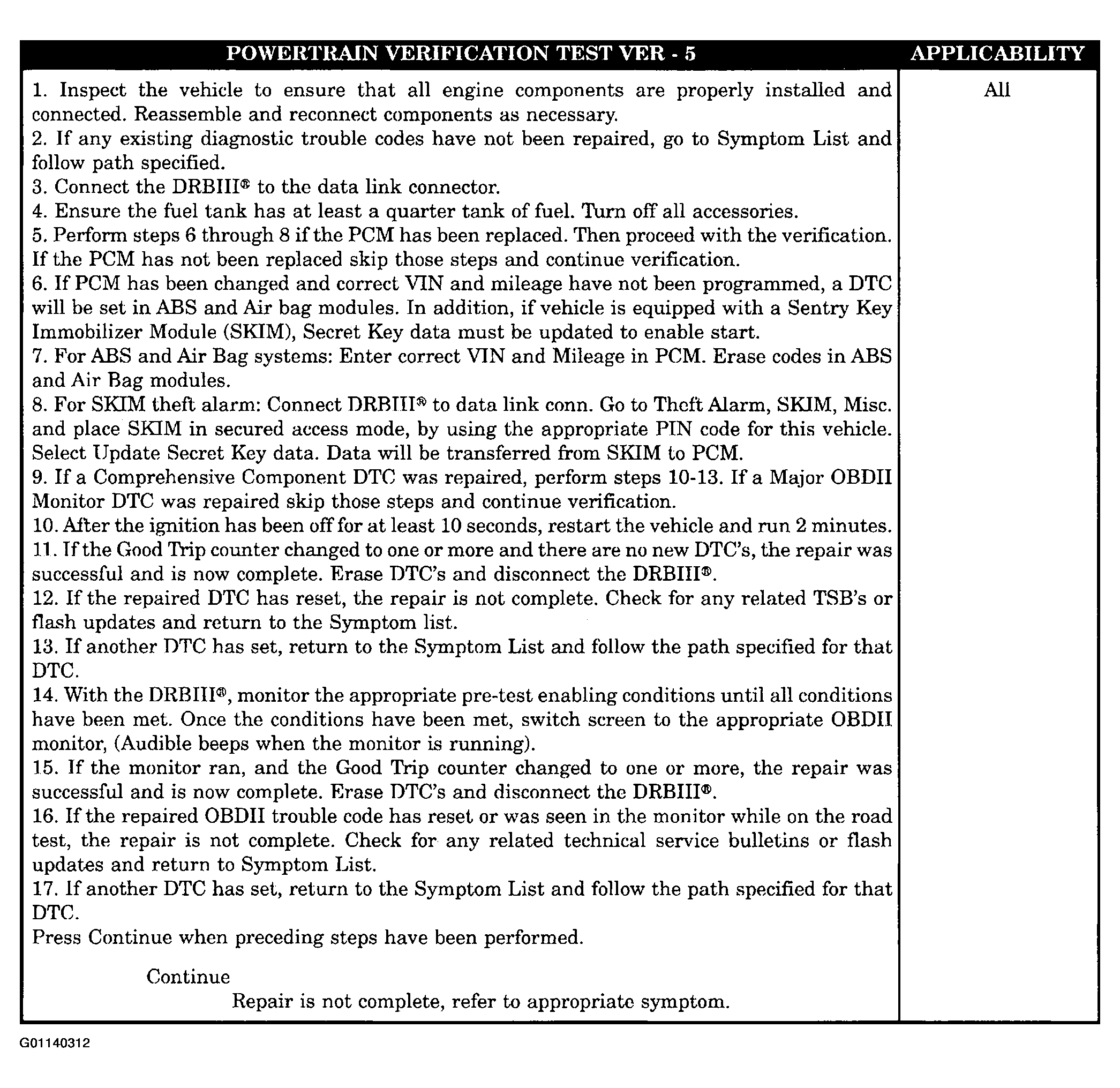

Fig 2: Verification Tests (2 Of 2)

G01140312

Courtesy of DAIMLERCHRYSLER CORP.
