Connector Identification

TERMINAL IDENTIFICATION DIRECTORY

Harness Connector	Illustration
Automatic Day/Night Mirror	Fig 1
Driver Door Module C2	Fig 2
Driver Power Mirror	Fig 3
Instrument Panel Junction Block C3	Fig 4
Instrument Panel Junction Block C4	Fig 5
Instrument Panel Junction Block C5	Fig 6
Passenger Power Mirror	Fig 7

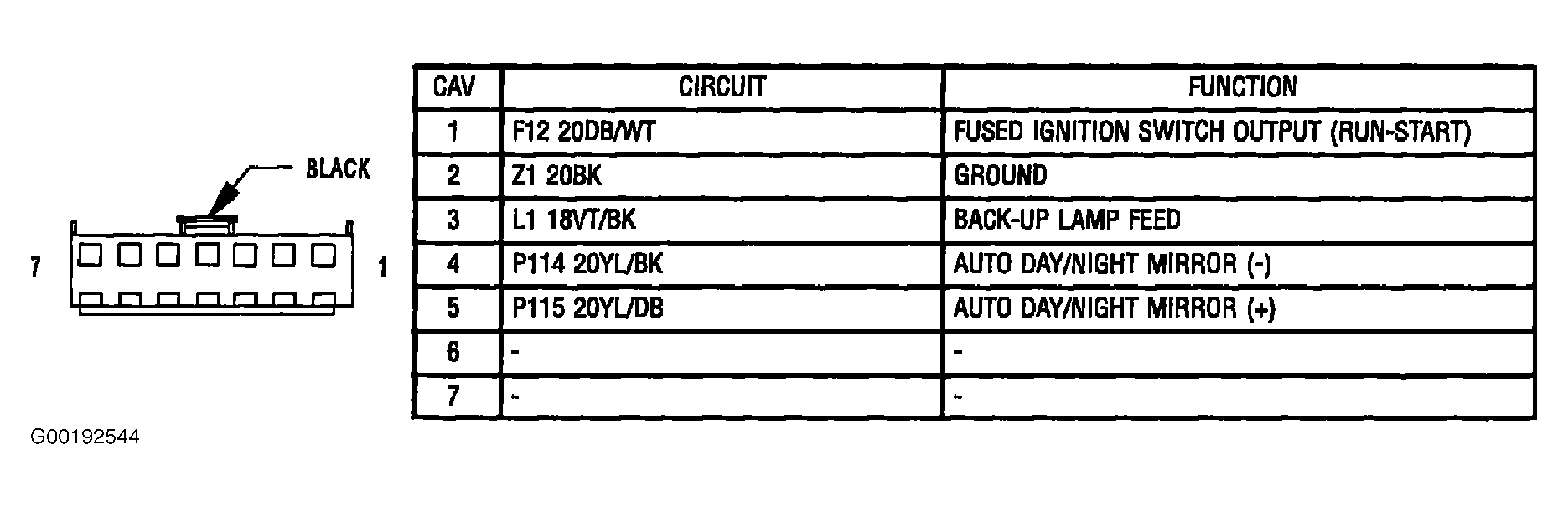

Fig 1: Identifying Automatic Day/Night Harness Connector Terminals

G00192544

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying Driver Door Module C2 Harness Connector Terminals

G00176164

Courtesy of DAIMLERCHRYSLER CORPORATION

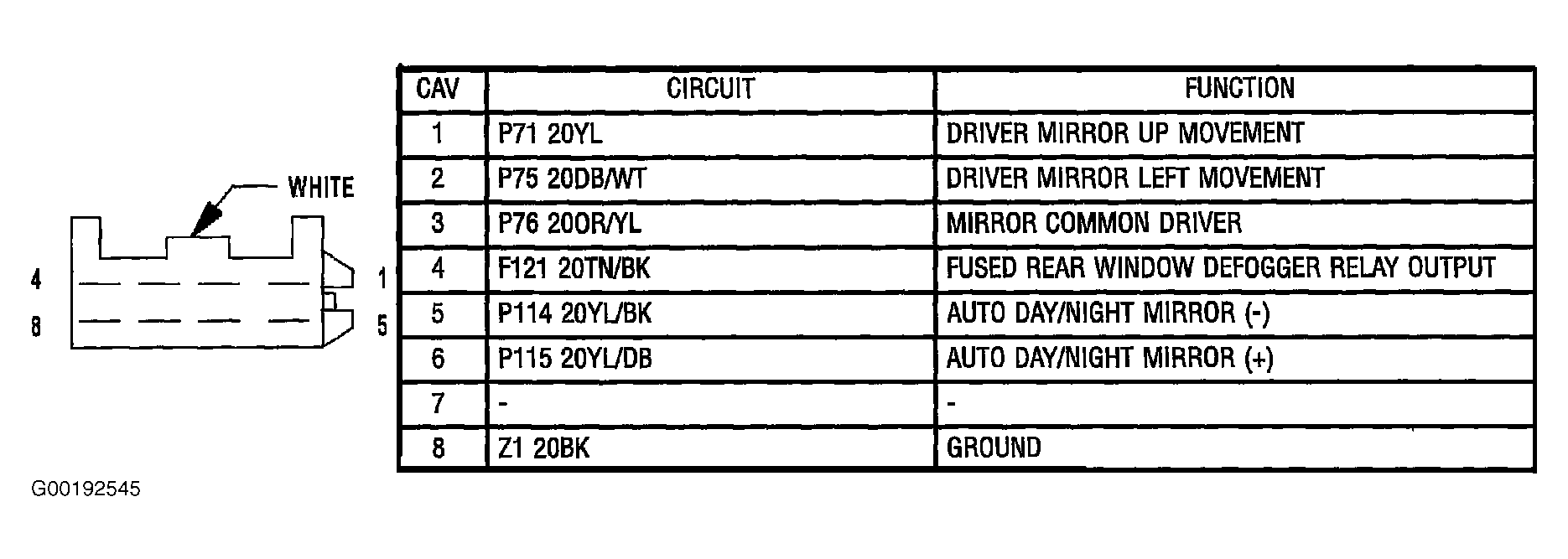

Fig 3: Identifying Driver Power Mirror Harness Connector Terminals

G00192545

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Identifying Instrument Panel Junction Block C3 Harness Connector Terminals

G00192503

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Identifying Instrument Panel Junction Block C4 Harness Connector Terminals

G00192504

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: Identifying Instrument Panel Junction Block C5 Harness Connector Terminals

G00192505

Courtesy of DAIMLERCHRYSLER CORPORATION

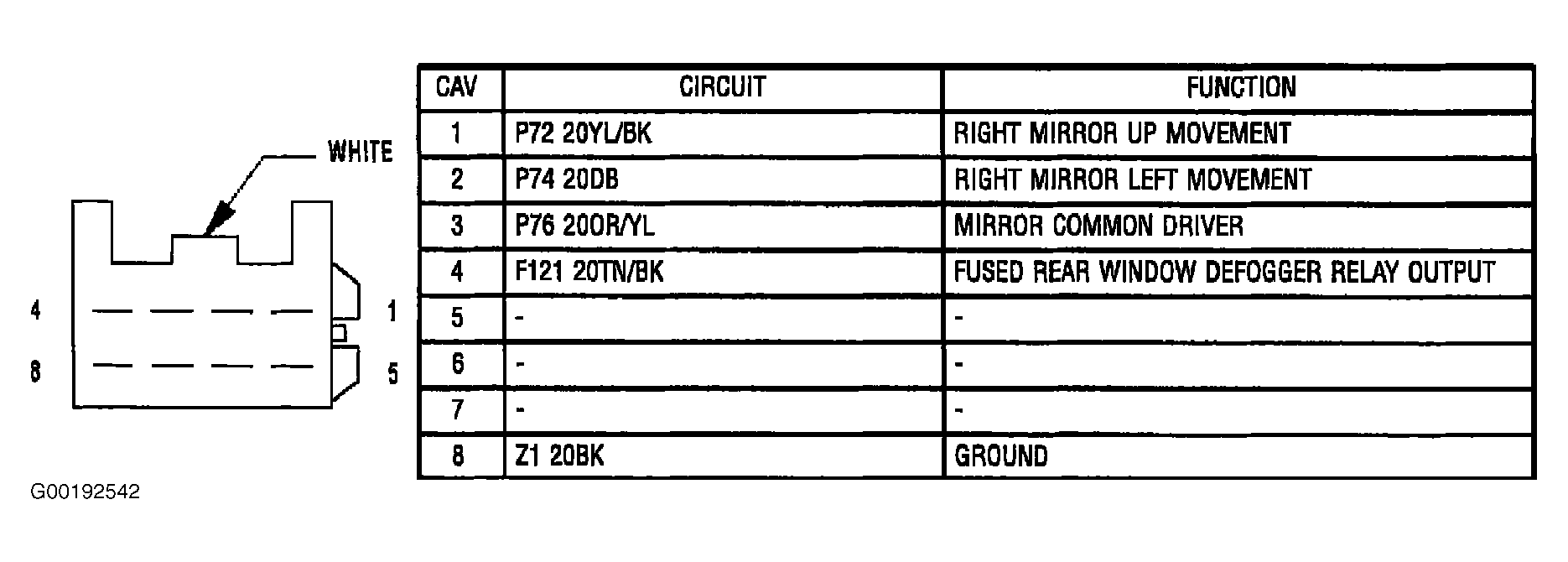

Fig 7: Identifying Passenger Power Mirror Harness Connector Terminals

G00192542

Courtesy of DAIMLERCHRYSLER CORPORATION
