Battery & Charging Systems: Generator: Removal

WARNING: Disconnect negative cable from battery before removing battery output wire (b+ wire) from generator. Failure to do so can result in injury or damage to electrical system.
  1. Disconnect negative battery cable at battery.
  2. Remove generator drive belt. Refer to ENGINE COO;ING - DURANGO for procedure.
  3. Unsnap plastic cable protector cover from B+ mounting stud.
  4. 5.2L/5.9L Engines: Remove generator pivot and mounting bolts/nut (Fig 1). Position generator for access to wire connectors.

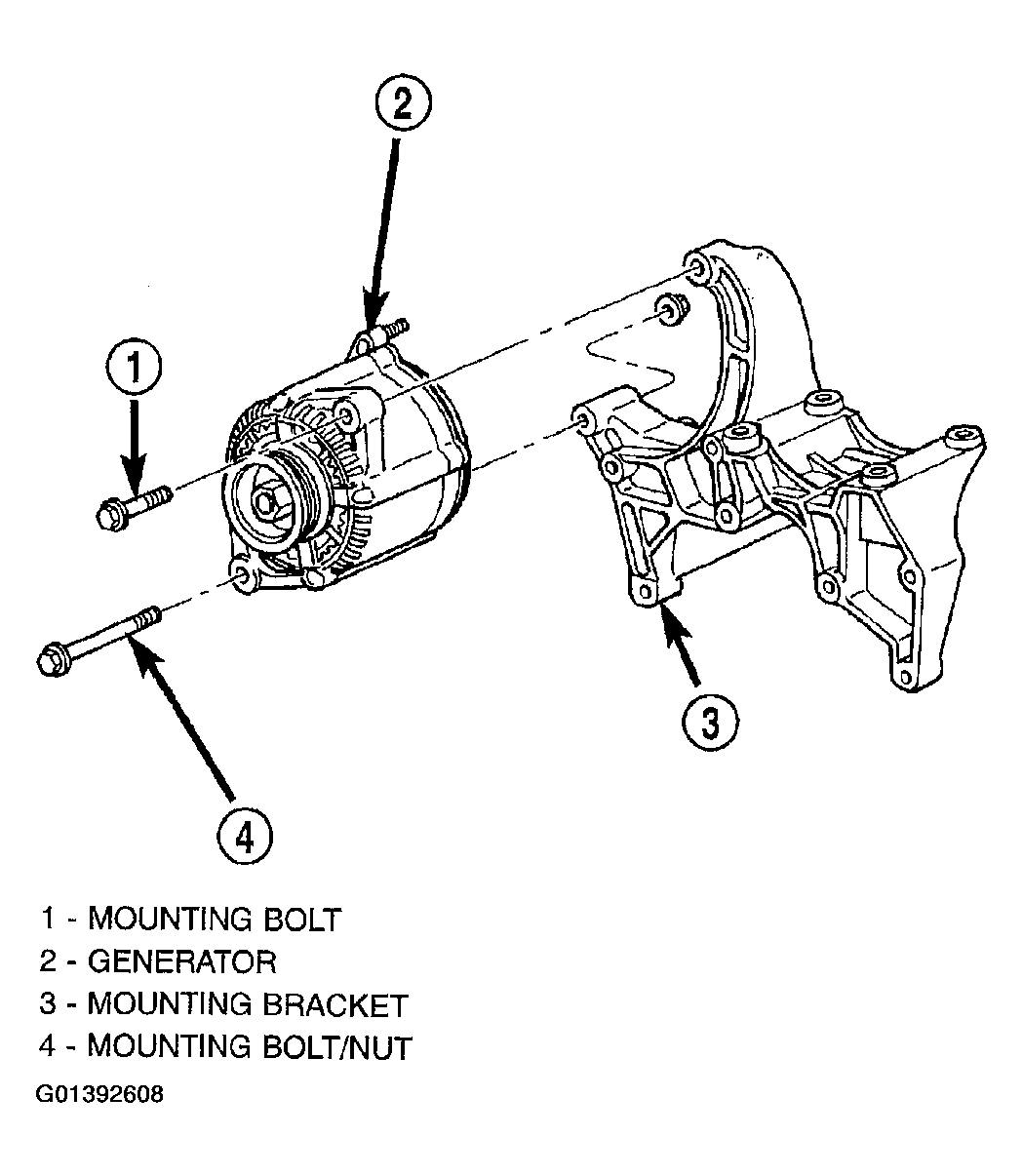

    Fig 1: Fig. 2 Remove/Install Generator - 5.2L/5.9L Engines
    G01392608Courtesy of DAIMLERCHRYSLER CORP.
  5. 4.7L Engine: Remove 3 generator mounting bolts (Fig 2). Position generator for access to wire connectors.

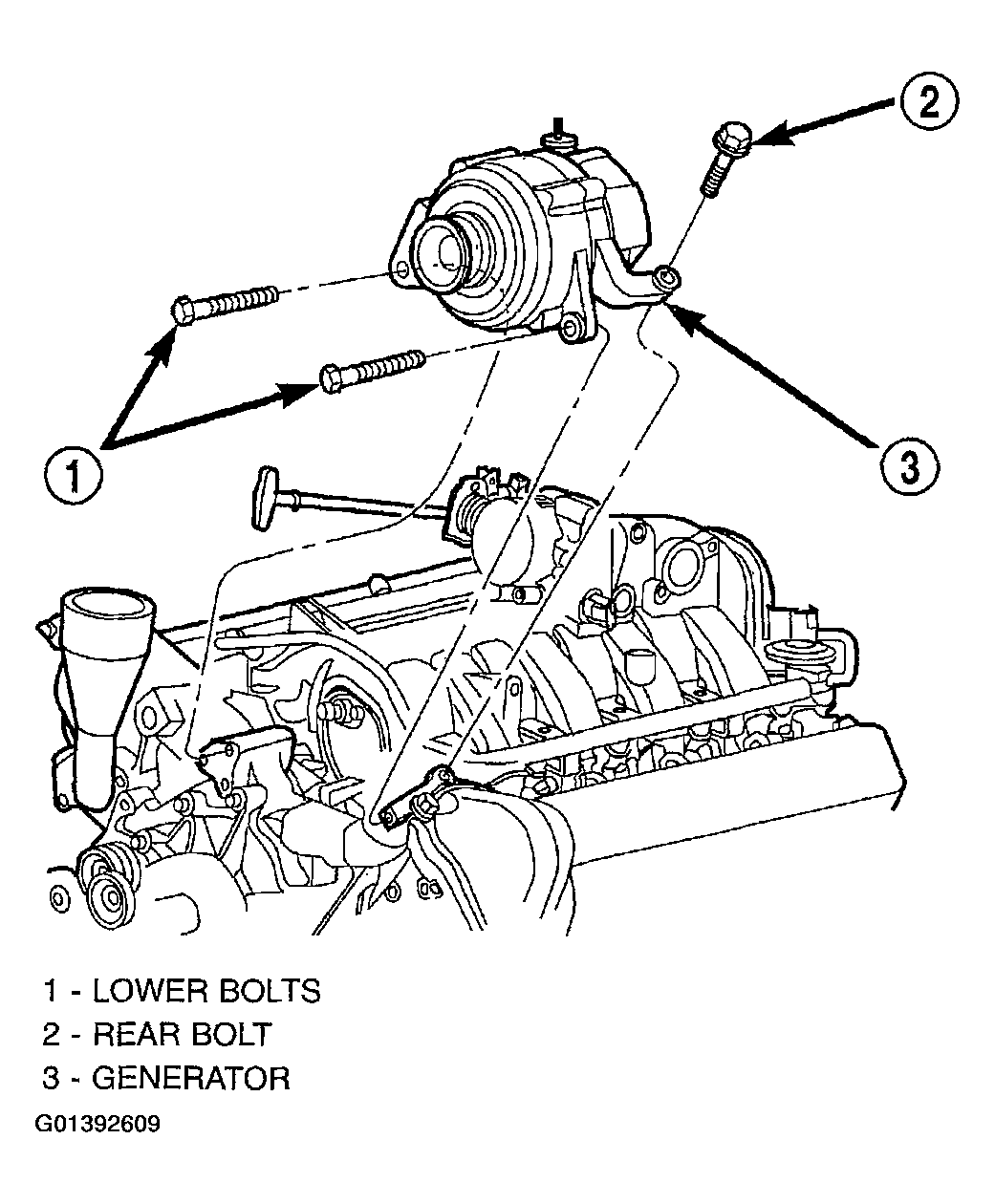

    Fig 2: Fig. 3 Remove/Install Generator - 4.7L V-8 Engine
    G01392609Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove B+ terminal mounting nut at rear of generator (Fig 3). Disconnect terminal from generator.

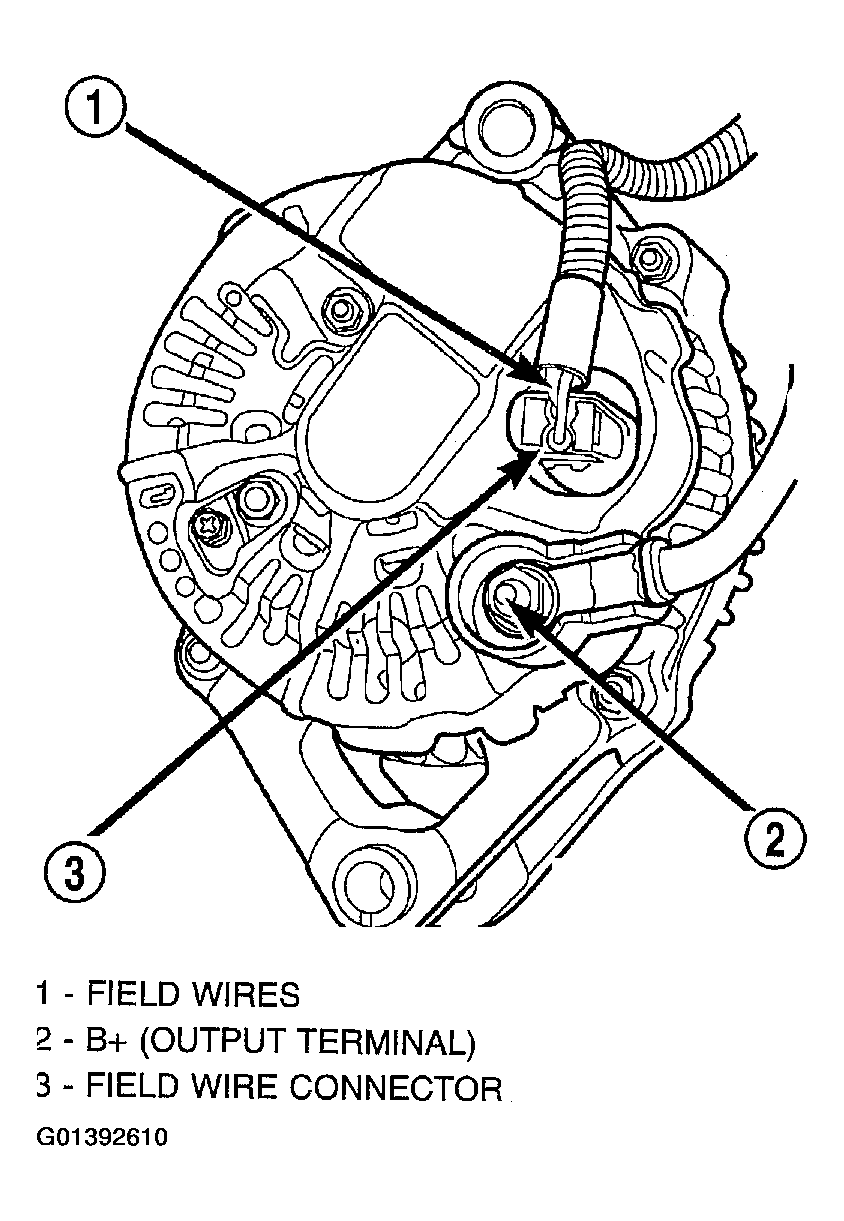

    Fig 3: Fig. 4 Generator Connectors - Typical Denso
    G01392610Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect field wire connector at rear of generator by pushing on connector tab and pulling connector from generator.
  8. Remove generator from vehicle.
