Battery Temperature Sensor: Installation

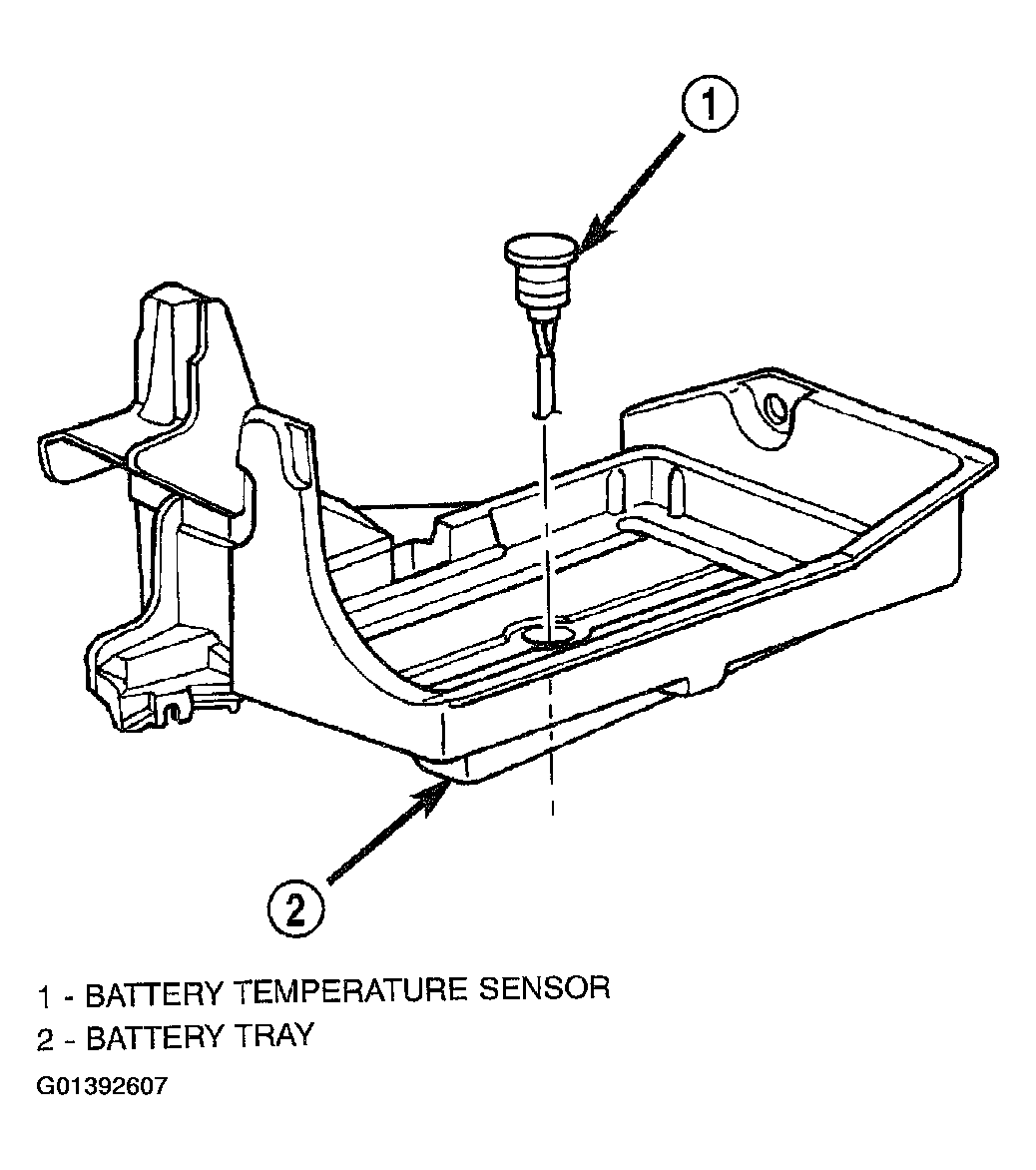

The battery temperature sensor is located under vehicle battery (Figure) and is attached to a mounting hole on battery tray.

1. Feed pigtail harness through hole in top of battery tray and press sensor into top of battery tray.
2. Connect pigtail harness.
3. Install battery. Refer to 8, Battery for procedures.
