DTC P1698: No Bus Message From Trans Control Module: Testing

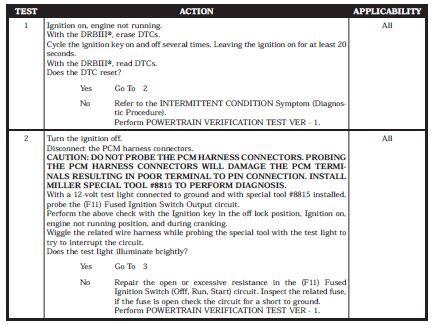

Fig 1: Steps 1 and 2

G00573045

Courtesy of DAIMLERCHRYSLER

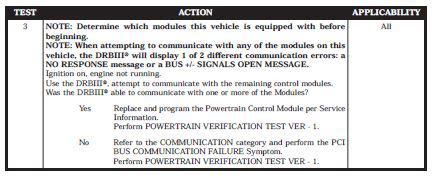

Fig 2: Step 3

G00573046

Courtesy of DAIMLERCHRYSLER
