Engine Controls - Self-Diagnostics
>>
Connector Identification
>>
Powertrain Control Module Harness Connector End View
Powertrain Control Module Harness Connector End View

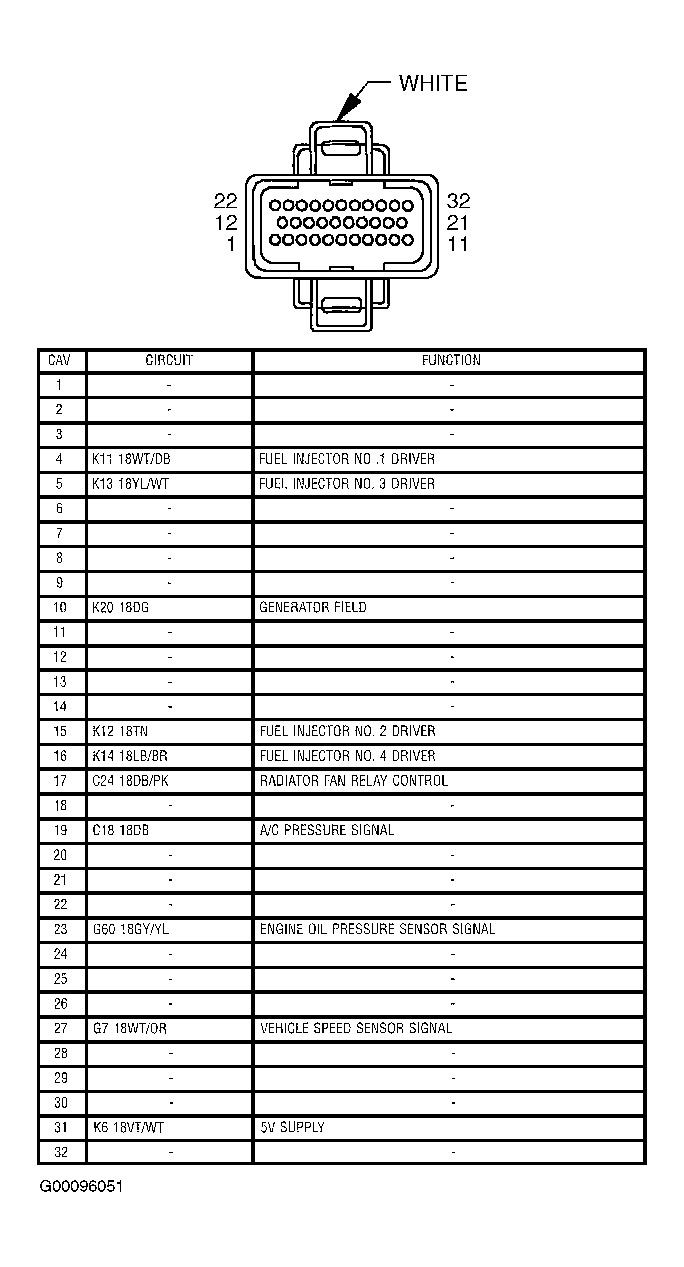

Fig 1: Identifying Powertrain Control Module Harness Connector C1 Terminals (2.5L)
Courtesy of DAIMLERCHRYSLER

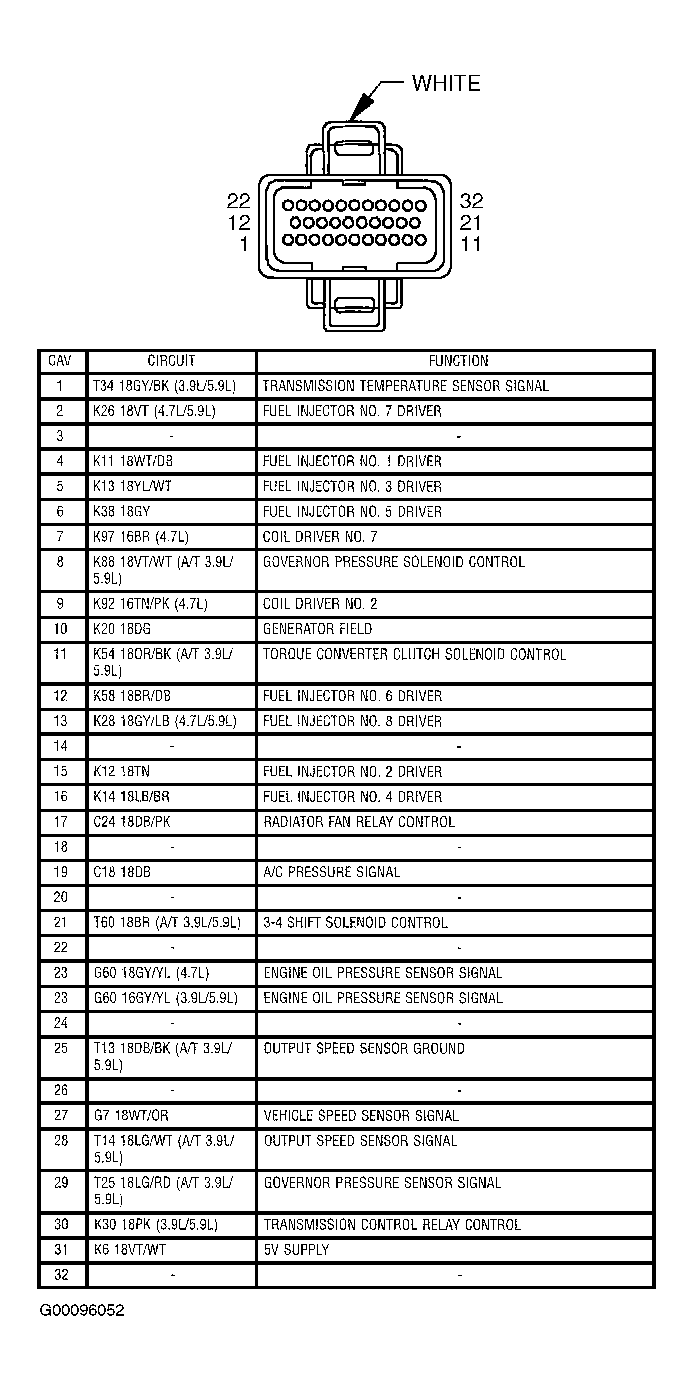

Fig 2: Identifying Powertrain Control Module Harness Connector C1 Terminals (3.9L, 4.7L & 5.9L)
Courtesy of DAIMLERCHRYSLER

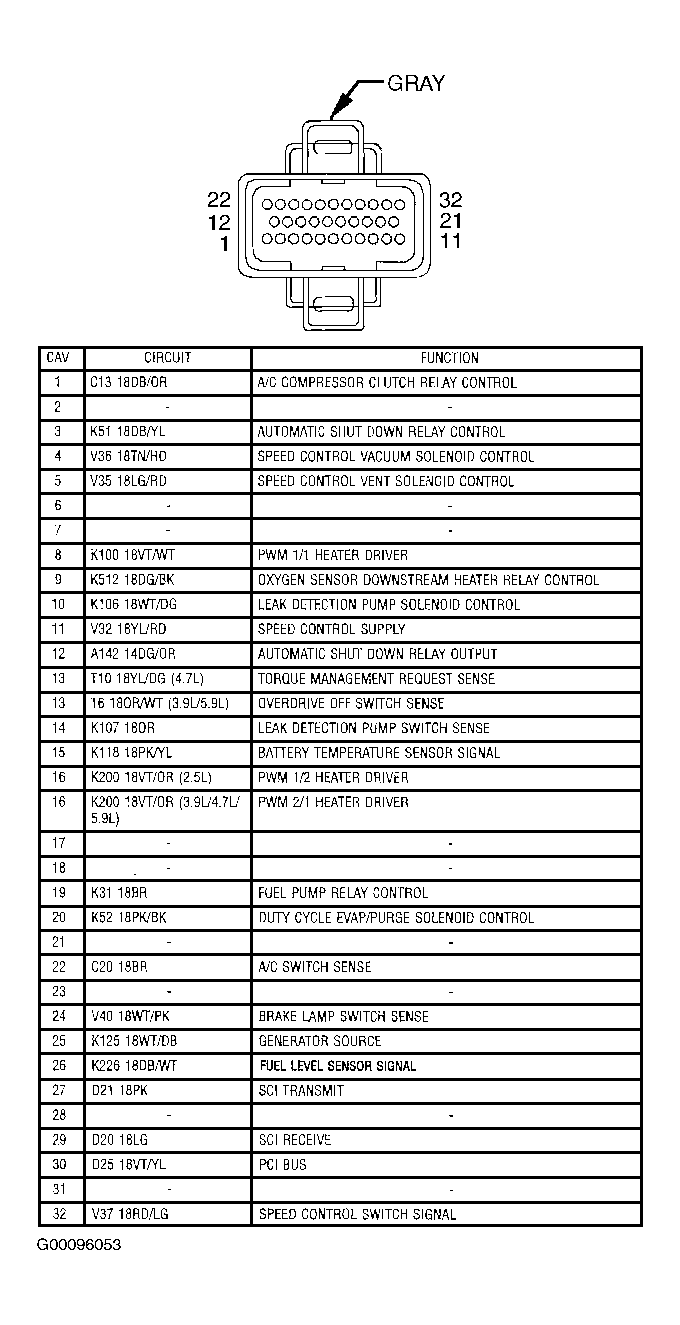

Fig 3: Identifying Powertrain Control Module Harness Connector C2 Terminals (2.5L)
Courtesy of DAIMLERCHRYSLER
Fig 4: Identifying Powertrain Control Module Harness Connector C2 Terminals (3.9L, 4.7L & 5.9L)
Courtesy of DAIMLERCHRYSLER
Fig 5: Identifying Powertrain Control Module Harness Connector C3 Terminals
Courtesy of DAIMLERCHRYSLER
Courtesy of DAIMLERCHRYSLER
Courtesy of DAIMLERCHRYSLER
Courtesy of DAIMLERCHRYSLER
Courtesy of DAIMLERCHRYSLER
Courtesy of DAIMLERCHRYSLER
