Ignition Switch Harness Connector End View

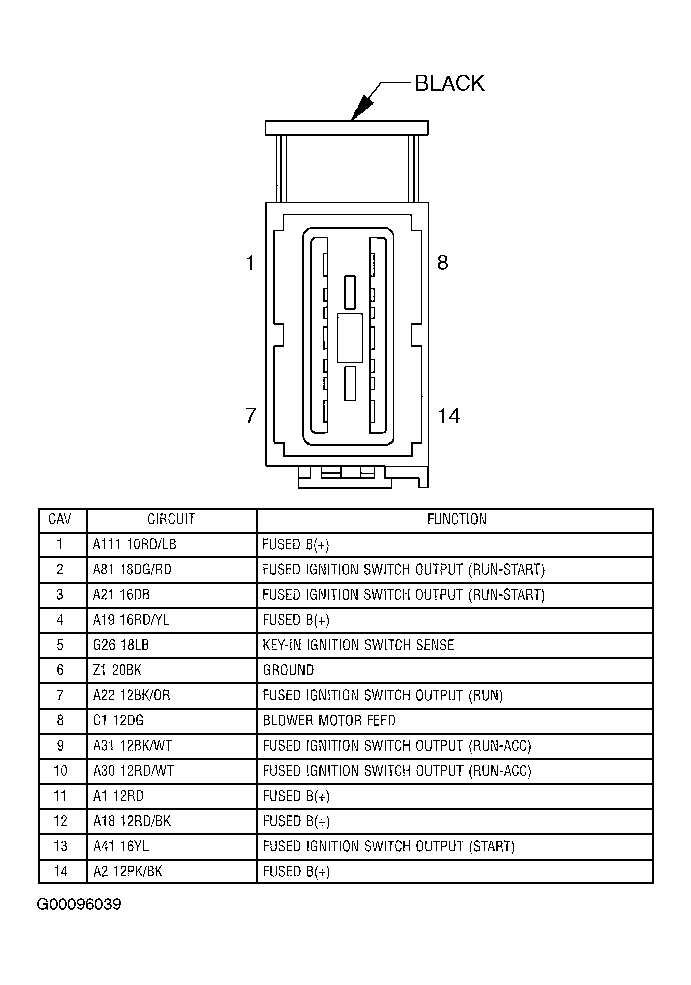

Fig 1: Identifying Ignition Switch Harness Connector Terminals

G00096039

Courtesy of DAIMLERCHRYSLER
