Drivers Side Window Switch Continuity Test

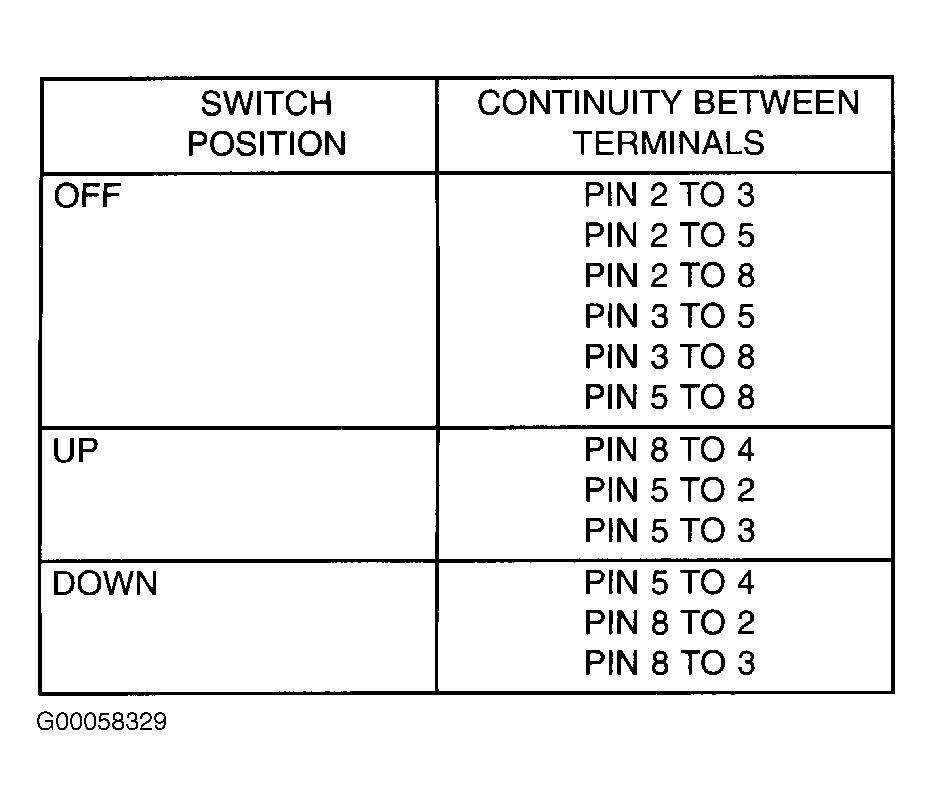

Fig 1: Driver's Side Window Switch Continuity Test Table

G00058329

Courtesy of DAIMLERCHRYSLER CORPORATION
