Not Receiving Bus Messages Correctly: Testing

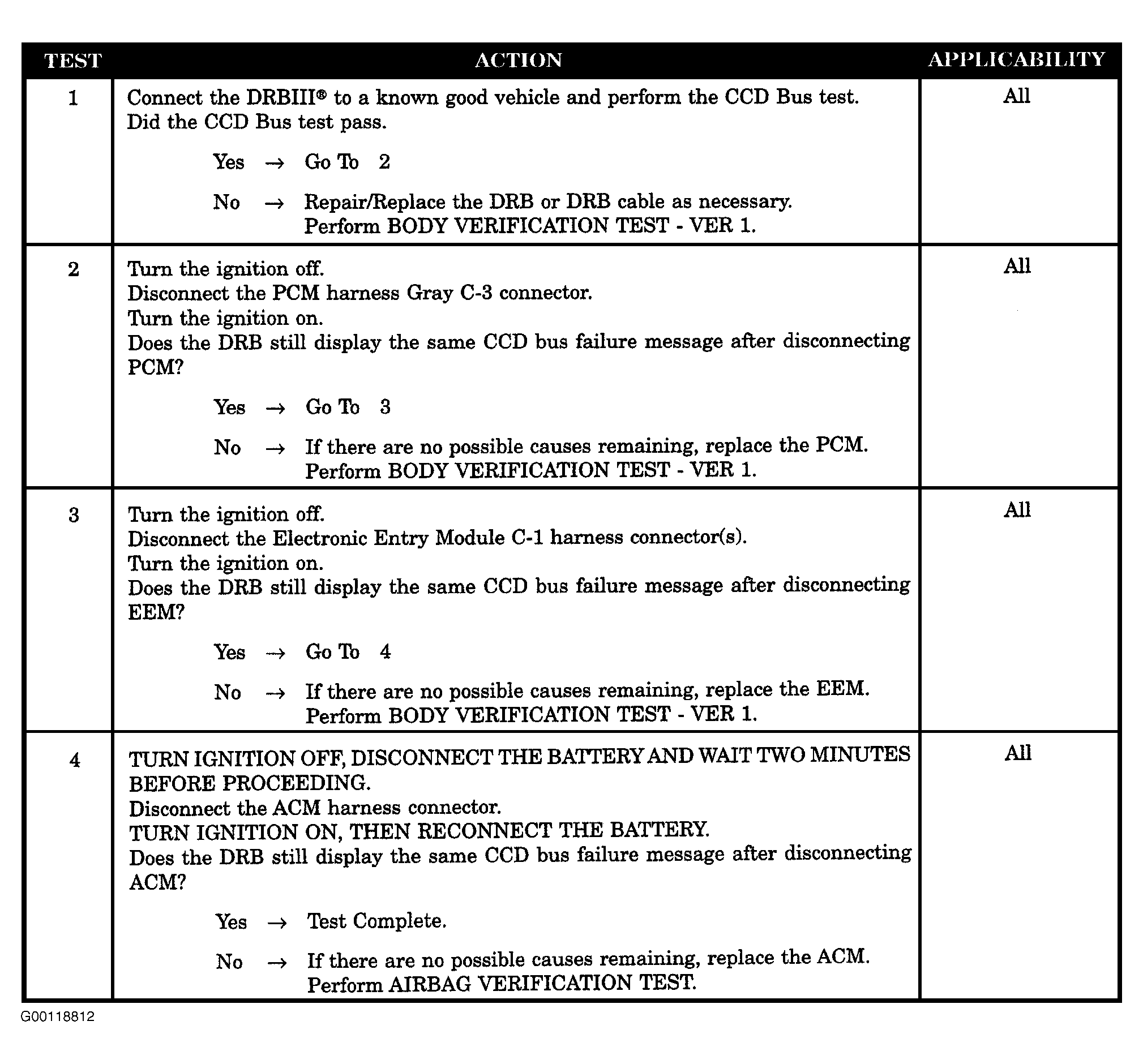

Fig 1: Not Receiving BUS Messages Correctly Test

G00118812

Courtesy of DAIMLERCHRYSLER CORP.
