Bus Failure Message - Short-To-Battery: Testing

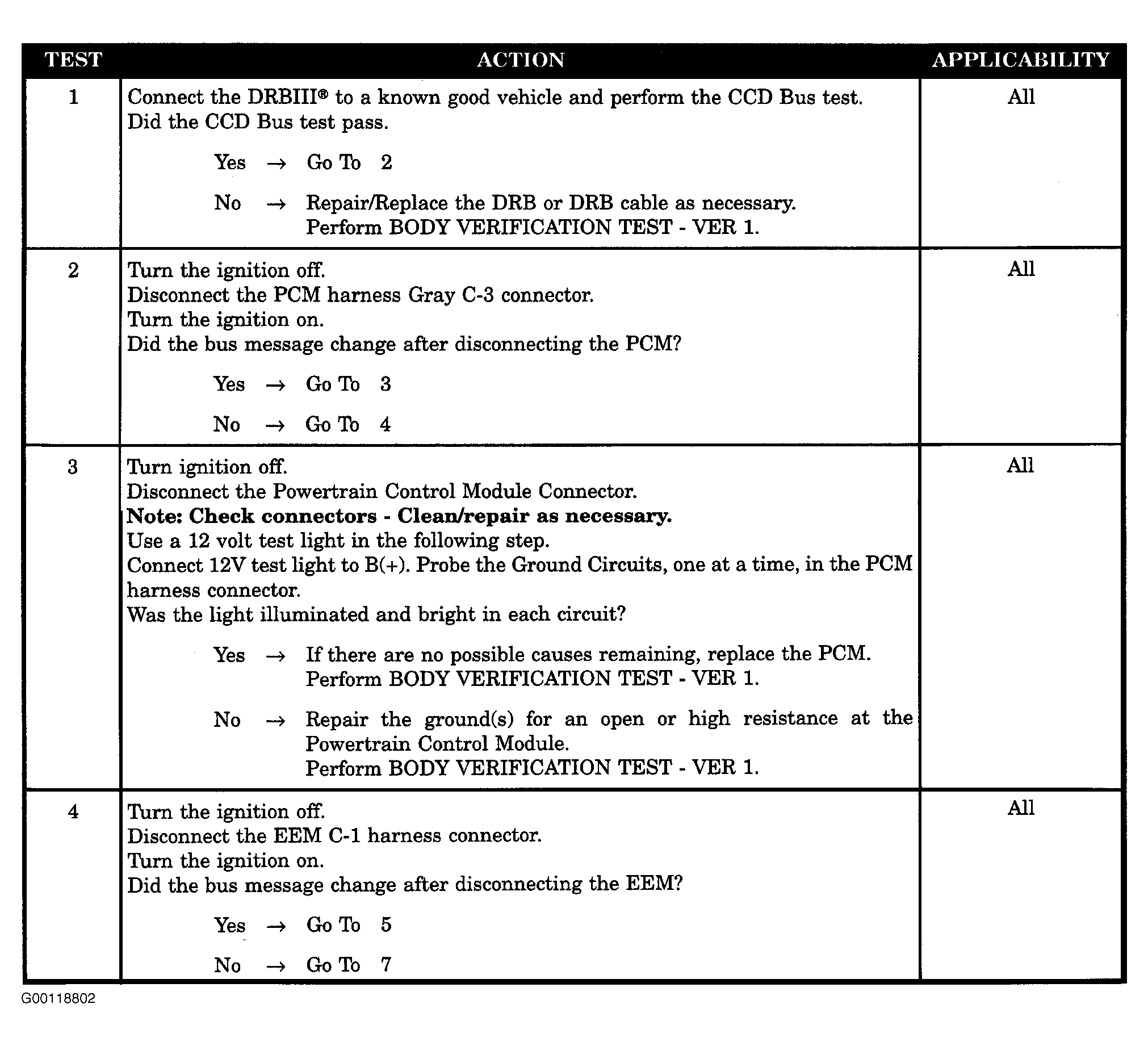

Fig 1: BUS Failure Message - Short-To-Battery Test (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

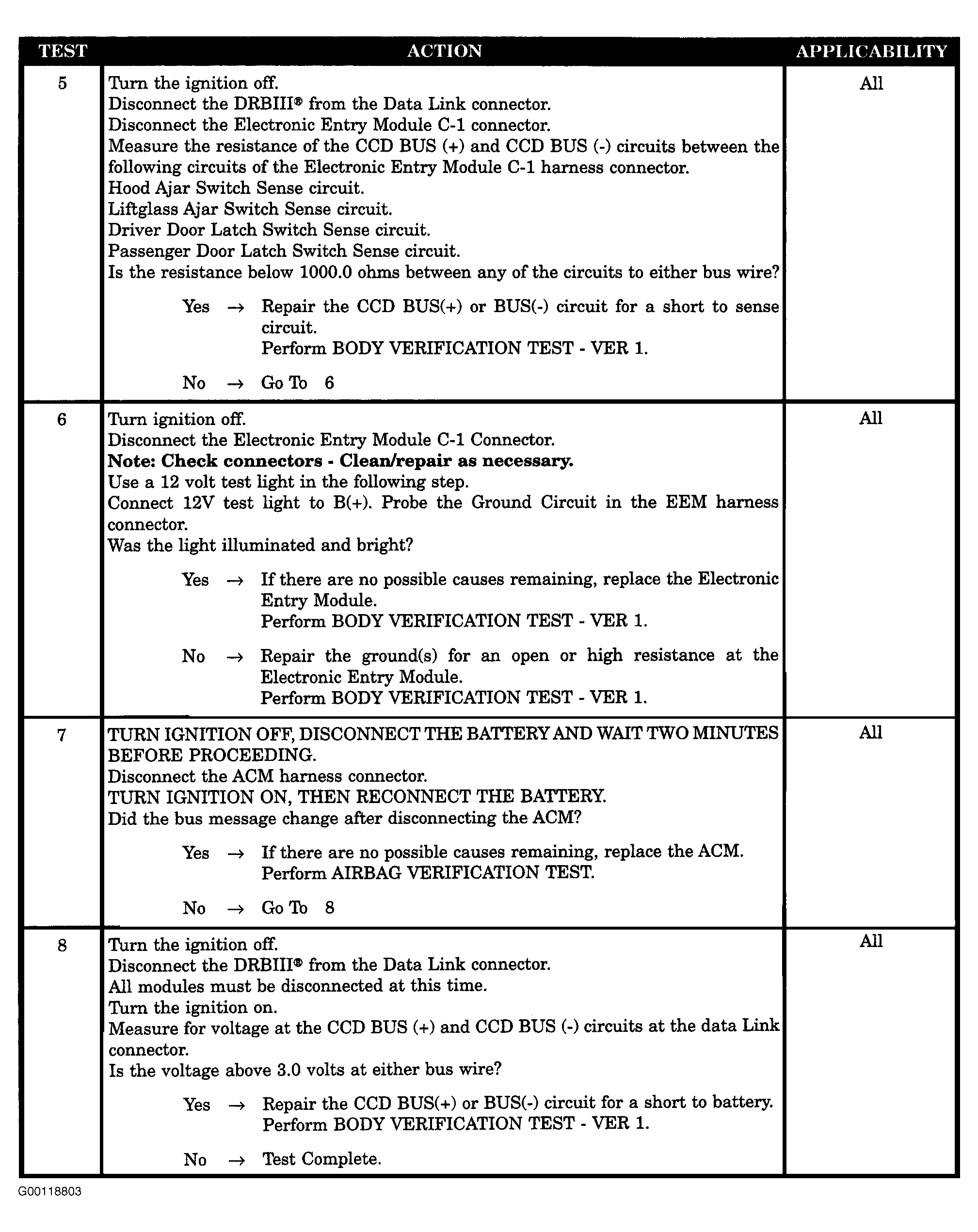

Fig 2: BUS Failure Message - Short-To-Battery Test (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
