Bus Failure Message - Short-To-5 Volts: Testing

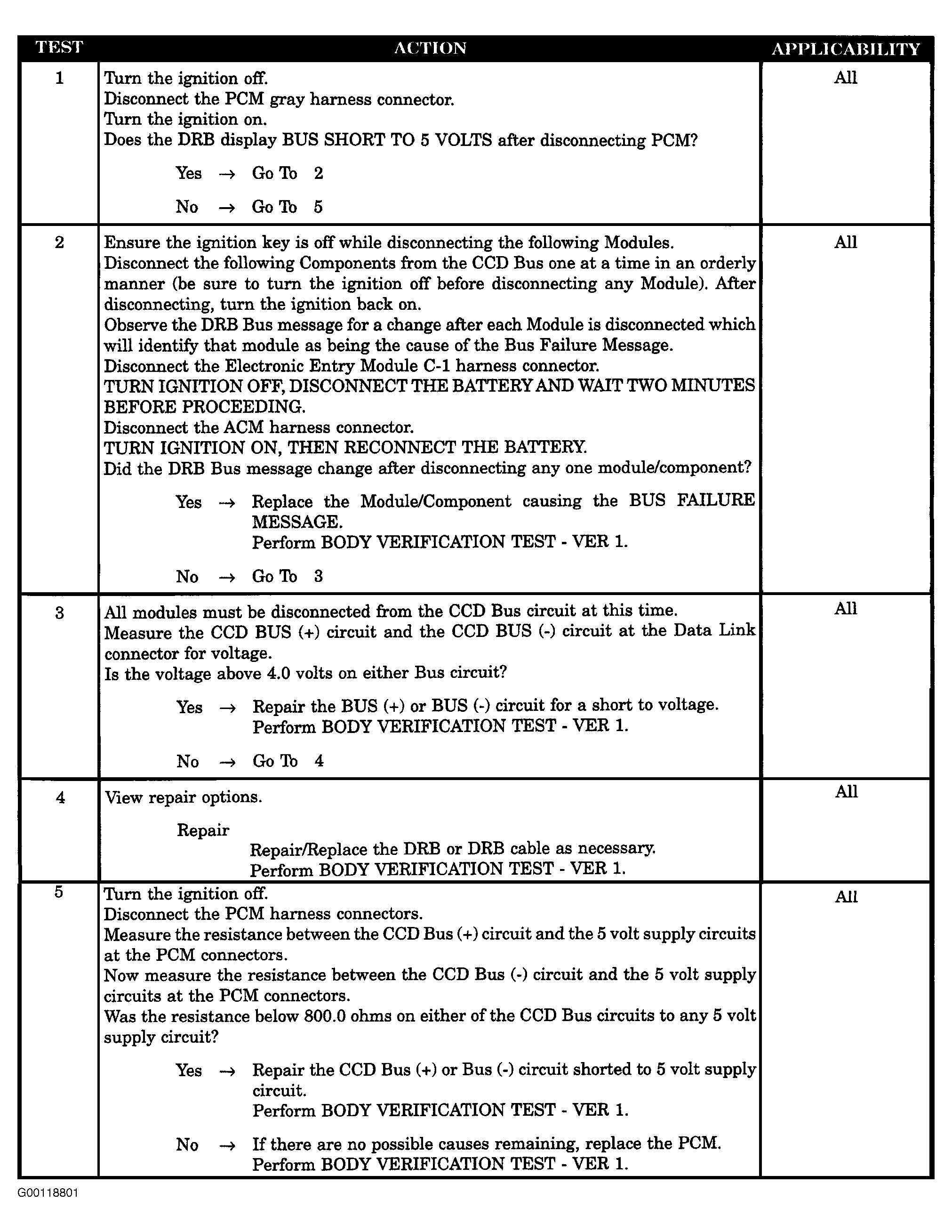

Fig 1: BUS Failure Message - Short-To-5 Volts Test

G00118801

Courtesy of DAIMLERCHRYSLER CORP.
