Fuel Pump Operation Check

Connect scan tool to Data Link Connector (DLC). DLC is located under left side of instrument panel to right of steering column. See Fig 1 . Using scan tool, force drive fuel pump on. If fuel pump does not operate, remove fuel pump relay. See Fig 2 . Connect a fused jumper wire between battery voltage and fuel pump relay connector terminal No. 2. See Fig 3 . Listen for fuel pump to operate.

Fig 1: Locating Data Link Connectors

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Underhood Fuse/Relay Box Components

Courtesy of DAIMLERCHRYSLER CORPORATION

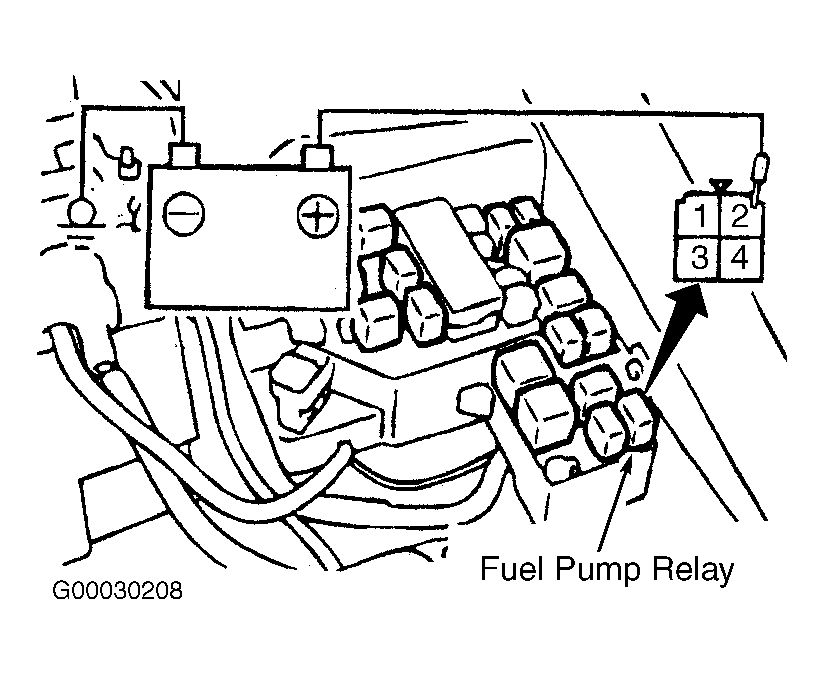

Fig 3: Energizing Fuel Pump

Courtesy of DAIMLERCHRYSLER CORPORATION
