Component Locations

NOTE: For component locations, see Fig 1 -Fig 6 .

COMPONENT LOCATIONS

Component	Location
Column ECU	Left Side Of Steering Column, Near Multifunction Switch
Data Link Connectors	Above Accelerator Pedal, Near Center Console
Electronic Timer Alarm Control System Electronic Control Unit (ETACS ECU)	Left Side Of Instrument Panel, Attached To Junction Block
Front ECU	Located In Relay Box, Next To Battery
Sun Roof ECU	Part Of Sun Roof Motor

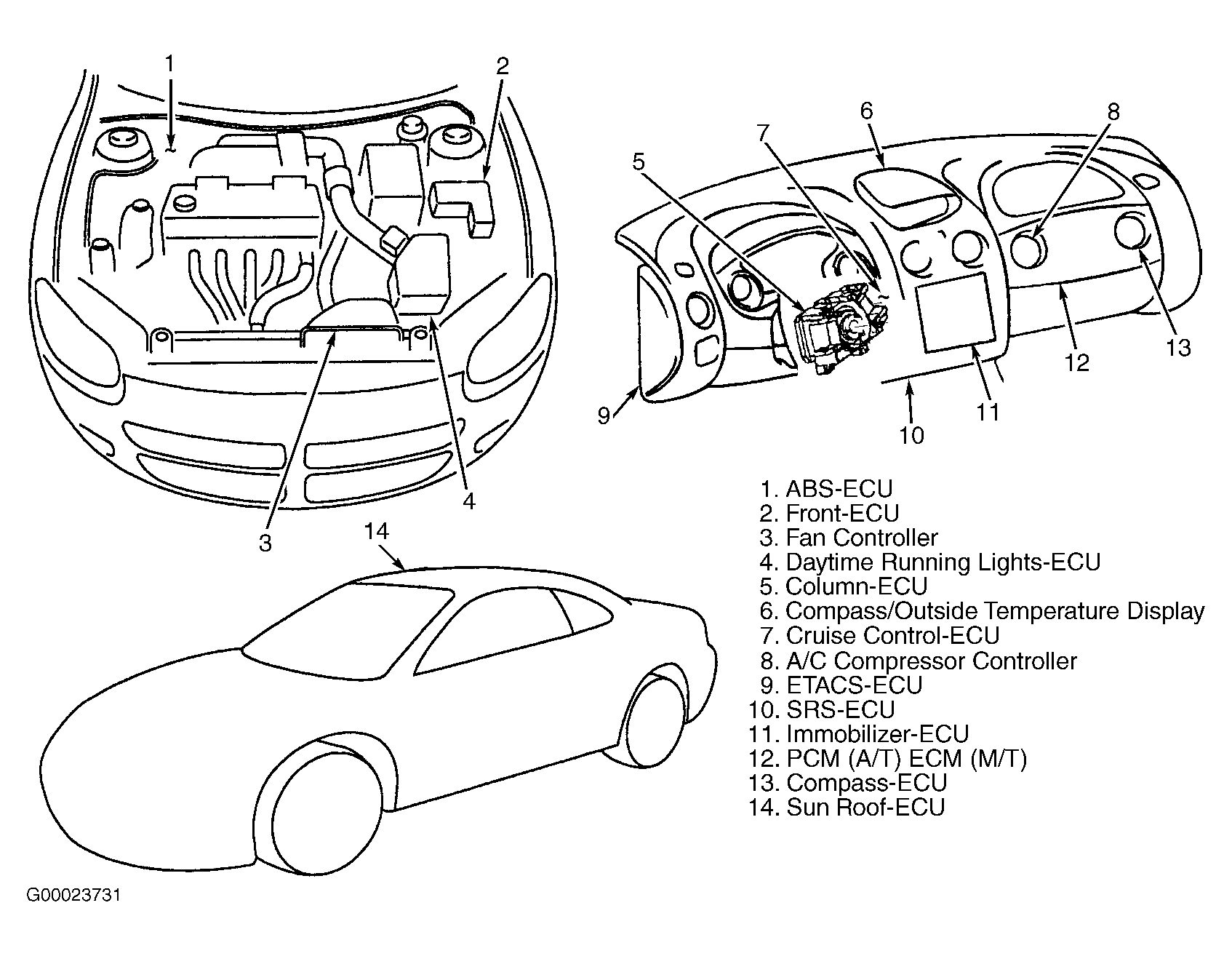

Fig 1: Locating Electronic Control Units

G00023731

Courtesy of DAIMLERCHRYSLER CORPORATION

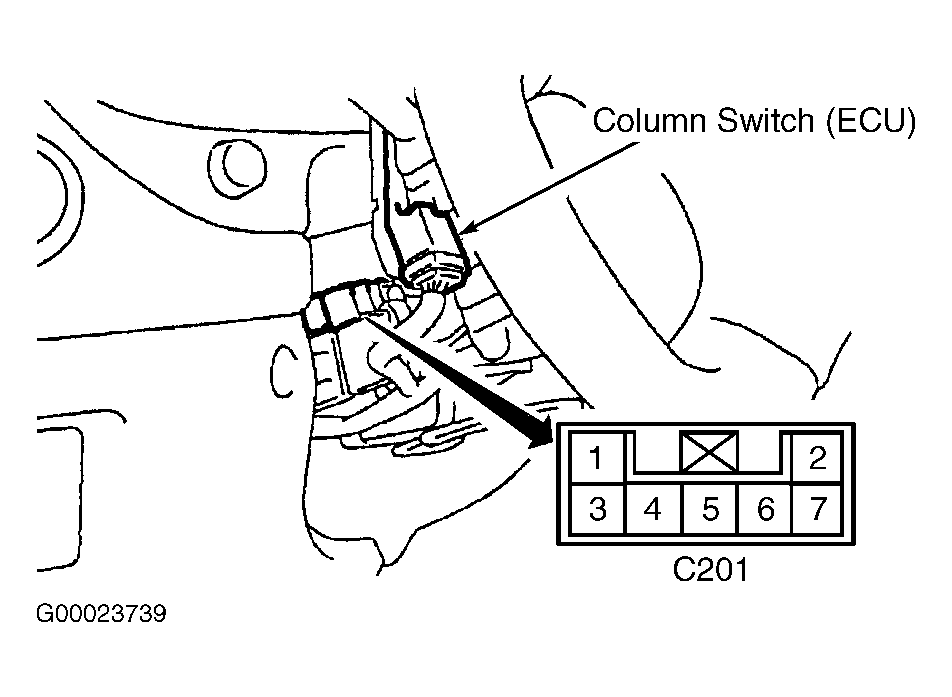

Fig 2: Locating Column ECU

G00023739

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: Locating Data Link Connector

G95E32692

Courtesy of CHRYSLER CORP.

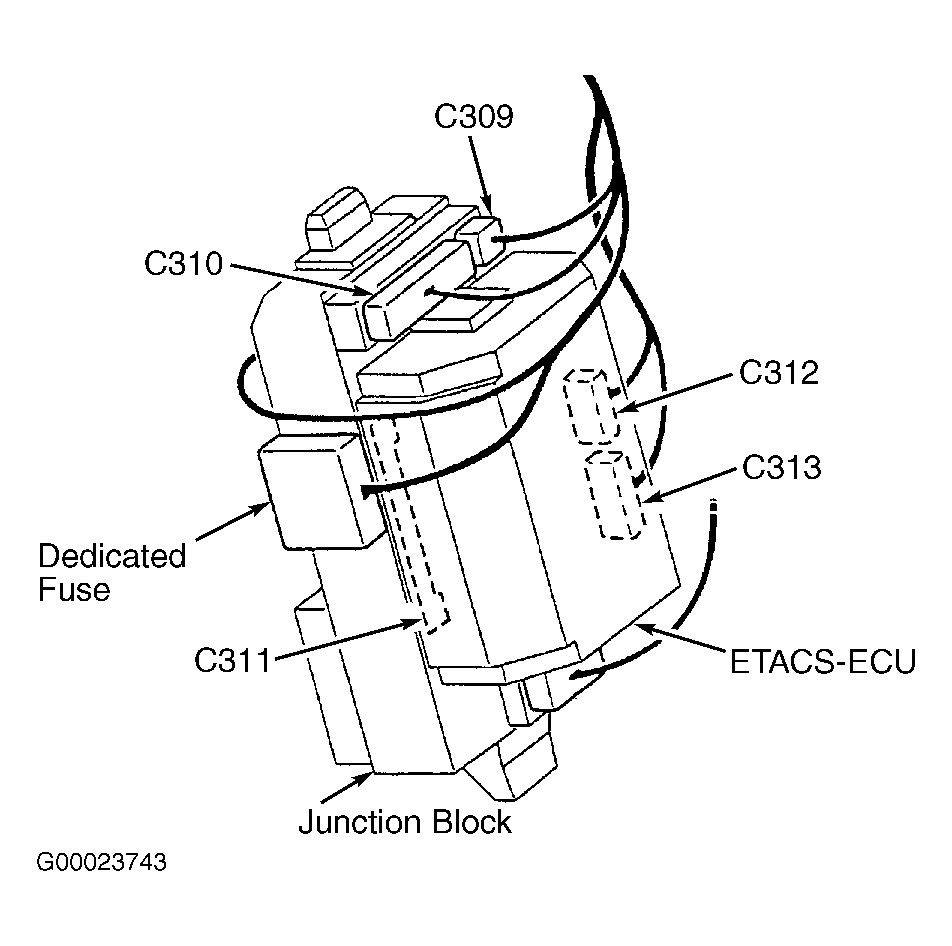

Fig 4: Locating ETACS ECU

G00023743

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Locating Front ECU

G00023735

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: Locating Sun Roof ECU

G00023747

Courtesy of DAIHATSU MOTOR CO., LTD.
