Power Mirror Switch

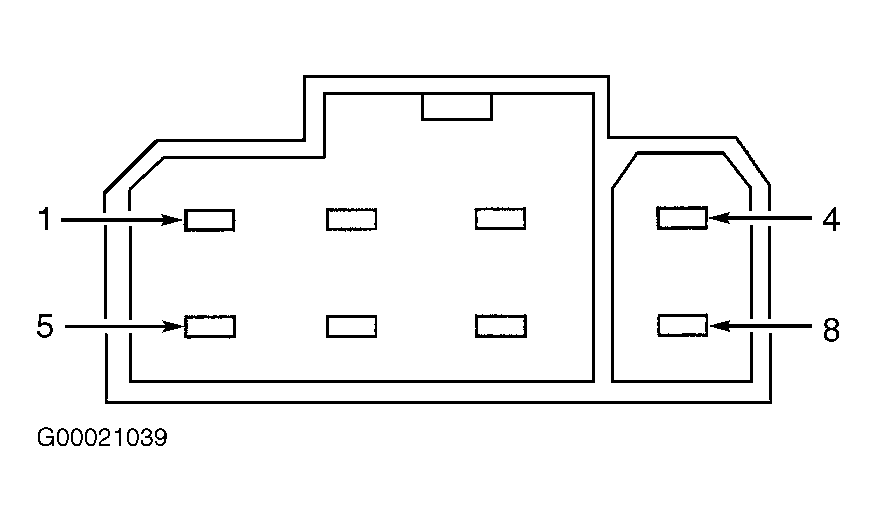

Remove power mirror switch and disconnect harness connector. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using DVOM, check continuity between power mirror switch terminals with switch in appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1 . If continuity is not as specified, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Selector Position | Continuity Between Terminals No. | ||||
|---|---|---|---|---|---|
| Dakota & Durango (1) | |||||
| "L" (Left) | |||||
| Up | 1 & 3 | ||||
| Down | 2 & 3 | ||||
| Left | 3 & 6 | ||||
| Right | 2 & 3 | ||||
| "R" (Right) | |||||
| Up | 3 & 7 | ||||
| Down | 2 & 3 | ||||
| Left | 3 & 4 | ||||
| Right | 2 & 3 | ||||
| Ram Pickup, Ram Van & Ram Wagon | |||||
| "L" (Left) | |||||
| Up | 1 & 7; 3 & 8; 4 & 7 | ||||
| Down | 1 & 8; 3 & 7; 4 & 8 | ||||
| Left | 2 & 7; 3 & 8; 5 & 7 | ||||
| Right | 2 & 8; 3 & 7; 5 & 8 | ||||
| "R" (Right) | |||||
| Up | 1 & 7; 4 & 7; 6 & 8 | ||||
| Down | 1 & 8; 4 & 8; 6 & 7 | ||||
| Left | 2 & 7; 5 & 7; 6 & 8 | ||||
| Right | 2 & 8; 4 & 8; 6 & 7 | ||||
|
|||||
