Connector Identification

NOTE: For connector identification, see Fig 1-Fig 5 .
Fig 1: Brake Switch Connector End View
G94E65742Courtesy of CHRYSLER CORP.
Fig 2: Brake Switch Harness Connector End View
G96C01642Courtesy of CHRYSLER CORP.

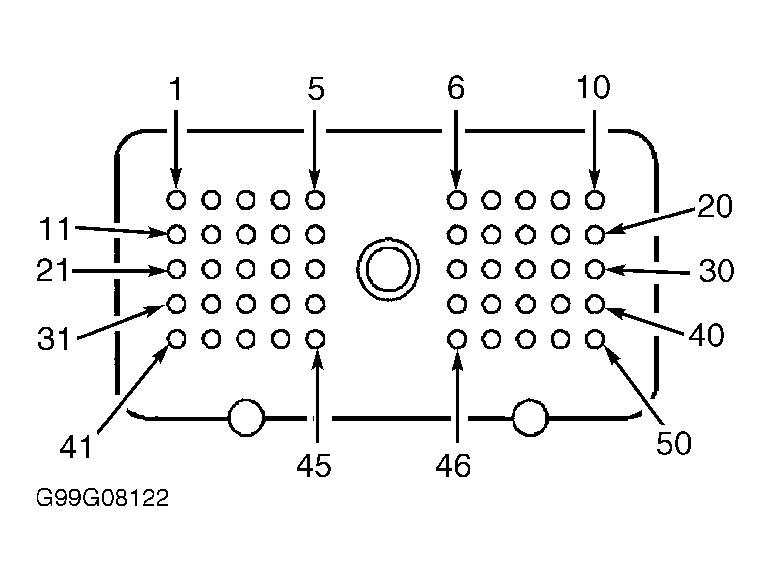

Fig 3: Electronic Control Module (ECM) Connector End View (Diesel Only)
G99G08122Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Powertrain Control Module (PCM) Connector End View
G99H02069Courtesy of CHRYSLER CORP.
Fig 5: Speed Control (S/C) Servo Connector End View
G96J01650Courtesy of CHRYSLER CORP.
