Home >> Dodge and Ram >> 2000 >> Viper RT/10 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control Self-Diagnostics >> Diagnostic Tests >> DTC P1294: Target Idle Not Reached

DTC P1294: Target Idle Not Reached

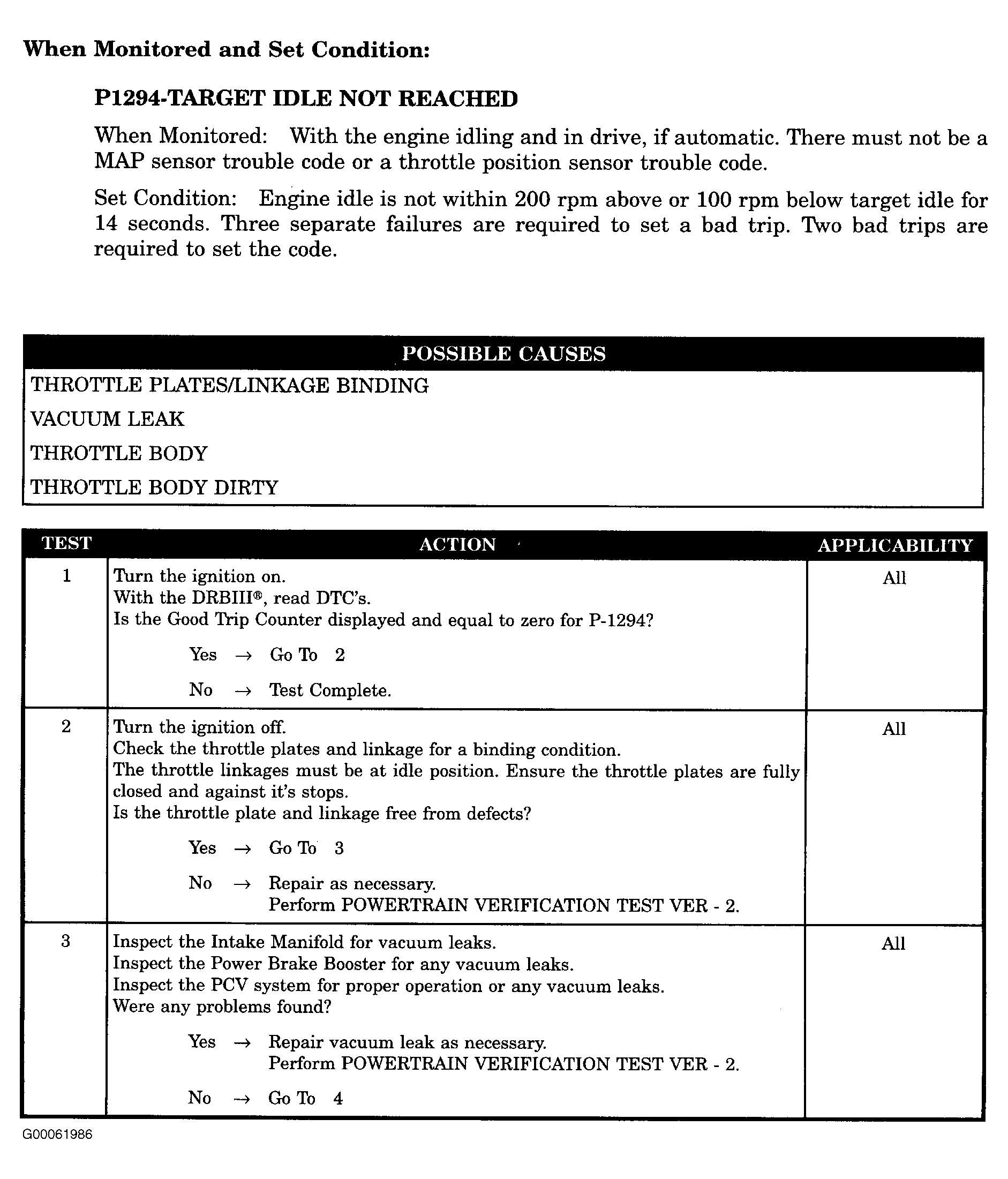

Fig 1: DTC 1294: Target Idle Not Reached (1 Of 2)
G00061986Courtesy of DAIMLERCHRYSLER CORPORATION

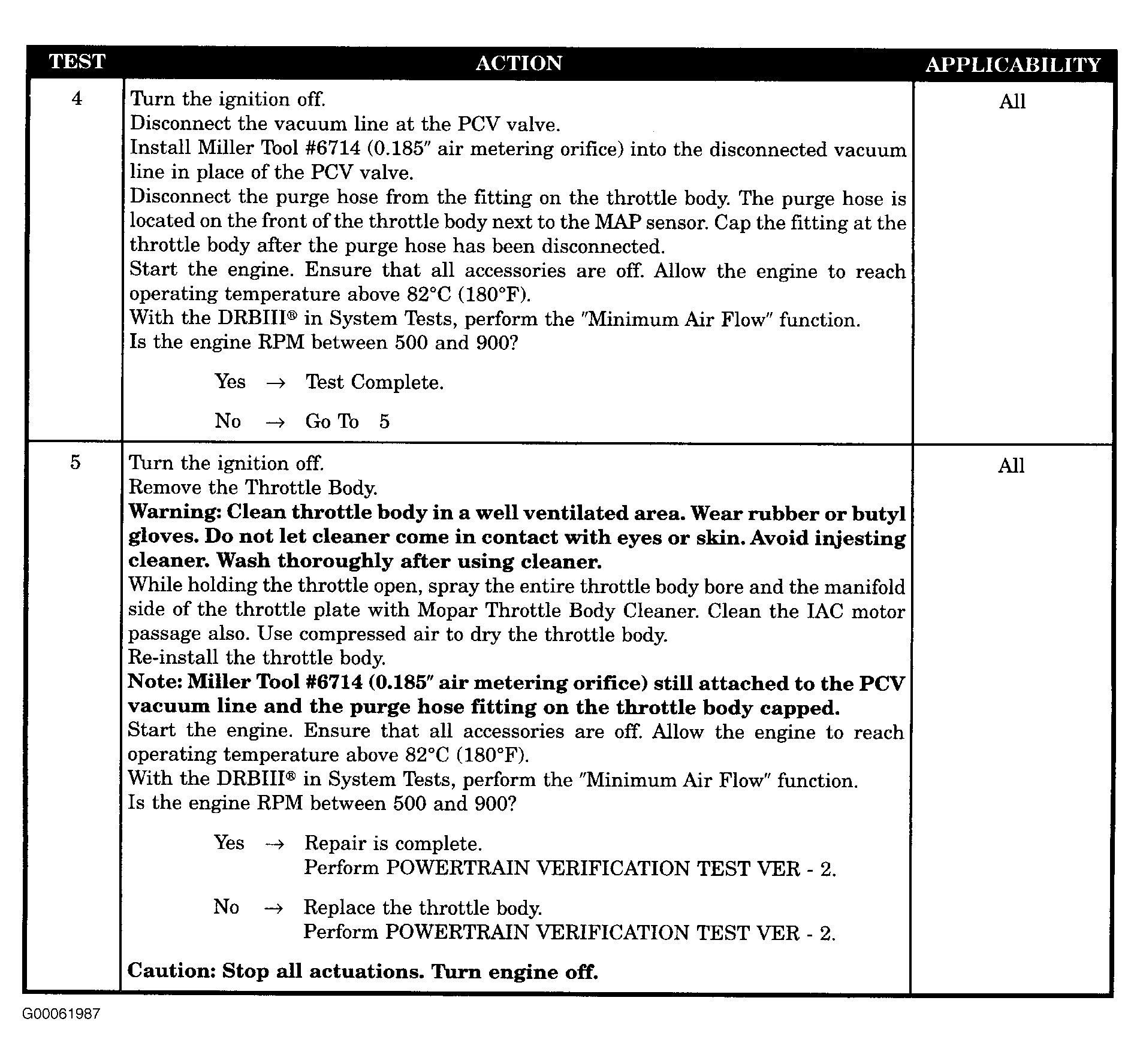

Fig 2: DTC 1294: Target Idle Not Reached (2 Of 2)
G00061987Courtesy of DAIMLERCHRYSLER CORPORATION
