DTC P0131; P0137; P0151; P0157: O2 Sensor Shorted To Ground

Fig 1: DTC P0131: O2 Sensor Shorted To Ground (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

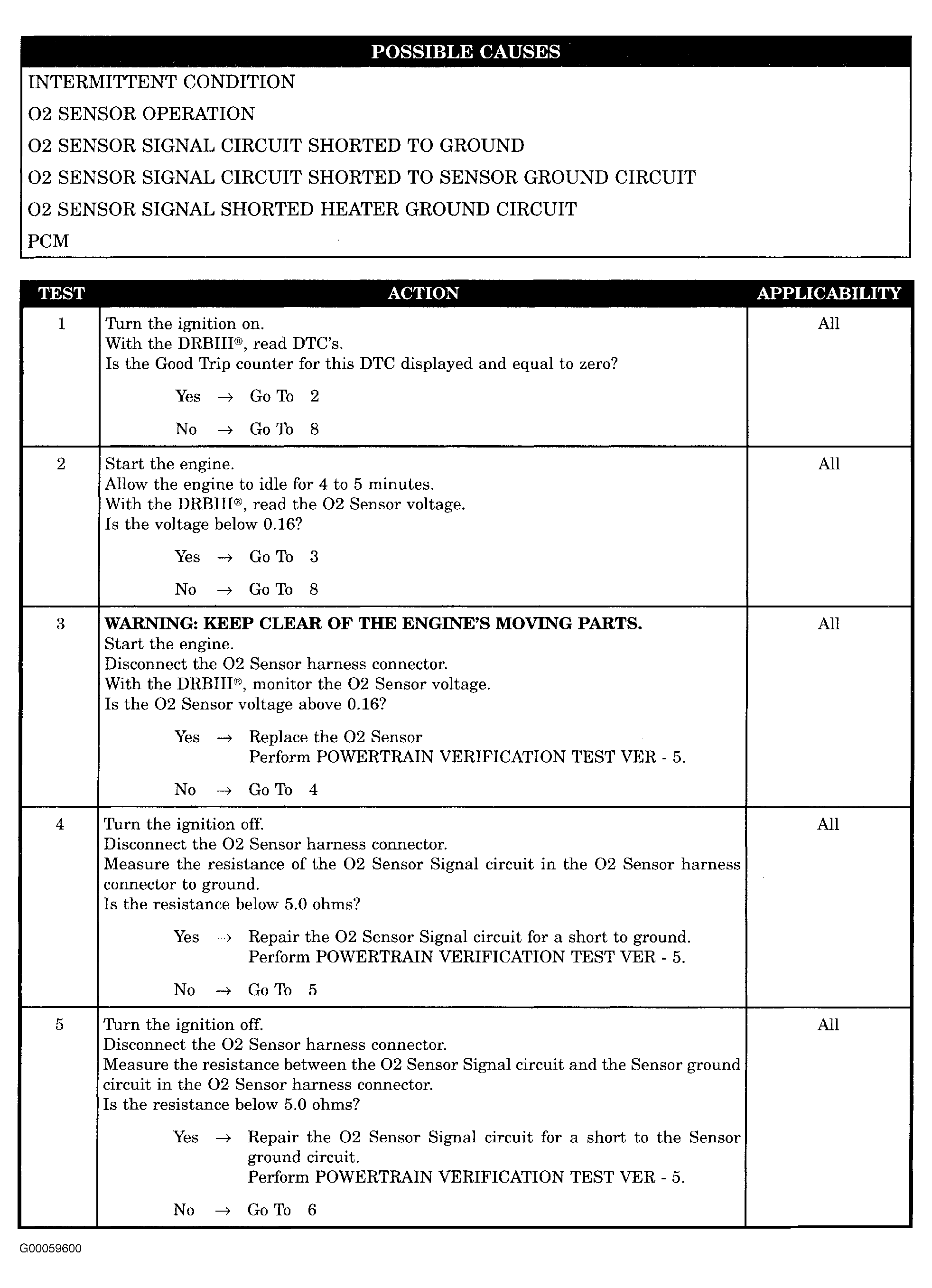

Fig 2: DTC P0131: O2 Sensor Shorted To Ground (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

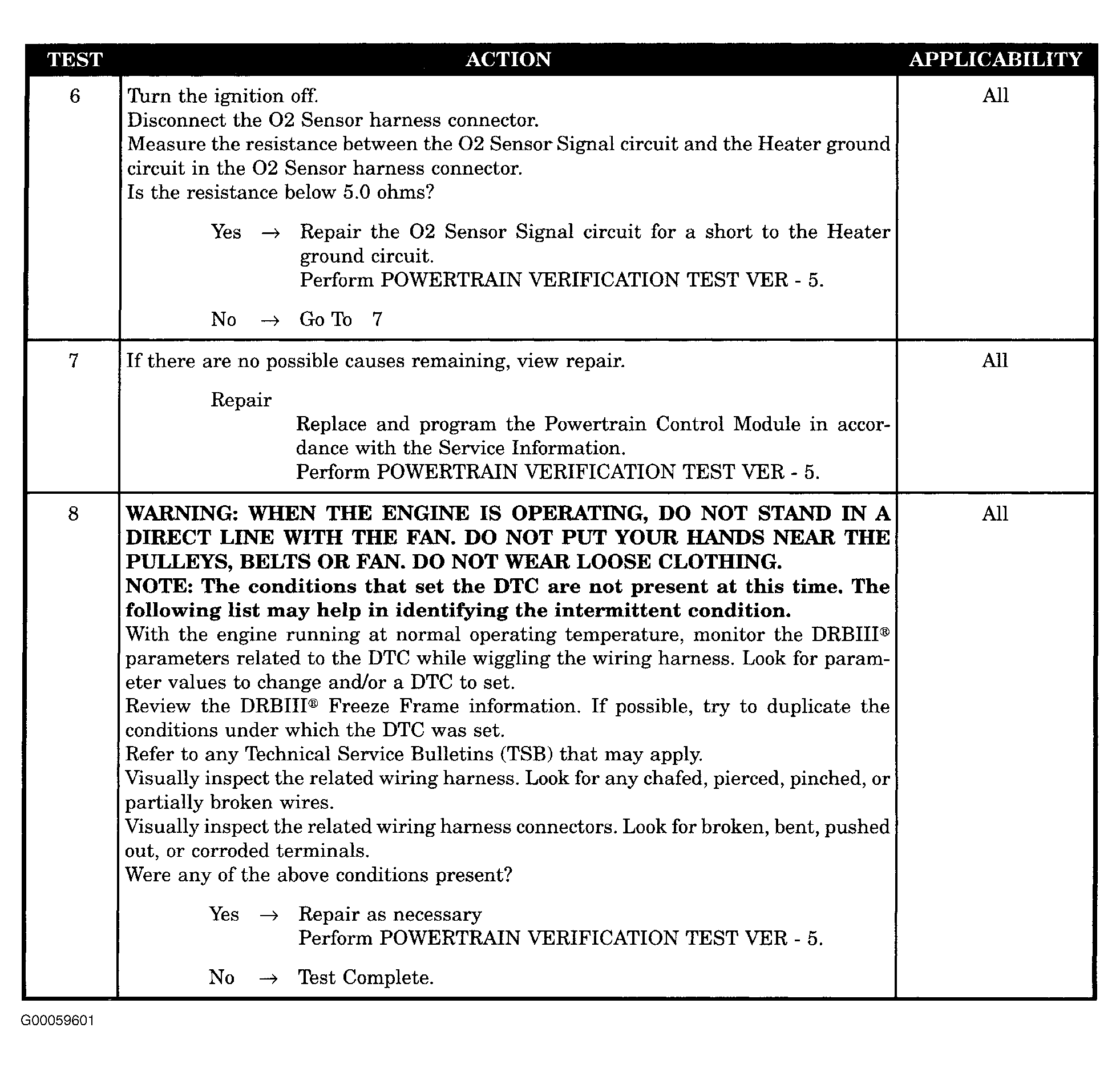

Fig 3: DTC P0131: O2 Sensor Shorted To Ground (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
